Overview

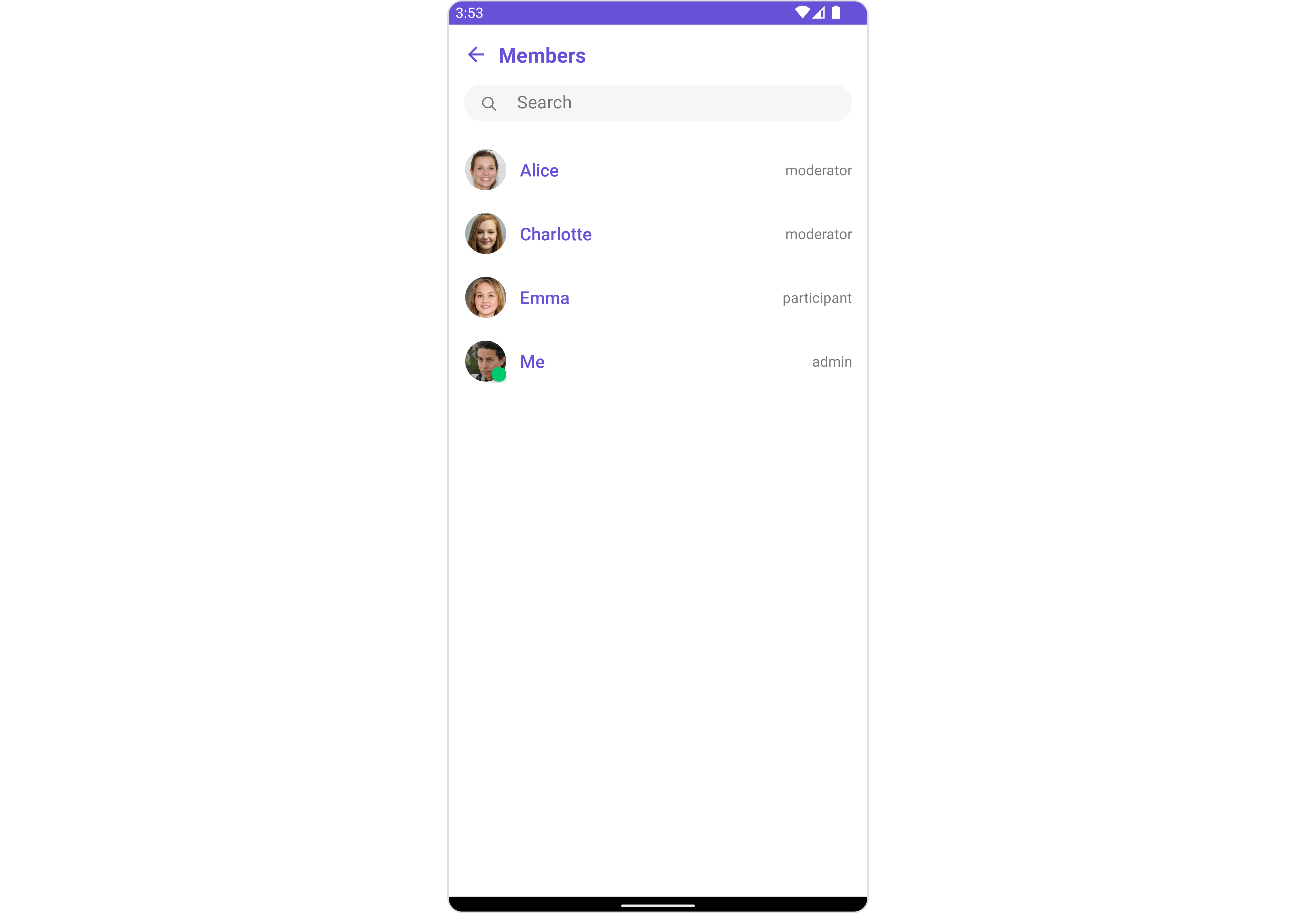

CometChatGroupMembers is a versatile Component designed to showcase all users who are either added to or invited to a group, thereby enabling them to participate in group discussions, access shared content, and engage in collaborative activities. Group members have the capability to communicate in real-time through messaging, voice and video calls, and various other interactions. Additionally, they can interact with each other, share files, and join calls based on the permissions established by the group administrator or owner.

The CometChatGroupMembers component is composed of the following BaseComponents:

Components	Description
CometChatListBase	`CometChatListBase` serves as a container component equipped with a title (navigationBar), search functionality (search-bar), background settings, and a container for embedding a list view.
CometChatListItem	This component renders information extracted from a `User` object onto a tile, featuring a title, subtitle, leading view, and trailing view. experience, facilitating seamless navigation and interaction within the component.

Usage

Integration

CometChatGroupMembers, as a Composite Component, offers flexible integration options, allowing it to be launched directly via button clicks or any user-triggered action. Additionally, it seamlessly integrates into tab view controllers. With group members, users gain access to a wide range of parameters and methods for effortless customization of its user interface. The following code snippet exemplifies how you can seamlessly integrate the GroupMembers component into your application.

<com.cometchat.chatuikit.groupmembers.CometChatGroupMembers
    android:id="@+id/group_member"
    android:layout_width="match_parent"
    android:layout_height="match_parent" />

If you’re defining the Group members within the XML code, you’ll need to extract them and set them on the Group object using the appropriate method.

CometChatGroupMembers cometchatGroupMembers = binding.groupMember;

Group group = new Group();
group.setGuid("GROUP_ID");
group.setName("GROUP_NAME");

cometchatGroupMembers.setGroup(group);

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. SetOnItemClick

This method proves valuable when users seek to override onItemClick functionality within CometChatGroupMembers, empowering them with greater control and customization options. The setItemClickListener action doesn’t have a predefined behavior. You can override this action using the following code snippet.

cometchatGroupMembers.setItemClickListener(new OnItemClickListener<GroupMember>() {
    @Override
    public void OnItemClick(GroupMember groupMember, int i) {

    }
});

2. SetOnItemLongClick

This method becomes invaluable when users seek to override long-click functionality within CometChatGroupMembers, offering them enhanced control and flexibility in their interactions. The setOnLongClickListener action doesn’t have a predefined behavior. You can override this action using the following code snippet.

cometchatGroupMembers.setOnLongClickListener(new View.OnLongClickListener() {
    @Override
    public boolean onLongClick(View view) {
        return false;
    }
});

3. SetOnError

You can customize this behavior by using the provided code snippet to override the On Error and improve error handling.

cometchatGroupMembers.setOnError(new OnError() {
    @Override
    public void onError(Context context, CometChatException e) {

    }
});

4. AddOnBackPressListener

You can customize this behavior by using the provided code snippet to override the addOnBackPressListener and improve error handling.

cometchatGroupMembers.addOnBackPressListener(new CometChatListBase.OnBackPress() {
    @Override
    public void onBack() {

    }

});

5. OnSelection

The OnSelection event is triggered upon the completion of a selection in SelectionMode. It does not have a default behavior. However, you can override its behavior using the following code snippet.

YourActivity.java

cometchatGroupMembers.setSelectionMode(UIKitConstants.SelectionMode.MULTIPLE);
cometchatGroupMembers.setOnSelection(new CometChatGroupMembers.OnSelection() {
    @Override
    public void onSelection(List<GroupMember> list) {
        // Handle selected group members here
    }
});

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

1. GroupsRequestBuilder

The GroupsRequestBuilder enables you to filter and customize the group list based on available parameters in GroupsRequestBuilder. This feature allows you to create more specific and targeted queries when fetching groups. The following are the parameters available in GroupsRequestBuilder

Property	Description	Code
Limit	Sets the number of group members that can be fetched in a single request, suitable for pagination.	`.setLimit(int)`
Search Keyword	Used for fetching group members matching the passed string.	`.setSearchKeyword(String)`
Scopes	Used for fetching group members having matching scopes which may be of participant, moderator, admin, and owner.	`.setScopes(List<String>)`

Example In the example below, we are applying a filter to the Group List based on limit and scope.

GroupMembersRequest.GroupMembersRequestBuilder groupMembersRequestBuilder= new GroupMembersRequest.GroupMembersRequestBuilder(GUID).setLimit(limit);

cometchatGroupMembers.setGroupMembersRequestBuilder(groupMembersRequestBuilder);

2. SearchRequestBuilder

The SearchRequestBuilder uses GroupsRequestBuilder enables you to filter and customize the search list based on available parameters in GroupsRequestBuilder. This feature allows you to keep uniformity between the displayed Groups List and searched Group List. Example

GroupMembersRequest.GroupMembersRequestBuilder groupMembersRequestBuilder= new GroupMembersRequest.GroupMembersRequestBuilder(GUID).setLimit(LIMIT).setSearchKeyword(SEARCH_KEYWORD);

cometchatGroupMembers.setSearchRequestBuilder(groupMembersRequestBuilder);

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. Events emitted by the Join Group component is as follows.

Event	Description
ccGroupMemberBanned	Triggers when the group member banned from the group successfully
ccGroupMemberKicked	Triggers when the group member kicked from the group successfully
ccGroupMemberScopeChanged	Triggers when the group member scope is changed in the group

CometChatGroupEvents.addGroupListener("LISTENER_ID", new CometChatGroupEvents() {
    @Override
    public void ccGroupMemberKicked(Action actionMessage, User kickedUser, User kickedBy, Group kickedFrom) {
        super.ccGroupMemberKicked(actionMessage, kickedUser, kickedBy, kickedFrom);
    }

    @Override
    public void ccGroupMemberBanned(Action actionMessage, User bannedUser, User bannedBy, Group bannedFrom) {
        super.ccGroupMemberBanned(actionMessage, bannedUser, bannedBy, bannedFrom);
    }

    @Override
    public void ccGroupMemberScopeChanged(Action actionMessage, User updatedUser, String scopeChangedTo, String scopeChangedFrom, Group group) {
        super.ccGroupMemberScopeChanged(actionMessage, updatedUser, scopeChangedTo, scopeChangedFrom, group);
    }

});

Remove the added listener

CometChatGroupEvents.removeListener("LISTENER_ID");

Customization

To fit your app’s design requirements, you can customize the appearance of the Groups component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. GroupMembers Style

You can set the GroupMembersStyle to the Group Memebers Component to customize the styling.

GroupMembersStyle groupMembersStyle = new GroupMembersStyle();
groupMembersStyle.setBackground(getResources().getColor(R.color.white_300));
groupMembersStyle.setTitleColor(getResources().getColor(R.color.red));

cometchatGroupMembers.setStyle(groupMembersStyle);

List of properties exposed by GroupMemberStyle

Property	Description	Code
Background	Used to set the background color	`.setBackground(@ColorInt int)`
Border Width	Used to set border	`.setBorderWidth(int)`
Border Color	Used to set border color	`.setBorderColor(@ColorInt int)`
Corner Radius	Used to set border radius	`.setCornerRadius(float)`
Background	Used to set background Drawable	`.setBackground(Drawable)`
Title Appearance	Used to customise the appearance of the title in the app bar	`.setTitleAppearance(@StyleRes int)`
BackIcon Tint	Used to set the color of the back icon in the app bar	`.setBackIconTint(@ColorInt int)`
Search Background	Used to set the background color of the search box	`.setSearchBackground(@ColorInt int)`
Search Border Radius	Used to set the border radius of the search box	`.setSearchBorderRadius(int)`
Search Icon Tint	Used to set the color of the search icon in the search box	`.setSearchIconTint(@ColorInt int)`
Search Border Width	Used to set the border width of the search box	`.setSearchBorderWidth(int)`
Search Text Appearance	Used to set the style of the text in the search box	`.setSearchTextAppearance(@StyleRes int)`

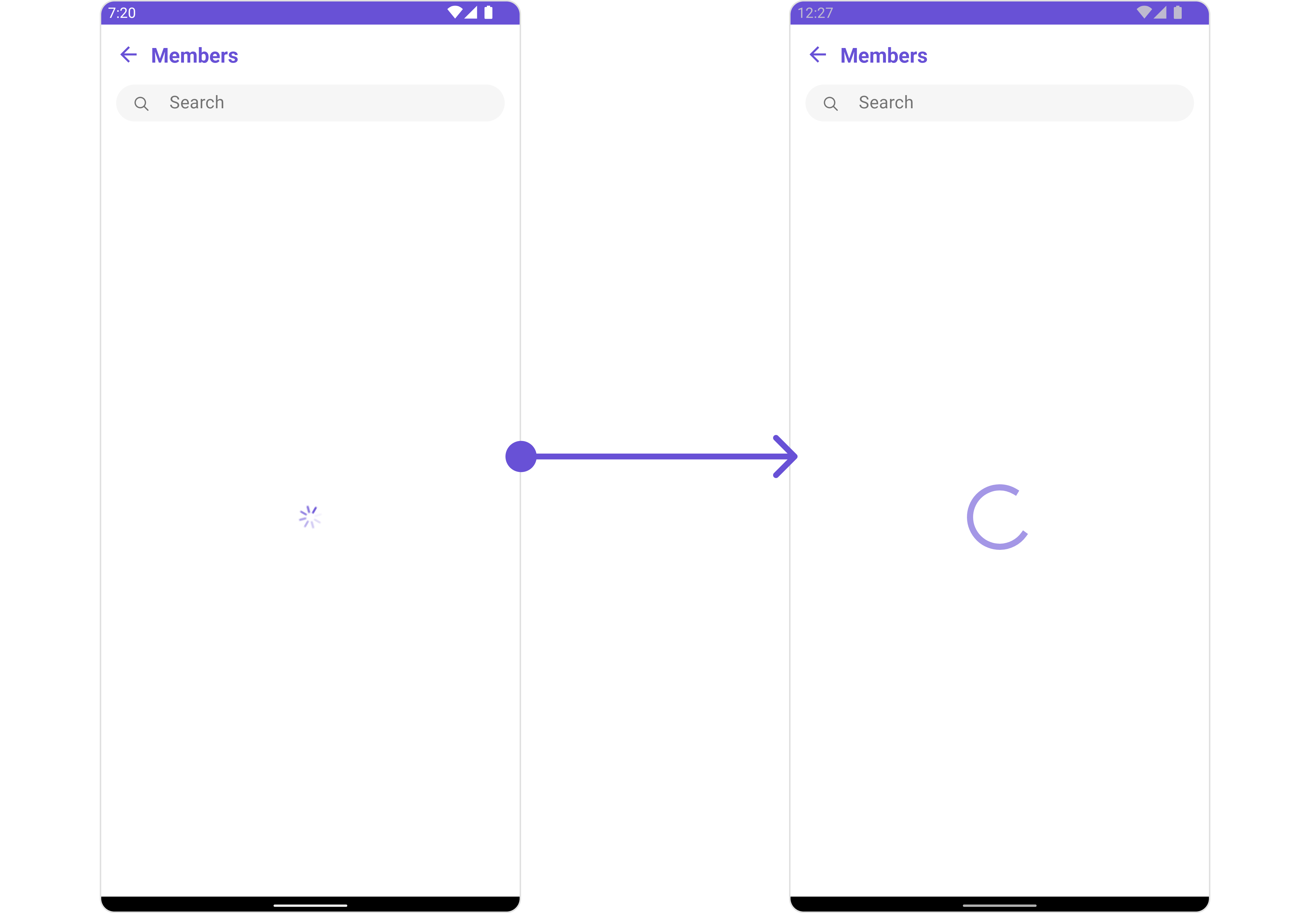

Loading Icon Tint	Used to set the color of the icon shown while the list of group members is being fetched	`.setLoadingIconTint(@ColorInt int)`
Empty Text Appearance	Used to set the style of the response text shown when fetching the list of group members has returned an empty list	`.setEmptyTextAppearance(@StyleRes int)`
Error Text Appearance	Used to set the style of the response text shown in case some error occurs while fetching the list of group members	`.setErrorTextAppearance(@StyleRes int)`
Online Status Color	Used to set the color of the status indicator shown if a group member is online	`.setOnlineStatusColor(@ColorInt int)`
Separator Color	Used to set the color of the divider separating the group member items	`.setSeparatorColor(@ColorInt int)`

2. Avatar Style

To apply customized styles to the Avatar component in the Group Member Component, you can use the following code snippet. For further insights on Avatar Styles refer

AvatarStyle avatarStyle = new AvatarStyle();
avatarStyle.setBorderWidth(10);
avatarStyle.setBorderColor(Color.BLACK);
cometchatGroupMembers.setAvatarStyle(avatarStyle);

3. StatusIndicator Style

To apply customized styles to the Status Indicator component in the Group Member Component, You can use the following code snippet. For further insights on Status Indicator Styles refer

StatusIndicatorStyle statusIndicatorStyle = new StatusIndicatorStyle();
statusIndicatorStyle.setCornerRadius(3.5f);
statusIndicatorStyle.setBorderColor(Color.YELLOW);
cometchatGroupMembers.setStatusIndicatorStyle(statusIndicatorStyle);

4. ListItem Style

To apply customized styles to the List Item component in the Group Member Component, you can use the following code snippet. For further insights on List Item Styles refer

ListItemStyle listItemStyle = new ListItemStyle();
listItemStyle.setBackground(R.color.purple_200);
listItemStyle.setBorderWidth(2);
listItemStyle.setBorderColor(R.color.purple_700);
listItemStyle.setCornerRadius(20);
cometchatGroupMembers.setListItemStyle(listItemStyle);

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

cometchatGroupMembers.setTitle("Your Title");
cometchatGroupMembers.disableUsersPresence(true);
cometchatGroupMembers.hideSeparator(true);

Property	Description	Code
Group	The group for which the group members will be listed. A required parameter.	`.setGroup(Group)`
Title	Used to set title in the app bar	`.setTitle(String)`
Style	Used to set styling properties	`.setStyle(GroupMembersStyle)`
Avatar Style	Used to customise the Avatar of the group member	`.setAvatarStyle(AvatarStyle)`
Status Indicator Style	Used to customise the status indicator shown if a group member is online	`.setStatusIndicatorStyle(StatusIndicatorStyle)`
Search Placeholder Text	Used to set search placeholder text	`.setSearchPlaceholderText(String)`
Back Icon	Used to set back button widget	`.backIcon(@DrawableRes int res)`
Show Back Button	Used to toggle visibility for back button	`.showBackButton(boolean)`
Search Box Icon	Used to set search Icon in the search field	`.setSearchBoxIcon(@DrawableRes int res)`
Hide Search	Used to toggle visibility for search box	`.hideSearch(boolean)`
Hide Error	Used to hide error on fetching group members	`.hideError(boolean)`
Hide Separator	Used to hide the divider separating the group member items	`.hideSeparator(boolean)`
Disable Users Presence	Used to control visibility of group member indicator shown if group member is online	`.disableUsersPresence(boolean)`
List Item Style	Used to set style to Tile which displays data obtained from a GroupMember object	`.setListItemStyle(ListItemStyle)`
Selection Icon	Used to override the of the default item selection icon	`.setSelectionIcon(@DrawableRes int selectionIcon)`
Submit Icon	Used to override the default selection complete icon	`.setSubmitIcon(@DrawableRes int submitIcon)`
Selection Mode	Used to set the number of group members that can be selected if activateSelection is not null. SelectionMode can be single, multiple or none.	`.setSelectionMode(SelectionMode)`

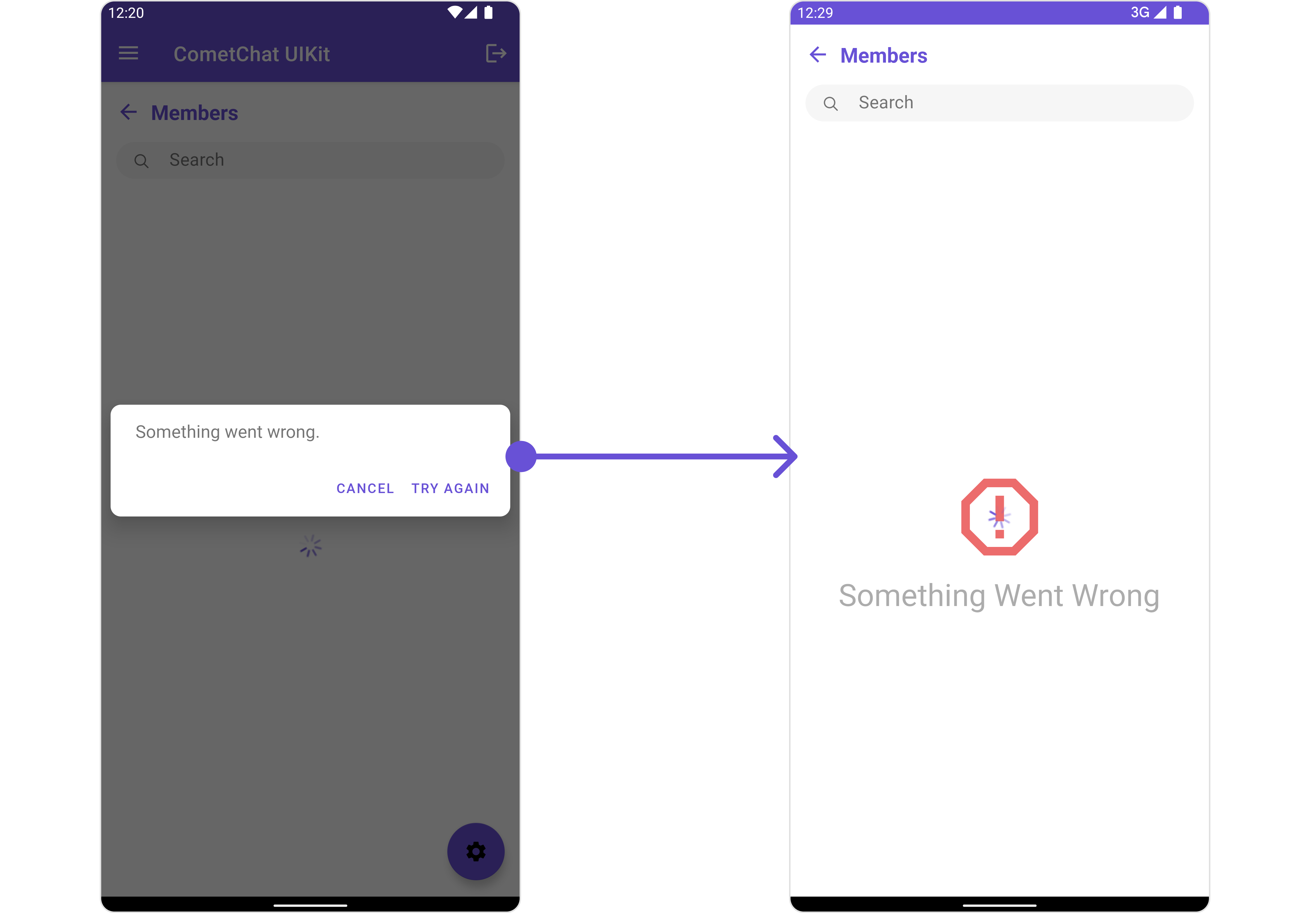

Error State Text	Used to set a custom text response when some error occurs on fetching the list of group members	`.errorStateText(String)`

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your own views, layouts, and UI elements and then incorporate those into the component. The Group Memebers component does not provide additional functionalities beyond this level of customization.

SetOptions

You can set a List of CometChatOption for a Members to add your custom actions to the Members. These options will be visible when swiping any Members item.

cometchatGroupMembers.setOptions((context, groupMember, group) -> {
    // Handle banned member options here (return null for default behavior)
    return null;
});

Example

YourActivity.java

cometchatGroupMembers.setOptions((context, groupMember, group) -> {
    List<CometChatOption> optionList = new ArrayList<>();

    CometChatOption option = new CometChatOption();
    option.setId("option_send_photo");
    option.setIcon(R.drawable.ic_camera);
    option.setBackgroundColor(Color.CYAN);
    option.setOnClick(() -> {
        // Your Action onClick of option
    });
    optionList.add(option);

    CometChatOption option2 = new CometChatOption();
    option2.setId("option_audio_call");
    option2.setIcon(R.drawable.ic_call);
    option2.setBackgroundColor(Color.BLUE);
    option2.setOnClick(() -> {
        // Your Action onClick of option
    });
    optionList.add(option2);

    CometChatOption option3 = new CometChatOption();
    option3.setId("option_video_call");
    option3.setIcon(R.drawable.ic_video);
    option3.setBackgroundColor(Color.RED);
    option3.setOnClick(() -> {
        // Your Action onClick of option
    });
    optionList.add(option3);

    return optionList;

});

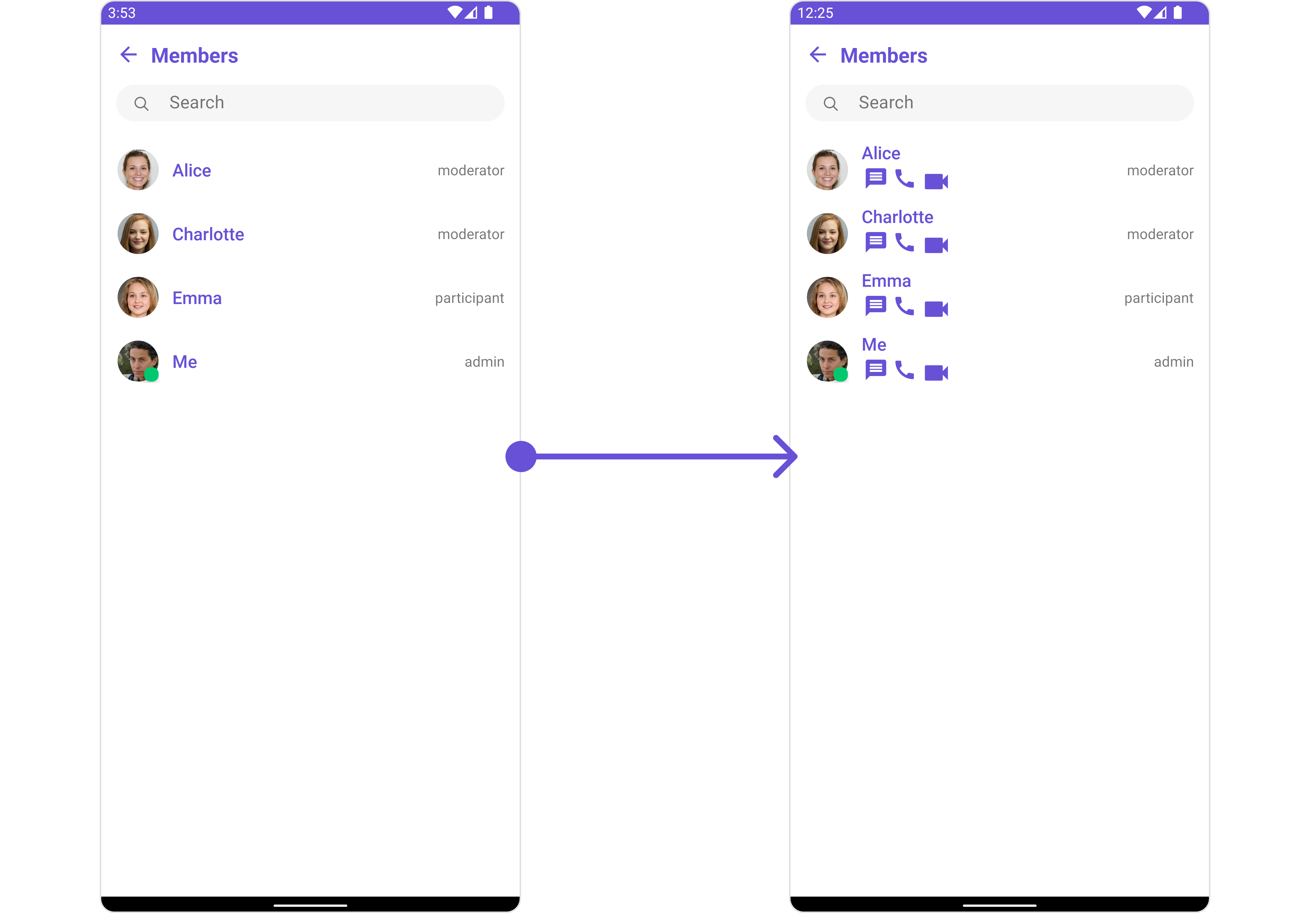

SetListItemView

With this function, you can assign a custom ListItem to the Conversations Component.

cometchatGroupMembers.setListItemView(new GroupMembersViewHolderListeners() {
    @Override
    public View createView(Context context, CometChatListItem cometChatListItem) {
        return null;
    }

    @Override
    public void bindView(Context context, View view, GroupMember groupMember, Group group, RecyclerView.ViewHolder viewHolder, List<GroupMember> list, int i) {

    }
});

Example You can indeed create a custom layout file named item_list.xml for more complex or unique list items. Once this layout file is made, you would inflate it inside the createView() method of the GroupsViewHolderListener. The inflation process prepares the layout for use in your application: Following this, you would use the bindView() method to initialize and assign values to your individual views. This could include setting text on TextViews, images on ImageViews, and so on based on the properties of the Group object:

item_list.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <androidx.cardview.widget.CardView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_margin="5dp"
        android:elevation="10dp"
        app:cardBackgroundColor="@color/purple_500"
        app:cardCornerRadius="10dp">

        <RelativeLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content">

            <com.cometchat.chatuikit.shared.views.CometChatAvatar.CometChatAvatar
                android:id="@+id/item_avatar"
                android:layout_width="50dp"
                android:layout_height="50dp"
                android:layout_centerVertical="true"
                android:layout_margin="10dp"
                android:padding="10dp" />

            <TextView
                android:id="@+id/txt_item_name"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_centerVertical="true"
                android:layout_toRightOf="@+id/item_avatar"
                android:text="name"
                android:textSize="17sp" />

            <TextView
                android:id="@+id/txt_item_date"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_alignParentEnd="true"
                android:layout_centerVertical="true"
                android:layout_margin="10dp"
                android:text="date"
                android:textSize="12sp" />
        </RelativeLayout>
    </androidx.cardview.widget.CardView>
</RelativeLayout>

YourActivity.java

cometchatGroupMembers.setListItemView(new GroupMembersViewHolderListeners() {
    @Override
    public View createView(Context context, CometChatListItem cometChatListItem) {
        View view = getLayoutInflater().inflate(R.layout.item_list, null);
        return view;
    }

    @Override
    public void bindView(Context context, View view, GroupMember groupMember, Group group, RecyclerView.ViewHolder viewHolder, List<GroupMember> list, int i) {
        CometChatAvatar avatarView = view.findViewById(R.id.item_avatar);
        avatarView.setRadius(100);
        TextView nameView = view.findViewById(R.id.txt_item_name);
        nameView.setText(groupMember.getName());
        avatarView.setImage(groupMember.getAvatar(), groupMember.getName());
    }
});

SetSubTitleView

You can customize the subtitle view for each conversation item to meet your requirements

cometchatGroupMembers.setSubtitleView(new GroupMembersViewHolderListeners() {
    @Override
    public View createView(Context context, CometChatListItem cometChatListItem) {
        return null;
    }

    @Override
    public void bindView(Context context, View view, GroupMember groupMember, Group group, RecyclerView.ViewHolder viewHolder, List<GroupMember> list, int i) {

    }
});

Example

You can indeed create a custom layout file named subtitle_layout.xml for more complex or unique list items. Once this layout file is made, you would inflate it inside the createView() method of the GroupsViewHolderListener. The inflation process prepares the layout for use in your application: Following this, you would use the bindView() method to initialize and assign values to your individual views. This could include setting text on TextViews, images on ImageViews, and so on based on the properties of the Group object:

subtitle_layout.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <TextView
        android:id="@+id/txt_subtitle"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Subtitle" />

    <ImageView
        android:id="@+id/img_conversation"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@+id/txt_subtitle"
        android:layout_margin="2dp"
        android:src="@drawable/ic_message_grey" />

    <ImageView
        android:id="@+id/img_audio_call"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@+id/txt_subtitle"
        android:layout_margin="2dp"
        android:layout_toEndOf="@+id/img_conversation"
        android:src="@drawable/ic_call" />

    <ImageView
        android:id="@+id/img_video_call"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@+id/txt_subtitle"
        android:layout_margin="2dp"
        android:layout_toEndOf="@+id/img_audio_call"
        android:src="@drawable/ic_video" />

</RelativeLayout>

YourActivity.java

cometchatGroupMembers.setSubtitleView(new GroupMembersViewHolderListeners() {
    @Override
    public View createView(Context context, CometChatListItem cometChatListItem) {
        View view = getLayoutInflater().inflate(R.layout.subtitle_layout, null);
        return view;
    }

    @Override
    public void bindView(Context context, View view, GroupMember groupMember, Group group, RecyclerView.ViewHolder viewHolder, List<GroupMember> list, int i) {
        TextView txtSubtitle = view.findViewById(R.id.txt_subtitle);
        ImageView imgConversation = view.findViewById(R.id.img_conversation);
        ImageView imgAudioCall = view.findViewById(R.id.img_audio_call);;
        ImageView imgVideCall = view.findViewById(R.id.img_video_call);;
        txtSubtitle.setText(group.getName());
        imgConversation.setOnClickListener(v -> {
            Toast.makeText(context, "Conversation Clicked", Toast.LENGTH_SHORT).show();
        });
        imgAudioCall.setOnClickListener(v -> {
            Toast.makeText(context, "Audio Call Clicked", Toast.LENGTH_SHORT).show();
        });
        imgVideCall.setOnClickListener(v -> {
            Toast.makeText(context, "Video Call Clicked", Toast.LENGTH_SHORT).show();
        });
    }
});

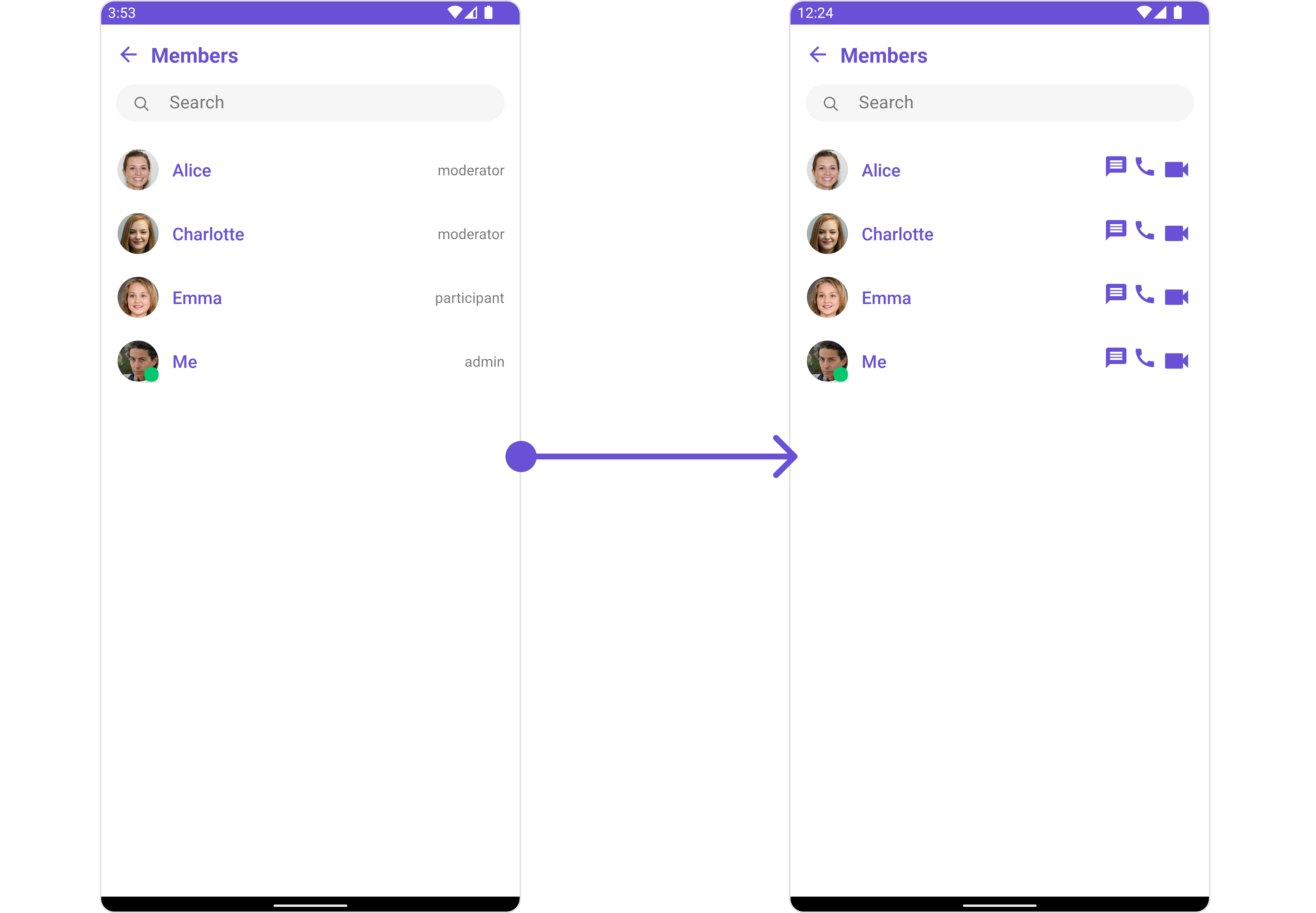

SetTailView

Used to generate a custom trailing view for the GroupList item. You can add a Tail view using the following method.

cometchatGroupMembers.setTailView(new GroupMembersViewHolderListeners() {
    @Override
    public View createView(Context context, CometChatListItem cometChatListItem) {
        return null;
    }

    @Override
    public void bindView(Context context, View view, GroupMember groupMember, Group group, RecyclerView.ViewHolder viewHolder, List<GroupMember> list, int i) {

    }
});

Example

You can indeed create a custom layout file named tail_view_layout.xml for more complex or unique list items. Once this layout file is made, you would inflate it inside the createView() method of the GroupsViewHolderListener. The inflation process prepares the layout for use in your application: Following this, you would use the bindView() method to initialize and assign values to your individual views. This could include setting text on TextViews, images on ImageViews, and so on based on the properties of the Group object:

tail_view_layout.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <TextView
        android:id="@+id/txt_subtitle"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Subtitle" />

    <ImageView
        android:id="@+id/img_conversation"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@+id/txt_subtitle"
        android:layout_margin="2dp"
        android:src="@drawable/ic_message_grey" />

    <ImageView
        android:id="@+id/img_audio_call"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@+id/txt_subtitle"
        android:layout_margin="2dp"
        android:layout_toRightOf="@+id/img_conversation"
        android:src="@drawable/ic_call" />

    <ImageView
        android:id="@+id/img_video_call"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@+id/txt_subtitle"
        android:layout_margin="2dp"
        android:layout_toRightOf="@+id/img_audio_call"
        android:src="@drawable/ic_video" />

</RelativeLayout>

YourActivity.java

cometchatGroupMembers.setTailView(new GroupMembersViewHolderListeners() {
    @Override
    public View createView(Context context, CometChatListItem cometChatListItem) {
        View view = getLayoutInflater().inflate(R.layout.subtitle_layout, null);
        return view;
    }

    @Override
    public void bindView(Context context, View view, GroupMember groupMember, Group group, RecyclerView.ViewHolder viewHolder, List<GroupMember> list, int i) {
        TextView txtSubtitle = view.findViewById(R.id.txt_subtitle);
        ImageView imgConversation = view.findViewById(R.id.img_conversation);
        ImageView imgAudioCall = view.findViewById(R.id.img_audio_call);;
        ImageView imgVideCall = view.findViewById(R.id.img_video_call);;
        txtSubtitle.setText(group.getName());
        imgConversation.setOnClickListener(v -> {
            Toast.makeText(context, "Conversation Clicked", Toast.LENGTH_SHORT).show();
        });
        imgAudioCall.setOnClickListener(v -> {
            Toast.makeText(context, "Audio Call Clicked", Toast.LENGTH_SHORT).show();
        });
        imgVideCall.setOnClickListener(v -> {
            Toast.makeText(context, "Video Call Clicked", Toast.LENGTH_SHORT).show();
        });
    }
});

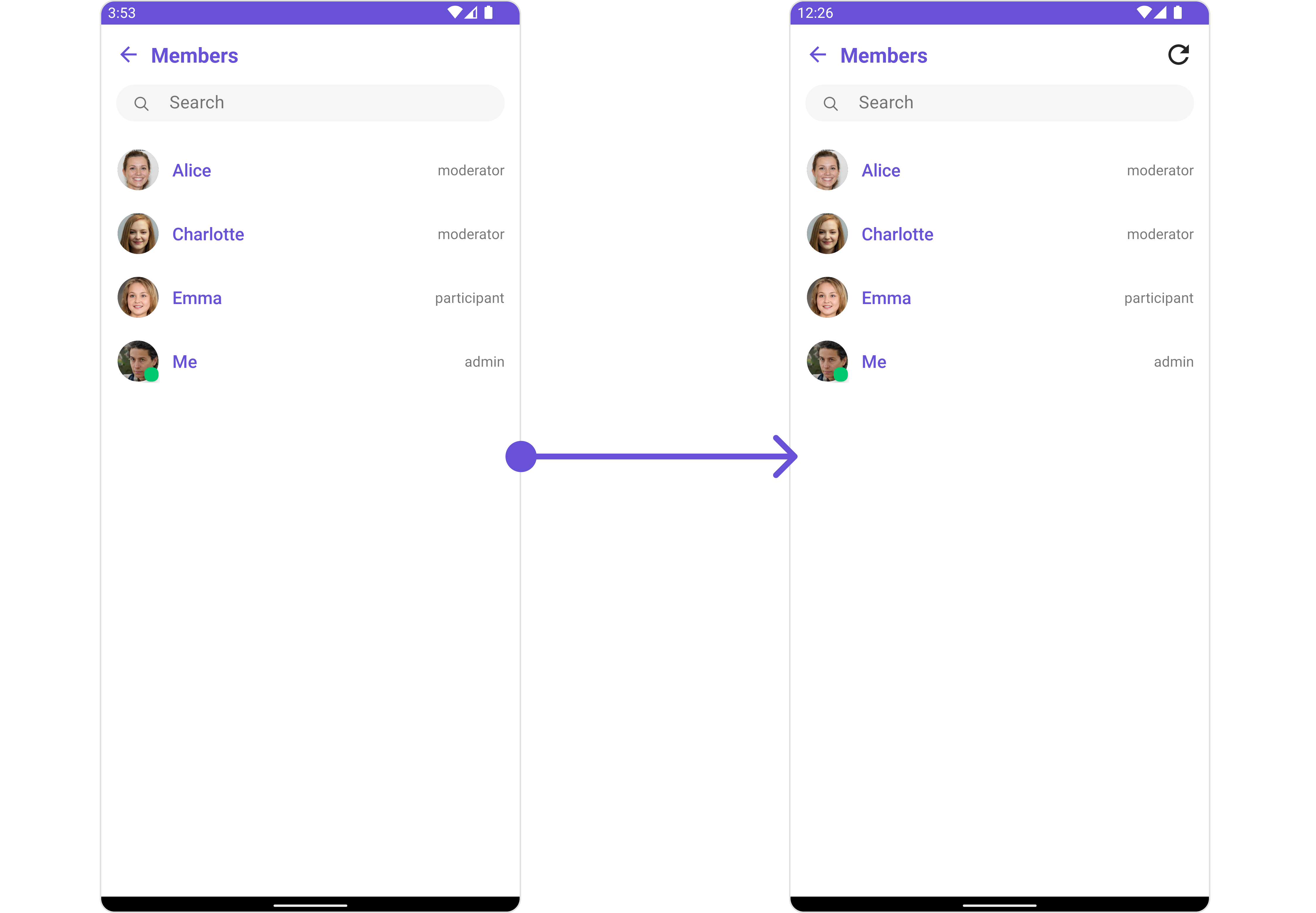

SetMenu

You can set the Custom Menu view to add more options to the Groups component.

cometchatGroupMembers.setMenu(View v);

Example

You need to create a view_menu.xml as a custom view file. Which we will inflate and pass to .setMenu().

view_menu.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal"
    tools:context=".MainActivity">

    <ImageView
        android:id="@+id/img_refresh"
        android:layout_width="30dp"
        android:layout_height="30dp"
        android:src="@drawable/ic_refresh_black" />

</LinearLayout>

You inflate the view and pass it to setMenu. You can get the child view reference and can handle click actions.

YourActivity.java

View view = getLayoutInflater().inflate(R.layout.view_menu, null);
ImageView imgRefresh = view.findViewById(R.id.img_refresh);
imgRefresh.setOnClickListener(v -> {
    Toast.makeText(requireContext(), "Clicked on Refresh", Toast.LENGTH_SHORT).show();
});
cometchatGroupMembers.setMenu(view);

SetLoadingStateView

You can set a custom loader view using setLoadingStateView to match the loading view of your app.

cometchatGroupMembers.setLoadingStateView();

Example

We have added a ContentLoadingProgressBar to loading_view_layout.xml. You can choose any view you prefer. This view should be inflated and passed to the setLoadingStateView() method.

loading_view_layout.xml

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:layout_gravity="center_vertical">

    <androidx.core.widget.ContentLoadingProgressBar
        style="?android:attr/progressBarStyleLarge"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center_horizontal" />

</FrameLayout>

YourActivity.java

cometchatGroupMembers.setLoadingStateView(R.layout.loading_view_layout);

SetEmptyStateView

You can set a custom EmptyStateView using setEmptyStateView to match the empty view of your app.

cometchatGroupMembers.setEmptyStateView();

Examples We have added an error view to empty_view_layout.xml. You can choose any view you prefer. This view should be inflated and passed to the setEmptyStateView() method.

empty_view_layout.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:layout_gravity="center_vertical">

    <TextView
        android:id="@+id/txt_title"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_centerInParent="true"
        android:text="No Friends available"
        android:textColor="@color/cometchat_grey"
        android:textSize="20sp"
        android:textStyle="bold" />

</RelativeLayout>

YourActivity.java

cometchatGroupMembers.setEmptyStateView(R.layout.empty_view_layout);

SetErrorStateView

You can set a custom ErrorStateView using setErrorStateView to match the error view of your app.

cometchatGroupMembers.setErrorStateView();

Example

We have added an error view to error_state_view_layout.xml. You can choose any view you prefer. This view should be inflated and passed to the setErrorStateView() method.

error_state_view_layout.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <ImageView
        android:id="@+id/img_error"
        android:layout_width="100dp"
        android:layout_height="100dp"
        android:layout_centerInParent="true"
        android:src="@drawable/ic_error" />

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@+id/img_error"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="50dp"
        android:text="Something Went Wrong"
        android:textSize="30sp" />

</RelativeLayout>

YourActivity.java

cometchatGroupMembers.setErrorStateView(R.layout.error_state_view_layout);

​Overview

​Usage

​Integration

​Actions

1. SetOnItemClick

2. SetOnItemLongClick

3. SetOnError

4. AddOnBackPressListener

5. OnSelection

​Filters

1. GroupsRequestBuilder

2. SearchRequestBuilder

​Events

​Customization

​Style

1. GroupMembers Style

2. Avatar Style

3. StatusIndicator Style

4. ListItem Style

​Functionality

​Advanced

​SetOptions

Example

​SetListItemView

​SetSubTitleView

​SetTailView

​SetMenu

​SetLoadingStateView

​SetEmptyStateView

​SetErrorStateView

Overview

Usage

Integration

Actions

Filters

Events

Customization

Style

Functionality

Advanced

SetOptions

SetListItemView

SetSubTitleView

SetTailView

SetMenu

SetLoadingStateView

SetEmptyStateView

SetErrorStateView
