Call Log History - CometChat Docs

Overview

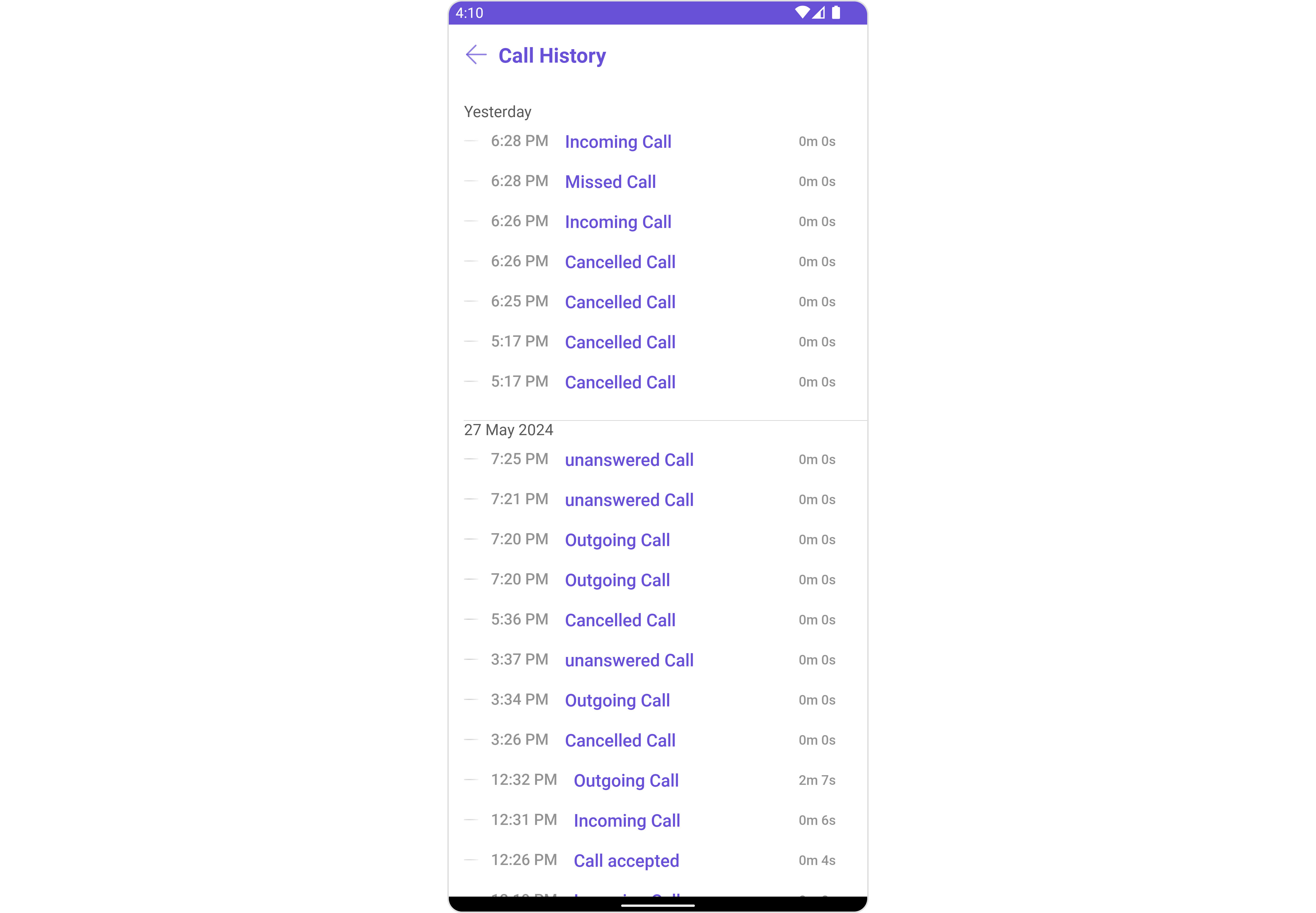

CometChatCallLogHistory is a Component that shows a paginated list of all the calls between the logged-in user & another user or group. This allows the user to see all the calls with a specific user/group they have initiated/received/missed.

The CometChatCallLogHistory component is composed of the following BaseComponents:

Components	Description
CometChatListBase	`CometChatListBase` is a container component featuring a title, customizable background options, and a dedicated list view for seamless integration within your application’s interface.
CometChatListItem	This component displays data retrieved from a CallLog object on a card, presenting a title and subtitle.

Usage

Integration

CometChatCallLogHistory is a Component, it can be seamlessly presented within your application. To display the details of a CallLog, you simply need to pass the corresponding CallLog object to the CometChatCallLogHistory instance using its setCallLog property. This enables you to efficiently showcase specific call log details within your application’s interface. Since CometChatCallLogHistory can be launched by adding the following code snippet into the XML layout file.

<com.cometchat.chatuikit.calls.callhistory.CometChatCallLogHistory
    android:id="@+id/call_history"
    android:layout_width="match_parent"
    android:layout_height="match_parent" />

If you’re defining the CometChatCallLogHistory within the XML code or in your activity or fragment then you’ll need to extract them.

CometChatCallLogHistory cometchatCallLogHistory = binding.callHistory; // 'binding' is a view binding instance. Initialize it with `binding = YourXmlFileNameBinding.inflate(getLayoutInflater());` to use views like `binding.callHistory` after enabling view binding.

Activity and Fragment

You can integrate CometChatCallLogHistory into your Activity and Fragment by adding the following code snippets into the respective classes.

YourActivity.java

CometChatCallLogHistory cometchatCallLogHistory;

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);

    cometchatCallLogHistory = new CometChatCallLogHistory(this);

    setContentView(cometchatCallLogHistory);
}

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. SetOnItemClickListener

This method proves valuable when users seek to override onItemClick functionality within CometChatCallLogsWithDetails, empowering them with greater control and customization options. The setOnItemClickListener action doesn’t have a predefined behavior. You can override this action using the following code snippet.

cometchatCallLogHistory.setOnItemClickListener(new OnItemClickListener<CallLog>() {
    @Override
    public void OnItemClick(CallLog callLog, int i) {
        //TODO
    }
});

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

1. CallLogRequestBuilder

The CallLogRequestBuilder enables you to filter and customize the call list based on available parameters in CallLogRequestBuilder. This feature allows you to create more specific and targeted queries during the call. The following are the parameters available in CallLogRequestBuilder

CallLogRequest.CallLogRequestBuilder callLogRequestBuilder = new CallLogRequest.CallLogRequestBuilder()
        .setLimit(10);
cometchatCallLogHistory.setCallLogRequestBuilder(callLogRequestBuilder);

Property	Description	Code
Limit	Sets the limit for the call logs request	`setLimit(limit: int)`
Call Type	Sets the call type for the call logs request	`setCallType(callType: String)`
Call Status	Sets the call status for the call logs request	`setCallStatus(callStatus: String)`
Has Recording	Sets the recording status for the call logs request	`setHasRecording(hasRecording: boolean)`
Call Category	Sets the call category for the call logs request	`setCallCategory(callCategory: String)`
Call Direction	Sets the call direction for the call logs request	`setCallDirection(callDirection: String)`
UID	Sets the user ID for the call logs request	`setUid(uid: String)`
GUID	Sets the group ID for the call logs request	`setGuid(guid: String)`
Auth Token	Sets the auth token for the call logs request	`setAuthToken(authToken: String)`

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The CometChatCallLogHistory component does not have any exposed events.

Customization

To fit your app’s design requirements, you can customize the appearance of the conversation component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. CallLogHistory Style

You can customize the appearance of the CallLogHistoryStyle Component by applying the CallLogHistoryStyle to it using the following code snippet.

CallLogHistoryStyle callLogHistoryStyle = new CallLogHistoryStyle();
callLogHistoryStyle.setBackground(Color.parseColor("#C0C0C0"));
callLogHistoryStyle.setCornerRadius(20);
callLogHistoryStyle.setCallDurationColor(Color.CYAN);
callLogHistoryStyle.setCallStatusColor(Color.RED);
callLogHistoryStyle.setTitleColor(Color.RED);

cometchatCallLogHistory.setStyle(callLogHistoryStyle);

List of properties exposed by CallLogHistoryStyle

Property	Description	Code
Background	Used to set background color	`.setBackground(@ColorInt int)`
Background	Used to set background Drawable	`.setBackground(Drawable)`
Back Icon Tint	Used to set the color of the back icon in the app bar	`.setBackIconTint(@ColorInt int)`
Border Color	Used to set border color	`.setBorderColor(@ColorInt int)`
Border Width	Used to set border	`.setBorderWidth(int)`
Call Duration Color	Used to set Call Duration color.	`.setCallDurationColor(@ColorInt int)`
Call Status Color	Used to set the Call Status color.	`.setCallStatusColor(@ColorInt int)`
Empty Text Appearance	Used to set the style of the response text shown when fetching the list of group members is empty	`.setEmptyTextAppearance(@StyleRes int)`
Error Text Appearance	Used to set the style of the response text shown in case some error occurs	`.setErrorTextAppearance(@StyleRes int)`
Header Separator Color	Used to set the color of the divider separating the CallLog items	`.setHeaderSeparatorColor(@ColorInt int)`
Loading Icon Tint	Used to set the color of the icon shown while fetching the list of group members	`.setLoadingIconTint(@ColorInt int)`
List Item Background Color	Used to set List Item Background color	`.setListItemBackgroundColor(@ColorInt int)`
Title Appearance	Used to customise the appearance of the title in the app bar	`.setTitleAppearance(@StyleRes int)`

2. ListItem Styles

To apply customized styles to the ListItemStyle component in the CallLogHistory Component, you can use the following code snippet. For further insights on ListItemStyle Styles refer

ListItemStyle listItemStyle = new ListItemStyle();
listItemStyle.setBackground(Color.parseColor("#C0C0C0"));
cometchatCallLogHistory.setListItemStyle(listItemStyle);

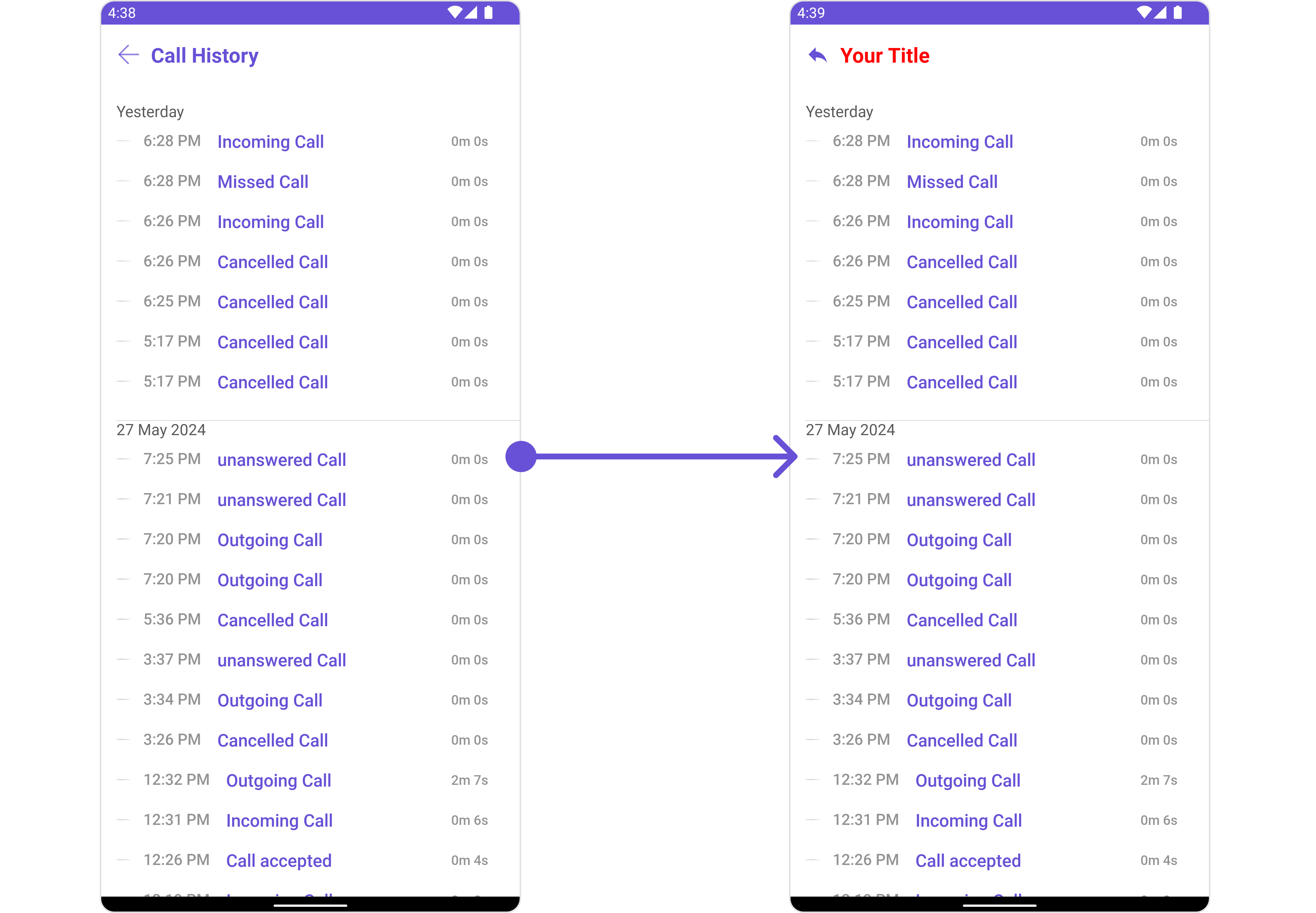

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

cometchatCallLogHistory.setTitle("Your Title");
cometchatCallLogHistory.setTitleColor(Color.RED);
cometchatCallLogHistory.backIcon(R.drawable.ic_reply);

List of methods exposed by CometChatCallLogHistory

Property	Description	Code
Back Icon	Used to set back button icon	`.backIcon(@DrawableRes int res)`
Empty State Text	Used to set a custom text response when fetching the users has returned an empty list	`.emptyStateText(String)`
Error State Text	Used to set a custom text response when some error occurs on fetching the list of users	`.errorStateText(String)`
Hide Error	Used to hide error on fetching users	`.hideError(boolean)`
Set Title	Used to set title in the app bar	`.setTitle(String)`

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

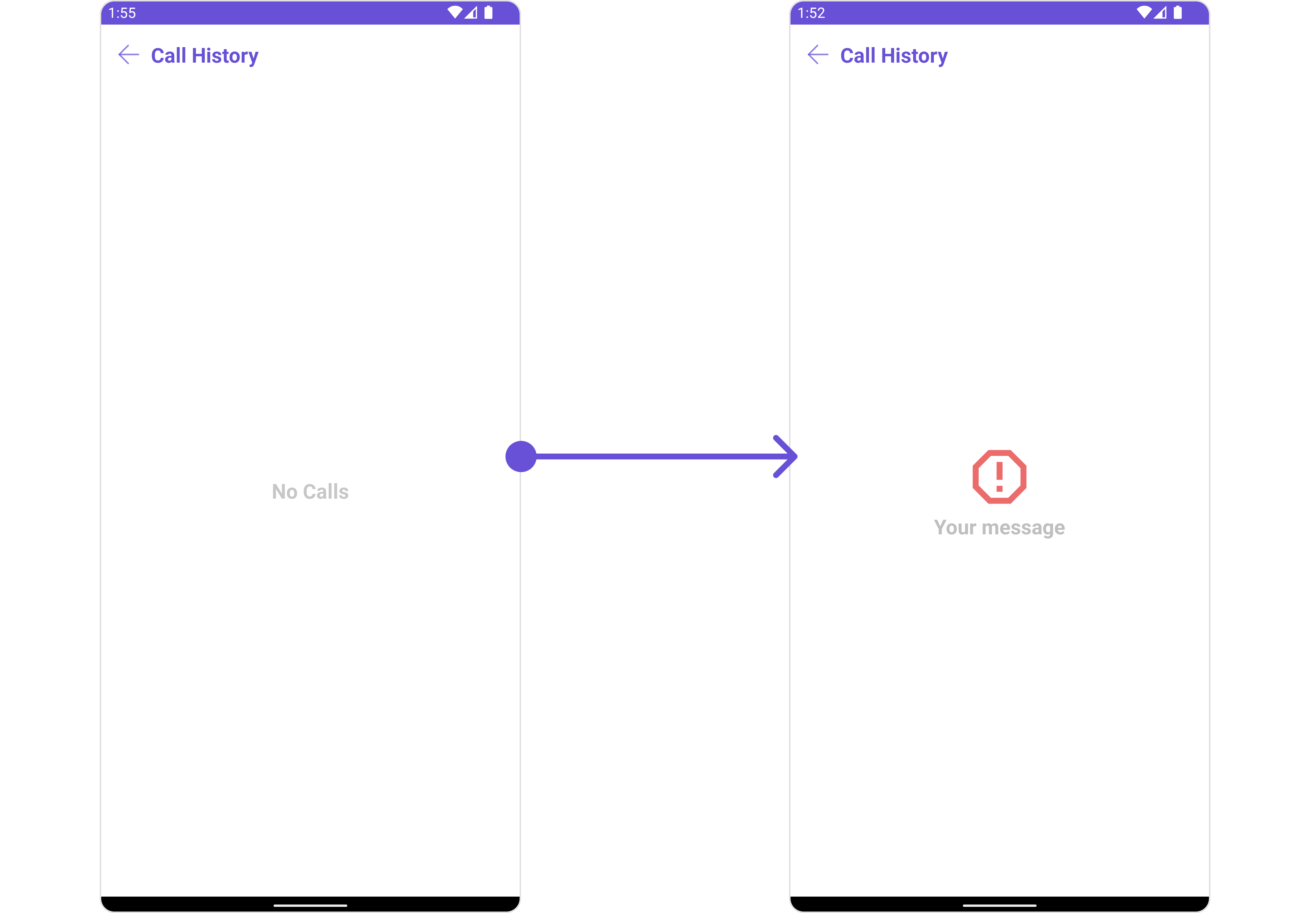

SetEmptyStateView 🛑

You can set a custom EmptyView using setEmptyStateView() to match the empty view of your app.

cometchatCallLogHistory.setEmptyStateView();

Example

You need to create a empty_view_layout.xml as a custom view file. Which we will inflate and pass to .setEmptyStateView().

empty_view_layout.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:gravity="center"
    android:orientation="vertical">

    <ImageView
        android:layout_width="70dp"
        android:layout_height="70dp"
        android:layout_above="@+id/txt_title"
        android:layout_centerHorizontal="true"
        android:src="@drawable/ic_error" />

    <TextView
        android:id="@+id/txt_title"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_centerInParent="true"
        android:text="Your message"
        android:textColor="@color/cometchat_grey"
        android:textSize="20sp"
        android:textStyle="bold" />

</LinearLayout>

You inflate the view and pass it to setEmptyStateView. You can get the child view reference and can handle click actions.

cometchatCallLogHistory.setEmptyStateView(R.layout.empty_view_layout);

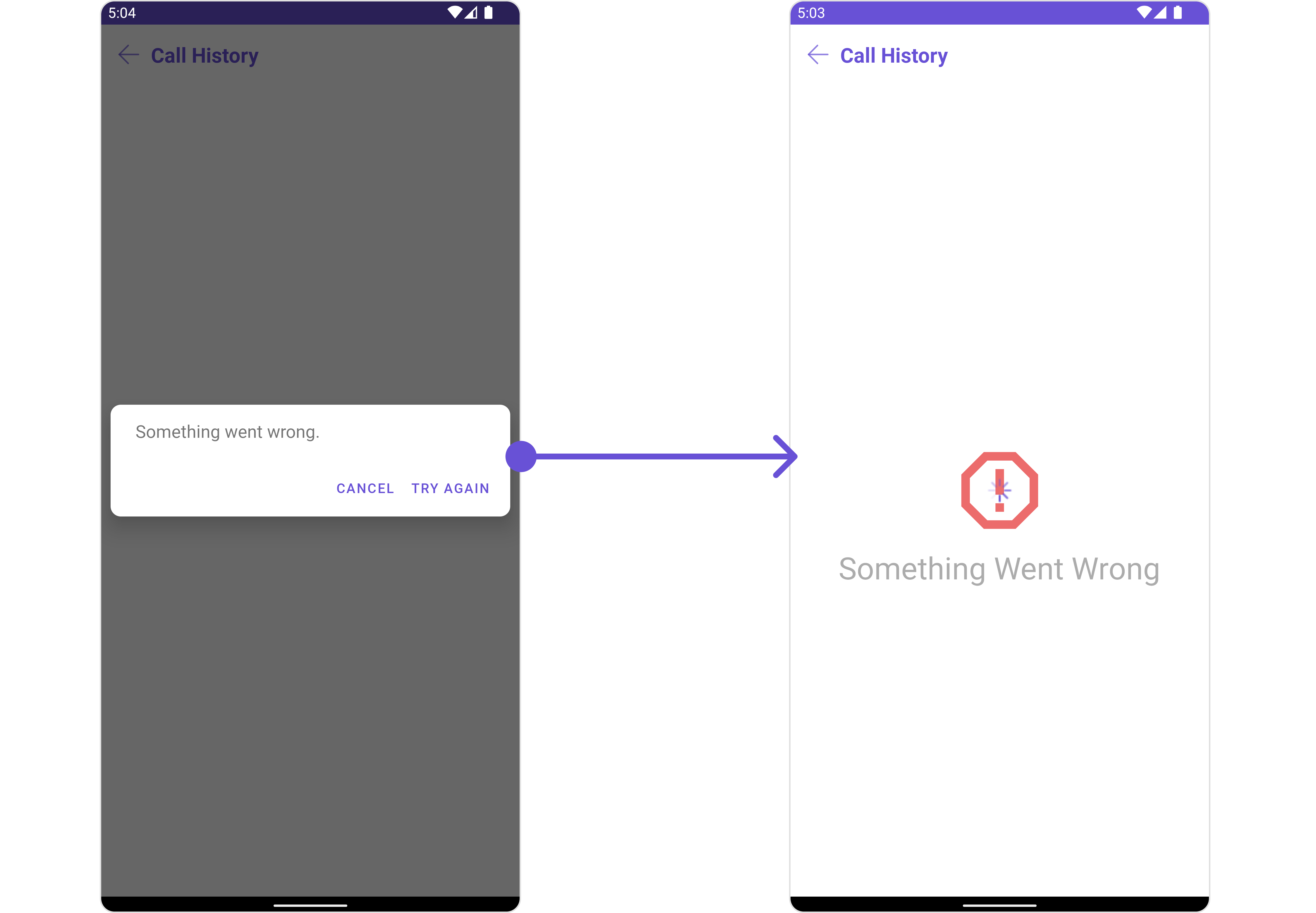

SetErrorStateView 🛑

You can set a custom ErrorView using setErrorStateView() to match the error view of your app.

cometchatCallLogHistory.setErrorStateView();

Example

You need to create an error_state_view_layout.xml as a custom view file. Which we will inflate and pass to .setErrorStateView().

error_state_view_layout.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <ImageView
        android:id="@+id/img_error"
        android:layout_width="100dp"
        android:layout_height="100dp"
        android:layout_centerInParent="true"
        android:src="@drawable/ic_error" />

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@+id/img_error"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="50dp"
        android:text="Something Went Wrong"
        android:textSize="30sp" />

</RelativeLayout>

You inflate the view and pass it to setErrorStateView. You can get the child view reference and can handle click actions.

cometchatCallLogHistory.setErrorStateView(R.layout.error_state_view_layout);

You can set the Custom Menu to add more options to the CometChatCallLogHistory component.

cometchatCallLogHistory.setMenu();

Example You need to create a view_menu.xml as a custom view file. Which we will inflate and pass to .setMenu().

view_menu.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal">

    <ImageView
        android:id="@+id/img_refresh"
        android:layout_width="30dp"
        android:layout_height="30dp"
        android:src="@drawable/ic_refresh_black" />

</LinearLayout>

You inflate the view and pass it to setMenu. You can get the child view reference and can handle click actions.

YourActivity.java

View view = getLayoutInflater().inflate(R.layout.view_menu, null);
ImageView imgRefresh = view.findViewById(R.id.img_refresh);
imgRefresh.setOnClickListener(v -> {
    Toast.makeText(this, "Clicked on Refresh", Toast.LENGTH_SHORT).show();
});
cometchatCallLogHistory.setMenu(view);
