Overview

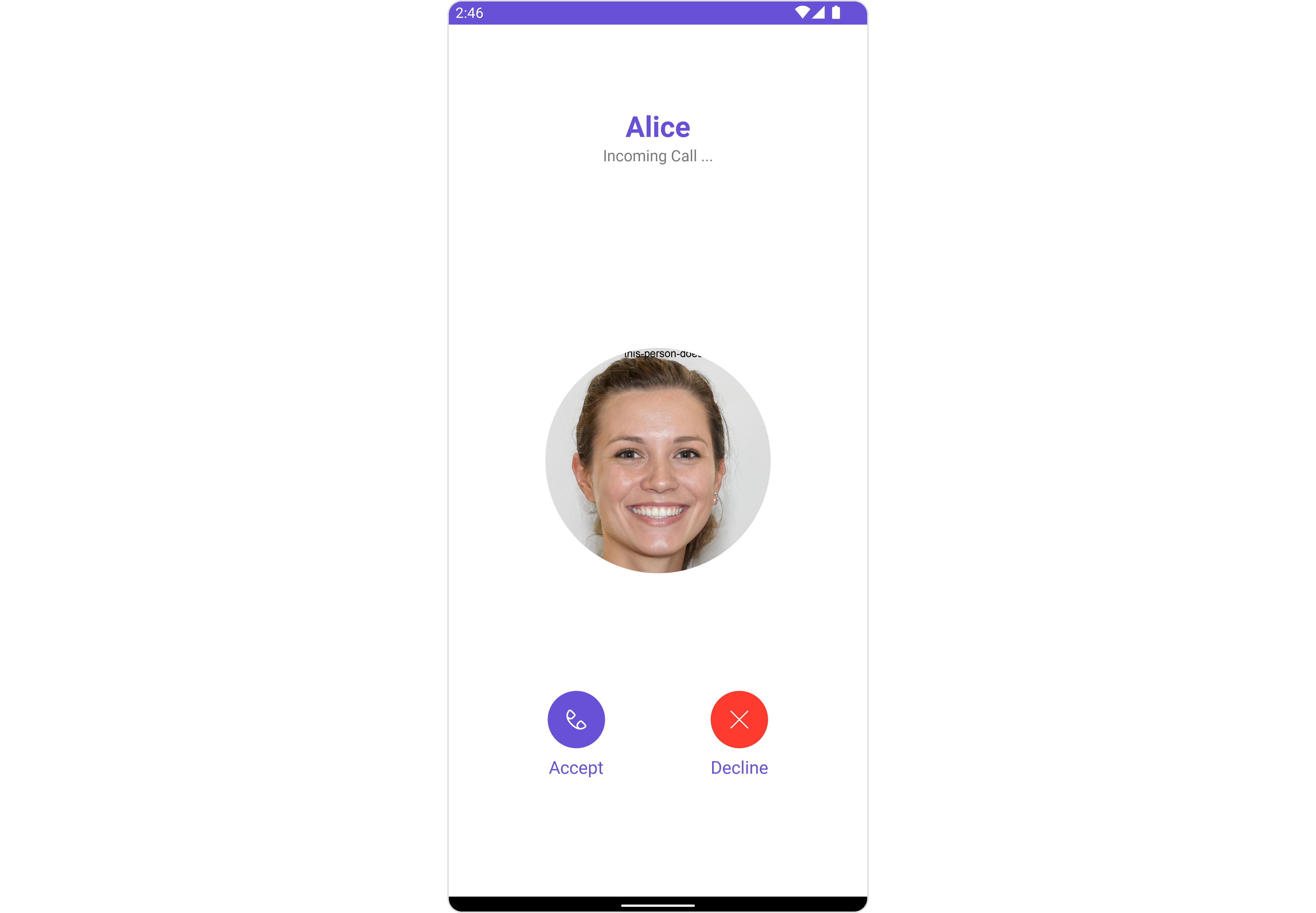

The CometChatIncomingCall is a Component that serves as a visual representation when the user receives an incoming call, such as a voice call or video call, providing options to answer or decline the call.

Usage

Integration

CometChatIncomingCall being a custom component, offers versatility in its integration. It can be seamlessly launched via button clicks or any user-triggered action, enhancing the overall user experience and facilitating smoother interactions within the application. Since CometChatIncomingCall can be launched by adding the following code snippet into the XML layout file.

<com.cometchat.chatuikit.calls.incomingcall.CometChatIncomingCall
    android:id="@+id/incoming_call"
    android:layout_width="match_parent"
    android:layout_height="match_parent" />

If you’re defining the CometChatIncomingCall within the XML code or in your activity or fragment then you’ll need to extract them and set them on the User object using the appropriate method.

CometChatIncomingCall cometchatIncomingCall = binding.incomingCall; // 'binding' is a view binding instance. Initialize it with `binding = YourXmlFileNameBinding.inflate(getLayoutInflater());` to use views like `binding.incomingCall` after enabling view binding.

User user = new User();
user.setUid(""); //Required
user.setName(""); //Required
user.setAvatar(""); //Required

cometchatIncomingCall.setUser(user); //Required - set the user object

Activity and Fragment

You can integrate CometChatIncomingCall into your Activity and Fragment by adding the following code snippets into the respective classes.

YourActivity.java

CometChatIncomingCall cometchatIncomingCall;

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);

    cometchatIncomingCall = new CometChatIncomingCall(this);

    User user = new User();
    user.setUid(""); //Required
    user.setName(""); //Required
    user.setAvatar(""); //Required

    cometchatIncomingCall.setUser(user); //Required - set the user object

    setContentView(cometchatIncomingCall);
}

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. SetOnAcceptCallClick

The setOnAcceptCallClick action is typically triggered when the user clicks on the accept button, initiating a predefined action. However, by implementing the following code snippet, you can easily customize or override this default behavior to suit your specific requirements.

cometchatIncomingCall.setOnAcceptCallClick(new OnClick() {
    @Override
    public void onClick() {
        //TODO
    }
});

2. SetOnDeclineCallClick

The SetOnDeclineCallClick action is typically triggered when the user clicks on the reject button, initiating a predefined action. However, by implementing the following code snippet, you can easily customize or override this default behavior to suit your specific requirements.

cometchatIncomingCall.setOnDeclineCallClick(new OnClick() {
    @Override
    public void onClick() {
        //TODO
    }
});

3. SetOnError

You can customize this behavior by using the provided code snippet to override the setOnError and improve error handling.

cometchatIncomingCall.setOnError(new OnError() {
    @Override
    public void onError(Context context, CometChatException e) {
        //TODO
    }
});

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK. The IncomingCall component does not have any exposed filters.

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The CometChatIncomingCall component does not have any exposed events.

Customization

To fit your app’s design requirements, you can customize the appearance of the conversation component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. IncomingCall Style

You can customize the appearance of the IncomingCall Component by applying the IncomingCallStyle to it using the following code snippet.

IncomingCallStyle incomingCallStyle = new IncomingCallStyle();
incomingCallStyle.setTitleColor(R.color.yellow);
incomingCallStyle.setBackground(R.color.yellow);
incomingCallStyle.setBorderColor(R.color.yellow);
incomingCallStyle.setSubTitleColor(R.color.black);
incomingCallStyle.setBorderWidth(20);

cometchatIncomingCall.setStyle(incomingCallStyle);

List of properties exposed by IncomingCallStyle

Property	Description	Code
Background	Used to set the background color	`.setBackground(@ColorInt int)`
Background	Used to set background gradient	`.setBackground(Drawable)`
Border Width	Used to set border	`.setBorderWidth(int)`
Corner Radius	Used to set border radius	`.setCornerRadius(float)`
Border Color	Used to set border color	`.setBorderColor(@ColorInt int)`
Title Appearance	Used to customise the appearance of the title	`.setTitleAppearance(@StyleRes int)`
Subtitle Appearance	Used to customise the appearance of the subtitle	`.setSubTitleAppearance(@StyleRes int)`

2. Avatar Styles

To apply customized styles to the Avatar component in the IncomingCall Component, you can use the following code snippet. For further insights on Avatar Styles refer

AvatarStyle avatarStyle = new AvatarStyle();
avatarStyle.setCornerRadius(10);
avatarStyle.setBorderWidth(20);
avatarStyle.setBorderColor(R.color.yellow);
cometchatIncomingCall.setAvatarStyle(avatarStyle);

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements. Example In this example, we’re enhancing the interface by customizing the accept and decline button icons. By setting custom icons for both the accept and decline buttons, users can enjoy a more visually appealing and personalized experience. This level of customization allows developers to tailor the user interface to match the overall theme and branding of their application.

cometchatIncomingCall.setDeclineButtonIcon(R.drawable.ic_call);
cometchatIncomingCall.setOnDeclineCallClick(new OnClick() {
    @Override
    public void onClick() {
        //TODO
    }
});

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
Accept Button Icon	Sets a custom accept button icon url for the incoming call screen.	`.setAcceptButtonIcon(@DrawableRes int)`
Accept Button Text	Sets custom text for the accept button on the incoming call screen.	`.setAcceptButtonText(String)`
Call	Sets the Call object for which the incoming call screen is displayed. Required for call actions.	`.setCall(Call)`
Custom Sound For Calls	Defines the path for custom sound for calls on the incoming call screen.	`.setCustomSoundForCalls(@RawRes int)`
Decline Button Icon	Sets a custom decline button icon for the incoming call screen.	`.setDeclineButtonIcon(@DrawableRes int)`
Decline Button Text	Sets custom text for the decline button on the incoming call screen.	`.setDeclineButtonText(String)`
Disable Sound For Call	Defines whether to disable sound for the call on the incoming call screen.	`.disableSoundForCall(boolean)`
Set User	Sets the User object of the user who initiated the call on the incoming call screen.	`.setUser(User)`

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component. The CometChatIncomingCall component does not provide additional functionalities beyond this level of customization.
