Overview

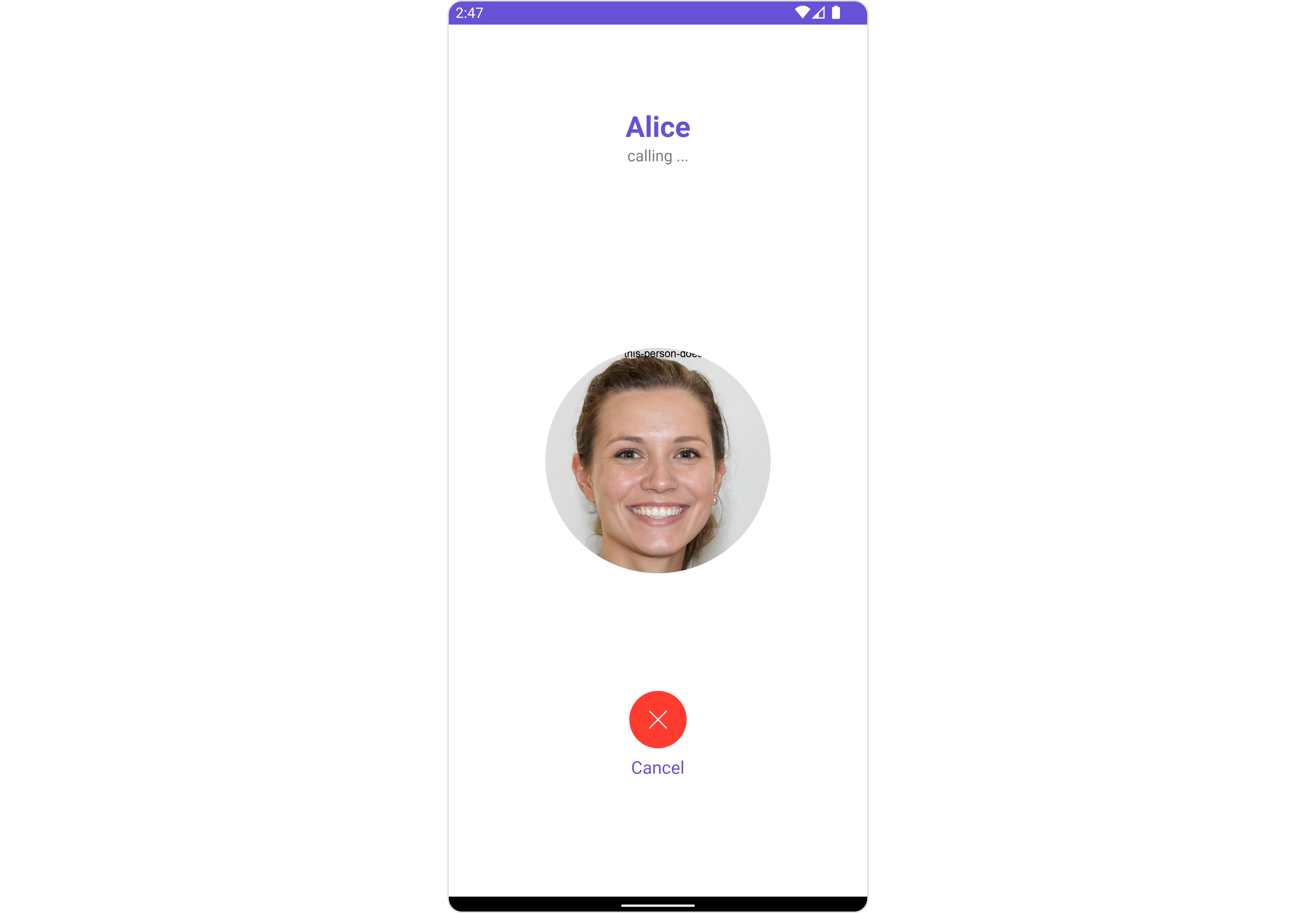

The CometChatOutgoingCall Component is a visual representation of a user-initiated call, whether it’s a voice or video call. It serves as an interface for managing outgoing calls, providing users with essential options to control the call experience. This component typically includes information about the call recipient, call controls for canceling the call, and feedback on the call status, such as indicating when the call is in progress.

​
Usage

​
Integration

CometChatOutgoingCall being a custom component, offers versatility in its integration. It can be seamlessly launched via button clicks or any user-triggered action, enhancing the overall user experience and facilitating smoother interactions within the application. Since CometChatOutgoingCall can be launched by adding the following code snippet into the XML layout file.
<com.cometchat.chatuikit.calls.outgoingcall.CometChatOutgoingCall
    android:id="@+id/outgoing_call"
    android:layout_width="match_parent"
    android:layout_height="match_parent" />
If you’re defining the CometChatOutgoingCall within the XML code or in your activity or fragment then you’ll need to extract them and set the User object or Call object using the appropriate method.
CometChatOutgoingCall cometchatOutgoingCall = binding.outgoingCall; // 'binding' is a view binding instance. Initialize it with `binding = YourXmlFileNameBinding.inflate(getLayoutInflater());` to use views like `binding.outgoingCall` after enabling view binding.

User user = new User();
user.setUid(""); //Required
user.setName(""); //Required
user.setAvatar(""); //Required

cometchatOutgoingCall.setUser(user); //Required - set the user object
//OR
cometchatOutgoingCall.setCall(call); //Required - set the call object
Activity and Fragment
You can integrate CometChatOutgoingCall into your Activity and Fragment by adding the following code snippets into the respective classes.
YourActivity.java
CometChatOutgoingCall cometchatOutgoingCall;

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);

    cometchatOutgoingCall = new CometChatOutgoingCall(this);

    User user = new User();
    user.setUid(""); //Required
    user.setName(""); //Required
    user.setAvatar(""); //Required

    cometchatOutgoingCall.setUser(user); //Required - set the user object
    //OR
    cometchatOutgoingCall.setCall(call); //Required - set the call object

    setContentView(cometchatOutgoingCall);
}

​
Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.
1. SetOnDeclineCallClick
The setOnDeclineCallClick action is typically triggered when the call is ended, carrying out default actions. However, with the following code snippet, you can effortlessly customize or override this default behavior to meet your specific needs.
cometchatOutgoingCall.setOnDeclineCallClick(new OnClick() {
    @Override
    public void onClick() {
        //TODO
    }
});

​
Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK. The OutgoingCall component does not have any exposed filters.

​
Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. Events emitted by the Outgoing call component are as follows.
EventDescription
onOutgoingCallAcceptedTriggers when the outgoing call is accepted.
onOutgoingCallRejectedTriggers when the outgoing call is rejected.
Add CometChatCallEvents
CometChatCallEvents.addListener("UNIQUE_ID", new CometChatCallEvents() {
    @Override
    public void ccCallAccepted(Call call) {
        super.ccCallAccepted(call);
    }

    @Override
    public void ccCallRejected(Call call) {
        super.ccCallRejected(call);
    }

});
Remove CometChatCallEvents
CometChatCallEvents.removeListener("LISTENER_ID_USED_FOR_ADDING_THIS_LISTENER");

​
Customization

To fit your app’s design requirements, you can customize the appearance of the conversation component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

​
Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.
1. OutgoingCall Style
You can customize the appearance of the OutgoingCallStyle Component by applying the OutgoingCallStyle to it using the following code snippet.
OutgoingCallStyle style=new OutgoingCallStyle()
        .setBackground(getResources().getColor(R.color.white_300))
        .setSubTitleColor(getResources().getColor(R.color.red))
        .setTitleColor(getResources().getColor(R.color.red));
cometchatOutgoingCall.setStyle(style);
List of properties exposed by OutgoingCallStyle
PropertyDescriptionCode
BackgroundUsed to set the background color.setBackground(@ColorInt int)
BackgroundUsed to set background gradient.setBackground(Drawable)
Border WidthUsed to set border.setBorderWidth(int)
Corner RadiusUsed to set border radius.setCornerRadius(float)
Border ColorUsed to set border color.setBorderColor(@ColorInt int)
Title AppearanceUsed to customise the appearance of the title.setTitleAppearance(@StyleRes int)
SubTitle AppearanceUsed to customise the appearance of the subtitle.setSubTitleAppearance(@StyleRes int)
2. Avatar Styles
To apply customized styles to the Avatar component in the OutgoingCall Component, you can use the following code snippet. For further insights on Avatar Styles refer
AvatarStyle avatarStyle = new AvatarStyle()
        .setBorderColor(getResources().getColor(R.color.yellow))
        .setBorderWidth(10);
cometchatOutgoingCall.setAvatarStyle(avatarStyle);
3. Button Styles
To apply customized styles to the Button component in the OutgoingCall Component, you can use the following code snippet.
ButtonStyle buttonStyle = new ButtonStyle().setButtonBackgroundColor(getResources().getColor(R.color.yellow));
cometchatOutgoingCall.setDeclineButtonStyle(buttonStyle);

​
Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements. Example In this example, we’re enhancing the interface by customizing the decline button icons. By setting custom icons for decline buttons, users can enjoy a more visually appealing and personalized experience. This level of customization allows developers to tailor the user interface to match the overall theme and branding of their application.
cometchatOutgoingCall.setDeclineButtonIcon(R.drawable.ic_call);
cometchatOutgoingCall.setDeclineButtonText("Your Text");
cometchatOutgoingCall.setOnDeclineCallClick(new OnClick() {
    @Override
    public void onClick() {
        //TODO
    }
});
Below is a list of customizations along with corresponding code snippets
PropertyDescriptionCode
CallUsed to set the Call object against which we need to display the outgoing screen.set(Call: Call)
UserUsed to set the User object against which we need to display the outgoing screen.set(User: User)
Decline Button TextUsed to set the Decline Button Text.set(DeclineButtonText: String)
Decline Button IconUsed to set the Decline button icon.set(DeclineButtonIcon: @DrawableRes int)

​
Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component. The CometChatOutgoingCall component does not provide additional functionalities beyond this level of customization.
