Call Log Recordings - CometChat Docs

Overview

CometChatCallLogRecordings is a Component that shows a paginated list of recordings for a particular call. This allows the user to view all recordings, see the duration of each recording, and access a download link to download the recordings.

The CometChatCallLogRecordings component is composed of the following BaseComponents:

Components	Description
CometChatListBase	`CometChatListBase` is a container component featuring a title, customizable background options, and a dedicated list view for seamless integration within your application’s interface.
CometChatListItem	This component displays data retrieved from a CallLog object on a card, presenting a title and subtitle.

Usage

Integration

CometChatCallLogRecordings is a component that seamlessly integrates into your application. To present the details of call recordings, you can simply instantiate the CometChatCallLogRecordings instance and set the list of recordings using its setRecordingList() property. This allows for easy customization and efficient display of call log recordings within your application’s interface. Since CometChatCallLogRecordings can be launched by adding the following code snippet into the XML layout file.

<com.cometchat.chatuikit.calls.callrecordings.CometChatCallLogRecordings
    android:id="@+id/call_log_recording"
    android:layout_width="match_parent"
    android:layout_height="match_parent" />

If you’re defining the CometChatCallLogRecordings within the XML code or in your activity or fragment then you’ll need to extract them and set the Recording List using the setRecordingList() method.

CometChatCallLogRecordings cometchatCallLogRecordings = binding.callLogRecording; // 'binding' is a view binding instance. Initialize it with `binding = YourXmlFileNameBinding.inflate(getLayoutInflater());` to use views like `binding.callLogRecording` after enabling view binding.

cometchatCallLogRecordings.setRecordingList(recordingList); // Required - Get the recording list from the CallLog object using getRecordings(), e.g., callLogObject.getRecordings()

Activity and Fragment

You can integrate CometChatCallLogRecordings into your Activity and Fragment by adding the following code snippets into the respective classes.

YourActivity.java

CometChatCallLogRecordings cometchatCallLogRecordings;

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);

    cometchatCallLogRecordings = new CometChatCallLogRecordings(this);
    cometchatCallLogRecordings.setRecordingList(recordingList); // Required - Get the recording list from the CallLog object using getRecordings(), e.g., callLogObject.getRecordings()

    setContentView(cometchatCallLogRecordings);
}

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. SetOnDownloadClickListener

The setOnDownloadClickListener action is typically triggered when a user taps the download button associated with a recording in the call log. However, by utilizing the provided code snippet, you can seamlessly customize or override this default behavior to align with your specific application requirements.

cometchatCallLogRecordings.setOnDownloadClickListener(new OnItemClickListener<Recording>() {
    @Override
    public void OnItemClick(Recording recording, int i) {
        //TODO
    }
});

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK. The CometChatCallLogRecordings component does not have any exposed filters.

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The CometChatCallLogRecordings component does not have any exposed events.

Customization

To fit your app’s design requirements, you can customize the appearance of the conversation component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. CallLogRecordings Style

You can customize the appearance of the CometChatCallLogRecordings Component by applying the CallLogRecordingsStyle to it using the following code snippet.

CallLogRecordingsStyle callLogRecordingsStyle = new CallLogRecordingsStyle();
callLogRecordingsStyle.setTitleColor(Color.RED);
callLogRecordingsStyle.setTitleAppearance(R.style.MyTitleStyle);
callLogRecordingsStyle.setBackIconTint(Color.RED);

cometchatCallLogRecordings.setStyle(callLogRecordingsStyle);

List of properties exposed by CallLogRecordingsStyle

Property	Description	Code
Background	Used to set background color	`.setBackground(@ColorInt int)`
Background	Used to set background Drawable	`.setBackground(Drawable)`
Border Color	Used to set border color	`.setBorderColor(@ColorInt int)`
Border Width	Used to set border	`.setBorderWidth(@Dimension int)`
CornerRadius	Used to set border radius	`.setCornerRadius(float)`
Empty Text Appearance	Used to set the appearance of the text shown when list is empty.	`.setEmptyTextAppearance(@StyleRes int)`
Empty Text Font	Used to set the font of the Empty text which appears when the list is empty.	`.setEmptyTextFont(String)`
Empty Text Color	Used to set the color of the Empty text.	`.setEmptyTextColor(@ColorInt int)`
Back Icon Tint	Used to set the backIcon Tint color	`.setBackIconTint(@ColorInt int)`
Title Appearance	Used to set the appearance of the title text.	`.setTitleAppearance(@StyleRes int)`
Title Color	Used to set the color of the title text.	`.setTitleColor(@ColorInt int)`
Title Font	Used to set the Title Color	`.setTitleFont(String)`

2. ListItem Styles

To apply customized styles to the ListItemStyle component in the CallLogRecordings Component, you can use the following code snippet. For further insights on ListItemStyle Styles refer

ListItemStyle listItemStyle = new ListItemStyle();
listItemStyle.setBackground(Color.parseColor("#C0C0C0"));
cometchatCallLogRecordings.setListItemStyle(listItemStyle);

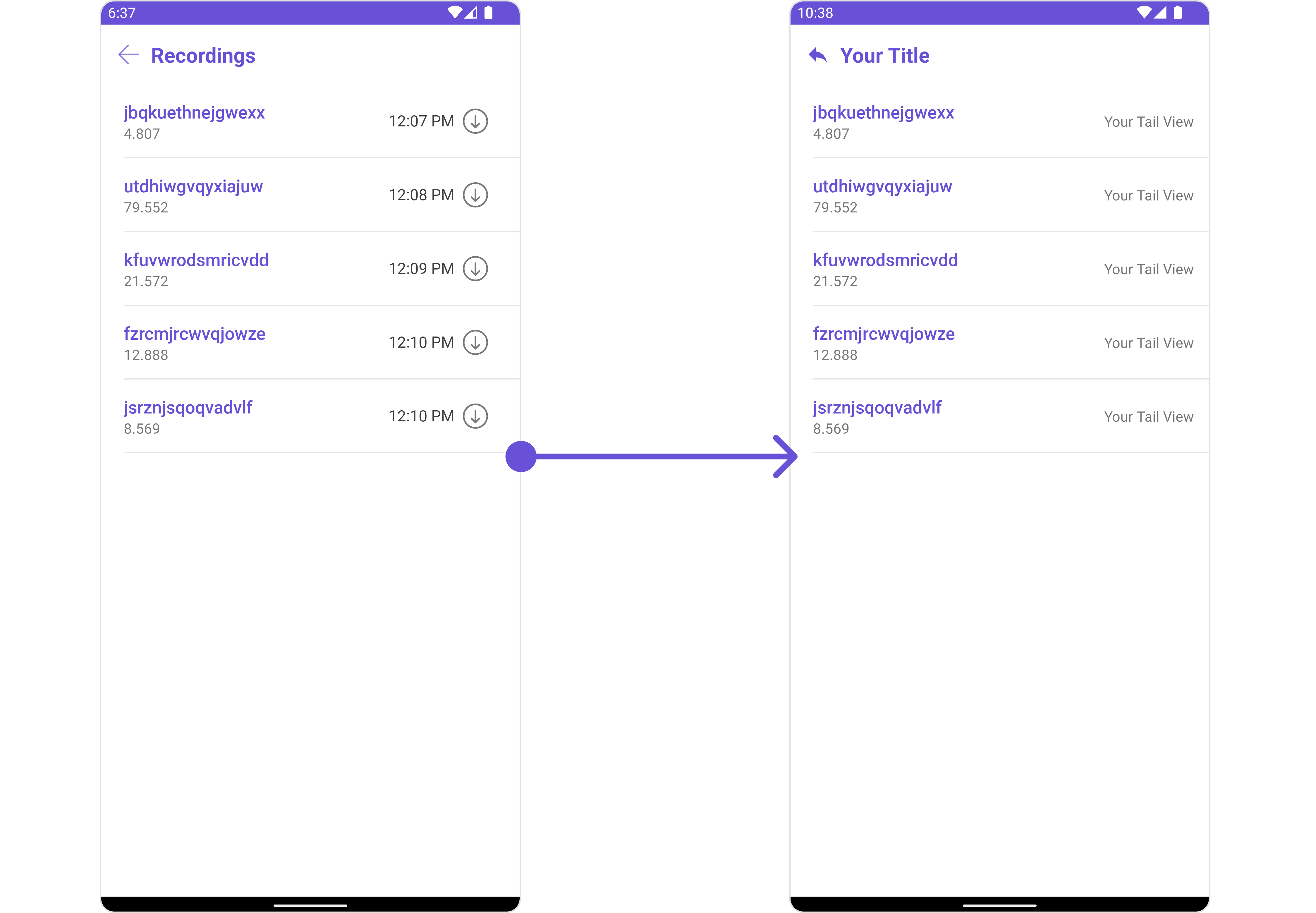

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

cometchatCallLogRecordings.setTitle("Your Title");

cometchatCallLogRecordings.backIcon(R.drawable.ic_reply);

cometchatCallLogRecordings.setTail(new Function2<Context, Recording, View>() {
@Override
public View apply(Context context, Recording recording) {
TextView textView = new TextView(context);
textView.setText("Your Tail View");
return textView;
}
});

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
Back Icon	Used to set back button icon	`.backIcon(@DrawableRes int res)`
Empty State Text	Used to set a custom text when the Recording array is empty	`.emptyStateText(String)`
Selection Icon	Used to override the default selection complete icon	`.setSelectionIcon(@DrawableRes int res)`
Set Submit Icon	Used to override the default selection complete icon	`.setSubmitIcon(@DrawableRes int res)`
Set Title	Used to set title in the app bar	`.setTitle(String)`

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

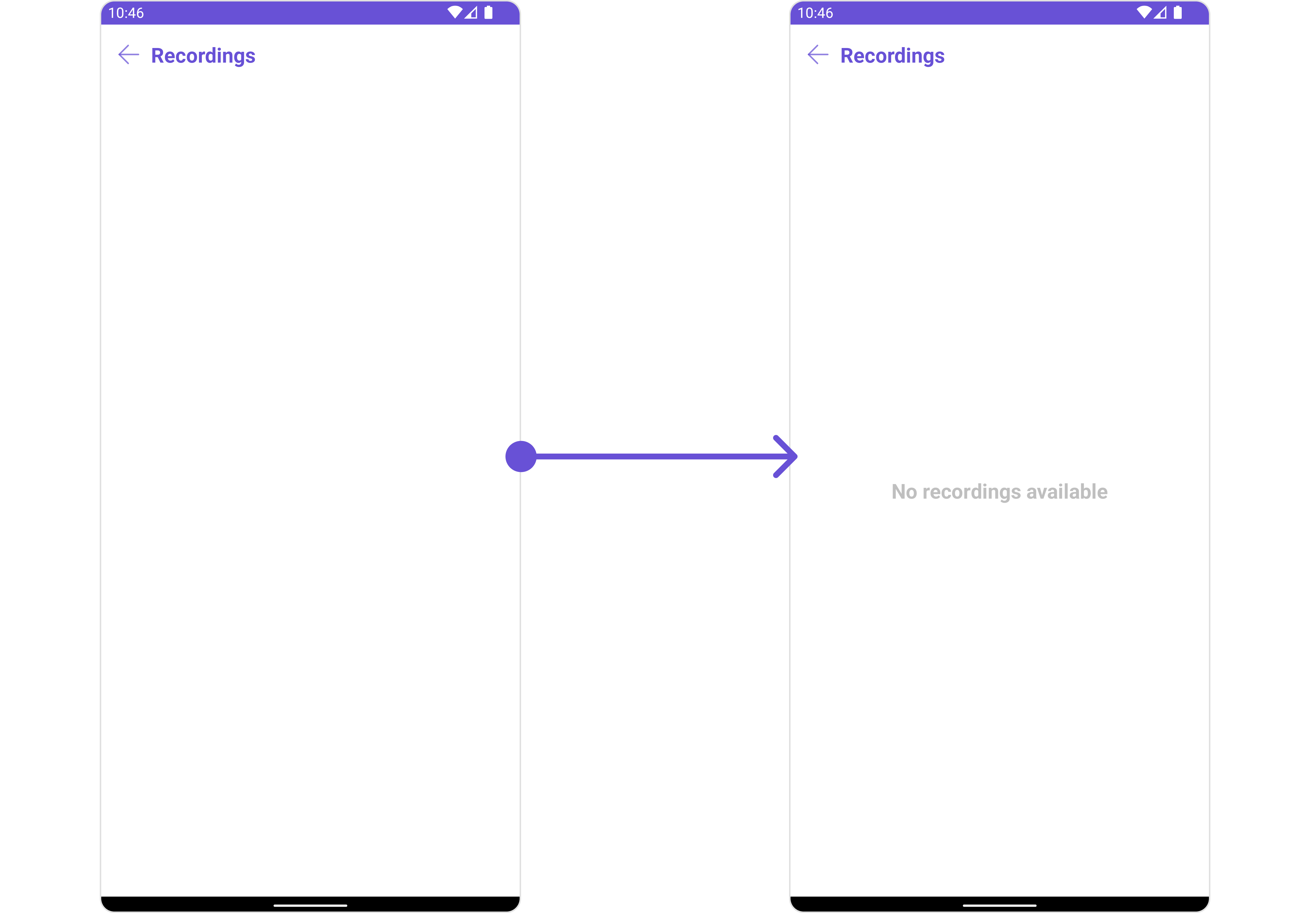

SetEmptyStateView 🛑

You can set a custom EmptyStateView using setEmptyStateView() to match the error view of your app.

cometchatCallLogRecordings.setEmptyStateView();

Example

You need to create a empty_view_layout.xml as a custom view file. Which we will inflate and pass to .setEmptyStateView().

empty_view_layout.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:layout_gravity="center_vertical">

    <TextView
        android:id="@+id/txt_title"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_centerInParent="true"
        android:text="No recordings available"
        android:textColor="@color/cometchat_grey"
        android:textSize="20sp"
        android:textStyle="bold" />

</RelativeLayout>

You inflate the view and pass it to setEmptyStateView. You can get the child view reference and can handle click actions.

cometchatCallLogRecordings.setEmptyStateView(R.layout.empty_view_layout);

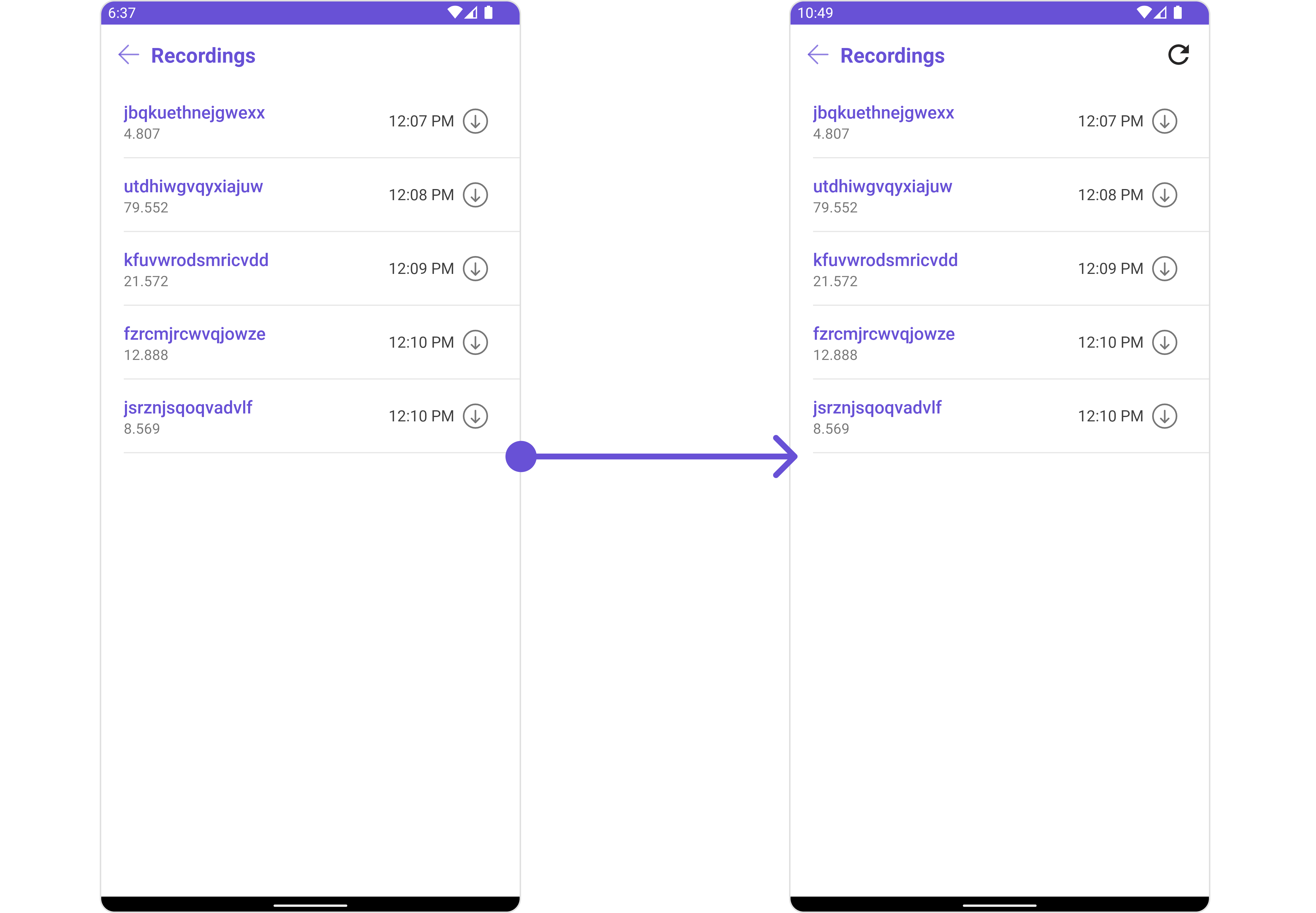

You can set the Custom Menu to add more options to the CometChatCallLogRecordings component.

cometchatCallLogRecordings.setMenu();

Example

You need to create a view_menu.xml as a custom view file. Which we will inflate and pass to .setMenu().

view_menu.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal">

    <ImageView
        android:id="@+id/img_refresh"
        android:layout_width="30dp"
        android:layout_height="30dp"
        android:src="@drawable/ic_refresh_black" />

</LinearLayout>

You inflate the view and pass it to setMenu. You can get the child view reference and can handle click actions.

YourActivity.java

View view = getLayoutInflater().inflate(R.layout.view_menu, null);
ImageView imgRefresh = view.findViewById(R.id.img_refresh);
imgRefresh.setOnClickListener(v -> {
    Toast.makeText(this, "Clicked on Refresh", Toast.LENGTH_SHORT).show();
});
cometchatCallLogRecordings.setMenu(view);
