Conversations with Messages

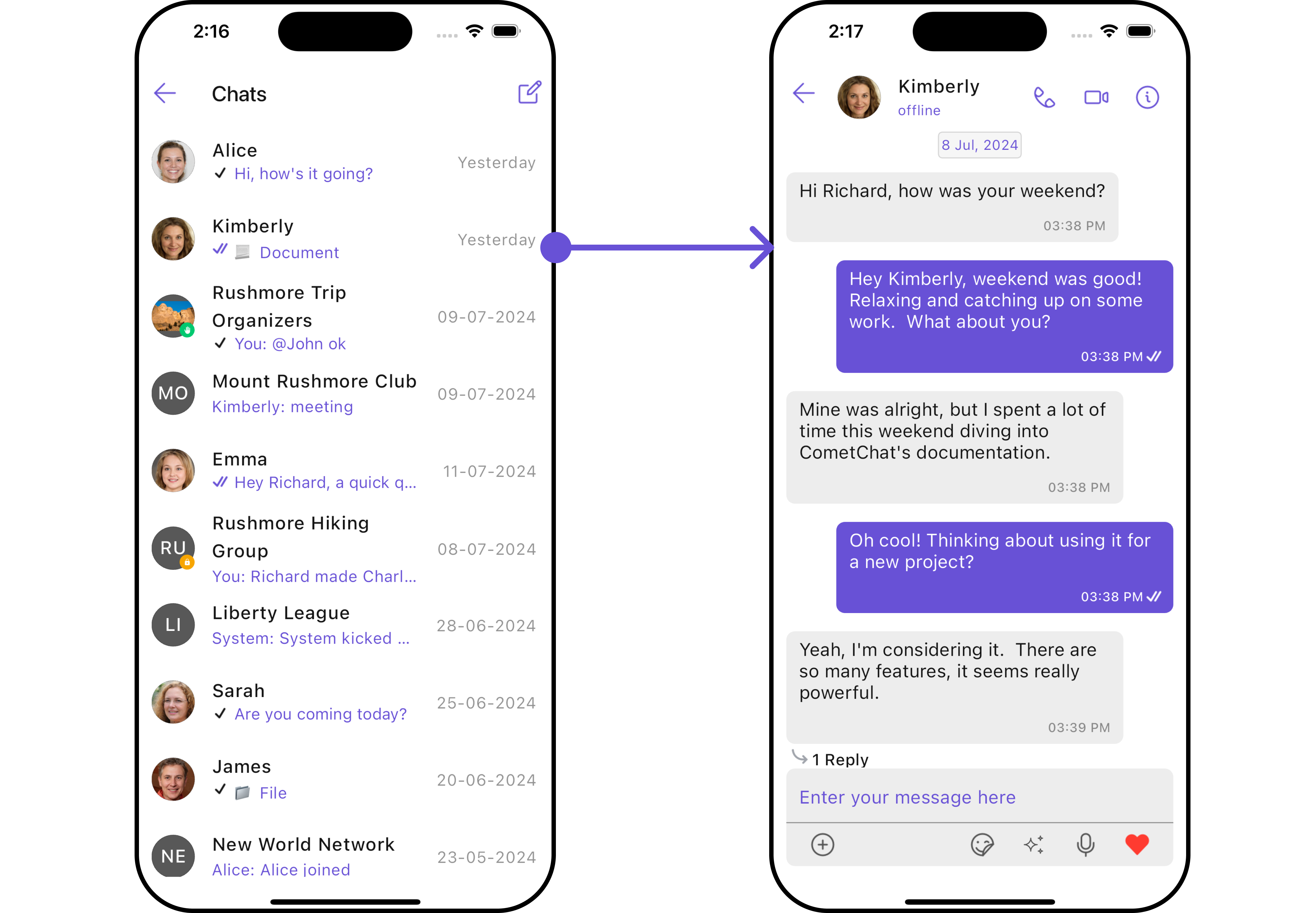

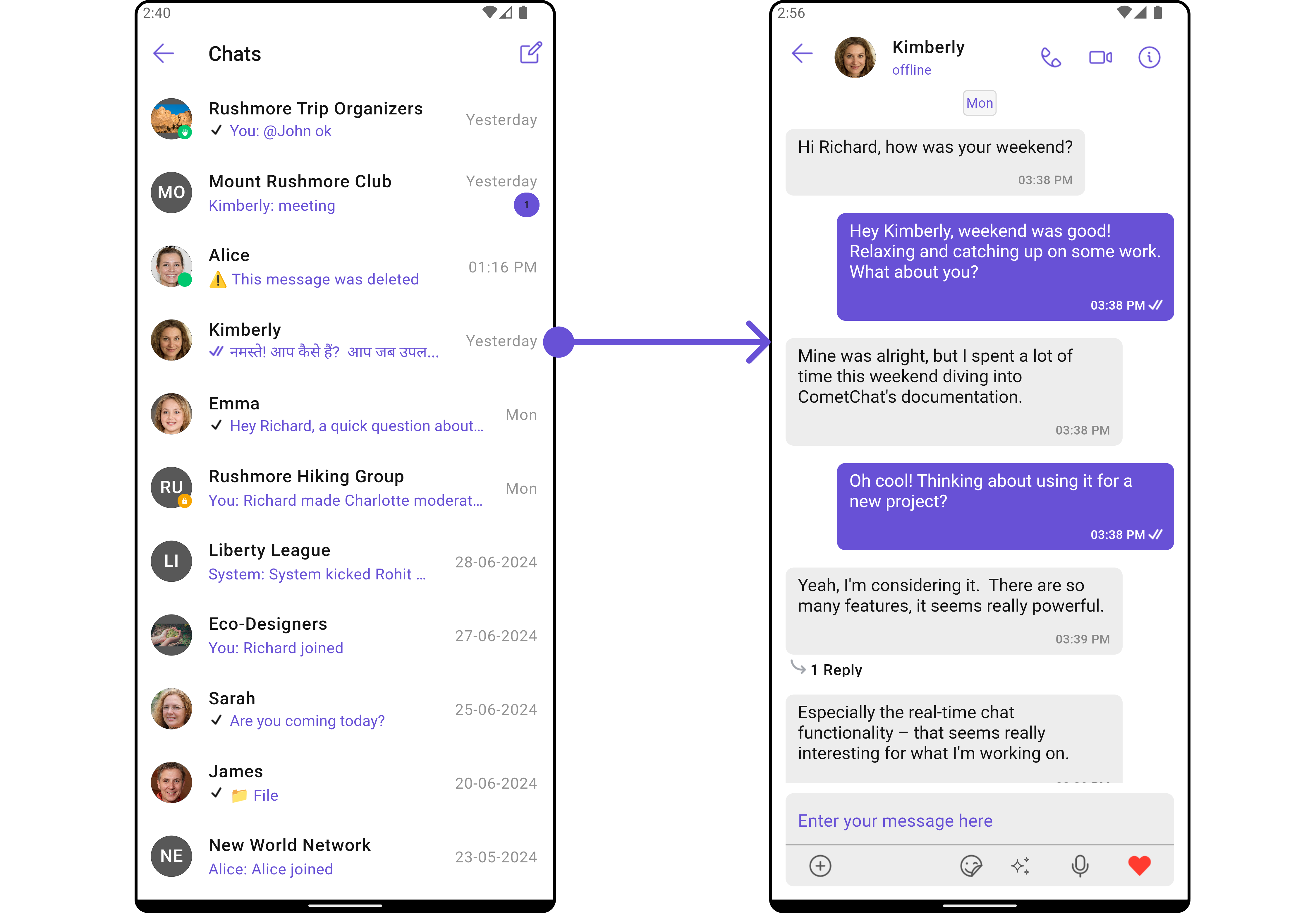

Overview

The CometChatConversationsWithMessages is a Composite Widget encompassing widgets such as Conversations, Messages, and Contacts. Each of these widgets contributes to the functionality and structure of the overall CometChatConversationsWithMessages widget.

Android

iOS

Widgets	Description
Conversations	The Conversations widget is designed to display a list of either User or Group. This essentially represents your recent conversation history.
Messages	The Messages widget is designed to manage the messaging interaction for either individual User or Group conversations.
Contacts	The CometChatContacts widget is specifically designed to facilitate the display and management of both User and Groups.

Usage

Integration

Since CometChatConversationsWithMessages is a widget, it can be launched either by a button click or through any event's trigger. It inherits all the customizable properties and methods of CometChatConversations.

You can launch CometChatConversationsWithMessages directly using Navigator.push, or you can define it as a widget within the build method of your State class.

1. Using Navigator to Launch CometChatConversationsWithMessages

Dart

Navigator.push(context, MaterialPageRoute(builder: (context) => const CometChatConversationsWithMessages()));

2. Embedding CometChatConversationsWithMessages as a Widget in the build Method

Dart

import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';
import 'package:flutter/material.dart';


class ConversationsWithMessages extends StatefulWidget {
  const ConversationsWithMessages({super.key});

  @override
  State<ConversationsWithMessages> createState() => _ConversationsWithMessagesState();
}

class _ConversationsWithMessagesState extends State<ConversationsWithMessages> {

  @override
  Widget build(BuildContext context) {
    return const Scaffold(
        body: SafeArea(
            child: CometChatConversationsWithMessages()
        )
    );
  }
}

List of properties exposed by CometChatConversationsWithMessages

Property	Data Type	Description
user	User?	The user object representing the current user.
group	Group?	The group object representing the current group.
theme	Theme?	The theme object for customizing the appearance of the widget.
conversationsConfiguration	ConversationsConfiguration?	Configuration settings for the conversations list.
messageConfiguration	MessageConfiguration?	Configuration settings for individual messages.
startConversationConfiguration	StartConversationConfiguration?	Configuration settings for starting new conversations.

---

Actions

Actions dictate how a widget functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the widget to fit your specific needs.

While the CometChatConversationsWithMessages widget does not have its actions, its sub-widgets - Conversation, Messages, and Contacts - each have their own set of actions.

The actions of these widgets can be overridden through the use of the Configurations object of each widget. Here is an example code snippet.

Dart

CometChatConversationsWithMessages(
  conversationsConfiguration: ConversationsConfiguration(
      onItemTap: (conversation) {
        // TODO("Not yet implemented")
      }
  ),
)

Android

iOS

---

Filters

Filters allow you to customize the data displayed in a list within a Widget. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

While the CometChatConversationsWithMessages widget does not have filters, its widgets do, For more detail on individual filters of its widget refer to Conversations Filters and Messages Filters.

By utilizing the Configurations object of its widgets, you can apply filters.

In the following example, we're filtering Conversation to only show User

Dart

CometChatConversationsWithMessages(
  conversationsConfiguration: ConversationsConfiguration(
    conversationsRequestBuilder: ConversationsRequestBuilder()
        ..limit = 5
        ..conversationType = "user"
  ),
)

---

Events

Events are emitted by a Widget. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

The CometChatConversationsWithMessages does not produce any events but its subwidget does. For a full list of these events, you can refer to Conversations events and Messages events.

In the following example, we're incorporating observers for the ConversationDeleted event of Conversations widget.

This ccConversationDeleted will be emitted when the user deletes a conversation

Dart

import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';

class _YourScreenState extends State<YourScreen> with CometChatConversationEventListener {

  @override
  void initState() {
    super.initState();
    CometChatConversationEvents.addConversationListListener("listenerId", this); // Add the listener
  }

  @override
  void dispose(){
    super.dispose();
    CometChatConversationEvents.removeConversationListListener("listenerId"); // Remove the listener
  }

  @override
  void ccConversationDeleted(Conversation conversation) {
    // TODO("Not yet implemented")
  }
}

---

Customization

To fit your app's design requirements, you have the ability to customize the appearance of the CometChatConversationsWithMessages widget. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the widget in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the widget. CometChatConversationsWithMessages widget doesn't have its own style parameters. But you can customize its widget styles. For more details on individual widget styles, you can refer Conversation Styles, Messages Styles, and Contacts Styles

Styles can be applied to SubWidgets using their respective configurations.

Dart

CometChatConversationsWithMessages(
  conversationsConfiguration: ConversationsConfiguration(
      avatarStyle: AvatarStyle(
          border: Border.all(width: 2),
          borderRadius: 20,
          background: Colors.red
      ),
      statusIndicatorStyle: const StatusIndicatorStyle(
          borderRadius: 10,
          width: 2
      ),
      dateStyle: const DateStyle (
          contentPadding: EdgeInsets.all(2),
          background: Colors.grey
      )
  ),
)

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the widget. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

Set User

You can utilize the user function with a User object as input to CometChatConversationsWithMessages. This will automatically guide you to the Messages widget for the designated User.

Dart

CometChatConversationsWithMessages(
  user: User(
    name: "",
    uid: "",
    avatar: ""
  ),
)

---

Set Group

You can utilize the set(group: Group?) function with a Group object as input to CometChatConversationsWithMessages. This will automatically guide you to the Messages widget for the designated Group.

Dart

CometChatConversationsWithMessages(
  group: Group(
    guid: "",
    name: "",
    type: ""
  ),
)

---

Widgets

Nearly all functionality customizations are available for the composite widget. Using Configuration, you can modify the properties of its widgets to suit your needs.

You can find the list of all Functionality customization of individual widgets in Conversations , Messages, and Contacts

Dart

CometChatConversationsWithMessages(
  conversationsConfiguration: ConversationsConfiguration(
    hideReceipt: true,
    title: "Your Title",
    hideSeparator: true,
    hideStartConversation: true,
    backButton: Icon(Icons.add_alert_outlined, color: Color(0xFF6851D6),)
  ),
)

---

Advanced

For advanced-level customization, you can set custom views to the widget. This lets you tailor each aspect of the widget to fit your exact needs and application aesthetics. You can create and define your own widget and then incorporate those into the widget.

By utilizing the Configuration object of each widget, you can apply advanced-level customizations to the ConversationsWithMessages.

Dart

CometChatConversationsWithMessages(
  conversationsConfiguration: ConversationsConfiguration(),
)

To find all the details on individual Widget advance customization you can refer, Conversations Advance,Messages Advance and Contacts Advance

ConversationsWithMessages uses advanced-level customization of both Conversation & Messages widgets to achieve its default behavior.

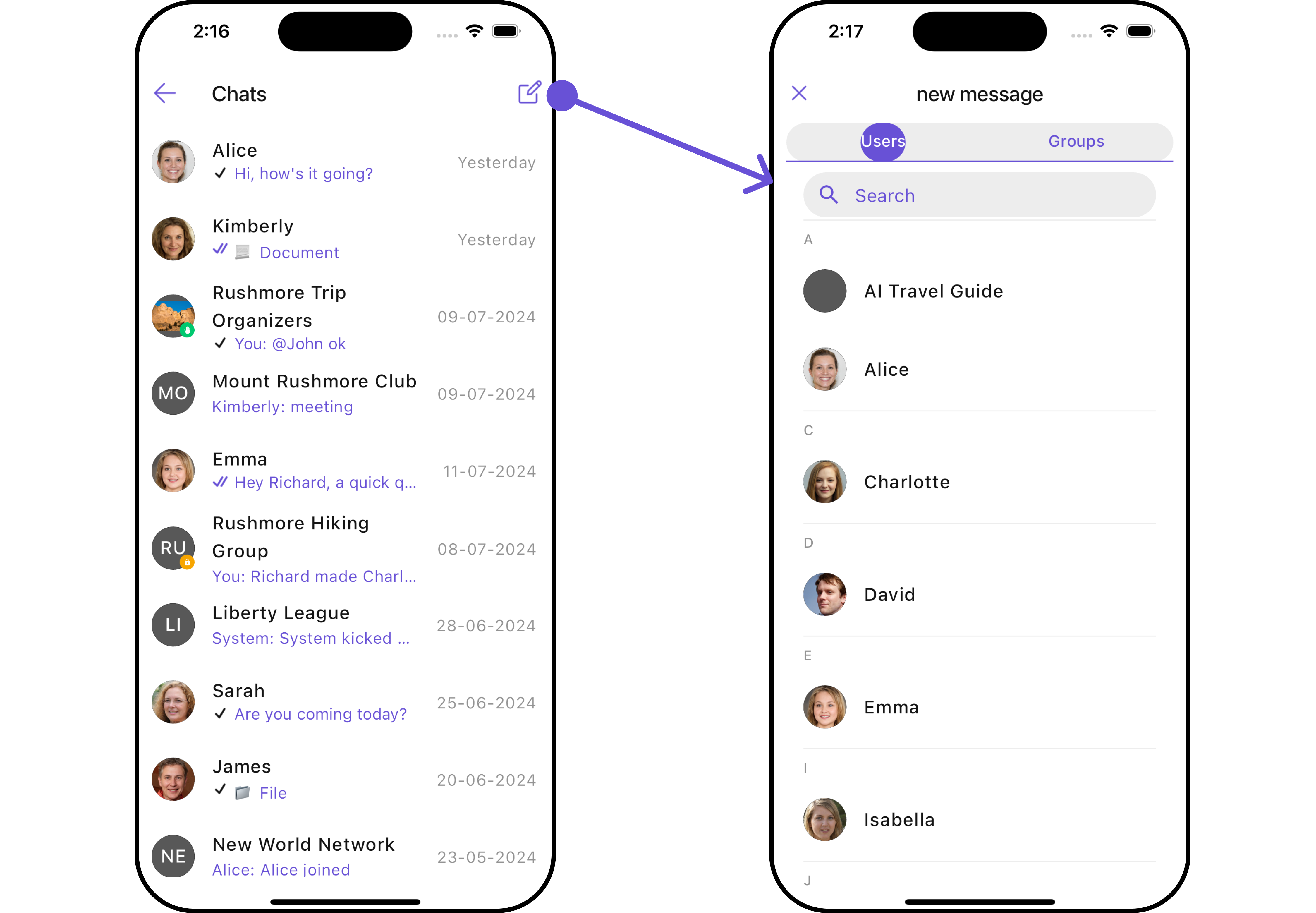

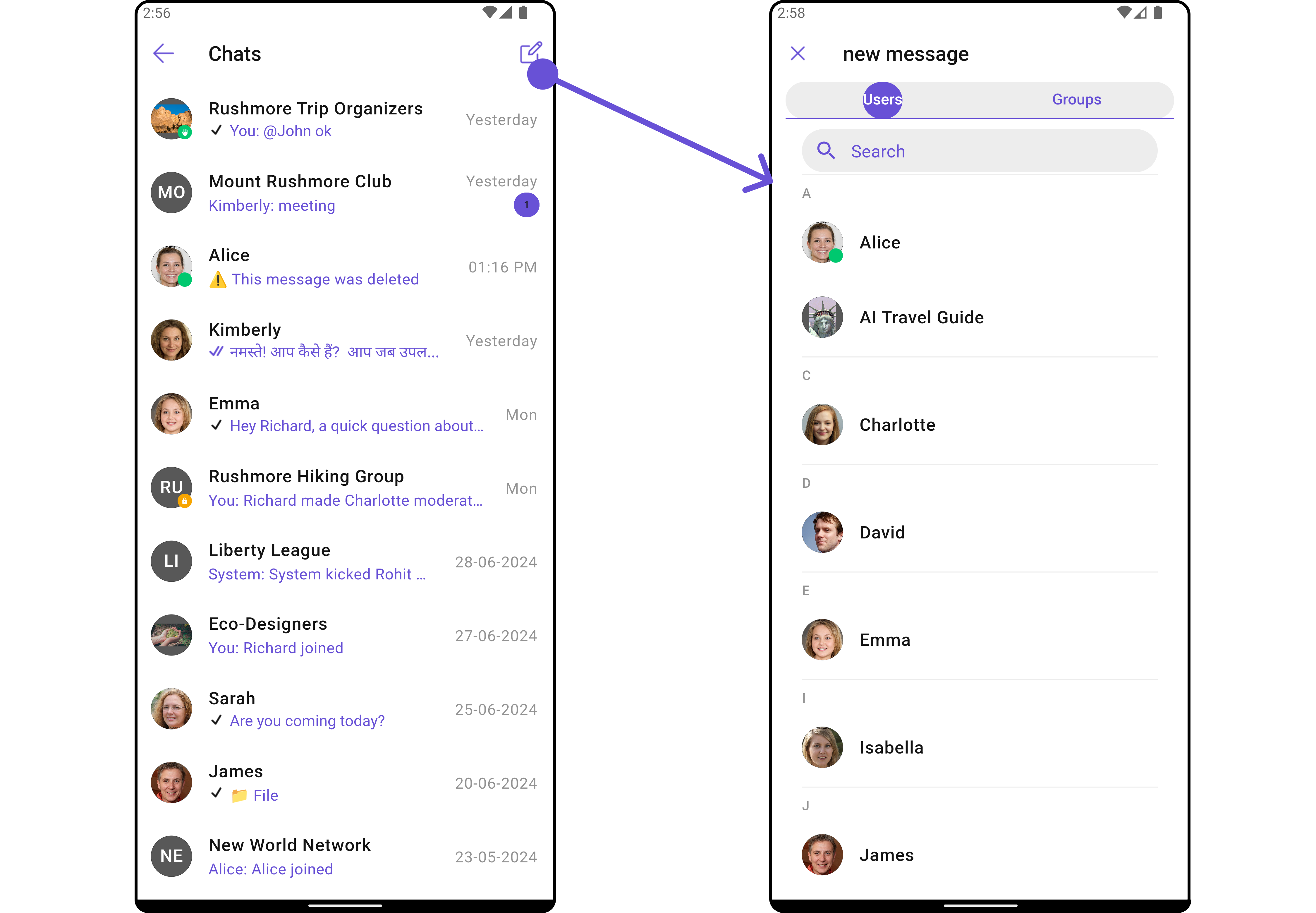

1. ConversationsWithMessages utilizes the SetMenu function of the Conversations subwidget to navigate the user from Conversations to Contacts

Android

iOS

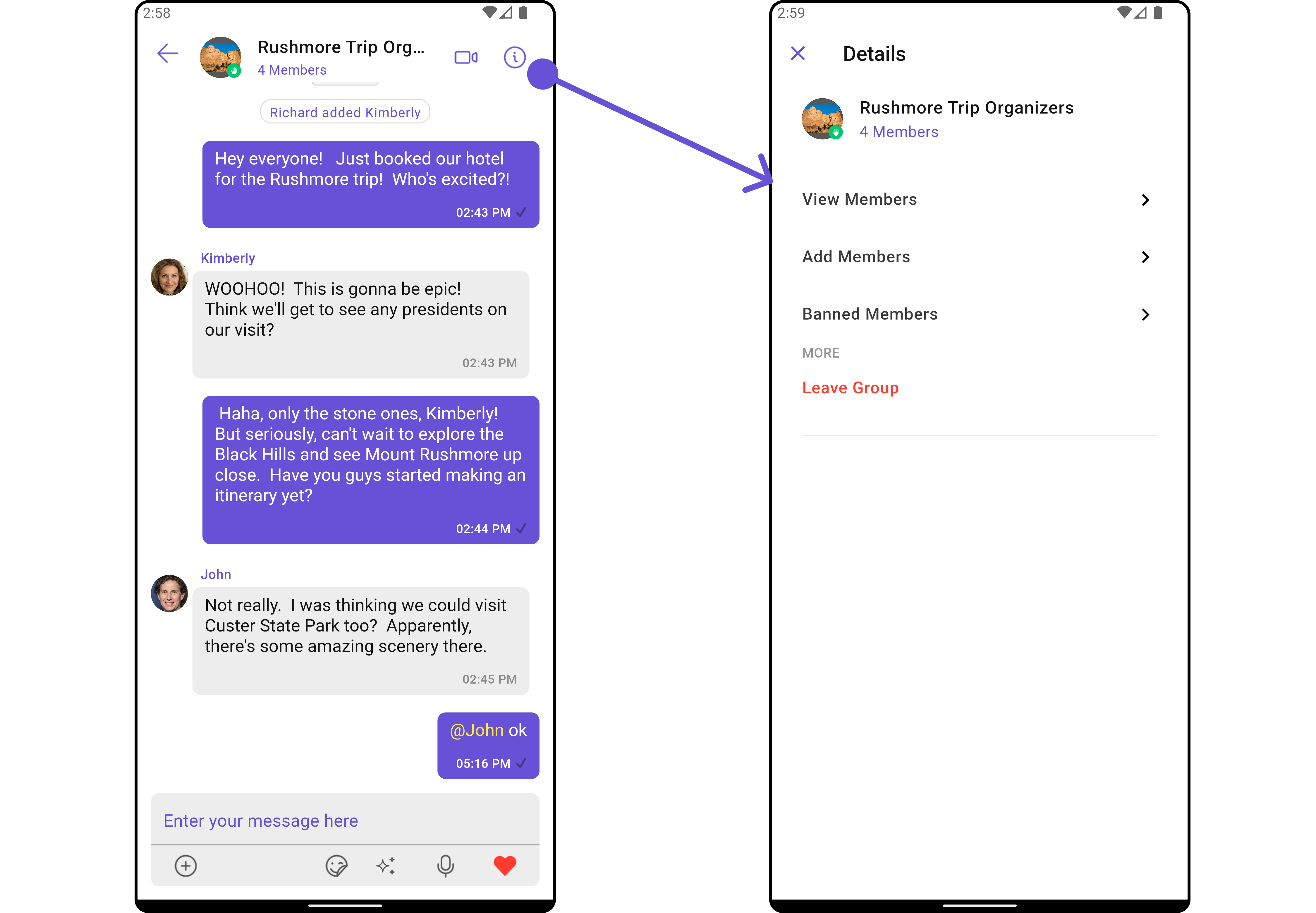

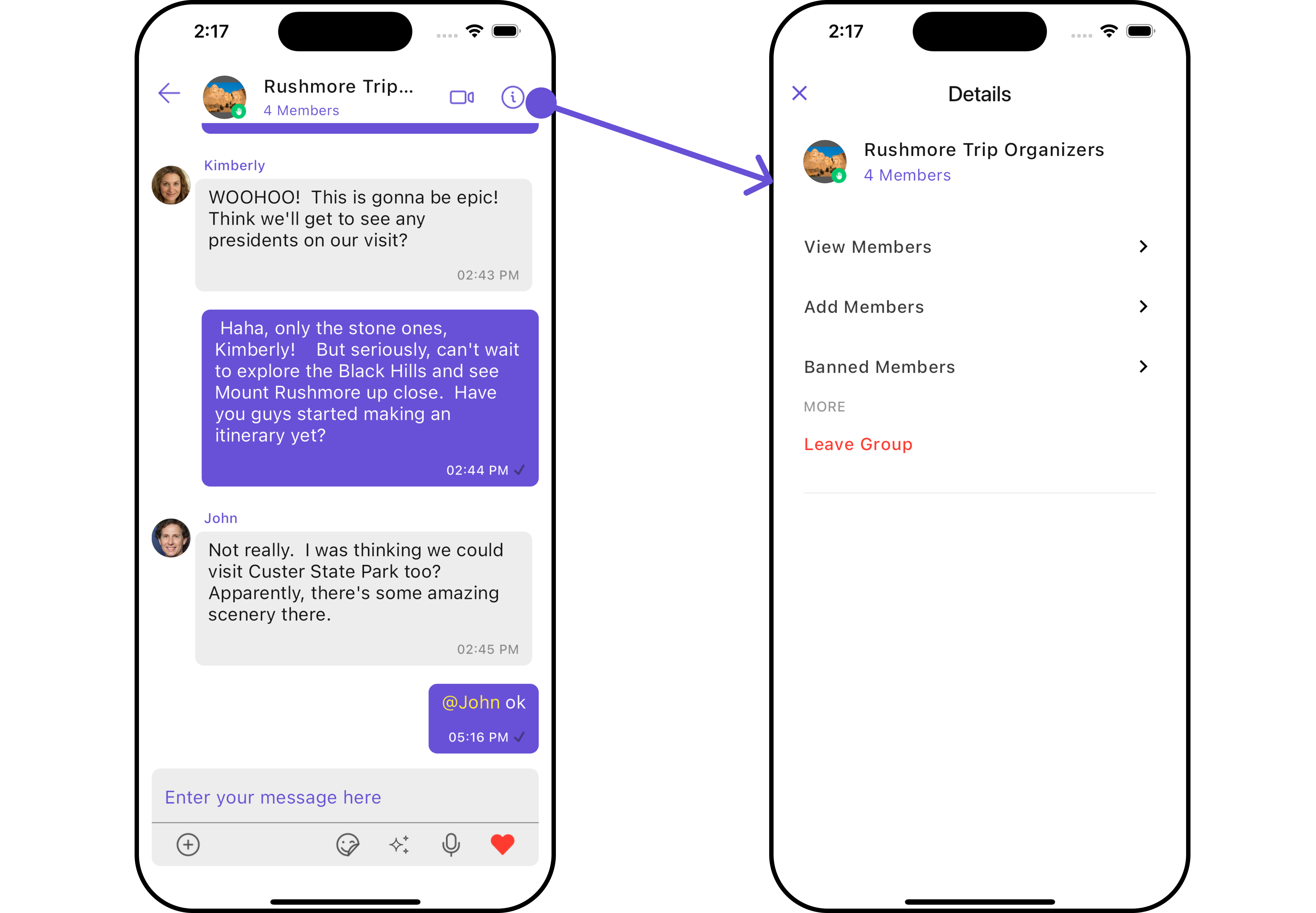

2. ConversationsWithMessages utilizes the SetMenu function of the Messages subwidget to navigate the user from Messages to Details.

Android

iOS

---

Configurations

Configurations offer the ability to customize the properties of each widget within a Composite Widget.

CometChatConversationsWithMessages has Conversations, Messages, and Contacts widget. Hence, each of these widgets will have its individual `Configuration``.

• Configurations expose properties that are available in its individual widgets.

Conversations

You can customize the properties of the Conversations widget by making use of the ConversationsConfiguration. You can accomplish this by employing the .conversationsConfiguration method as demonstrated below:

Dart

CometChatConversationsWithMessages(
  conversationsConfiguration: ConversationsConfiguration(),
)

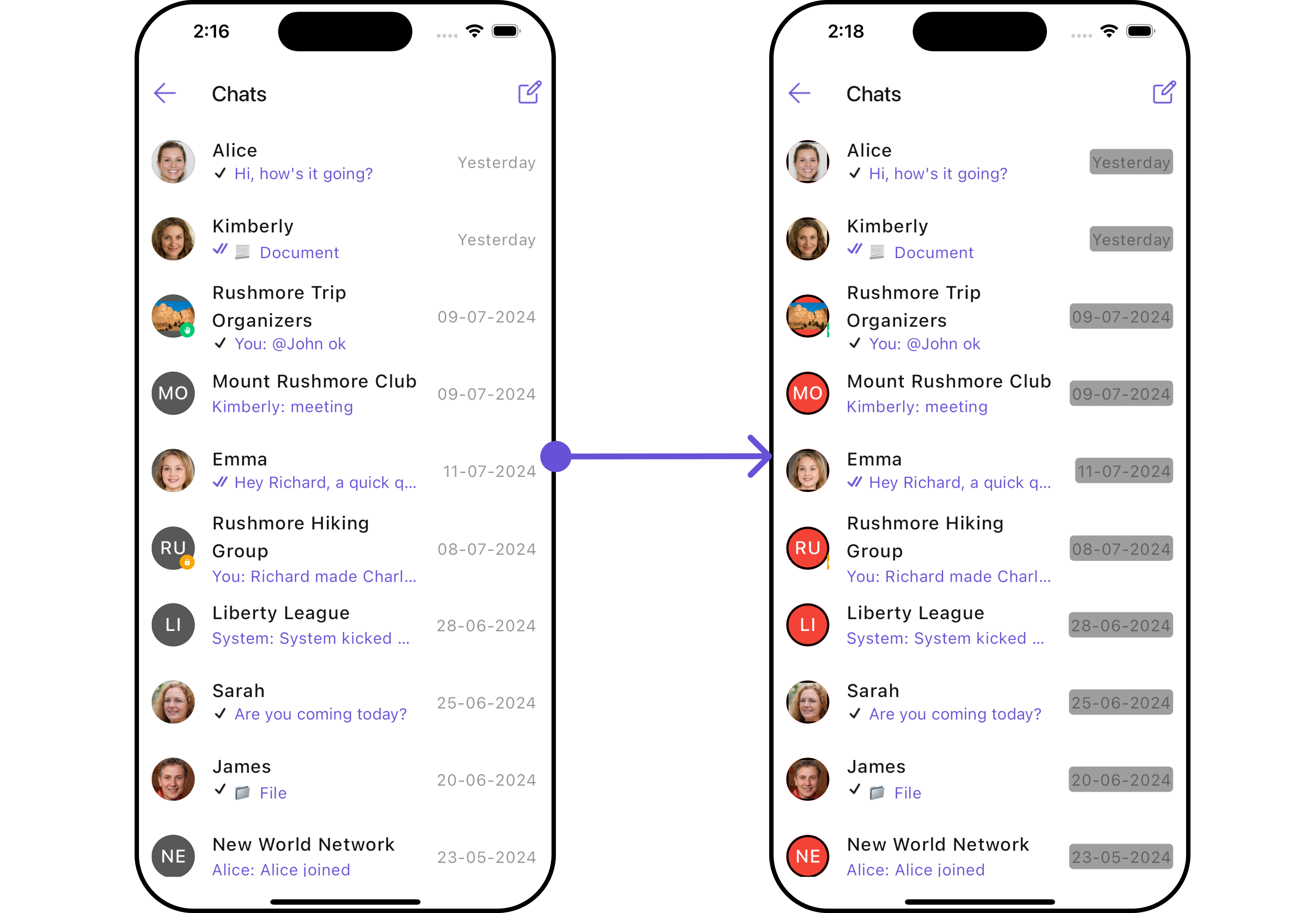

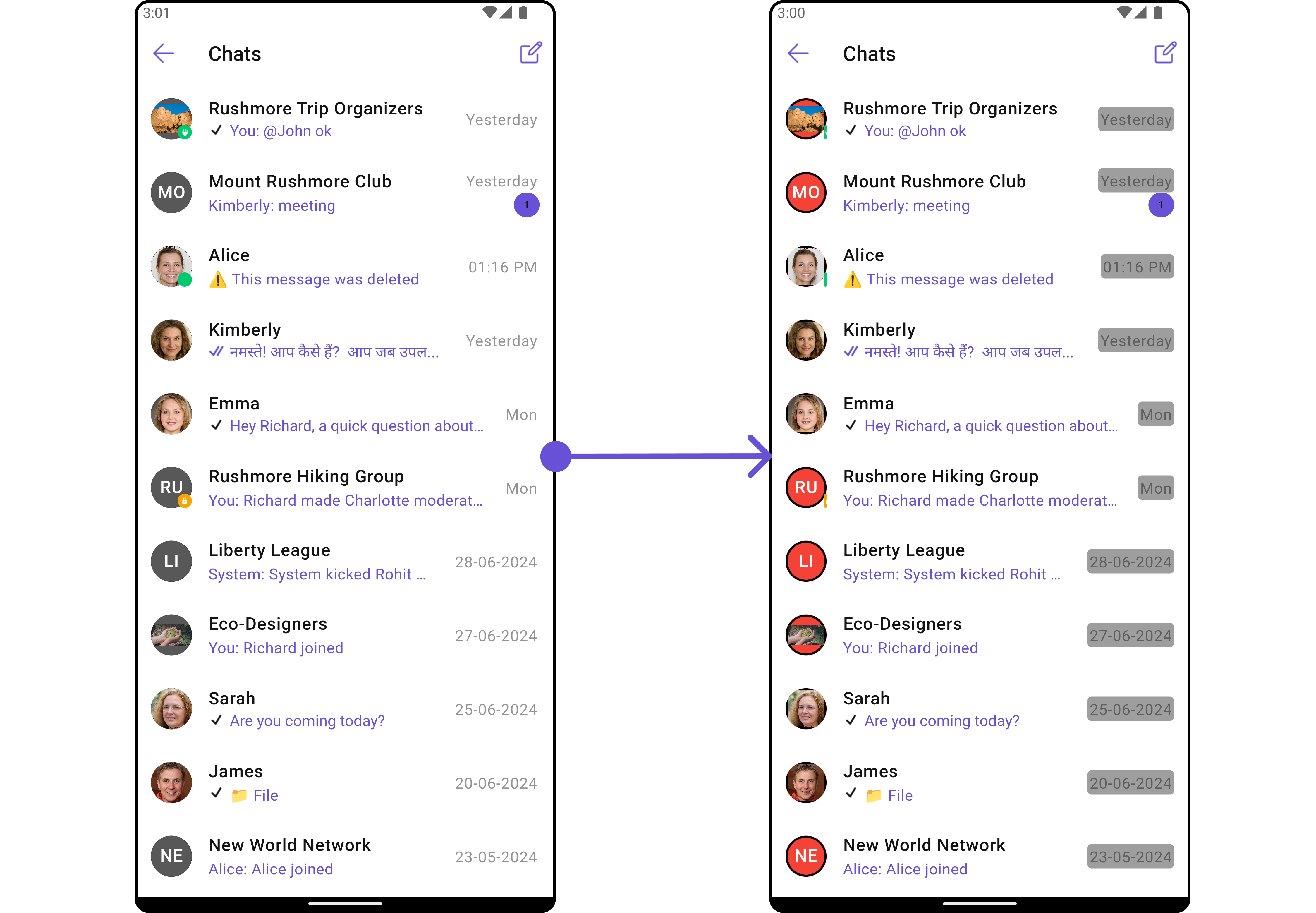

Example

Dart

CometChatConversationsWithMessages(
  conversationsConfiguration: ConversationsConfiguration(
      avatarStyle: AvatarStyle(
          border: Border.all(width: 2),
          borderRadius: 20,
          background: Colors.red
      ),
      statusIndicatorStyle: const StatusIndicatorStyle(
          borderRadius: 10,
          width: 2
      ),
      dateStyle: const DateStyle (
          contentPadding: EdgeInsets.all(2),
          background: Colors.grey
      )
  ),
)

Android

iOS

---
