Overview

The Messages is a Composite Widget that manages messages for users and groups.

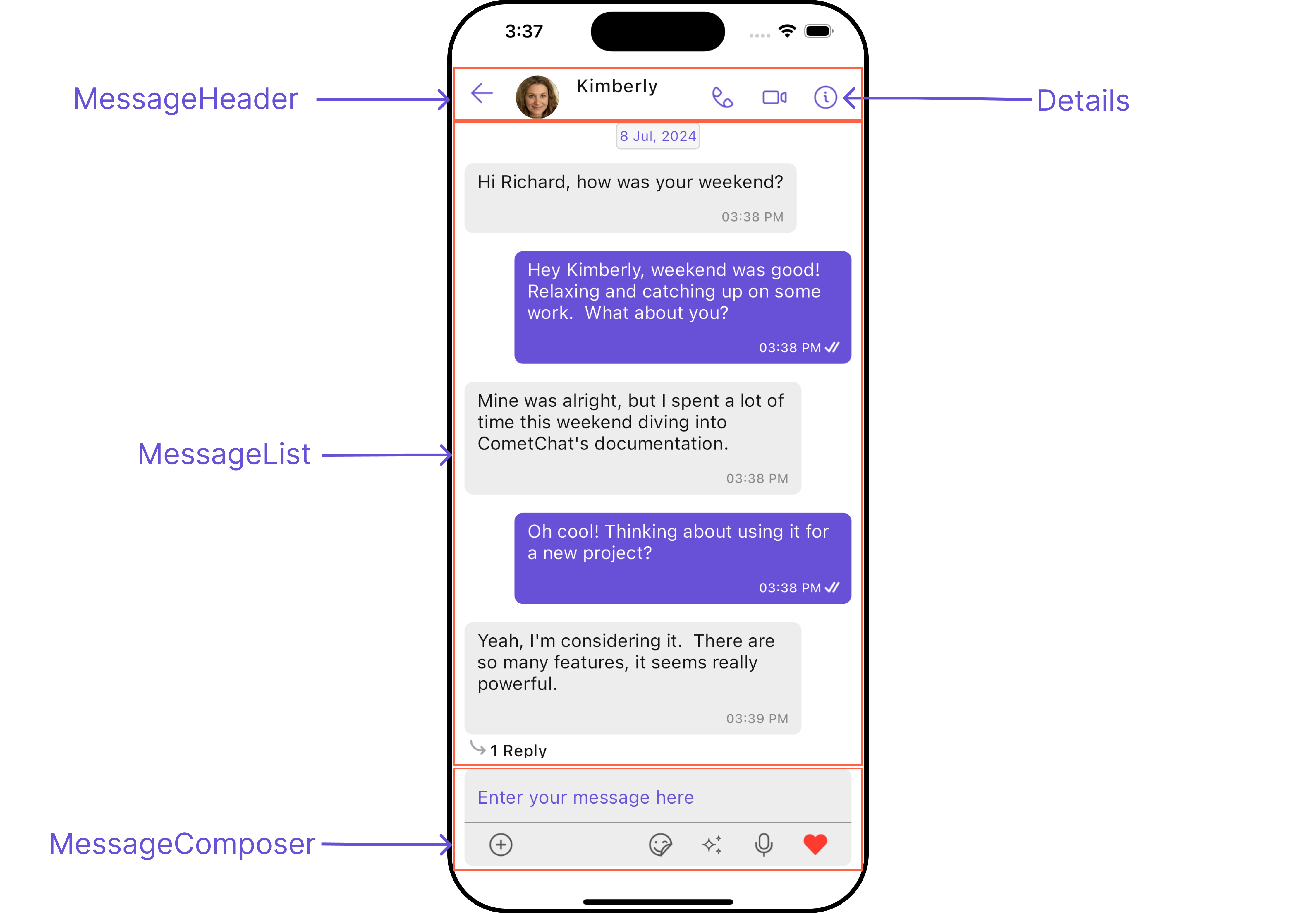

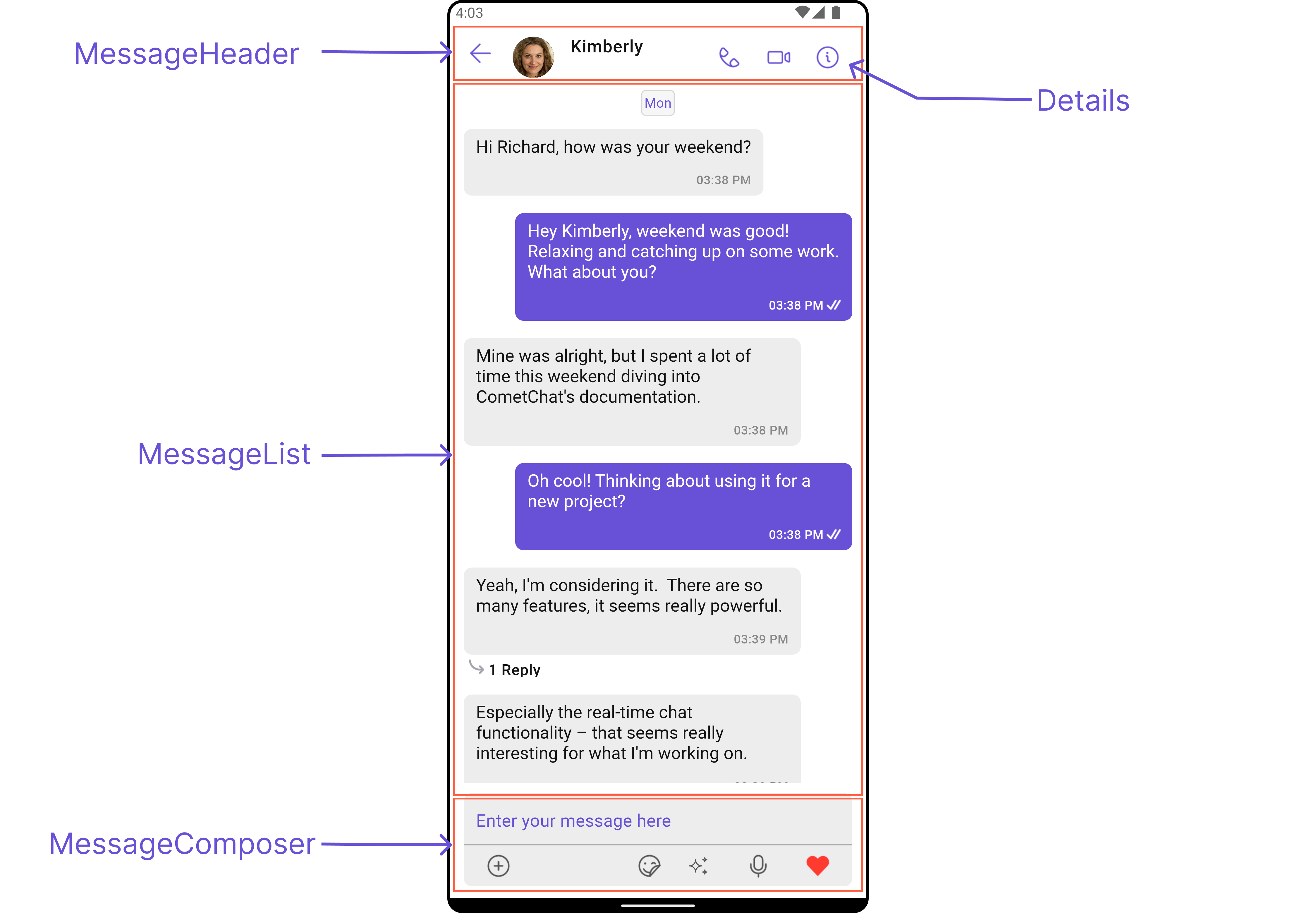

The Messages widget is composed of three individual widgets, MessageHeader, MessageList, and MessageComposer. In addition, the Messages widget also navigates to the Details and ThreadedMessages widgets.

Widgets	Description
MessageHeader	`CometChatMessageHeader` displays the `User` or `Group` information using CometChat SDK’s `User` or `Group object.` It also shows the typing indicator when the user starts typing in `MessageComposer`.
MessageList	`CometChatMessageList` is one of the core UI widgets. It displays a list of messages and handles real-time operations.
MessageComposer	`CometChatMessageComposer` is an independent and critical widget that allows users to compose and send various types of messages includes text, image, video and custom messages.
Details	`CometChatDetails` is a widget that displays all the available options available for `Users` & `Groups`
ThreadedMessages	`CometChatThreadedMessages` is a widget that displays all replies made to a particular message in a conversation.

Usage

Integration

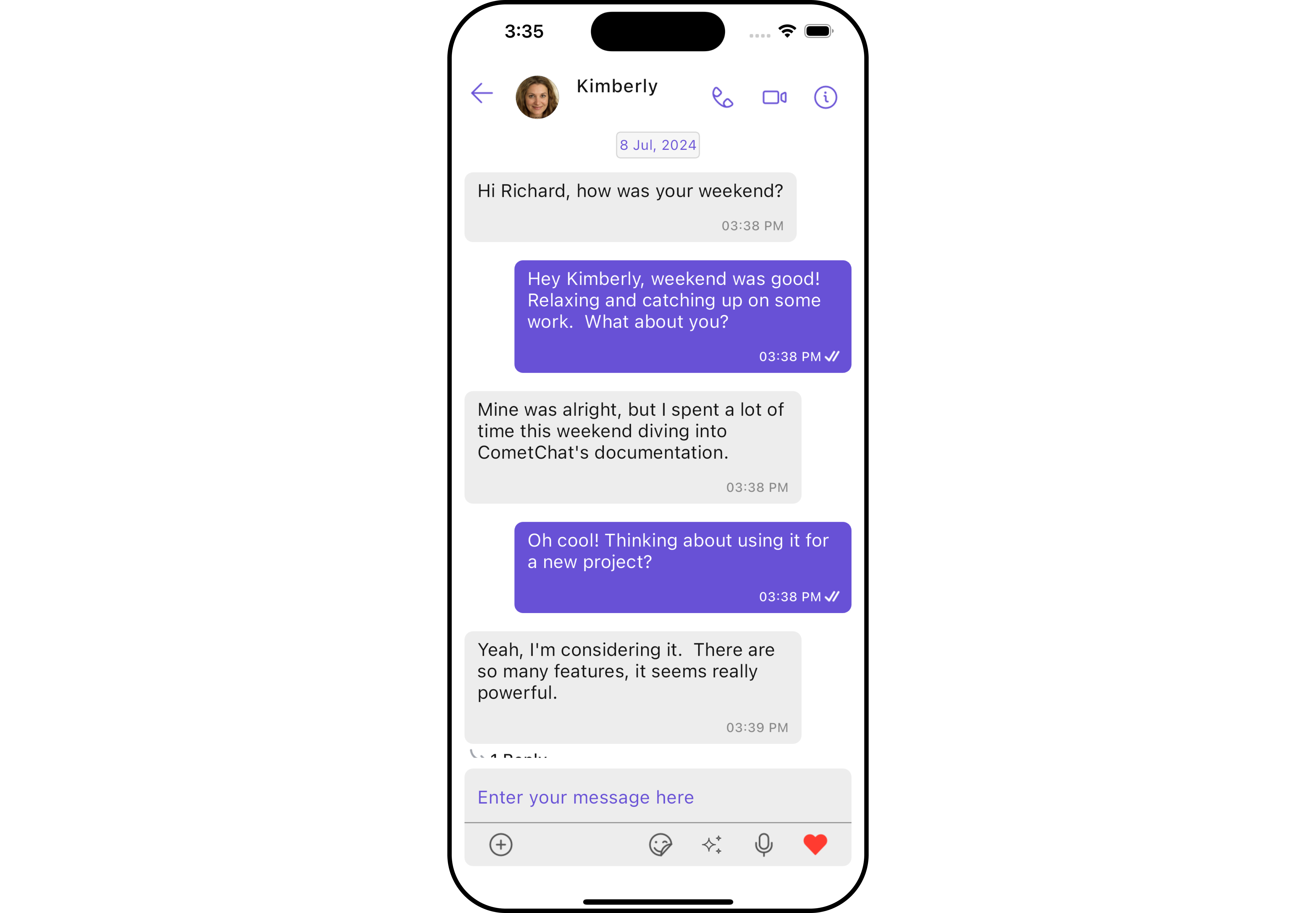

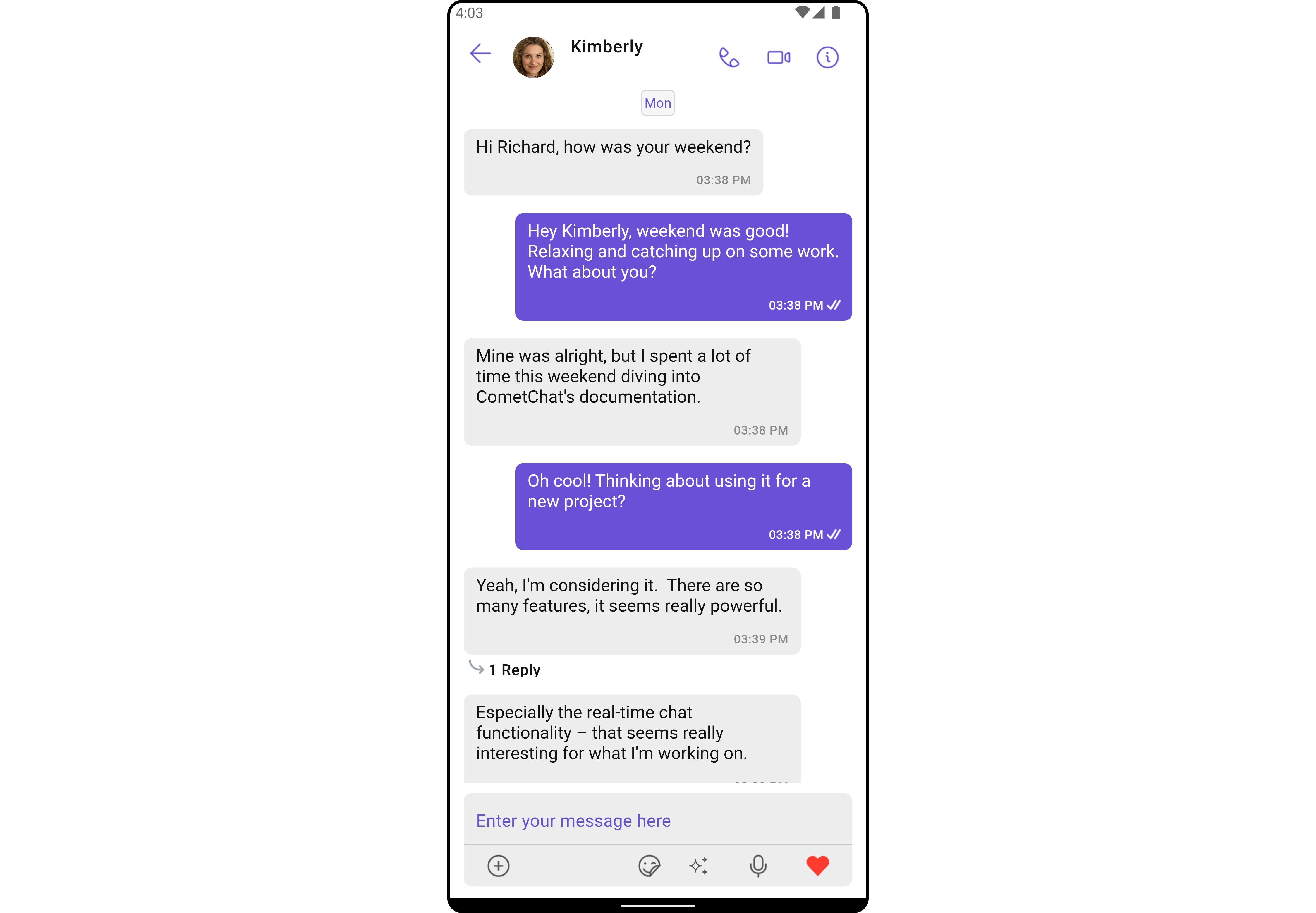

You can launch CometChatMessages directly using Navigator.push, or you can define it as a widget within the build method of your State class.

1. Using Navigator to Launch `CometChatMessages`

Navigator.push(context, MaterialPageRoute(builder: (context) => CometChatMessages())); // A user or group object is required to launch this widget.

2. Embedding `CometChatMessages` as a Widget in the build Method

import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';
import 'package:flutter/material.dart';

class Messages extends StatefulWidget {
  const Messages({super.key});

  @override
  State<Messages> createState() => _MessagesState();
}

class _MessagesState extends State<Messages> {

  @override
  Widget build(BuildContext context) {
    return Scaffold(
        body: SafeArea(
            child: CometChatMessages() // A user or group object is required to launch this widget.
        )
    );
  }
}

Actions

Actions dictate how a widget functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the widget to fit your specific needs. The Messages widget does not have its actions. However, since it’s a Composite Widget, you can use the actions of its widgets by utilizing the Configurations object of each component. Example In this example, we are employing the ThreadRepliesClick action from the MessageList Widget through the MessageListConfiguration object.

CometChatMessages(
  user: user,
  messageListConfiguration: MessageListConfiguration(
      onThreadRepliesClick: (message, context, {bubbleView}) {
        // TODO("Not yet implemented")
      },
  ),
)

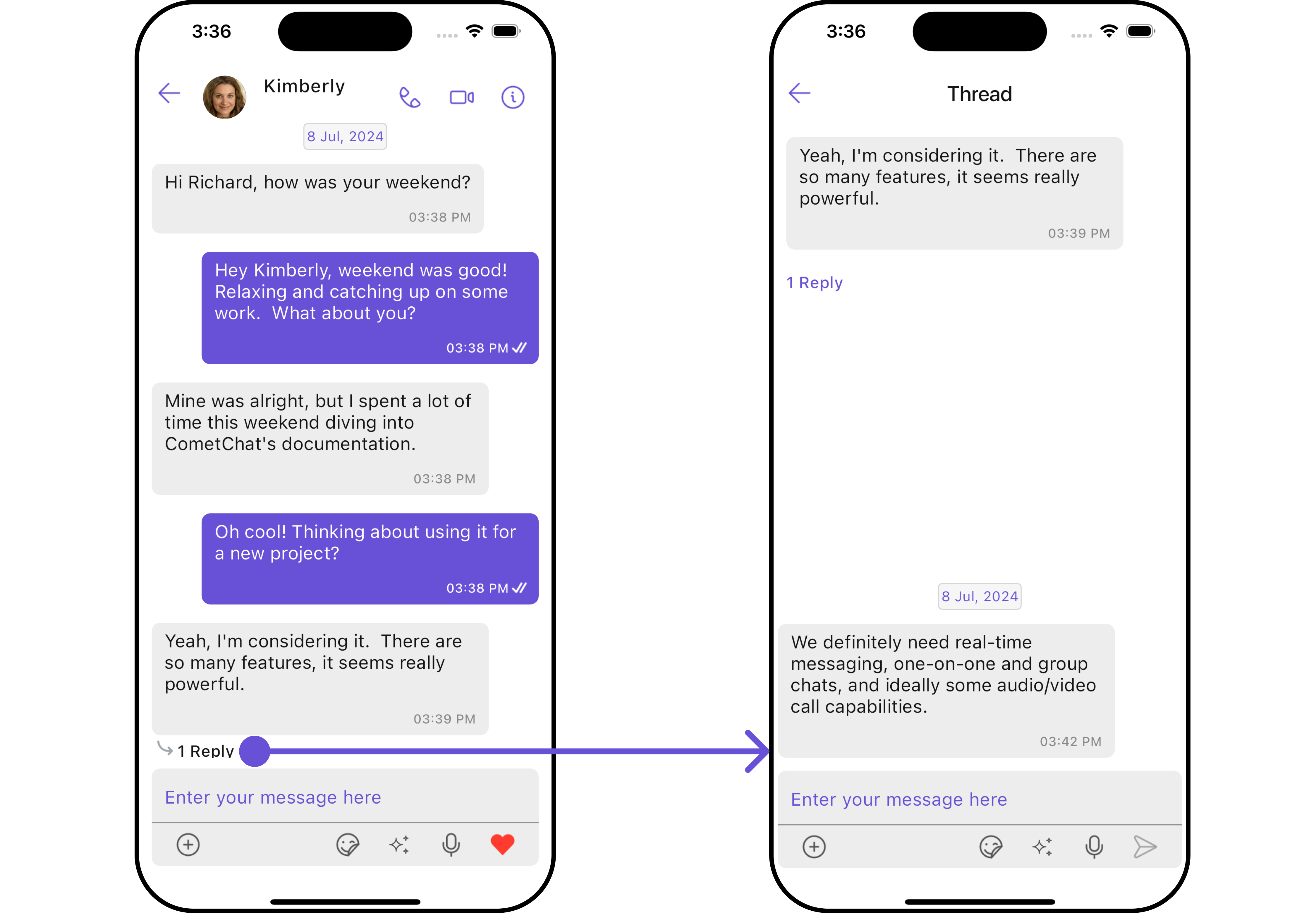

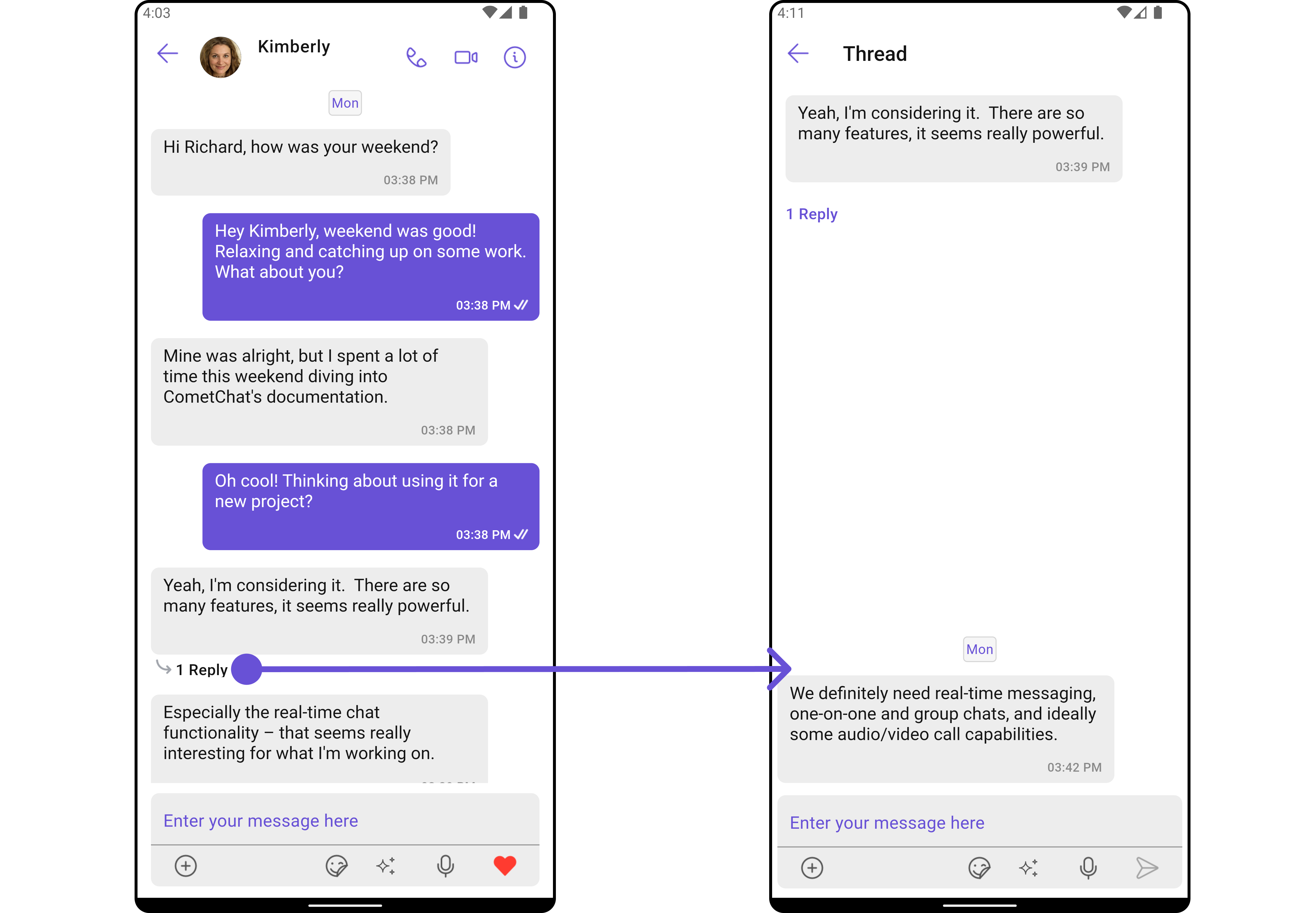

The Messages Widget overrides the ThreadRepliesClick action to navigate to the ThreadedMessages component. If you override ThreadRepliesClick, it will also override the default behavior of the Messages Widget.

Filters

Filters allow you to customize the data displayed in a list within a Widget. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK. The Messages widget does not have its filters. But as it is a Composite Widget, you can use the filters of its widgets by using the Configurations object of each component. For more details on the filters of its widgets, please refer to MessageList Filters. Example In this example, we’re applying the MessageList Widget filter to the Messages Widget using MessageListConfiguration.

CometChatMessages(
  user: user,
  messageListConfiguration: MessageListConfiguration(
      messagesRequestBuilder: MessagesRequestBuilder()
        ..uid = user.uid
        ..searchKeyword = "searchKeyword"
  ),
)

Events

Events are emitted by a Widget. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The list of events emitted by the Messages widget is as follows.

Event	Description
ccMessageSent	Triggers whenever a loggedIn user sends any message, it will have two states such as: inProgress & sent
ccMessageEdited	Triggers whenever a loggedIn user edits any message from the list of messages .it will have two states such as: inProgress & sent
ccMessageDeleted	Triggers whenever a loggedIn user deletes any message from the list of messages
ccMessageRead	Triggers whenever a loggedIn user reads any message.
ccLiveReaction	Triggers whenever a loggedIn clicks on live reaction

Example

import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';
import 'package:flutter/material.dart';

class YourScreen extends StatefulWidget {
  const YourScreen({super.key});

  @override
  State<YourScreen> createState() => _YourScreenState();
}

class _YourScreenState extends State<YourScreen> with CometChatMessageEventListener {

  @override
  void initState() {
    super.initState();
    CometChatMessageEvents.addMessagesListener("listenerId", this); // Add the listener
  }

  @override
  void dispose(){
    super.dispose();
    CometChatMessageEvents.removeMessagesListener("listenerId"); // Remove the listener
  }

  @override
  void ccMessageSent(BaseMessage message, MessageStatus messageStatus) {
    // TODO: implement ccMessageSent
    super.ccMessageSent(message, messageStatus);
  }

  @override
  void ccMessageEdited(BaseMessage message, MessageEditStatus status) {
    // TODO: implement ccMessageEdited
    super.ccMessageEdited(message, status);
  }

  @override
  void ccMessageDeleted(BaseMessage message, EventStatus messageStatus) {
    // TODO: implement ccMessageDeleted
    super.ccMessageDeleted(message, messageStatus);
  }

  @override
  void ccLiveReaction(String reaction) {
    // TODO: implement ccLiveReaction
    super.ccLiveReaction(reaction);
  }

  @override
  Widget build(BuildContext context) {
    return const Placeholder();
  }

}

Customization

To fit your app’s design requirements, you can customize the appearance of the conversation component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the widget in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

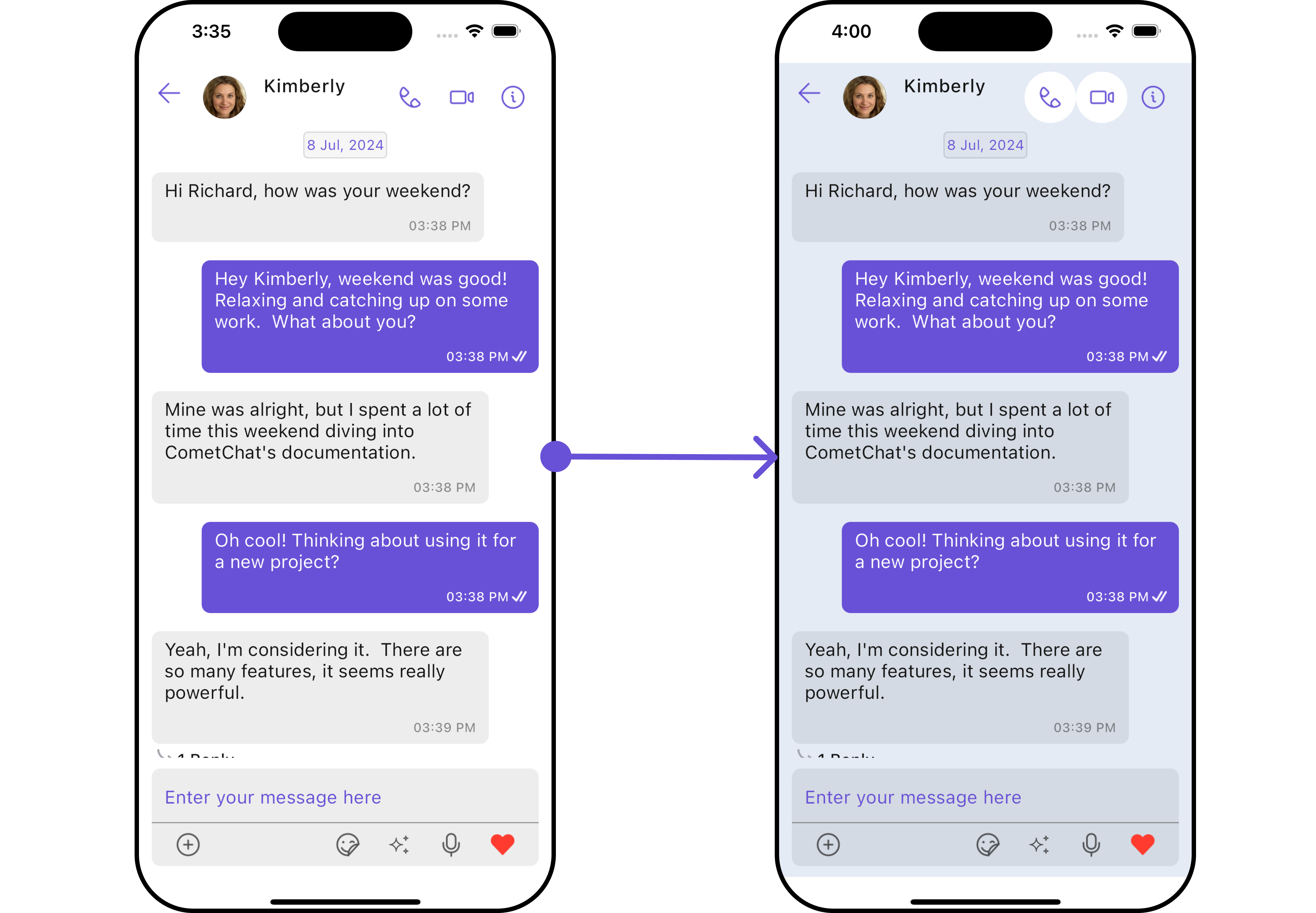

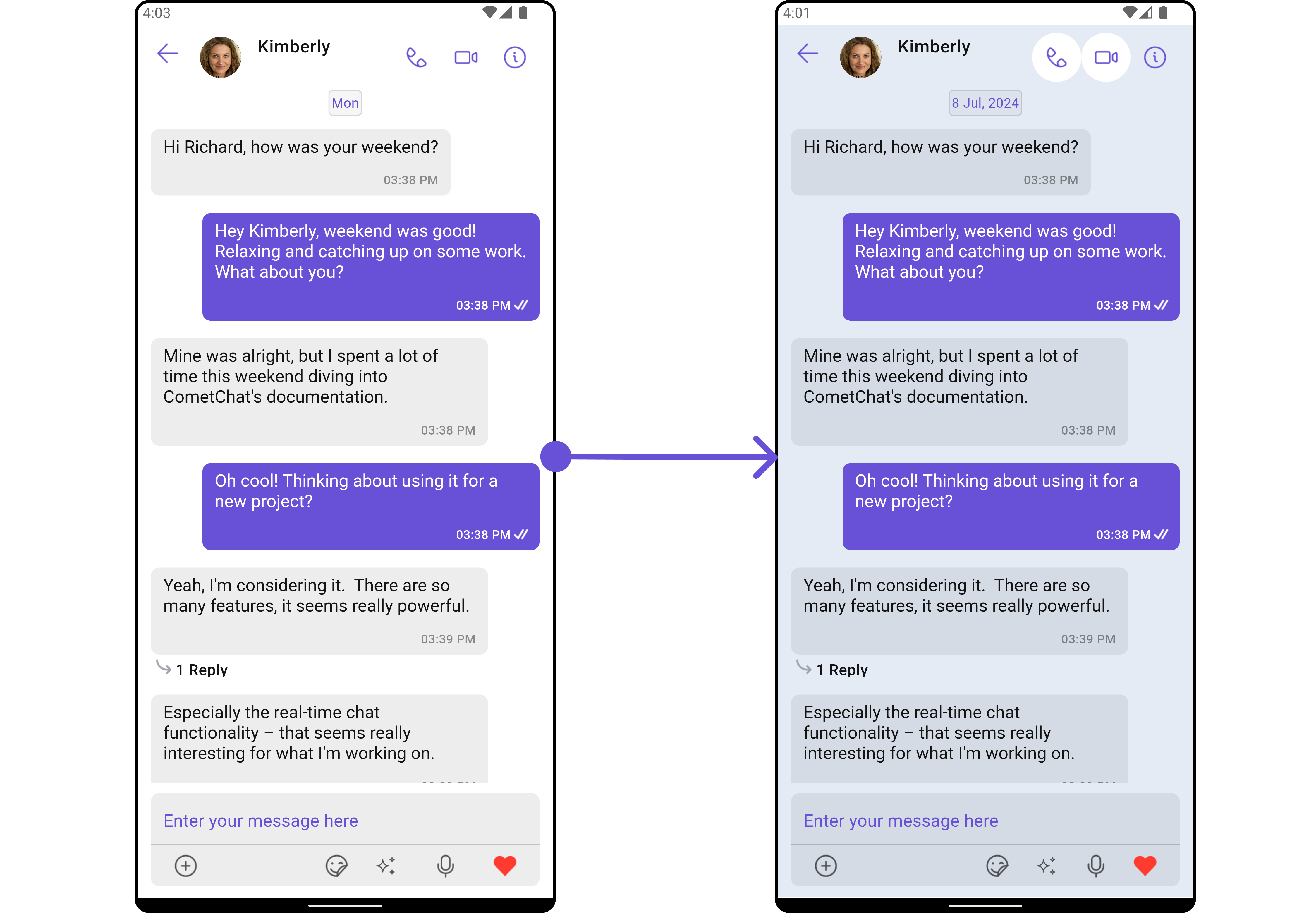

1. Messages Style

You can customize the appearance of the Messages Widget by applying the MessagesStyle to it using the following code snippet.

CometChatMessages(
  user: user,
  messagesStyle: MessagesStyle(
    background: Color(0xFFE4EBF5),
  ),
)

List of properties exposed by MessagesStyle

Property	Description	Code
Background	Background color of the widget	`background: Color?`
Border	Border of the widget	`border: Border?`
Border Radius	Border radius of the widget	`borderRadius: BorderRadius?`
Gradient	Gradient of the widget	`gradient: Gradient?`

2. Widget’s Styles

Being a Composite component, the Messages Widget allows you to customize the styles of its widgets using their respective Configuration objects. For a list of all available properties, refer to each component’s styling documentation: MesssageHeader Styles, MessageList Styles, MessageComposer Styles, Details Styles, ThreadMessages Styles. Example In this example, we are creating MessageListStyle and MessageComposerStyle and then applying them to the Messages Widget using MessageListConfiguration and MessageComposerConfiguration.

CometChatMessages(
  user: user,
  messageListConfiguration: MessageListConfiguration(
    messageListStyle: MessageListStyle(
      background: Color(0xFFE4EBF5),
      border: Border.all(width: 3, color: Colors.red)
    ),
  ),
  messageComposerConfiguration: MessageComposerConfiguration(
      messageComposerStyle: MessageComposerStyle(
        background: Color(0xFFB39DDB),
          border: Border.all(width: 3, color: Colors.yellow)
      )
  ),
)

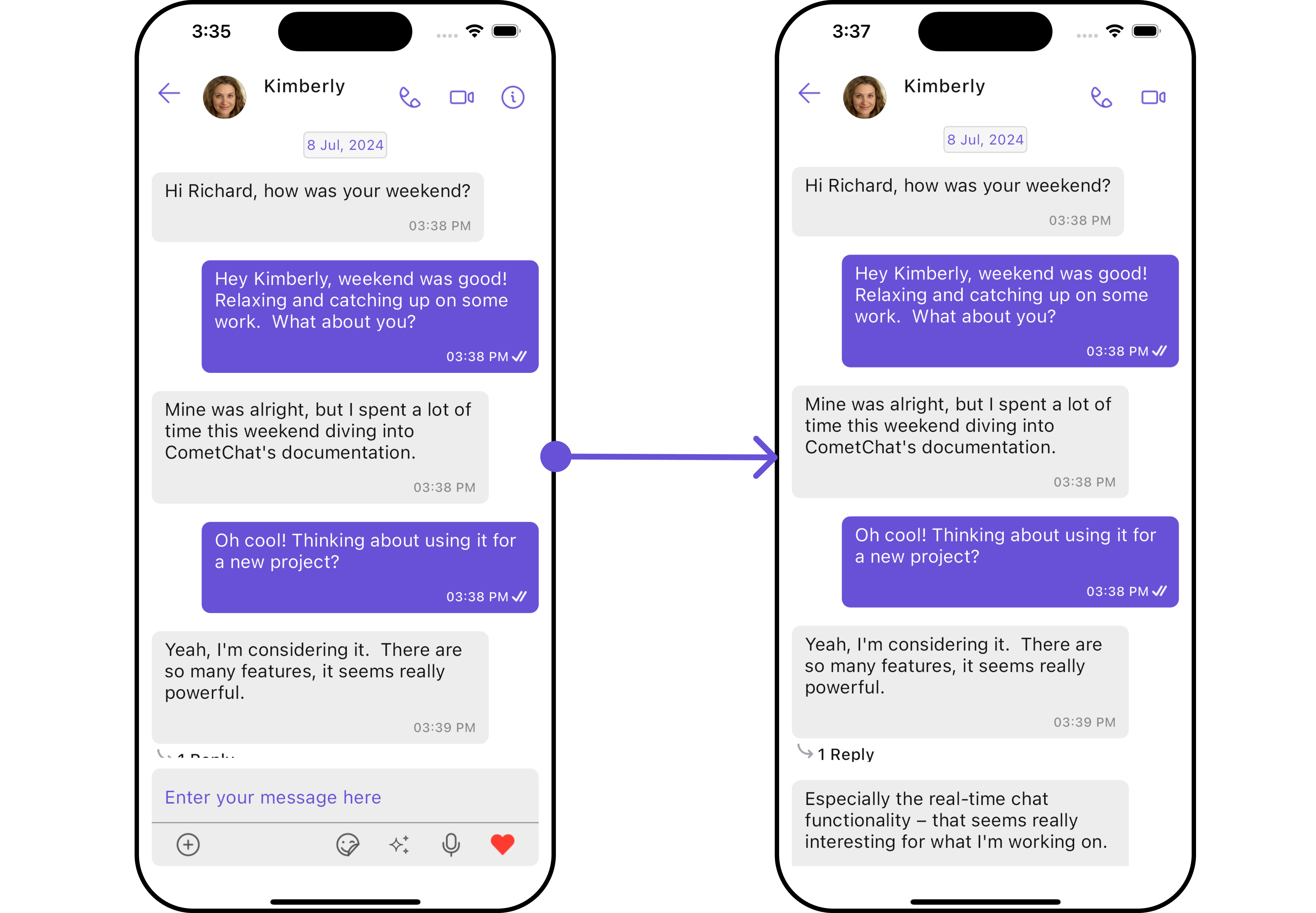

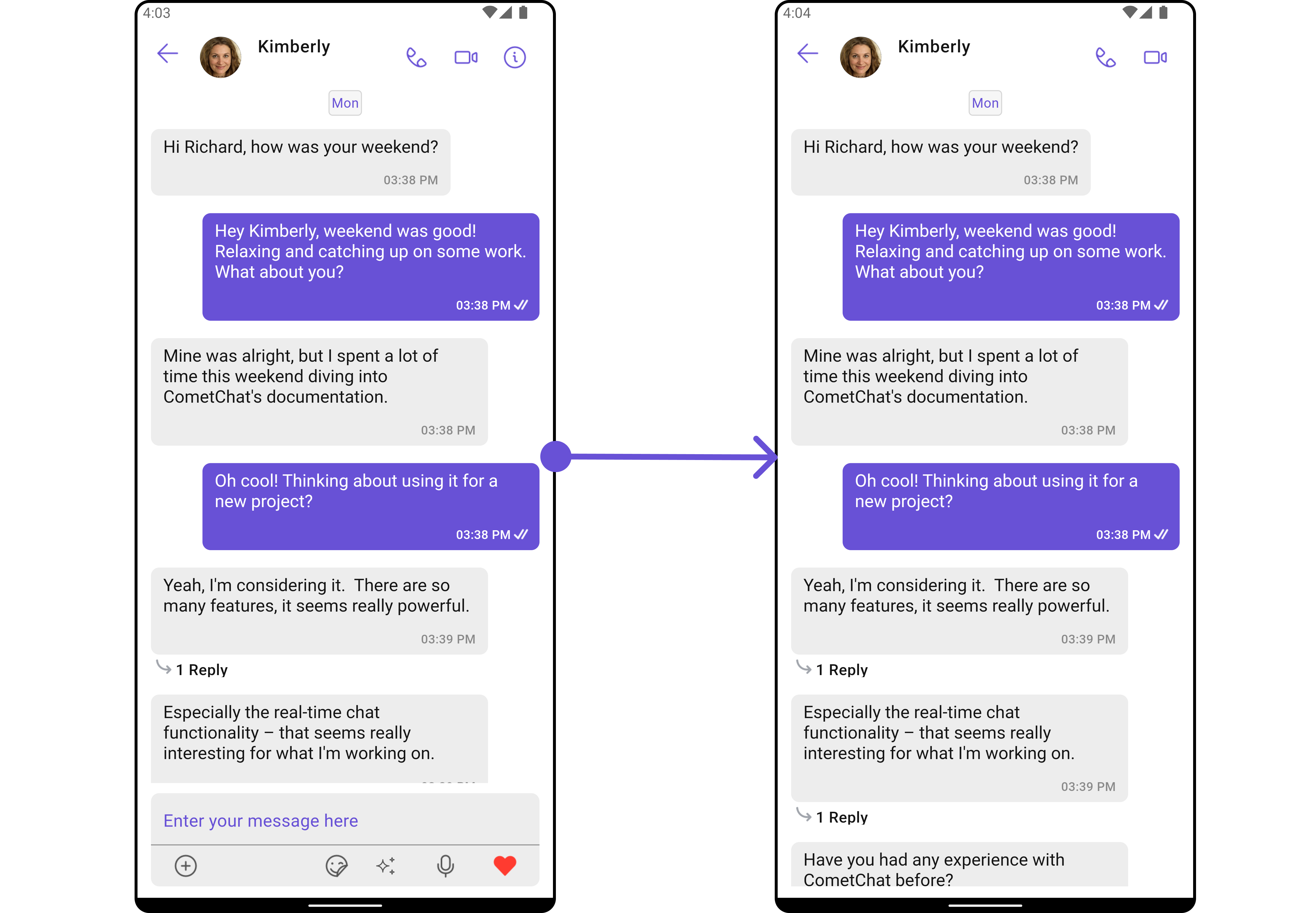

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

CometChatMessages(
  user: user,
  hideMessageComposer: true,
  hideDetails: true
)

List of properties exposed by CometChatMessages

Property	Description	Code
User	User object for which the messages are to be shown	`user: User?`
Group	Group object for which the messages are to be shown	`group: Group?`
Hide Message Composer	Toggles visibility for message composer	`hideMessageComposer: bool?`
Disable Typing	If true, disables the typing indicator	`disableTyping: bool?`
Custom Sound For Incoming Messages	Custom sound path for incoming messages	`customSoundForIncomingMessages: String?`
Custom Sound For Incoming Message Package	Package name for sound incoming from different package	`customSoundForIncomingMessagePackage: String?`
Custom Sound For Outgoing Messages	Custom sound path for outgoing messages	`customSoundForOutgoingMessages: String?`
Custom Sound For Outgoing Message Package	Package name for sound outgoing from different package	`customSoundForOutgoingMessagePackage: String?`
Hide Message Header	Toggles visibility for message header	`hideMessageHeader: bool?`
Disable Sound For Messages	Disables sound for incoming and outgoing message	`disableSoundForMessages: bool?`
Theme	Custom theme for the messages screen	`theme: CometChatTheme?`
Hide Details	Toggles visibility for details icons	`hideDetails: bool?`

Advanced

For advanced-level customization, you can set custom widgets to the component. This lets you tailor each aspect of the widget to fit your exact needs and application aesthetics. You can create and define your widgets and then incorporate those into the component.

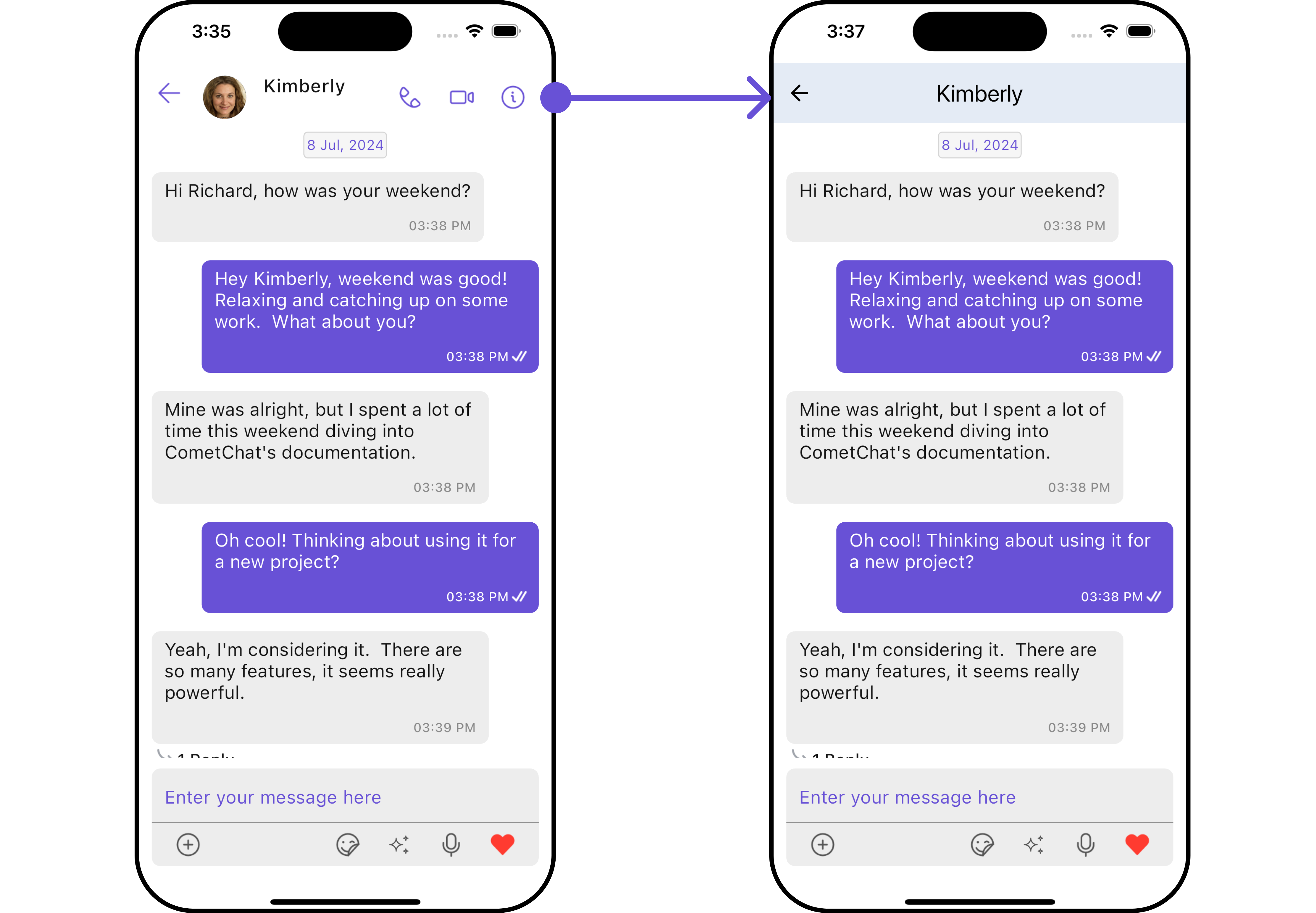

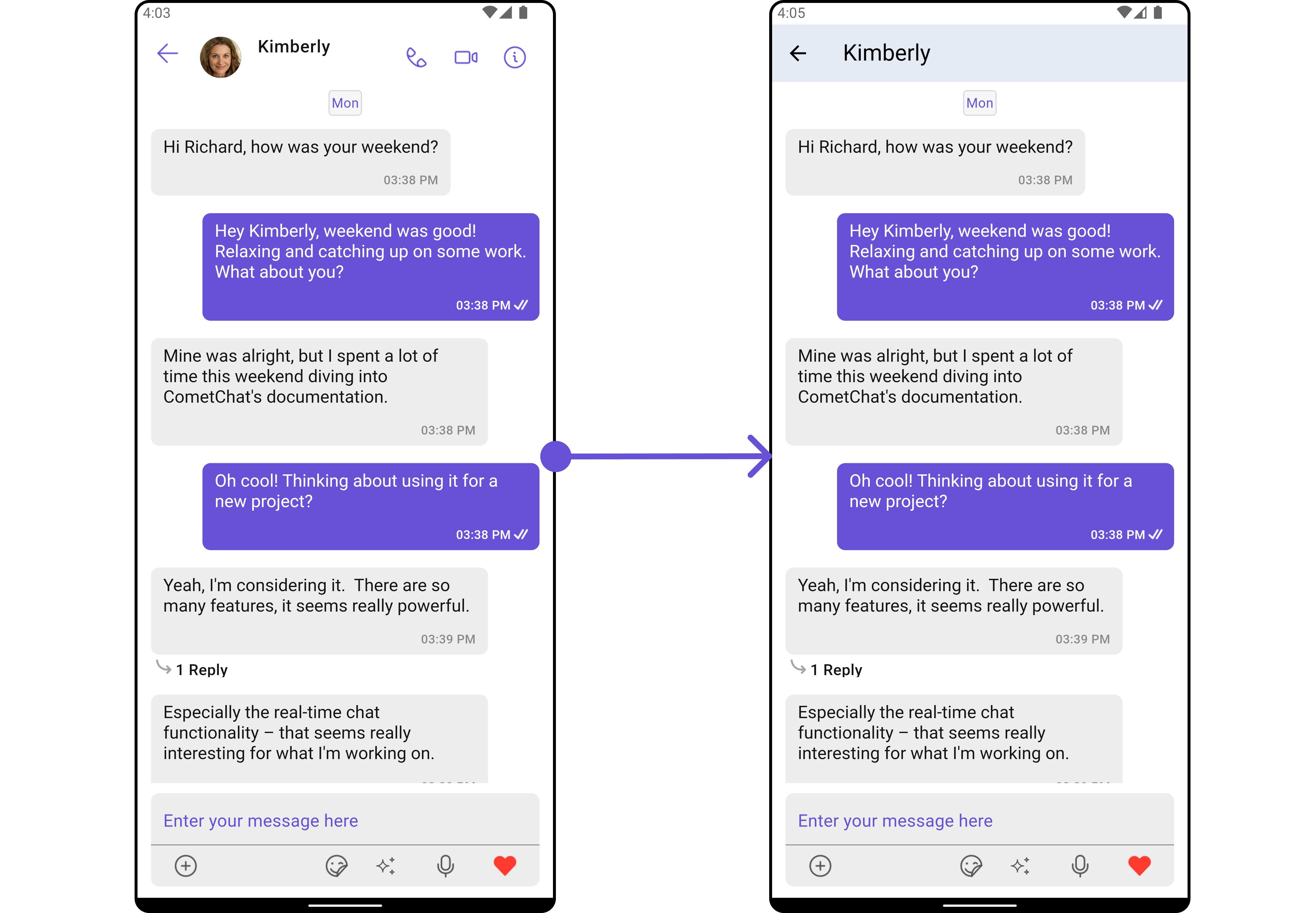

MessageHeaderView

You can set your custom message header widget using the messageHeaderView method. But keep in mind, by using this you will override the default message header functionality. Here is the complete example for reference: Example

CometChatMessages(
  user: user,
  messageHeaderView: (user, group, context) {
    return AppBar(
      backgroundColor: Color(0xFFE4EBF5),
      title: Text(user?.name ?? 'Default Title'),
      leading: IconButton(
        icon: Icon(Icons.arrow_back),
        onPressed: () {
            // TODO("Not yet implemented")
        },
      ),
    ); // Custom AppBar
  },
)

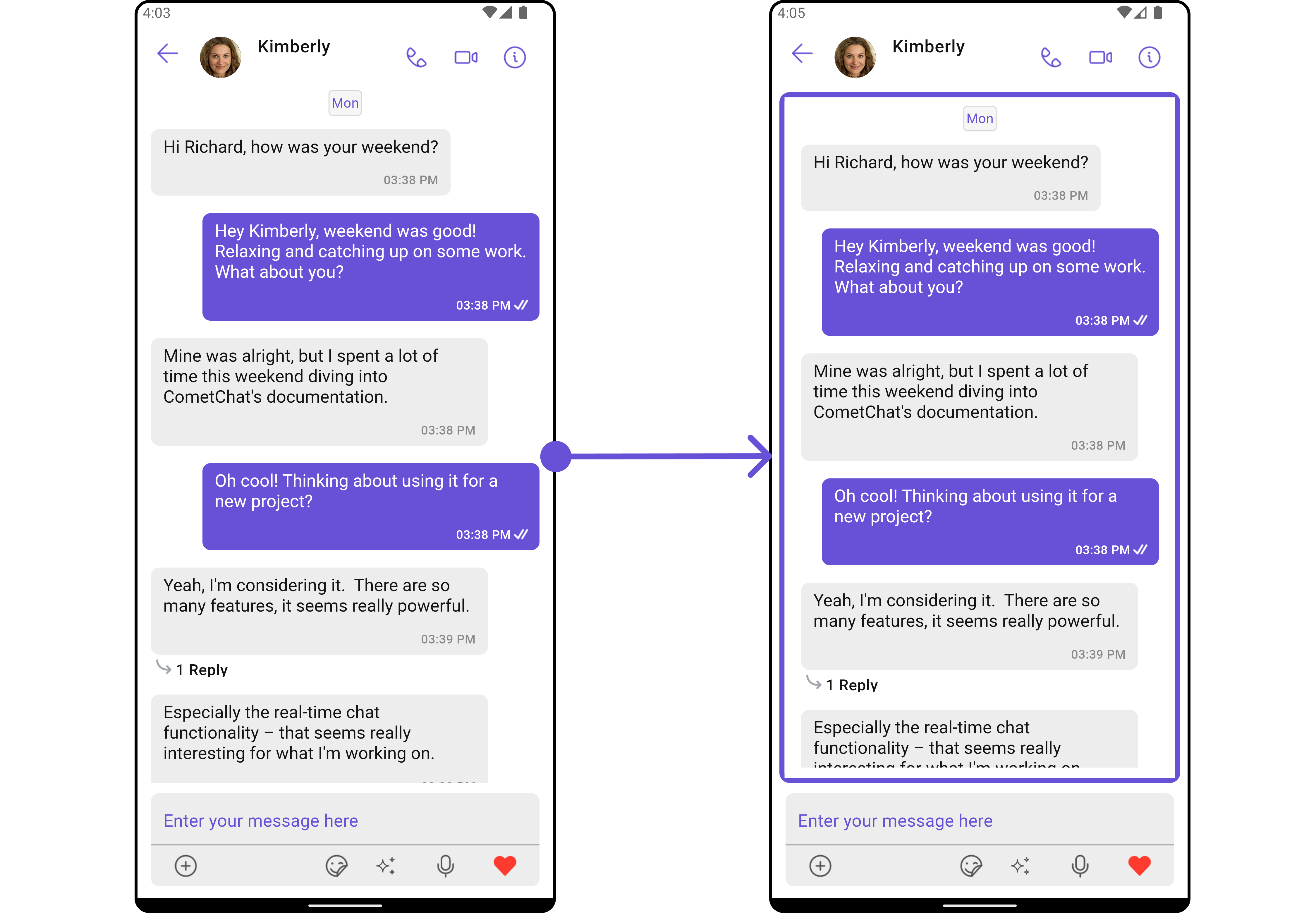

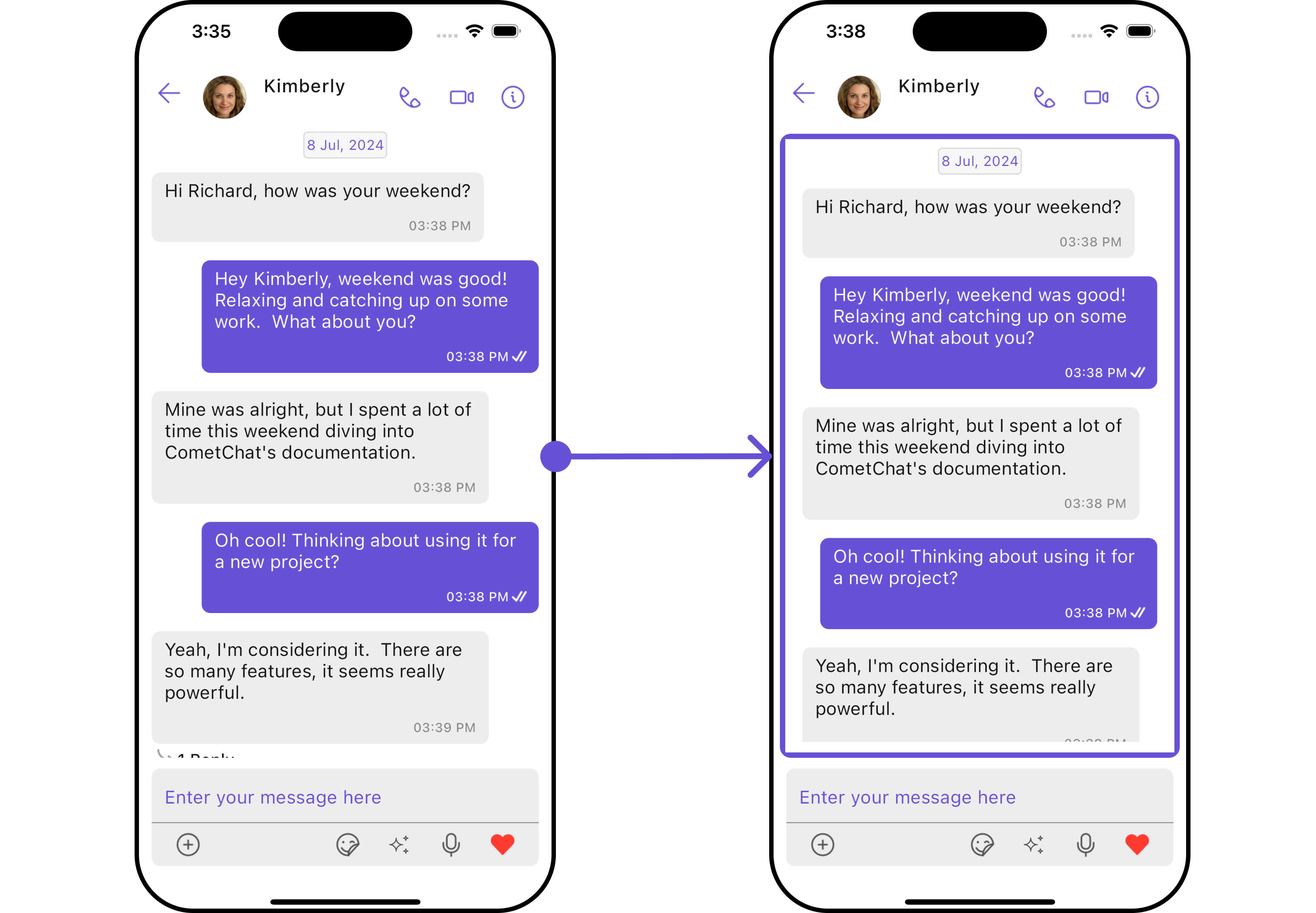

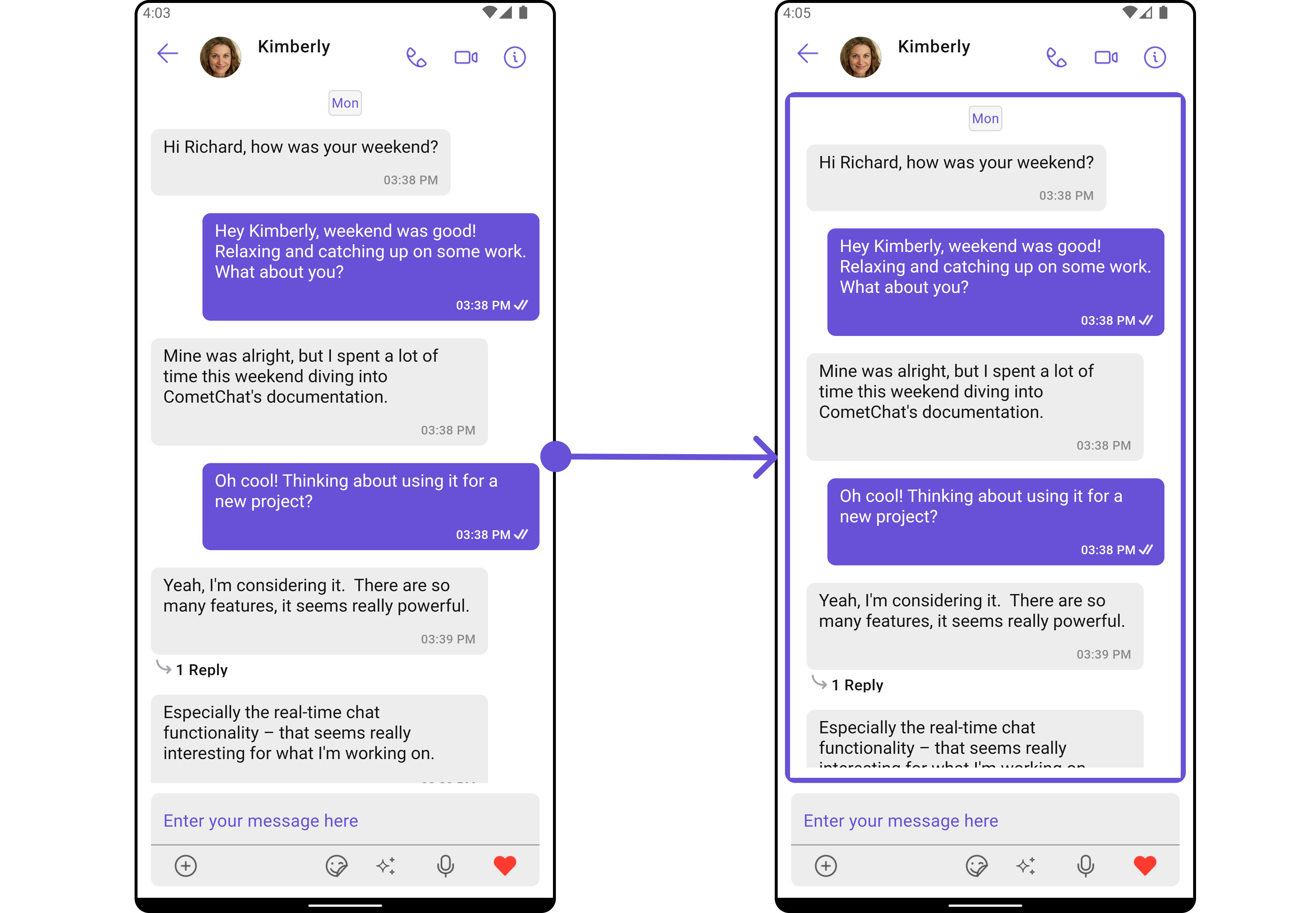

MessageListView

You can set your custom message list widget using the messageListView method. But keep in mind, by using this you will override the default message ListView functionality. Here is the complete example for reference: Example

CometChatMessages(
  user: user,
  messageListView: (user, group, context) {
    return Container(
      margin: const EdgeInsets.all(10),
      decoration: BoxDecoration(
        color: Color(0xFFE4EBF5),
        borderRadius: BorderRadius.circular(10),
        border: Border.all(width: 5, color: Color(0xFF6851D6)),
      ),
      child: Center(
        child: CometChatMessageList(user: user,),
      ),
    );
  },
)

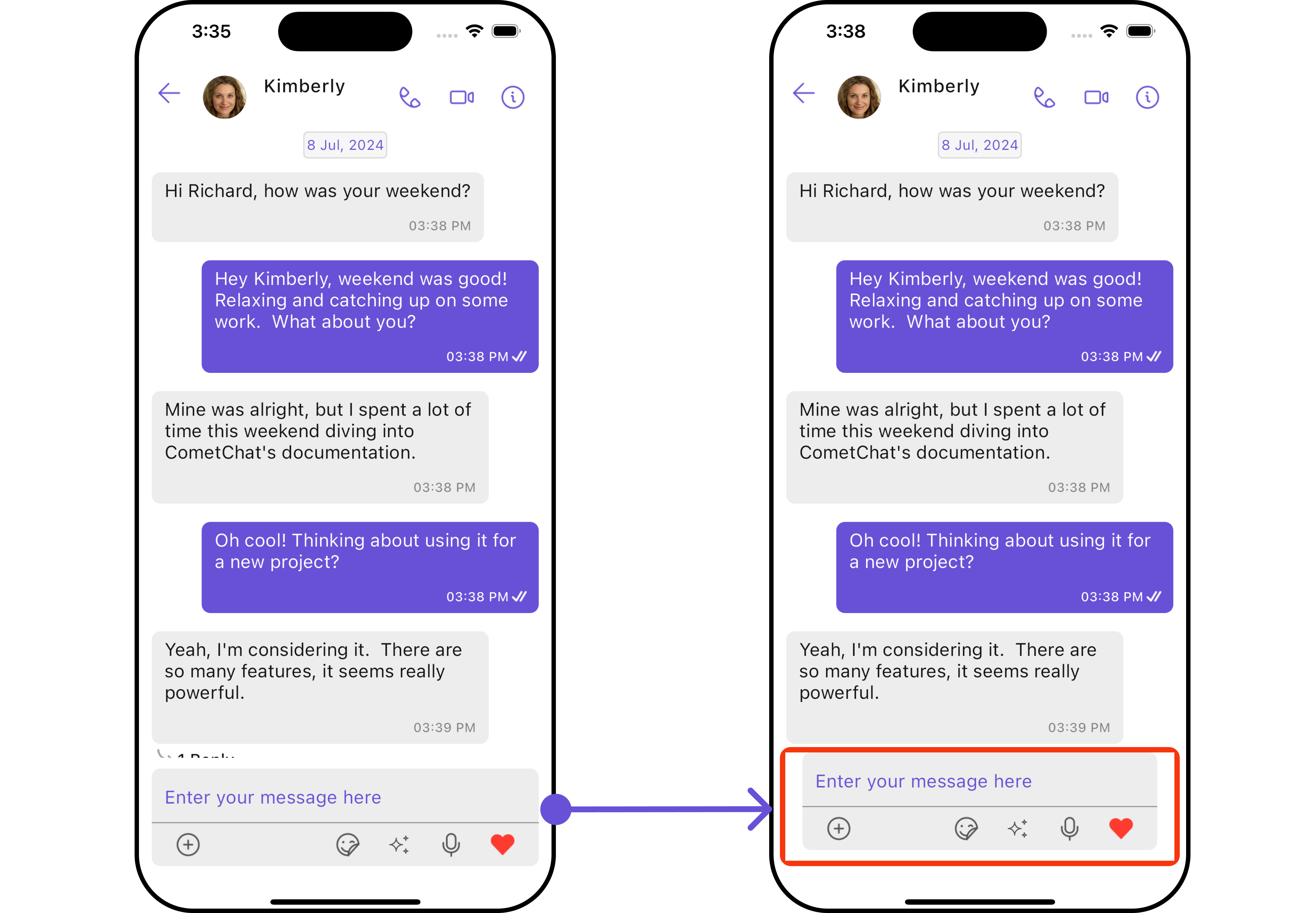

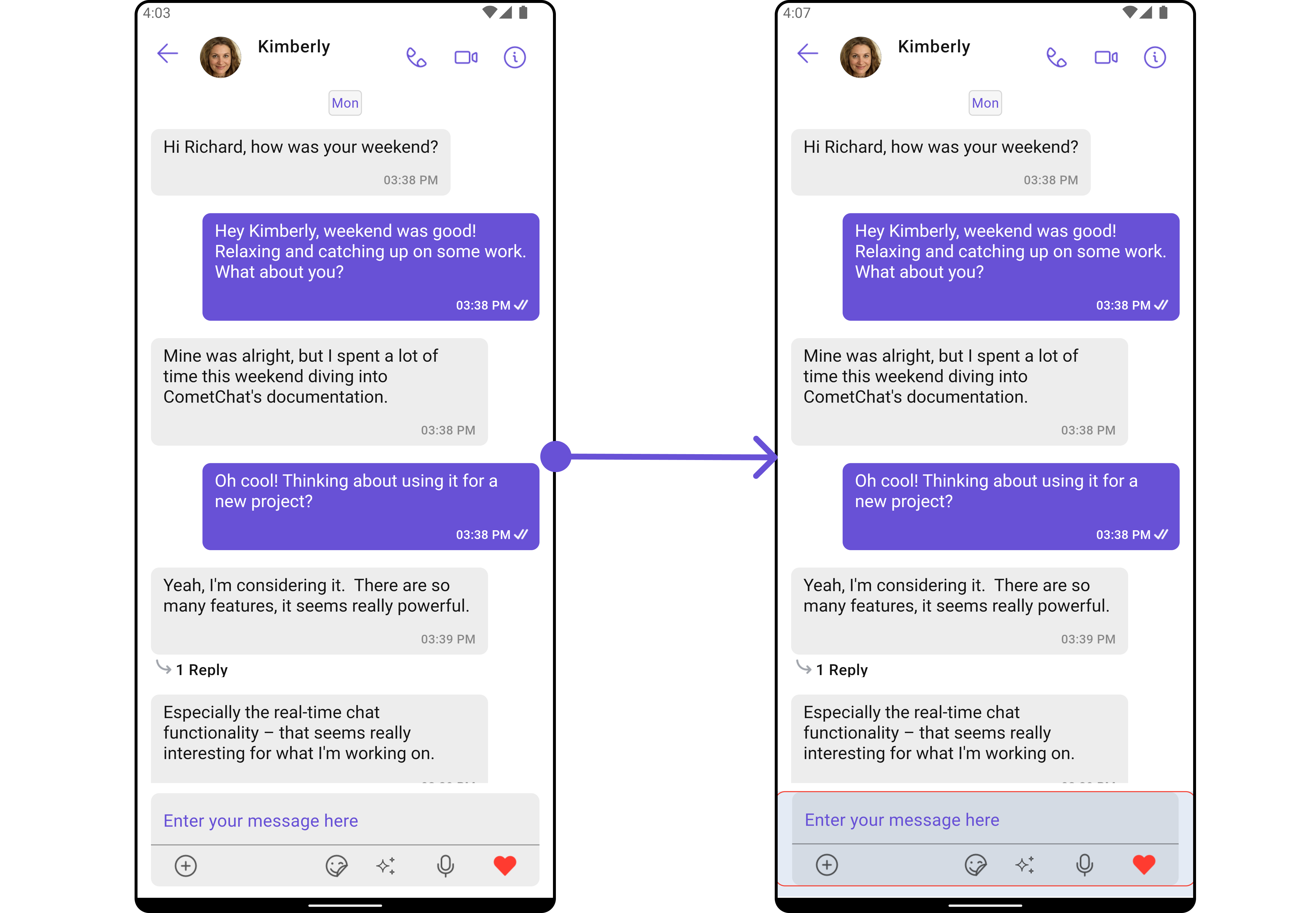

MessageComposerView

You can set your custom Message Composer widget using the messageComposerView method. But keep in mind, by using this you will override the default message composer functionality. Here is the complete example for reference: Example

CometChatMessages(
  user: user,
  messageComposerView: (user, group, context) {
    return Container(
      margin: const EdgeInsets.all(10),
      decoration: BoxDecoration(
        color: Color(0xFFE4EBF5),
        borderRadius: BorderRadius.circular(10),
        border: Border.all(width: 5, color: Colors.red),
      ),
      child: CometChatMessageComposer(user: user),
    );
  },
)

Configuration

Configurations offer the ability to customize the properties of each individual widget within a Composite Widget. The Messages Widget is a Composite Widget and it has a specific set of configuration for each of its widgets.

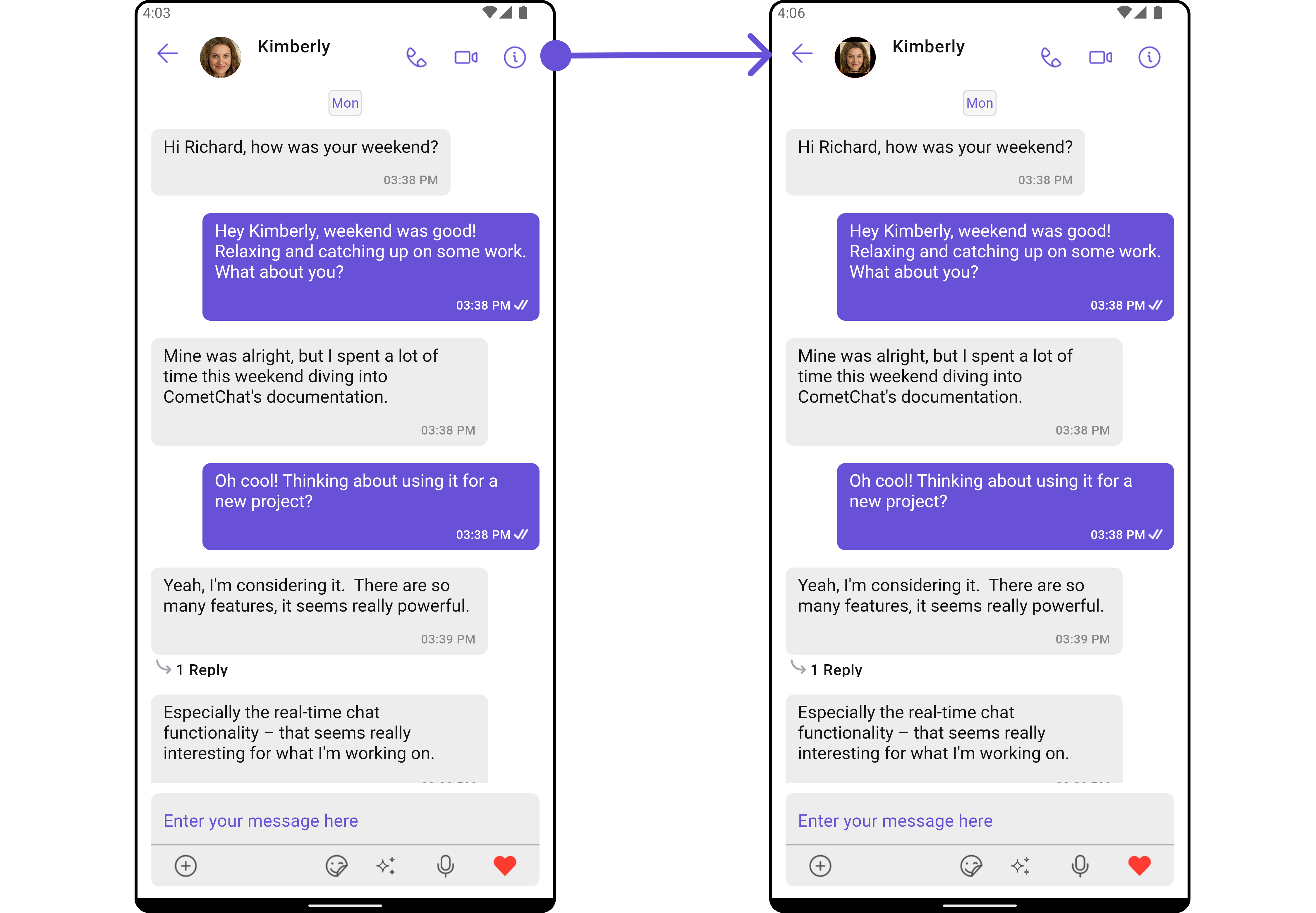

MessageHeader

If you want to customize the properties of the MessageHeader Widget inside Messages Widget, you need use the MessageHeaderConfiguration object.

CometChatMessages(
  user: user,
  messageHeaderConfiguration: MessageHeaderConfiguration(),
)

The MessageHeaderConfiguration provides access to all the Action, Filters, Styles, Functionality, and Advanced properties of the MessageHeader component.

Please note that the properties marked with the 🛑 symbol are not accessible within the Configuration Object.

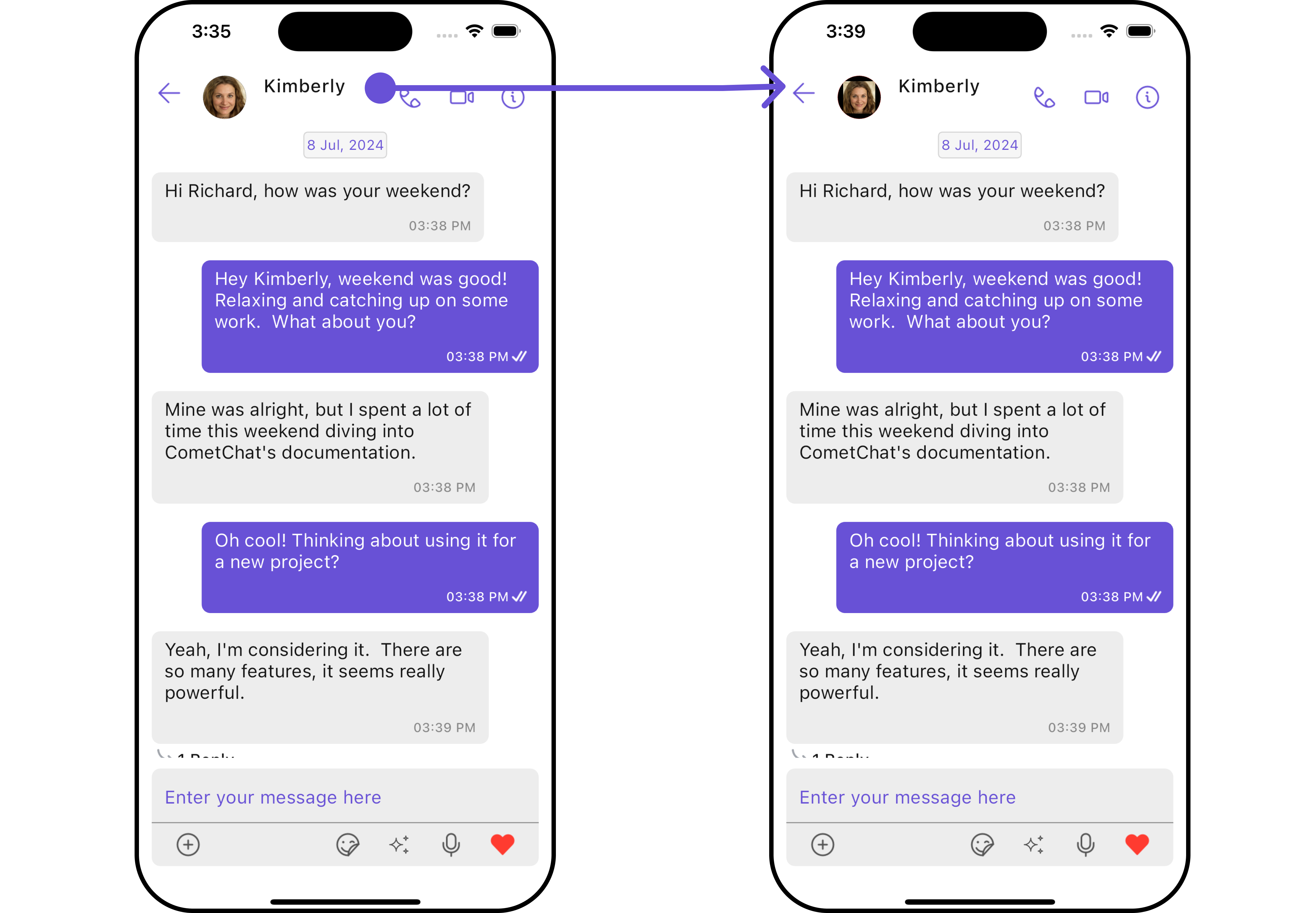

Example In this example, we will be adding a custom back button and styling a few properties of the Avatar widget of the MessageHeader widget using MessageHeaderConfiguration.

CometChatMessages(
  user: user,
  messageHeaderConfiguration: MessageHeaderConfiguration(
    avatarStyle: AvatarStyle(
        border: Border.all(width: 5),
        borderRadius: 20,
        background: Colors.red
    ),
  ),
)

MessageList

If you want to customize the properties of the MessageList Widget inside Messages Widget, you need use the MessageListConfiguration object.

CometChatMessages(
  user: user,
  messageListConfiguration: MessageListConfiguration(),
)

The MessageListConfiguration provides access to all the Action, Filters, Styles, Functionality, and Advanced properties of the MessageList component.

Please note that the properties marked with the 🛑 symbol are not accessible within the Configuration Object.

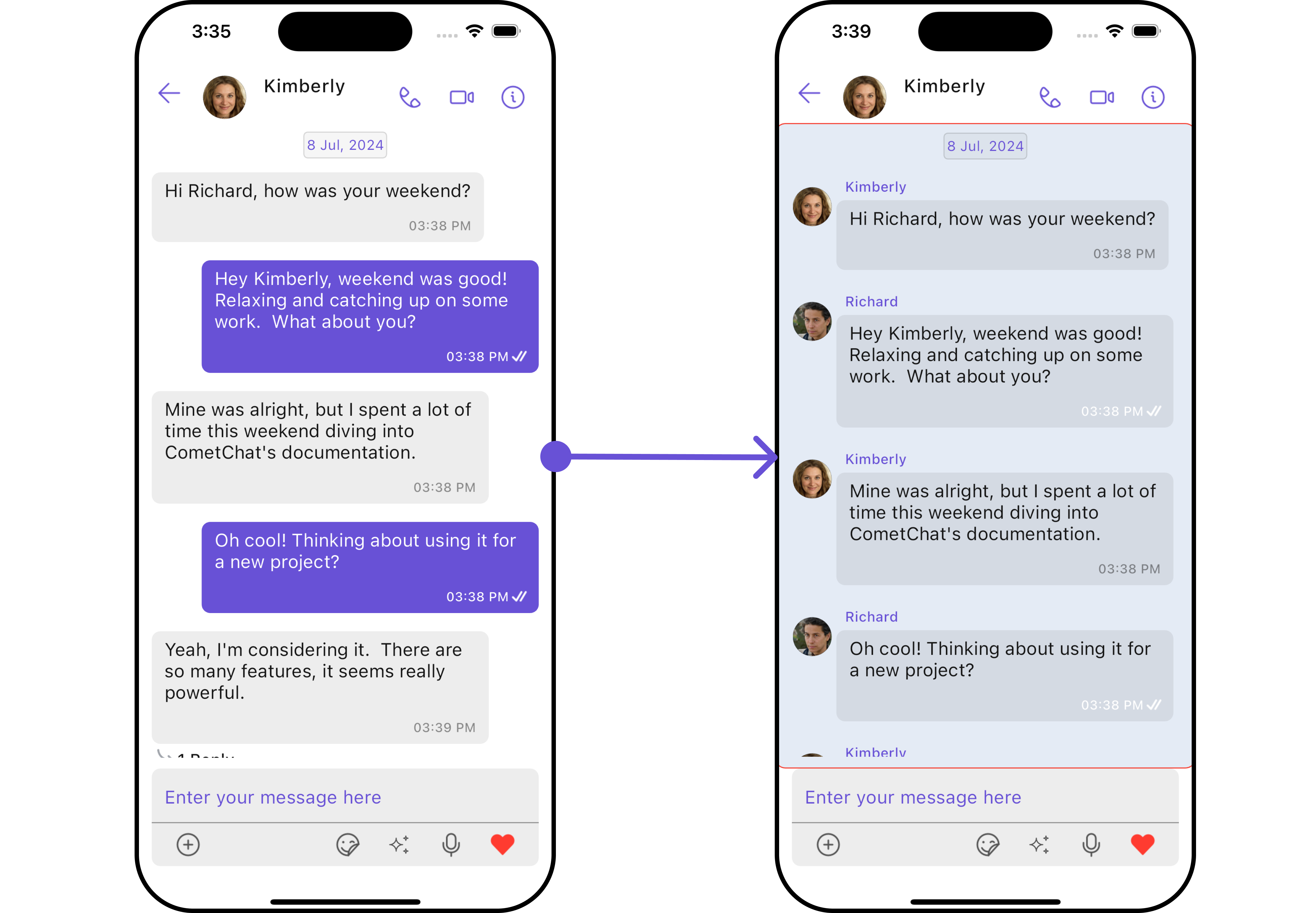

Example In this example, we will be changing the list alignment and modifying the message bubble styles in the MessageList widget using MessageListConfiguration.

CometChatMessages(
  user: user,
  messageListConfiguration: MessageListConfiguration(
    alignment: ChatAlignment.leftAligned,
    messageListStyle: MessageListStyle(
        background: Color(0xFFE4EBF5),
        border: Border.all(width: 1, color: Colors.red),
        borderRadius: 10,
    ),
  ),
)

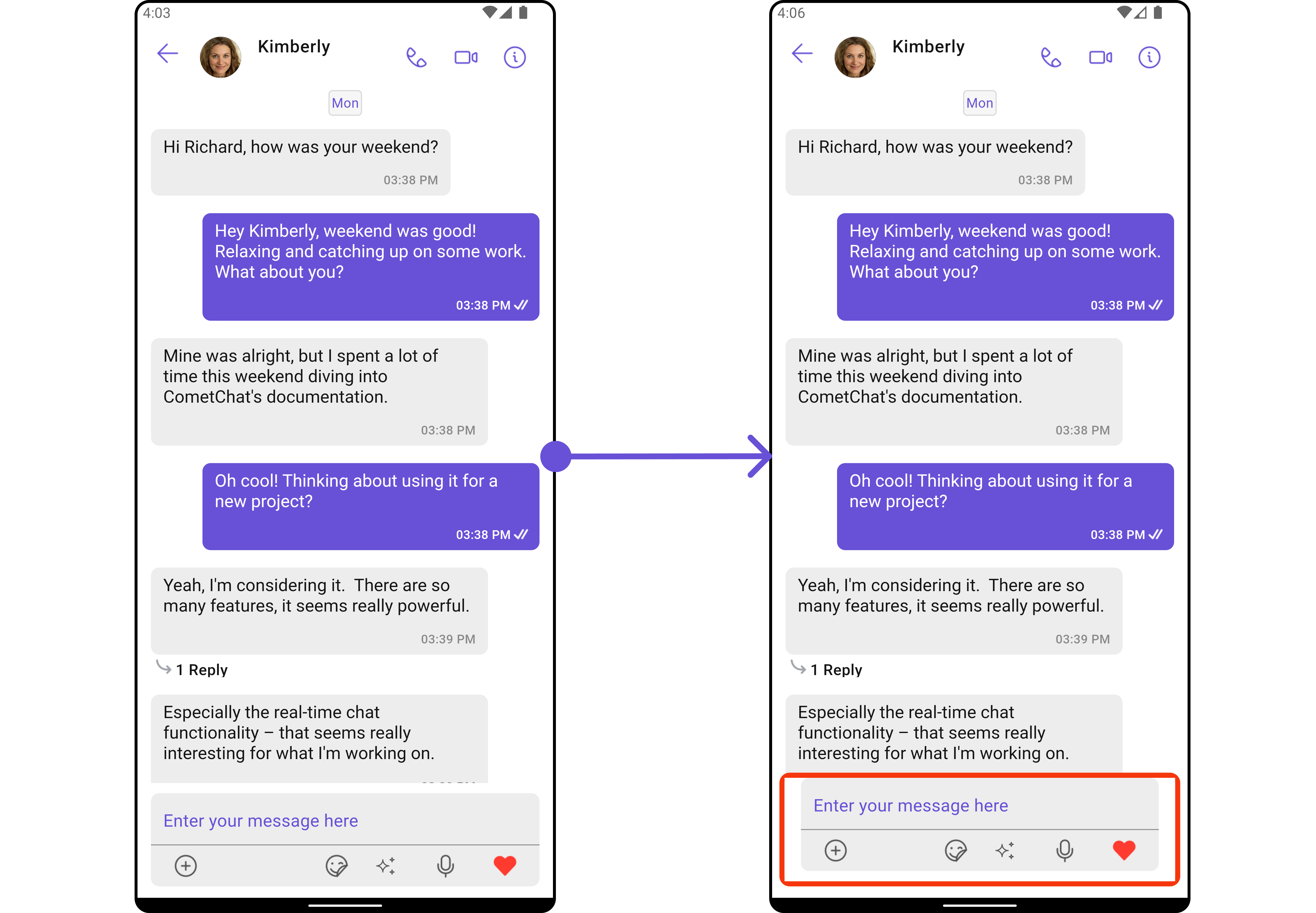

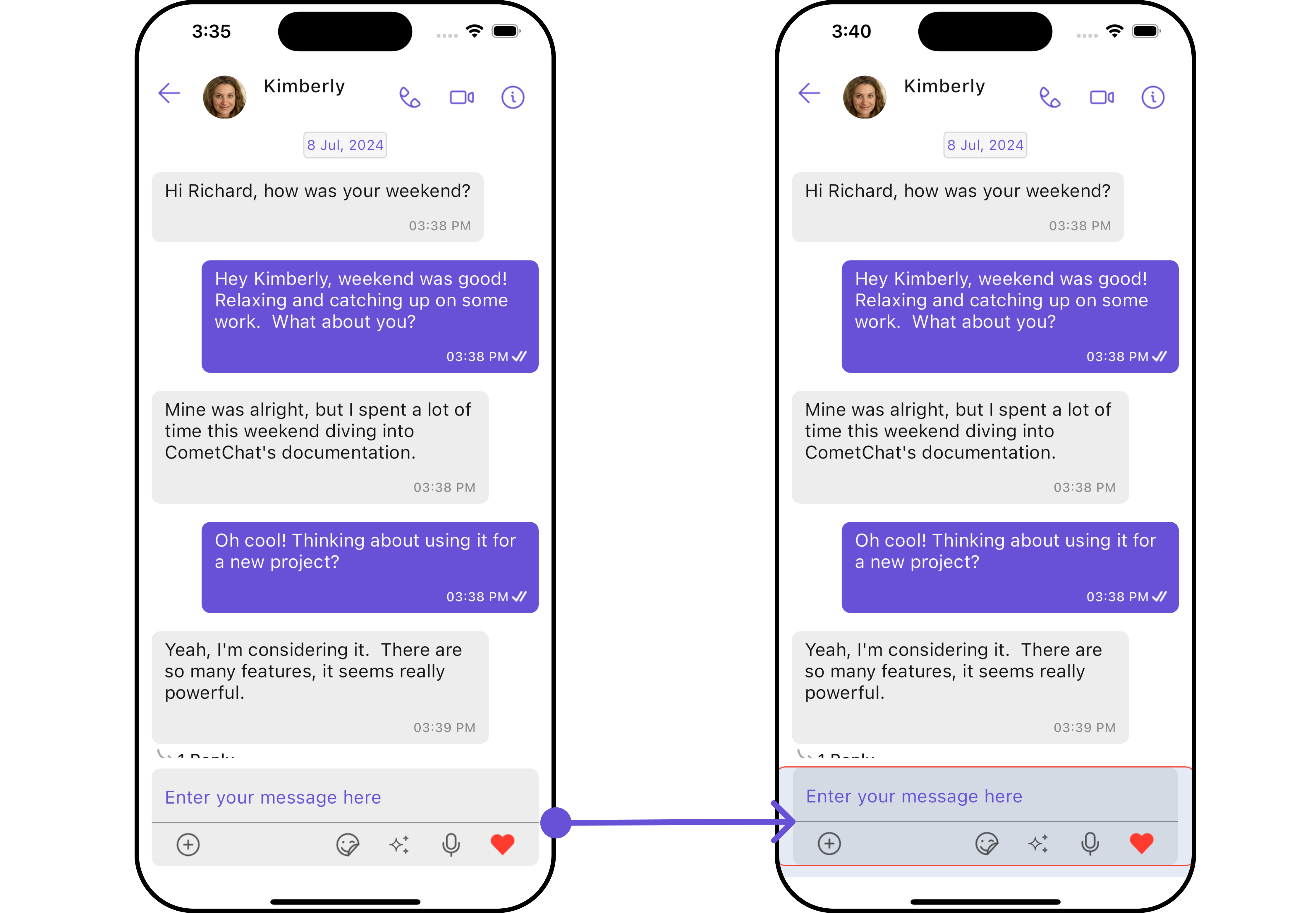

MessageComposer

If you want to customize the properties of the MessageComposer Widget inside Messages Widget, you need use the MessageComposerConfiguration object.

CometChatMessages(
  user: user,
  messageComposerConfiguration: MessageComposerConfiguration(),
)

The MessageComposerConfiguration provides access to all the Action, Filters, Styles, Functionality, and Advanced properties of the MessageComposer component.

Please note that the properties marked with the 🛑 symbol are not accessible within the Configuration Object.

Example In this example, we’ll be adding a custom header widget and customizing some properties of the MessageComposer widget using MessageComposerConfiguration.

CometChatMessages(
  user: user,
  messageComposerConfiguration: MessageComposerConfiguration(
    headerView: (context, user, group, id) {
      return Container(
        width: MediaQuery.of(context).size.width/1.2,
        margin: const EdgeInsets.all(10),
        decoration: BoxDecoration(
          color: Color(0xFF6851D6),
          borderRadius: BorderRadius.circular(10),
          border: Border.all(width: 5, color: Color(0xFF6851D6)),
        ),
        child: Center(child: Text("Your Custom Header View", style: TextStyle(color: Colors.white),)),
      );
    },
    messageComposerStyle: MessageComposerStyle(
      background: Color(0xFFE4EBF5),
      border: Border.all(width: 1, color: Colors.red),
      borderRadius: 10,
    ),
  ),
)

ThreadedMessages

If you want to customize the properties of the ThreadedMessages Widget inside Messages Widget, you need use the ThreadedMessagesConfiguration object.

CometChatMessages(
  user: user,
  threadedMessagesConfiguration: ThreadedMessagesConfiguration()
)

The ThreadedMessagesConfiguration provides access to all the Action, Filters, Styles, Functionality, and Advanced properties of the ThreadedMessages component.

Please note that the properties marked with the 🛑 symbol are not accessible within the Configuration Object.

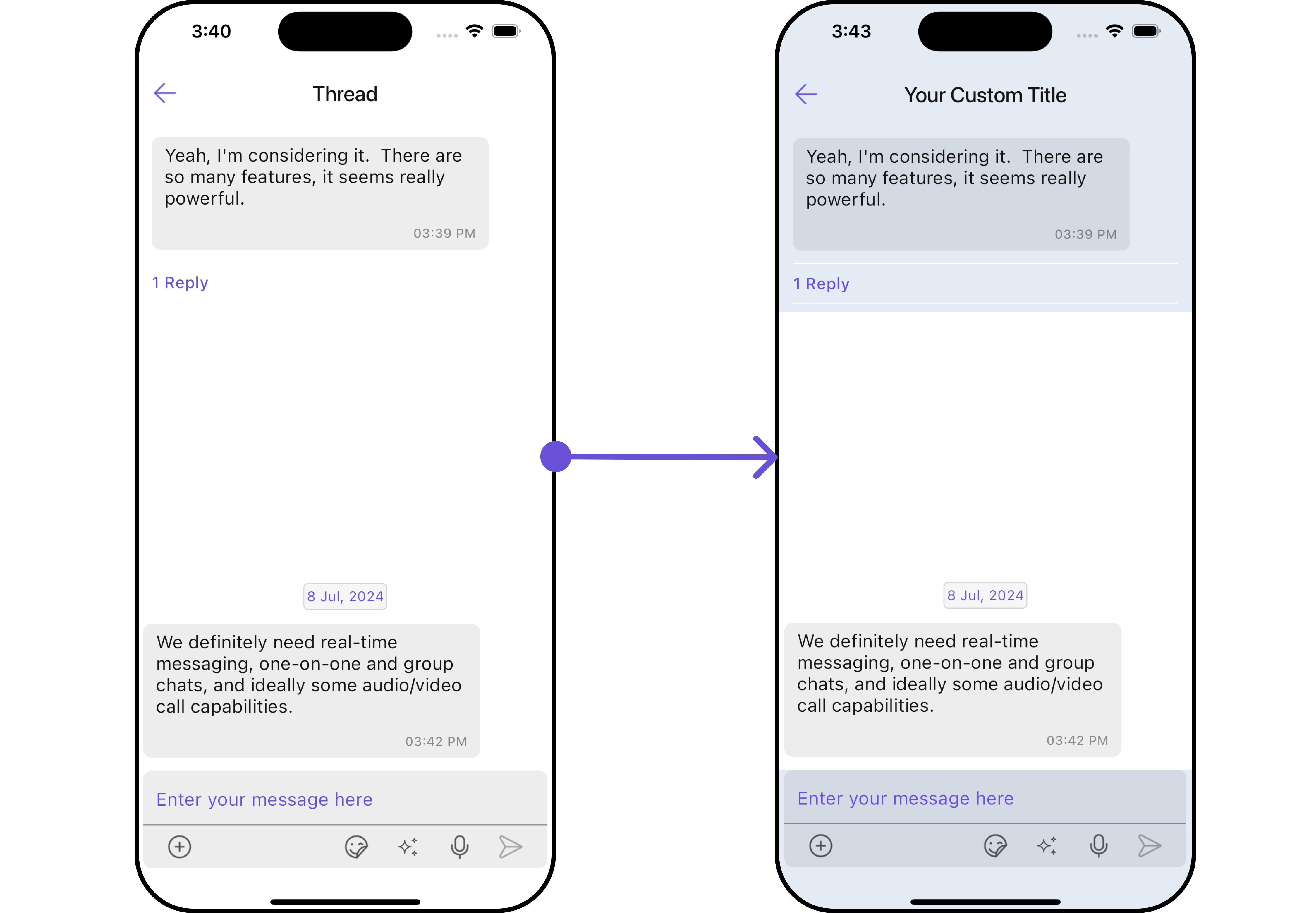

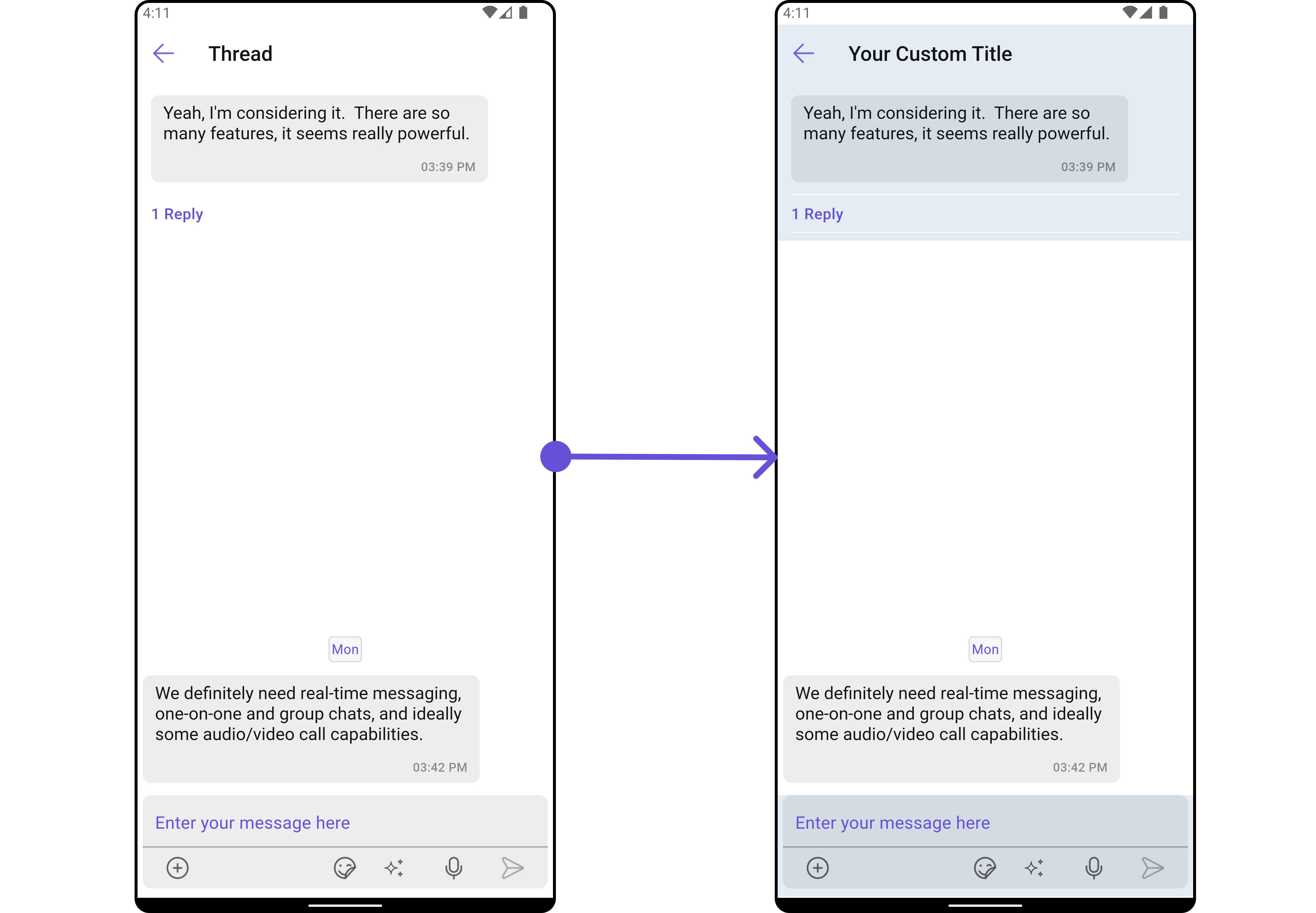

Example In this example, we are adding a custom title to the Threaded Message widget and also adding custom properties to the MessageList using MessageListConfiguration. We then apply these changes to the ThreadedMessages widget using ThreadedMessagesConfiguration.

CometChatMessages(
    user: user,
    threadedMessagesConfiguration: ThreadedMessagesConfiguration(
        title: "Your Custom Title",
        threadedMessagesStyle: ThreadedMessageStyle(
          background: Color(0xFFE4EBF5),
          border: Border.all(width: 1, color: Colors.red),
          borderRadius: 10,
        )
    )
)

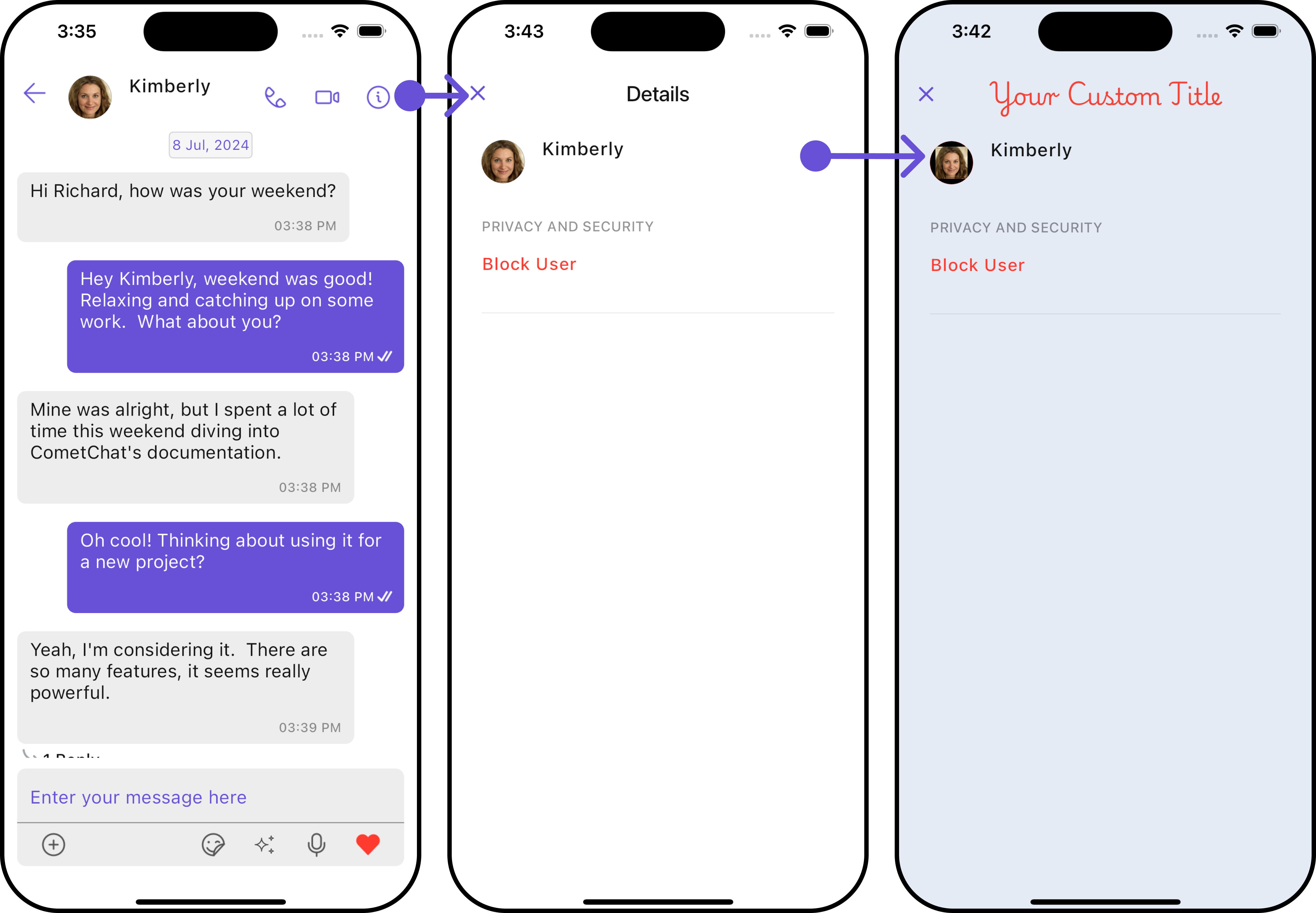

Details

If you want to customize the properties of the Details Widget inside Messages Widget, you need use the DetailsConfiguration object.

CometChatMessages(
    user: user,
    detailsConfiguration: DetailsConfiguration()
)

The DetailsConfiguration provides access to all the Action, Filters, Styles, Functionality, and Advanced properties of the MessageComposer component.

Please note that the properties marked with the 🛑 symbol are not accessible within the Configuration Object.

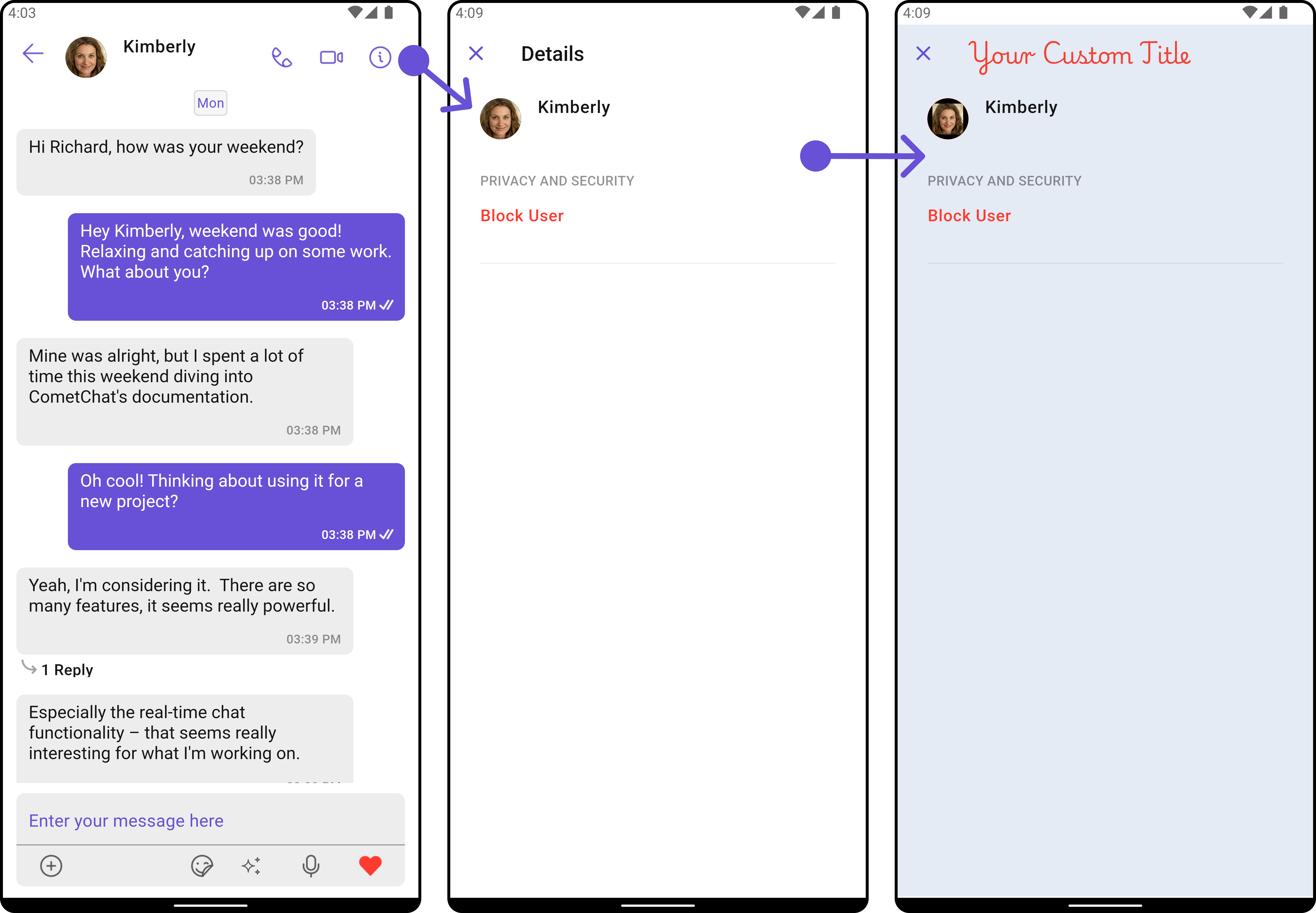

Example In this example, we’ll be customizing some properties of the MessageComposer widget using DetailsConfiguration.

CometChatMessages(
    user: user,
    detailsConfiguration: DetailsConfiguration(
        title: "Your Custom Title",
        avatarStyle: AvatarStyle(
            border: Border.all(width: 5),
            borderRadius: 20,
            background: Colors.red
        ),
        detailsStyle: DetailsStyle(
          background: Color(0xFFE4EBF5),
          border: Border.all(width: 1, color: Colors.red),
          titleStyle: TextStyle(color: Colors.red, fontFamily: "PlaywritePL"),
        )
    )
)

​Overview

​Usage

​Integration

1. Using Navigator to Launch CometChatMessages

2. Embedding CometChatMessages as a Widget in the build Method

​Actions

​Filters

​Events

​Customization

​Style

1. Messages Style

2. Widget’s Styles

​Functionality

​Advanced

​MessageHeaderView

​MessageListView

​MessageComposerView

​Configuration

​MessageHeader

​MessageList

​MessageComposer

​ThreadedMessages

​Details

Overview

Usage

Integration

1. Using Navigator to Launch `CometChatMessages`

2. Embedding `CometChatMessages` as a Widget in the build Method

Actions

Filters

Events

Customization

Style

Functionality

Advanced

MessageHeaderView

MessageListView

MessageComposerView

Configuration

MessageHeader

MessageList

MessageComposer

ThreadedMessages

Details
