Incoming Call - CometChat Docs

Overview

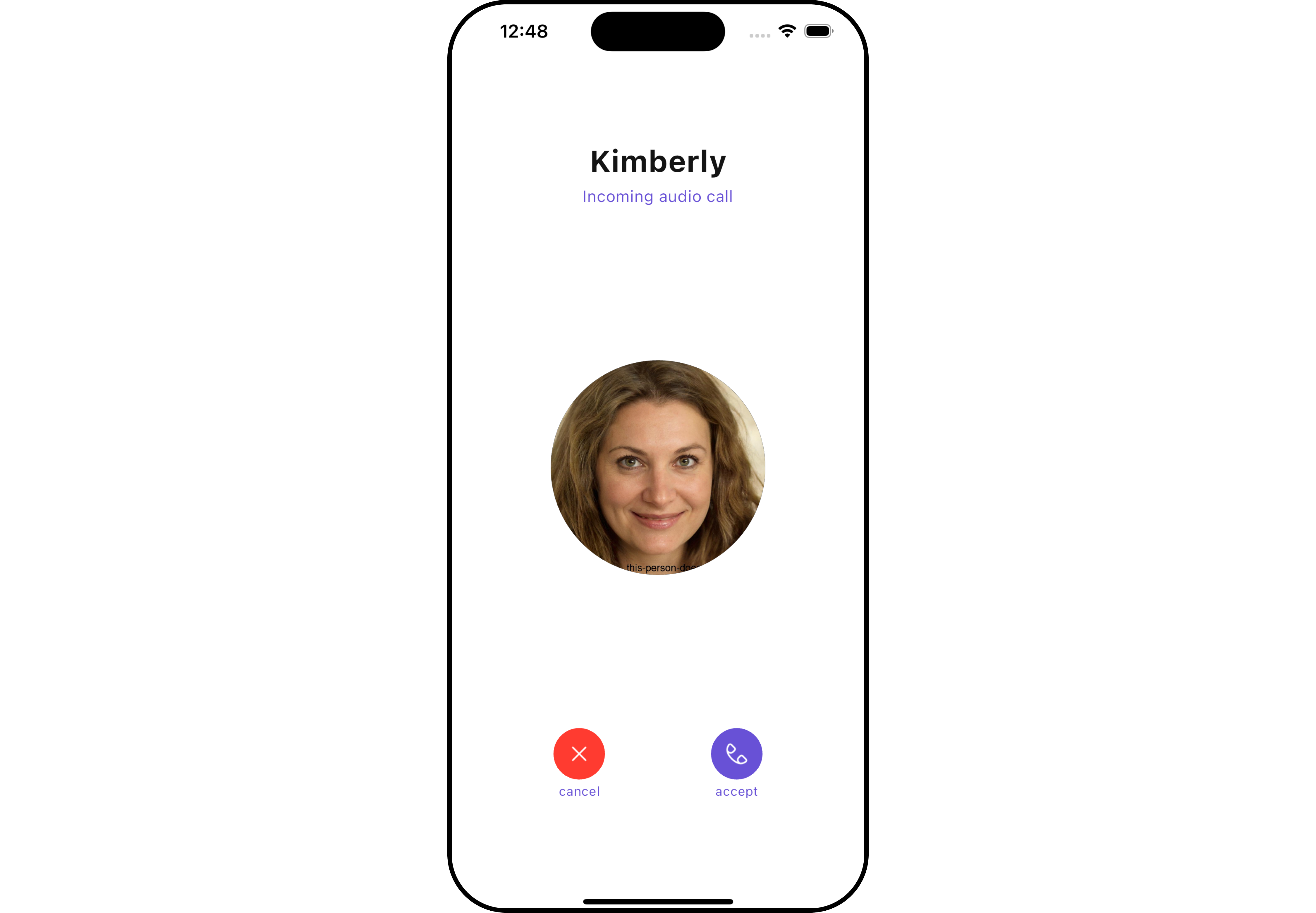

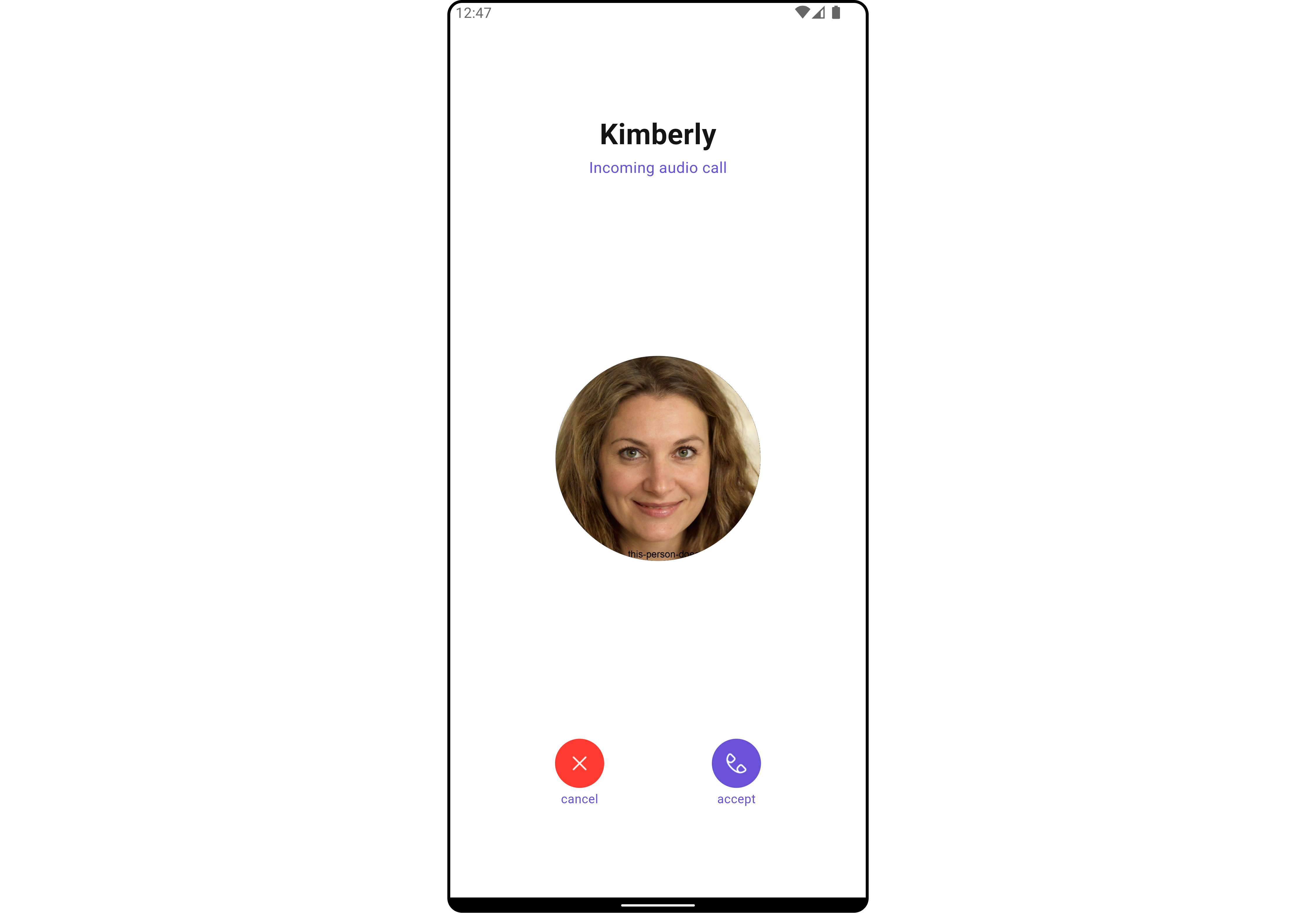

The CometChatIncomingCall is a Widget that serves as a visual representation when the user receives an incoming call, such as a voice call or video call, providing options to answer or decline the call.

Usage

Integration

CometChatIncomingCall being a custom widget, offers versatility in its integration. It can be seamlessly launched via button clicks or any user-triggered action, enhancing the overall user experience and facilitating smoother interactions within the application. You can launch CometChatIncomingCall directly using Navigator.push, or you can define it as a widget within the build method of your State class.

1. Using Navigator to Launch `CometChatIncomingCall`

Navigator.push(context, MaterialPageRoute(builder: (context) => CometChatIncomingCall(user: user, call: callObject))); // User object and Call object is required to launch the incoming call widget.

2. Embedding `CometChatIncomingCall` as a Widget in the build Method

import 'package:cometchat_calls_uikit/cometchat_calls_uikit.dart';
import 'package:flutter/material.dart';

class IncomingCallExample extends StatefulWidget {
  const IncomingCallExample({super.key});

  @override
  State<IncomingCallExample> createState() => _IncomingCallExampleState();
}

class _IncomingCallExampleState extends State<IncomingCallExample> {

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SafeArea(
        child: CometChatIncomingCall(
          user: user, // User Object
          call: callObject
        ), // User object and Call object is required to launch the incoming call widget.
      ),
    );
  }
}

Actions

Actions dictate how a widget functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the widget to fit your specific needs.

1. onAccept

The onAccept action is typically triggered when the user clicks on the accept button, initiating a predefined action. However, by implementing the following code snippet, you can easily customize or override this default behavior to suit your specific requirements.

CometChatIncomingCall(
  user: user, // User Object
  call: callObject, // Call Object
  onAccept: (BuildContext context, Call call) {
    // TODO("Not yet implemented")
  },
)

2. onDecline

The onDecline action is typically triggered when the user clicks on the reject button, initiating a predefined action. However, by implementing the following code snippet, you can easily customize or override this default behavior to suit your specific requirements.

CometChatIncomingCall(
  user: user, // User Object
  call: callObject, // Call Object
  onDecline: (BuildContext context, Call call) {
    // TODO("Not yet implemented")
  },
)

3. onError

You can customize this behavior by using the provided code snippet to override the onError and improve error handling.

CometChatIncomingCall(
  user: user, // User Object
  call: callObject, // Call Object
  onError: (e) {
    // TODO("Not yet implemented")
  },
)

Filters

Filters allow you to customize the data displayed in a list within a Widget. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK. The CometChatIncomingCall widget does not have any exposed filters.

Events

Events are emitted by a Widget. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The CometChatIncomingCall widget does not have any exposed events.

Customization

To fit your app’s design requirements, you can customize the appearance of the conversation widget. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the widget in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the widget.

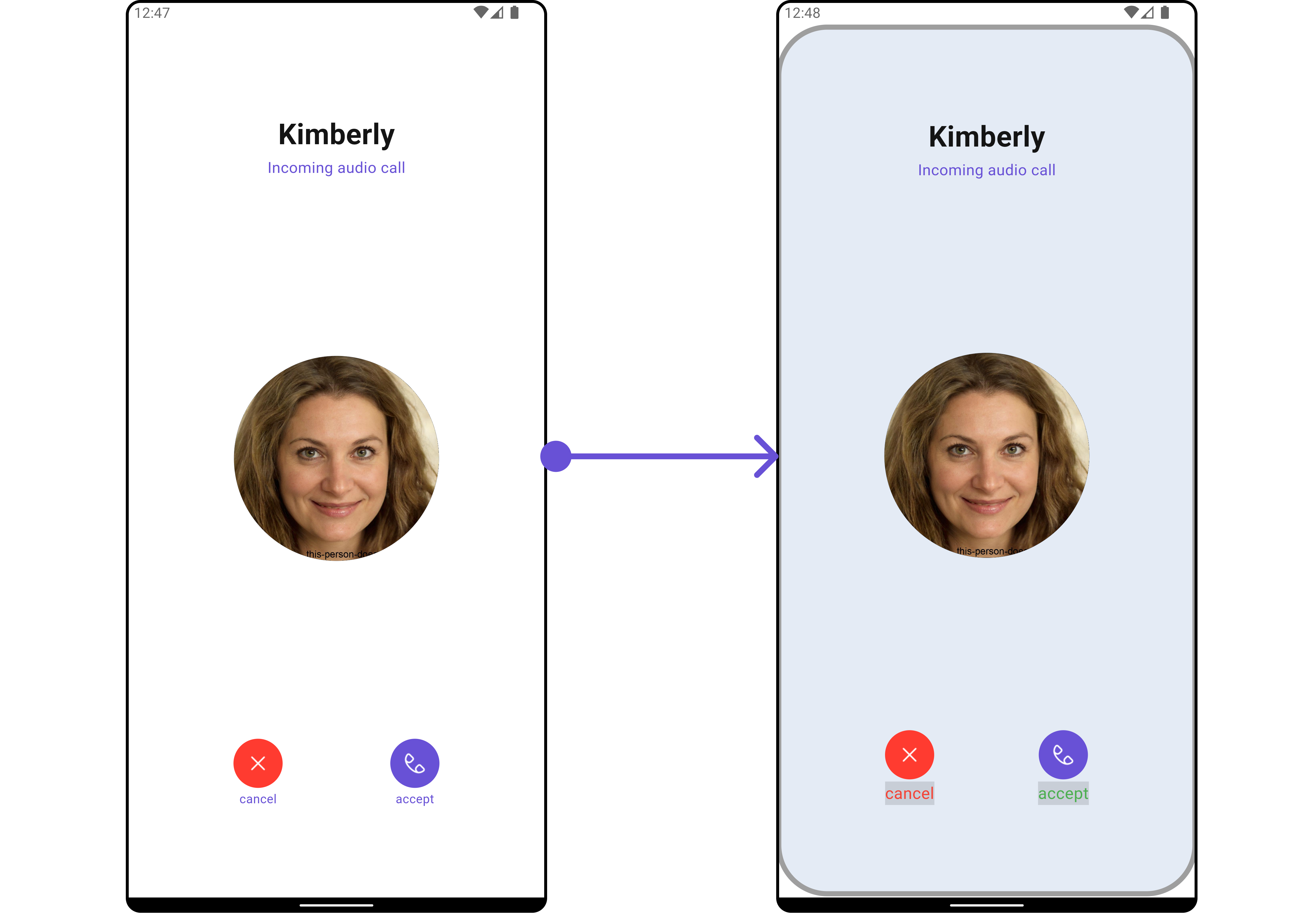

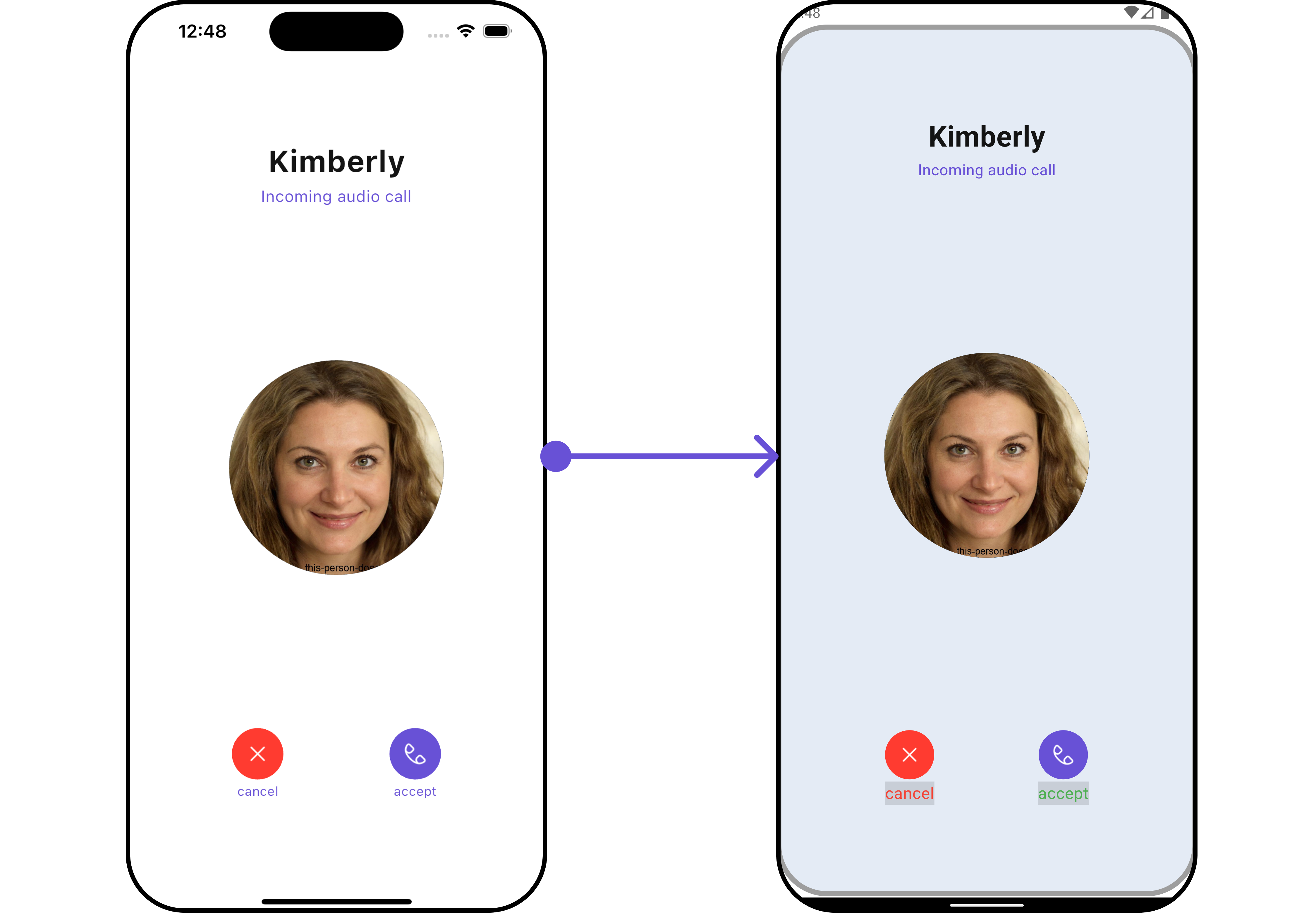

1. IncomingCall Style

You can customize the appearance of the CometChatIncomingCall Widget by applying the IncomingCallStyle to it using the following code snippet. Here is the complete example for reference:

CometChatIncomingCall(
  user: user, // User Object
  call: callObject, // Call Object
  incomingCallStyle: IncomingCallStyle(
      declineButtonTextStyle: const TextStyle(
        color: Colors.red,
        fontSize: 16,
        backgroundColor: Color(0xFFE4EBF5),
      ),
      acceptButtonTextStyle: const TextStyle(
        color: Colors.green,
        fontSize: 16,
        backgroundColor: Color(0xFFE4EBF5),
      ),
      border: Border.all(color: Colors.grey, width: 1),
      borderRadius: 10,
  ),
)

List of properties exposed by IncomingCallStyle

Property	Description	Code
Accept Button Text Style	Sets the text style for the accept button.	`acceptButtonTextStyle: TextStyle?`
Background	Sets the background color of the incoming call style.	`background: Color?`
Border	Sets the border properties of the incoming call style.	`border: BoxBorder?`
Border Radius	Sets the border radius of the incoming call style.	`borderRadius: double?`
Decline Button Text Style	Sets the text style for the decline button.	`declineButtonTextStyle: TextStyle?`
Gradient	Sets the gradient applied to the incoming call style.	`gradient: Gradient?`
Height	Sets the height of the incoming call style.	`height: double?`
Width	Sets the width of the incoming call style.	`width: double?`

2. Avatar Styles

To apply customized styles to the Avatar widget in the CometChatIncomingCall Widget, you can use the following code snippet. For further insights on Avatar Styles refer Example Here is the complete example for reference:

CometChatIncomingCall(
  user: user, // User Object
  call: callObject, // Call Object
  avatarStyle: AvatarStyle(
      border: Border.all(width: 5),
      borderRadius: 20,
      background: Colors.red
  ),
)

3. DeclineButton Style

You can customize the appearance of the Decline Button Widget by applying the declineButtonStyle to it using the following code snippet. Example Here is the complete example for reference:

import 'package:cometchat_calls_uikit/cometchat_calls_uikit.dart' as uikit;

CometChatIncomingCall(
  user: user, // User Object
  call: callObject, // Call Object
  declineButtonStyle: uikit.ButtonStyle(
    background: Colors.brown,
    border: Border.all(color: Colors.black),
    borderRadius: 10,
    textStyle: const TextStyle(color: Colors.red),
    iconTint: Colors.white,
  ),
)

4. AcceptButton Style

You can customize the appearance of the Accept Button Widget by applying the acceptButtonStyle to it using the following code snippet. Example Here is the complete example for reference:

import 'package:cometchat_calls_uikit/cometchat_calls_uikit.dart' as uikit;

CometChatIncomingCall(
  user: user, // User Object
  call: callObject, // Call Object
  acceptButtonStyle: uikit.ButtonStyle(
    background: Colors.brown,
    border: Border.all(color: Colors.black),
    borderRadius: 10,
    textStyle: const TextStyle(color: Colors.green),
    iconTint: Colors.white,
  ),
)

Functionality

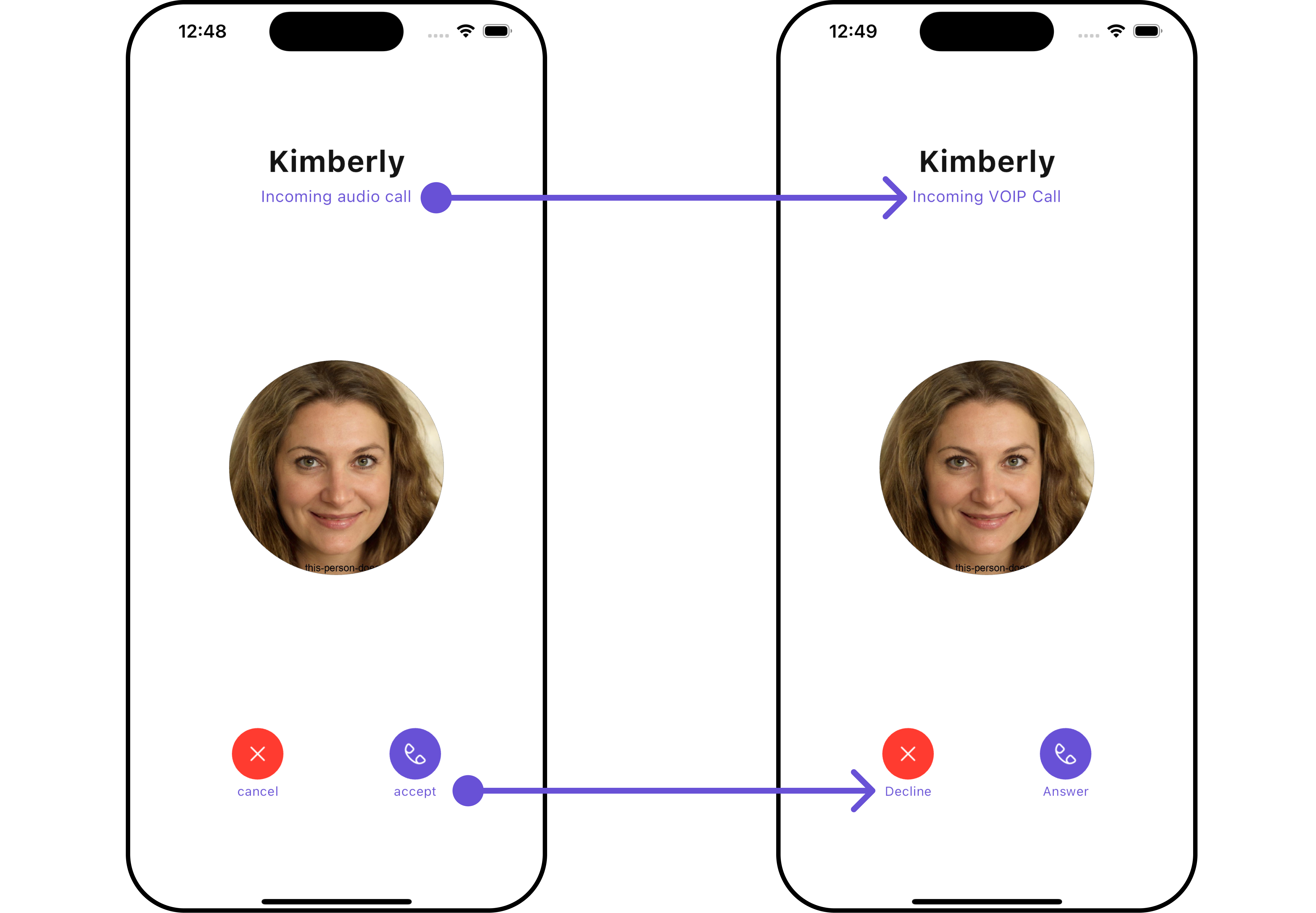

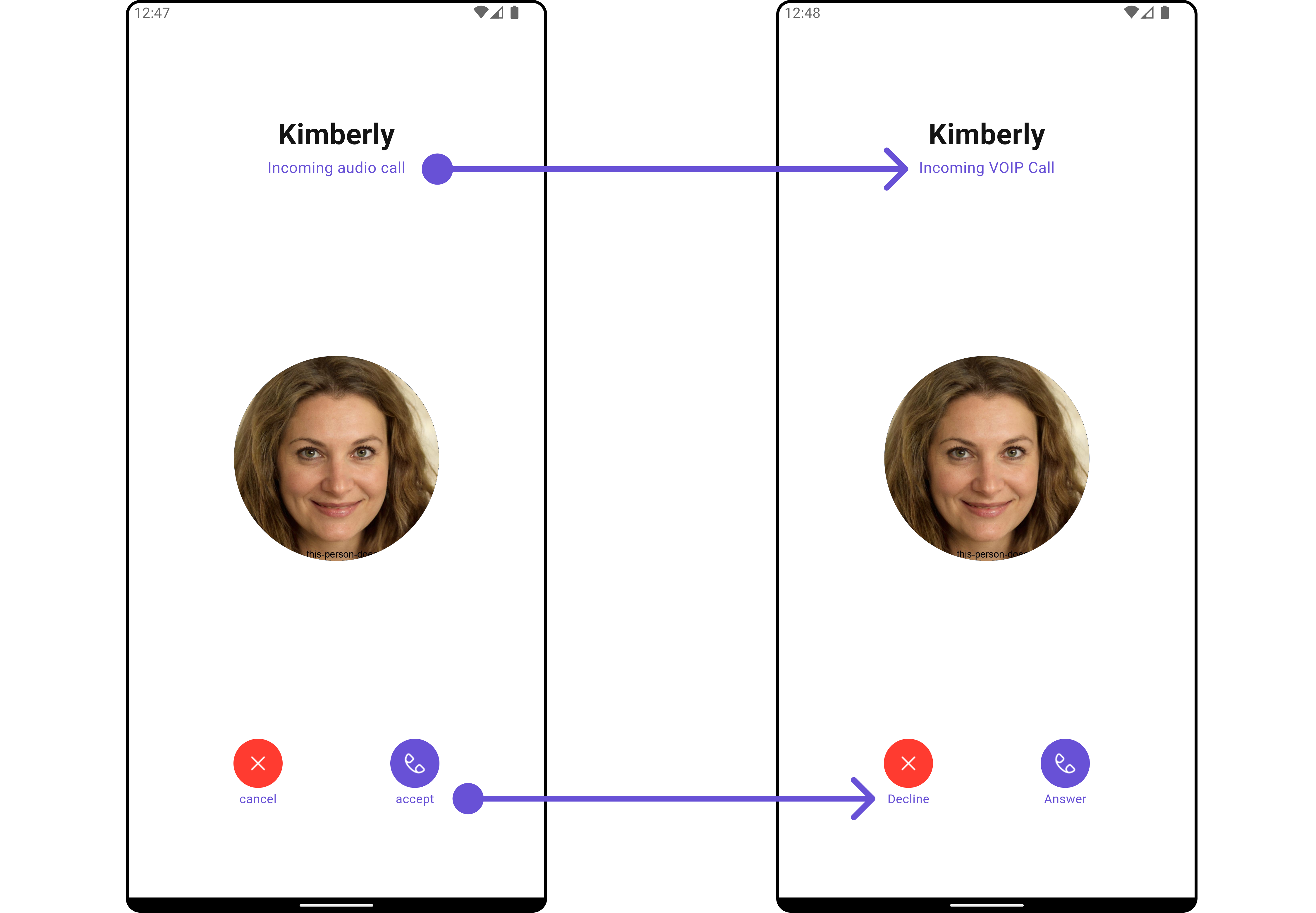

These are a set of small functional customizations that allow you to fine-tune the overall experience of the widget. With these, you can change text, set custom icons, and toggle the visibility of UI elements. Example In this example, we’re enhancing the interface by customizing the accept and decline button icons. By setting custom icons for both the accept and decline buttons, users can enjoy a more visually appealing and personalized experience. This level of customization allows developers to tailor the user interface to match the overall theme and branding of their application. Here is the complete example for reference:

CometChatIncomingCall(
  user: user, // User Object
  call: callObject, // Call Object
  subtitle: "Incoming VOIP Call",
  disableSoundForCalls: true,
  declineButtonText: "Decline",
  acceptButtonText: "Answer"
)

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
Accept Button Icon Url	Sets the URL for the accept button icon.	`acceptButtonIconUrl: String?`
Accept Button Text	Sets the text for the accept button.	`acceptButtonText: String?`
Custom Sound For Calls	Sets the custom sound for incoming calls.	`customSoundForCalls: String?`
Decline Button Icon Url	Sets the URL for the decline button icon.	`declineButtonIconUrl: String?`
Decline Button Icon Url Package	Sets the package for the decline button icon URL.	`declineButtonIconUrlPackage: String?`
Decline Button Text	Sets the text for the decline button.	`declineButtonText: String?`
Disable Sound For Calls	Disables sound for incoming calls.	`disableSoundForCalls: bool?`
Subtitle	Sets the subtitle for the incoming call screen.	`subtitle: String?`

Advanced

For advanced-level customization, you can set custom widget to the widget. This lets you tailor each aspect of the widget to fit your exact needs and application aesthetics. You can create and define your widget, layouts, and UI elements and then incorporate those into the widget. The CometChatIncomingCall widget does not provide additional functionalities beyond this level of customization.
