Overview

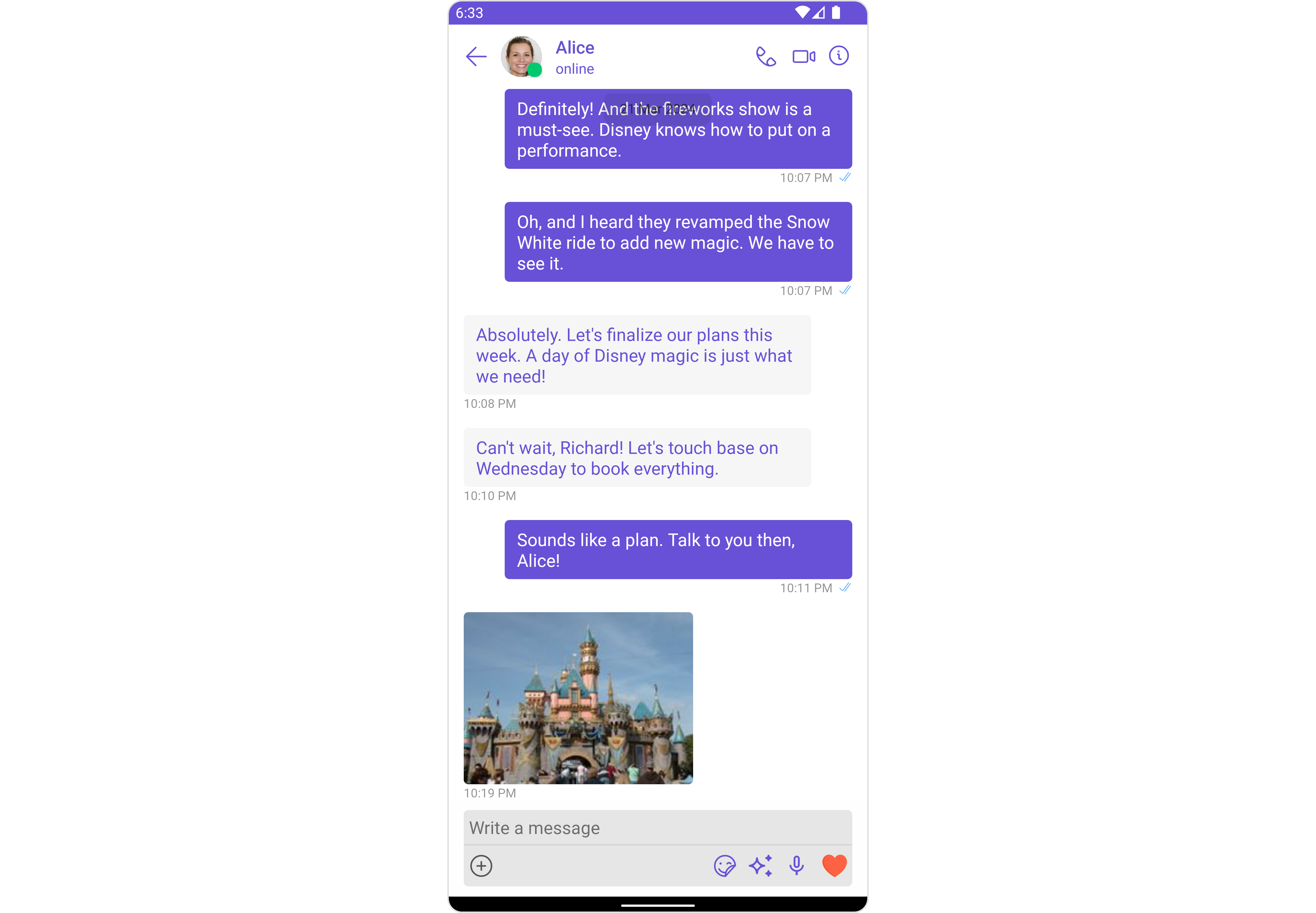

The Messages is a Composite Component that manages messages for users and groups.

The Messages component is composed of three individual components, MessageHeader, MessageList, and MessageComposer. In addition, the Messages component also navigates to the Details and ThreadedMessages components.

Components	Description
MessageHeader	`CometChatMessageHeader` displays the `User` or `Group` information using CometChat SDK’s `User` or `Group object.` It also shows the typing indicator when the user starts typing in `MessageComposer`.
MessageList	`CometChatMessageList` is one of the core UI components. It displays a list of messages and handles real-time operations.
MessageComposer	`CometChatMessageComposer` is an independent and critical component that allows users to compose and send various types of messages includes text, image, video and custom messages.
Details	`CometChatDetails` is a component that displays all the available options available for `Users` & `Groups`
ThreadedMessages	`CometChatThreadedMessages` is a component that displays all replies made to a particular message in a conversation.

Usage

Integration

The following code snippet illustrates how you can directly incorporate the Messages component into your layout.xml file.

<com.cometchat.chatuikit.messages.CometChatMessages
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:id="@+id/message"
        />

The CometChatMessages is responsible for managing runtime permissions. To ensure the ActivityResultLauncher is properly initialized, its object should be created in the the onCreate state of an activity. To ensure that the CometChatMessages is loaded within the fragment, it is important to make sure that the fragment is loaded in the onCreate state of the activity.

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs. The Messages component does not have its actions. However, since it’s a Composite Component, you can use the actions of its components by utilizing the Configurations object of each component. Example In this example, we are employing the ThreadRepliesClick action from the MessageList Component through the MessageListConfiguration object.

MessageListConfiguration configuration = new MessageListConfiguration();
configuration.setOnThreadRepliesClick((context, baseMessage, cometChatMessageTemplate  cometChatMessageBubble) -> {
    // You Custom Action
});

messages.setMessageListConfiguration(configuration);

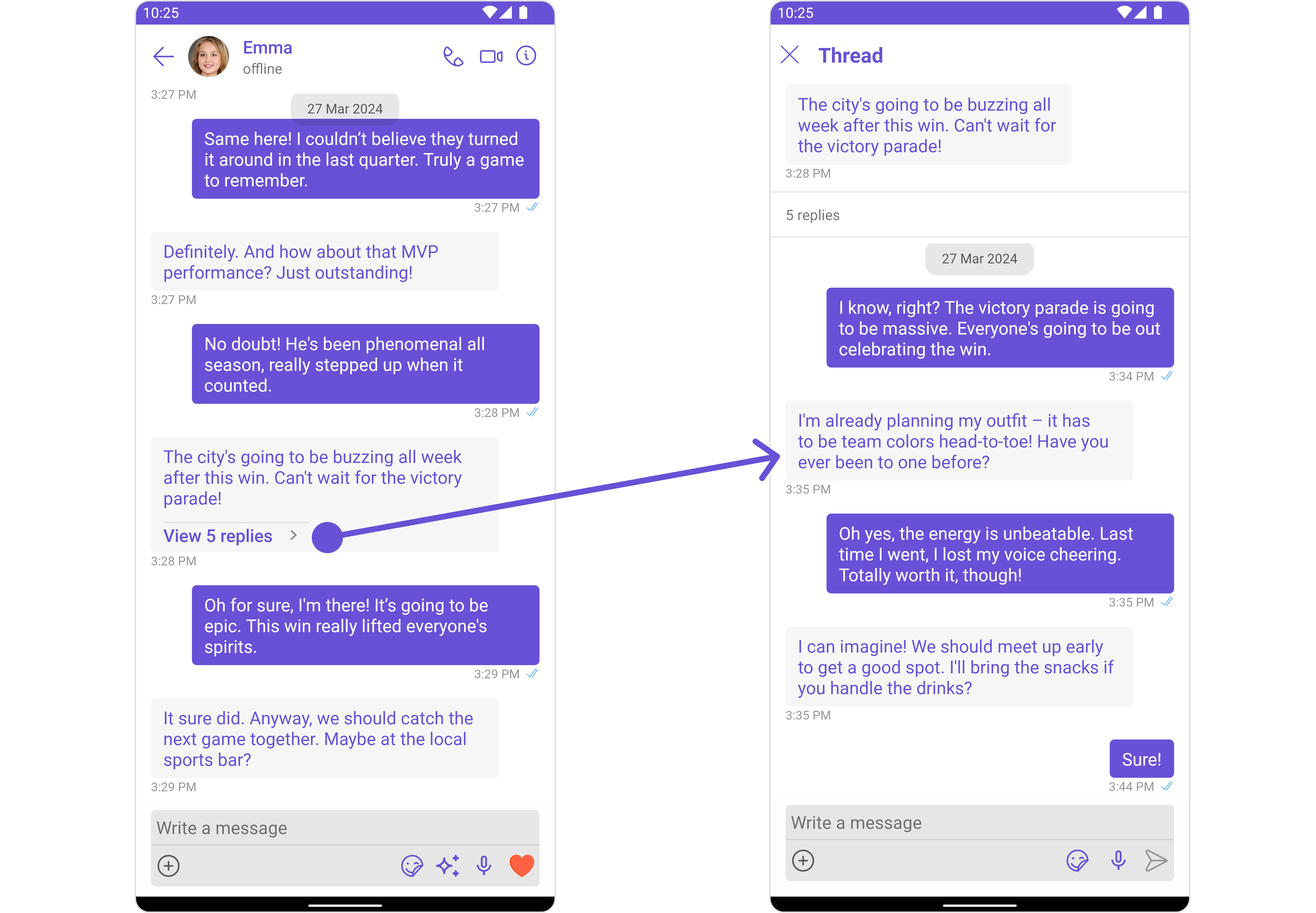

The Messages Component overrides the ThreadRepliesClick action to navigate to the ThreadedMessages component. If you override ThreadRepliesClick, it will also override the default behavior of the Messages Component.

Filters

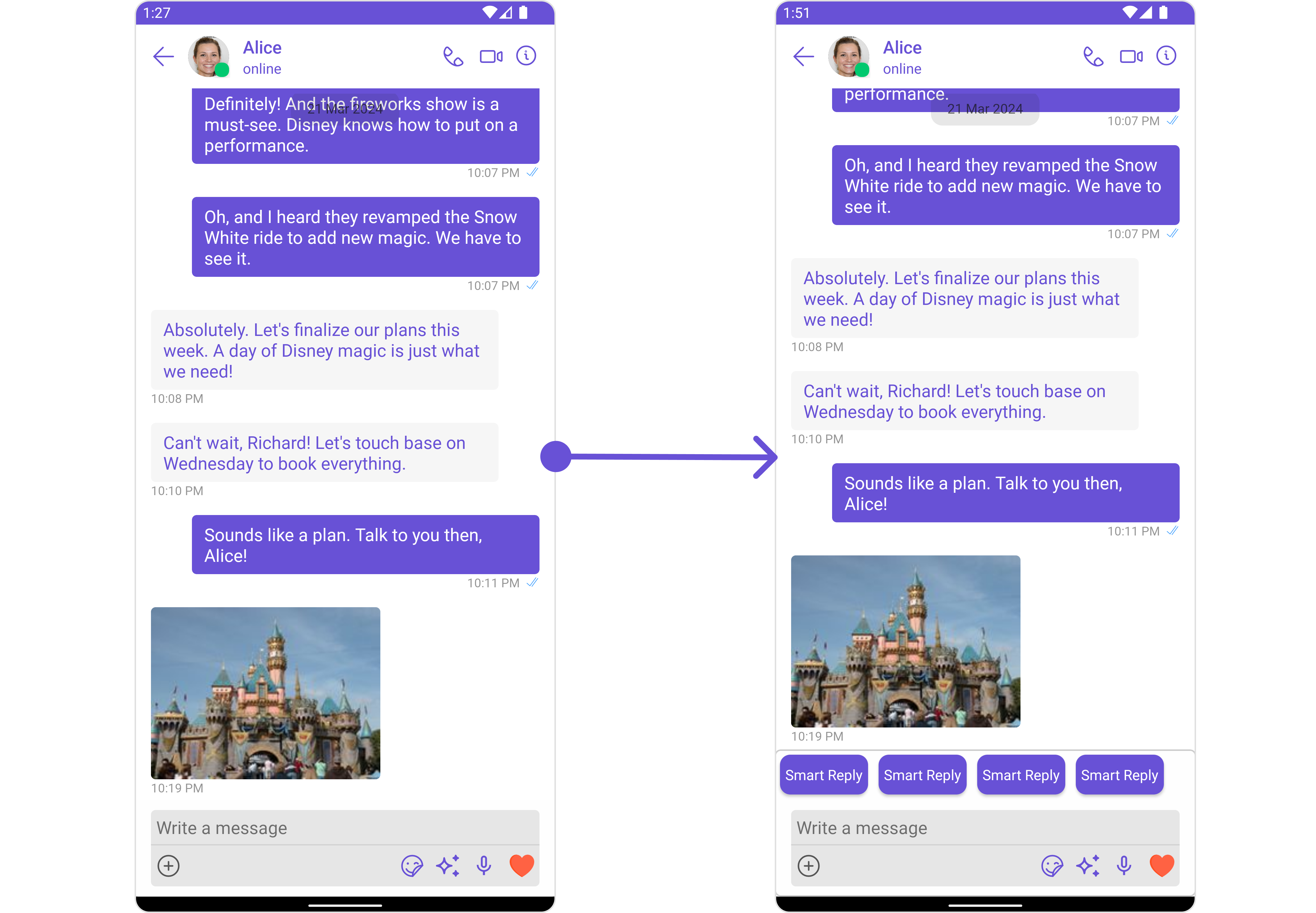

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK. The Messages component does not have its filters. But as it is a Composite Component, you can use the filters of its components by using the Configurations object of each component. For more details on the filters of its components, please refer to MessageList Filters. Example In this example, we’re applying the MessageList Component filter to the Messages Component using MessageListConfiguration.

MessageListConfiguration configuration = new MessageListConfiguration();

MessagesRequest.MessagesRequestBuilder messagesRequest = new MessagesRequestMessagesRequestBuilder()
        .setSearchKeyword("your search keyword")
        .setUID("user uid");

configuration.setMessagesRequestBuilder(messagesRequest);
messages.setMessageListConfiguration(configuration);

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The list of events emitted by the Messages component is as follows.

Event	Description
ccMessageSent	Triggers whenever a loggedIn user sends any message, it will have two states such as: inProgress & sent
ccMessageEdited	Triggers whenever a loggedIn user edits any message from the list of messages .it will have two states such as: inProgress & sent
ccMessageDeleted	Triggers whenever a loggedIn user deletes any message from the list of messages
ccMessageRead	Triggers whenever a loggedIn user reads any message.
ccLiveReaction	Triggers whenever a loggedIn clicks on live reaction

Adding CometChatMessageEvents Listener’s

CometChatMessageEvents.addListener("YOUR_LISTENER_TAG", new CometChatMessageEvents() {
            @Override
            public void ccMessageSent(BaseMessage baseMessage, int status) {
                super.ccMessageSent(baseMessage, status);
            }

            @Override
            public void ccMessageEdited(BaseMessage baseMessage, int status) {
                super.ccMessageEdited(baseMessage, status);
            }

            @Override
            public void ccMessageDeleted(BaseMessage baseMessage) {
                super.ccMessageDeleted(baseMessage);
            }

            @Override
            public void ccMessageRead(BaseMessage baseMessage) {
                super.ccMessageRead(baseMessage);
            }

            @Override
            public void ccLiveReaction(int icon) {
                super.ccLiveReaction(icon);
            }
        });

Removing CometChatMessageEvents Listener’s

CometChatMessageEvents.removeListener("YOUR_LISTENER_TAG");

Customization

To fit your app’s design requirements, you can customize the appearance of the conversation component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. Messages Style

You can customize the appearance of the Messages Component by applying the MessagesStyle to it using the following code snippet.

MessagesStyle messagesStyle = new MessagesStyle();
messagesStyle.setBackground(Color.BLACK);
messagesStyle.setCornerRadius(20f);

messages.setStyle(messagesStyle);

List of properties exposed by MessagesStyle

Property	Description	Code
set Background	Used to set the background color	`.setBackground(@ColorInt int)`
set Background	Used to set drawable background	`.setBackground(Drawable)`
set BorderColor	Used to set border color	`.setBorderColor(@ColorInt int)`
set BorderWidth	Used to set border width	`.setBorderWidth(int)`
set CornerRadius	Used to set corner radius	`.setCornerRadius(float)`

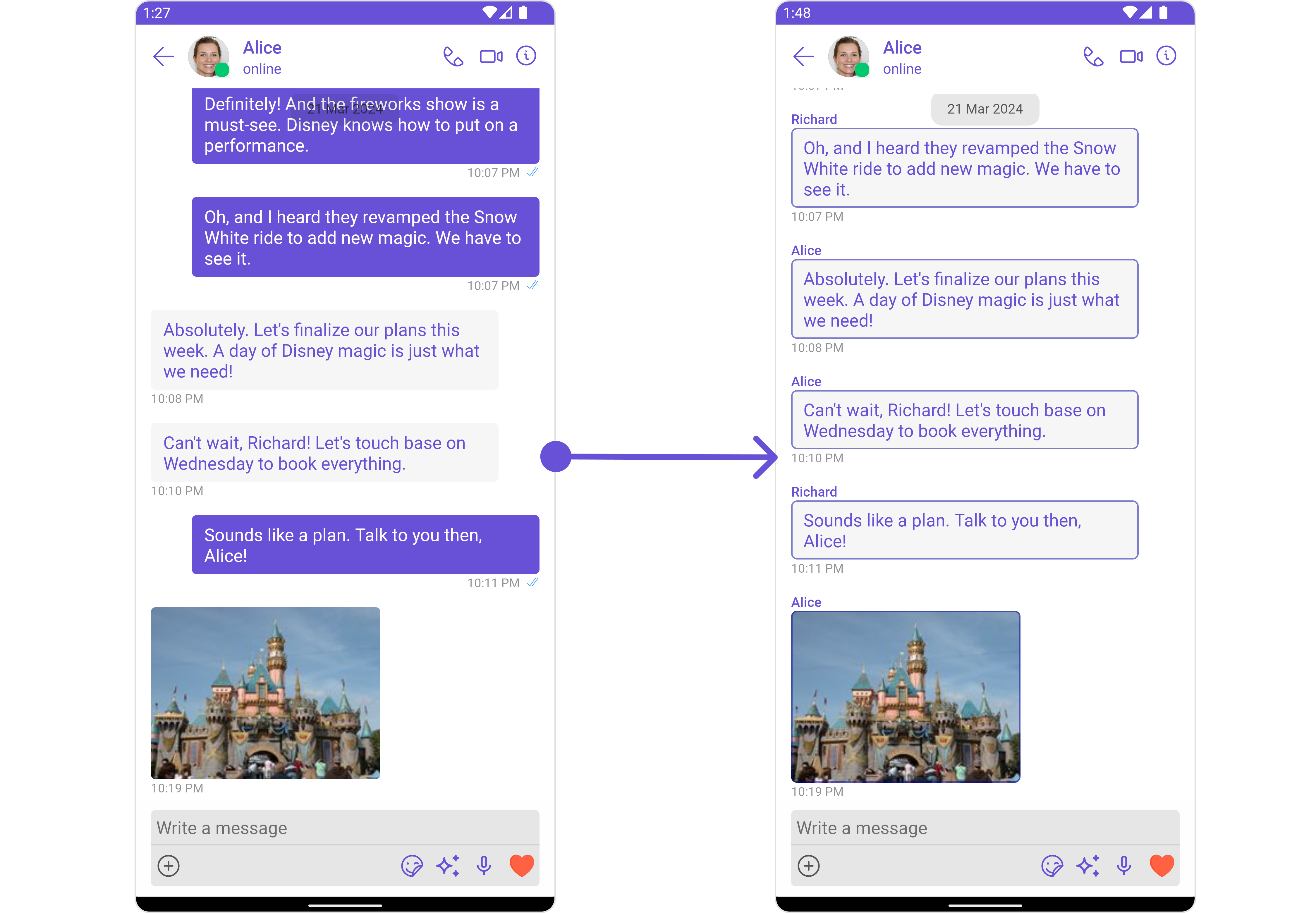

2. Component’s Styles

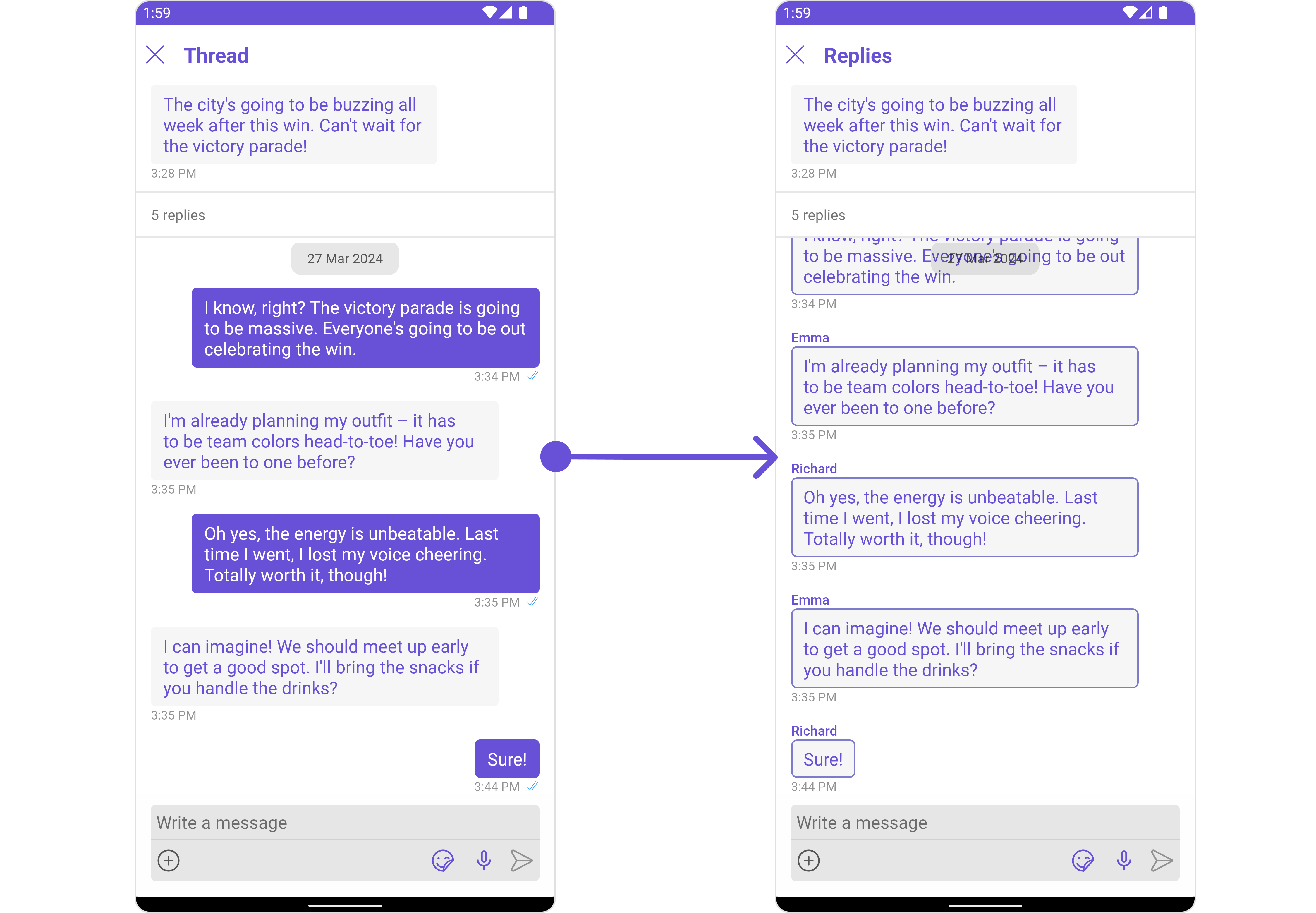

Being a Composite component, the Messages Component allows you to customize the styles of its components using their respective Configuration objects. For a list of all available properties, refer to each component’s styling documentation: MesssageHeader Styles, MessageList Styles, MessageComposer Styles, Details Styles, ThreadMessages Styles. Example In this example, we are creating MessageListStyle and MessageComposerStyle and then applying them to the Messages Component using MessageListConfiguration and MessageComposerConfiguration.

MessageListStyle messageListStyle = new MessageListStyle();
messageListStyle.setBackground(Color.BLACK);
messageListStyle.setBorderColor(Color.WHITE);

MessageComposerStyle messageComposerStyle = new MessageComposerStyle();
messageComposerStyle.setBackground(R.color.black);
messageComposerStyle.setBorderColor(com.cometchat.chatuikit.R.color.grey);

MessageListConfiguration messageListConfiguration = new MessageListConfiguration();
messageListConfiguration.setStyle(messageListStyle);

messages.setMessageListConfiguration(messageListConfiguration);

MessageComposerConfiguration messageComposerConfiguration = new MessageComposerConfiguration();
messageComposerConfiguration.setStyle(messageComposerStyle);

messages.setMessageComposerConfiguration(messageComposerConfiguration);

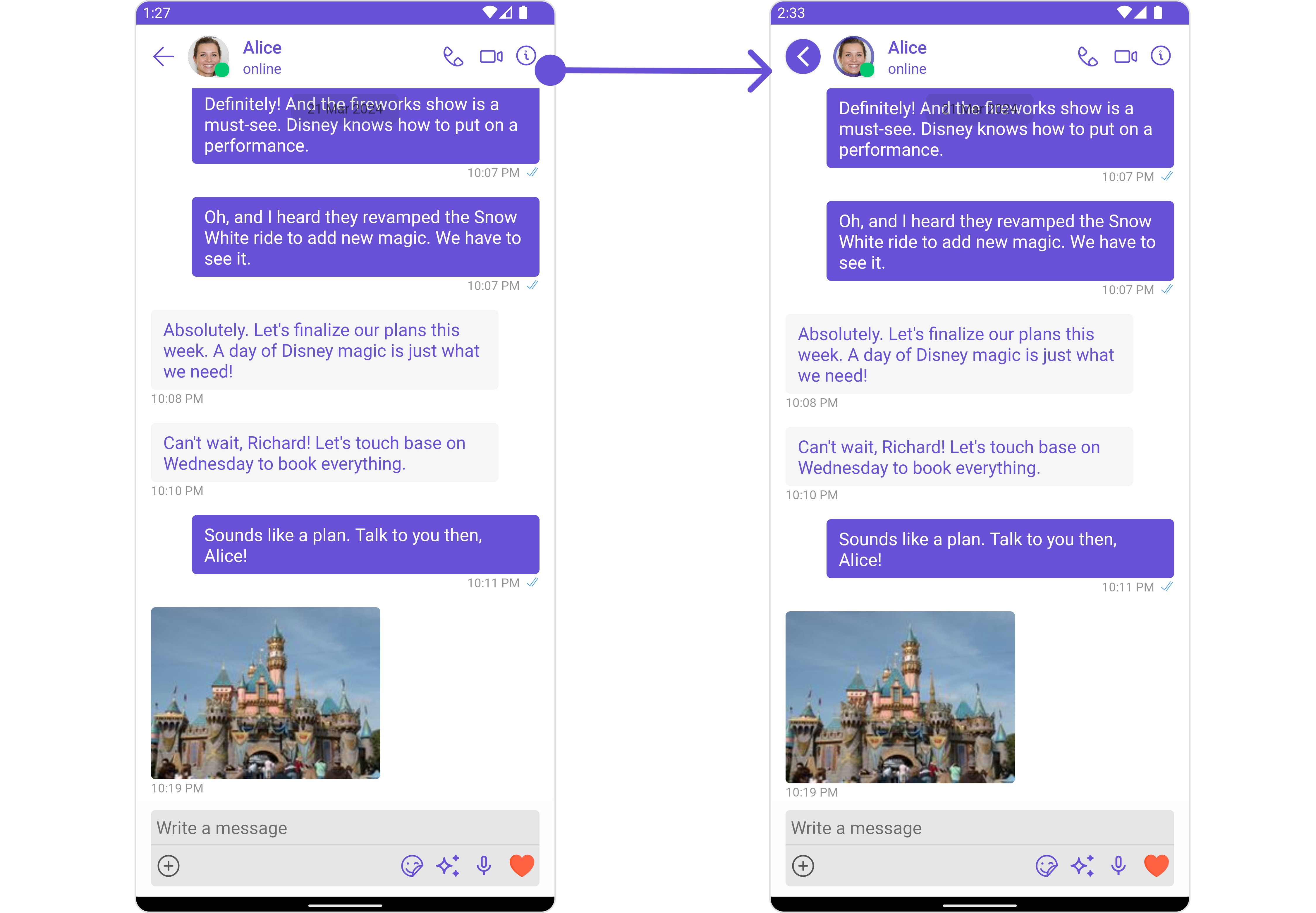

Functionality

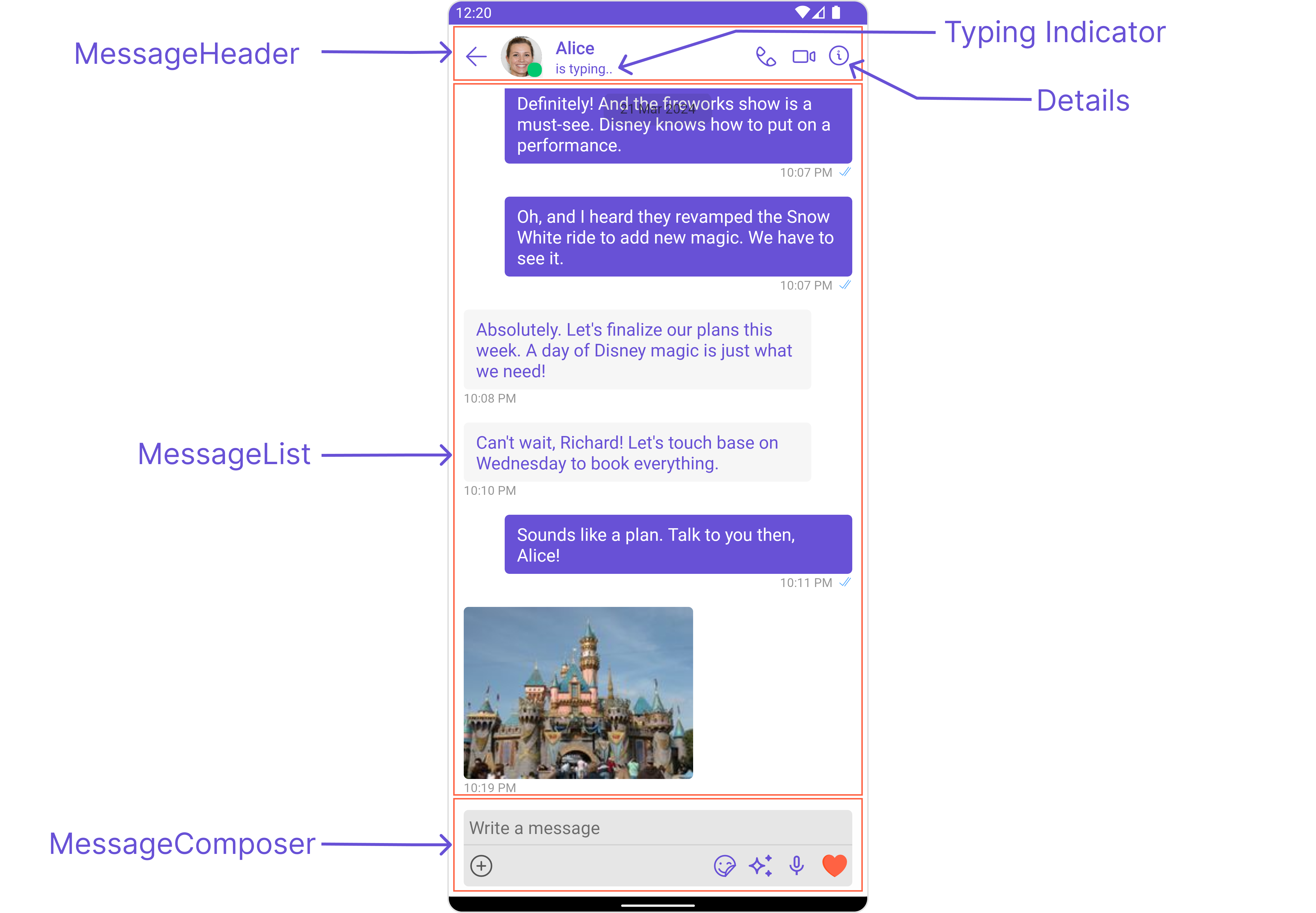

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

CometChatMessages messages = findViewById(R.id.message);
messages.setUser(user);
messages.hideDetails(true);
messages.disableTyping(true);

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
User	Used to pass user object of which header specific details will be shown	`.setUser(user)`
Group	Used to pass group object of which header specific details will be shown	`.setGroup(Group)`
Hide MessageComposer	Used to toggle visibility for CometChatMessageComposer, default false	`.hideMessageComposer(boolean)`
Hide MessageHeader	Used to toggle visibility for CometChatMessageHeader, default false	`.hideMessageHeader(boolean)`
Disable Typing	Used to toggle functionality for showing typing indicator and also enable/disable sending message delivery/read receipts	`.disableTyping(boolean)`
Disable SoundForMessages	Used to toggle sound for messages	`.disableSoundForMessages(boolean)`
Set CustomSoundForIncomingMessages	Used to set custom sound asset’s path for incoming messages	`.setCustomSoundForIncomingMessages(@RawRes int)`
Set CustomSoundForOutgoingMessages	Used to set custom sound asset’s path for outgoing messages	`.setCustomSoundForOutgoingMessages(@RawRes int)`
Hide Details	Used to toggle visibility for details icon in CometChatMessageHeader	`.hideDetails(boolean)`

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

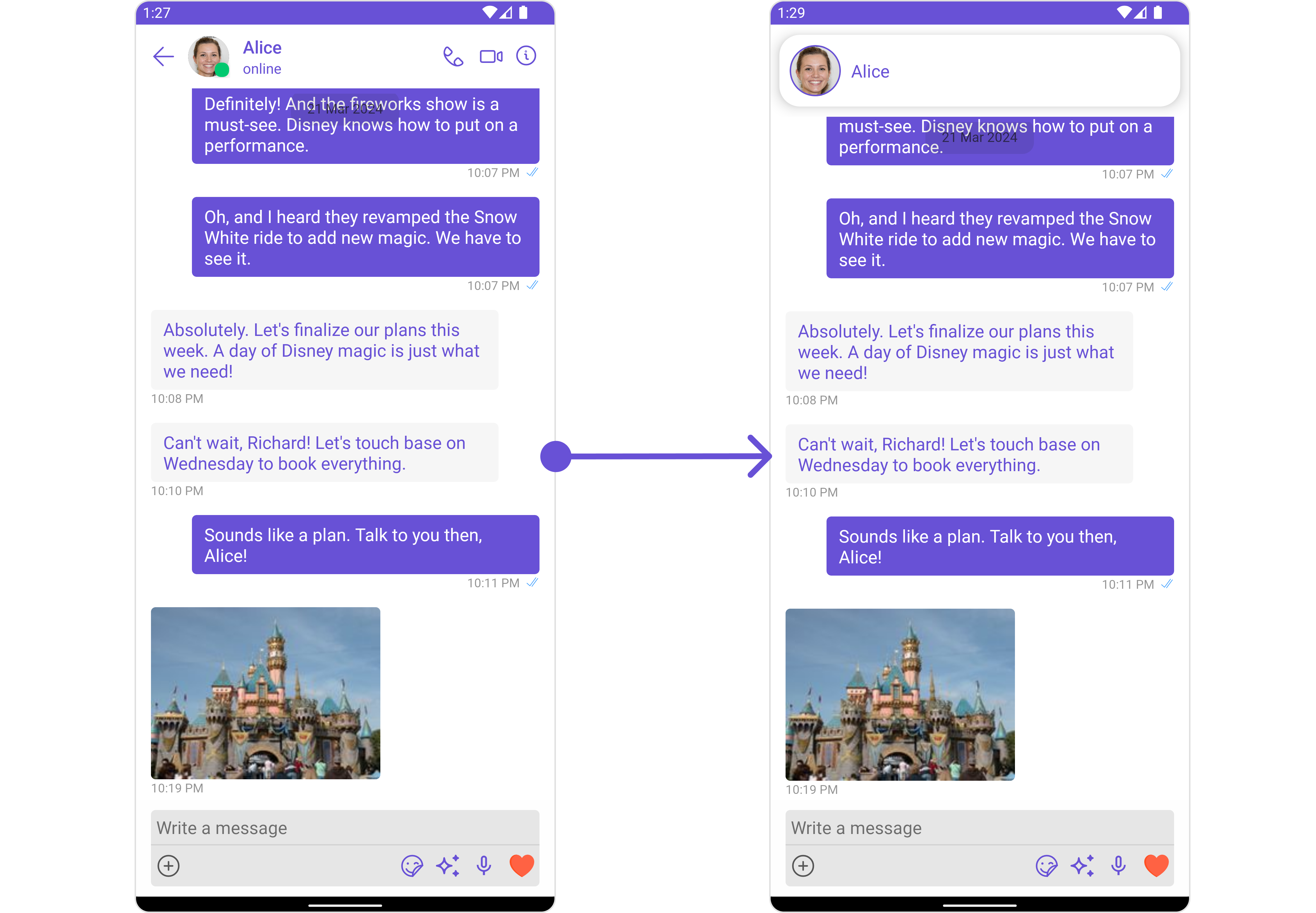

MessageHeaderView

You can set your custom message header view using the setMessageHeaderView() method. But keep in mind, by using this you will override the default message header functionality.

messages.setMessageHeaderView()

Example

In this example, we will create a custom_header_view.xml and inflate it inside the setMessageHeaderView() method.

custom_header_view.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <androidx.cardview.widget.CardView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:elevation="10dp"
        app:cardBackgroundColor="@color/white"
        app:cardCornerRadius="20dp"
        android:layout_margin="10dp"
        app:cardElevation="10dp"
        >

        <RelativeLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content">

            <com.cometchat.chatuikit.shared.views.CometChatAvatar.CometChatAvatar
                android:id="@+id/item_avatar"
                android:layout_centerVertical="true"
                android:layout_margin="10dp"
                android:layout_width="50dp"
                android:layout_height="50dp"
                android:padding="10dp"
                />

            <TextView
                android:id="@+id/txt_item_name"
                android:text="name"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_centerVertical="true"
                android:textColor="@color/purple_700"
                android:layout_toRightOf="@+id/item_avatar"
                android:textSize="17sp"
                />

        </RelativeLayout>

    </androidx.cardview.widget.CardView>

</RelativeLayout>

messages.setMessageHeaderView((context, user1, group) -> {
    View view = getLayoutInflater().inflate(R.layout.custom_header_view, null);
    CometChatAvatar avatar = view.findViewById(R.id.item_avatar);
    TextView txtName = view.findViewById(R.id.txt_item_name);
    avatar.setBorderWidth(5);
    avatar.setBorderColor(getColor(R.color.purple_700));
    if(user1 != null){
        Log.e("", "User avatar = "+ user1.getAvatar());
        avatar.setImage(user1.getAvatar());
        txtName.setText(user1.getName());
    }else{
        avatar.setImage(group.getIcon());
        txtName.setText(group.getName());
    }
    return view;
});

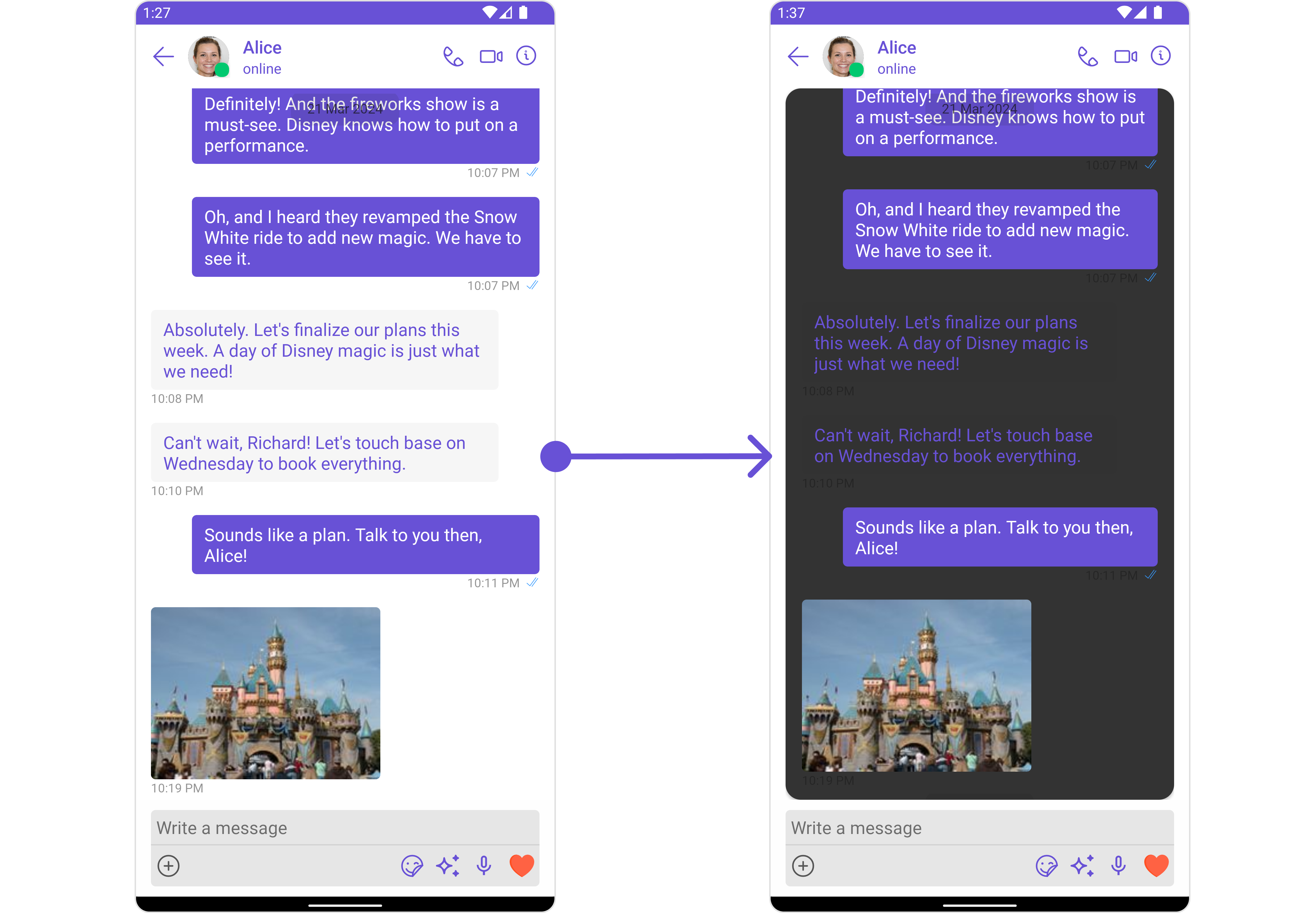

setMessageListView

You can set your custom message list view using the setMessageListView() method. But keep in mind, by using this you will override the default message ListView functionality.

messages.setMessageListView()

Example

In this example, we will create a custom_messages_list_layout.xml and inflate it inside the setMessageListView() method.

custom_messages_list_layout.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"

    xmlns:app="http://schemas.android.com/apk/res-auto">

    <androidx.cardview.widget.CardView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        app:cardCornerRadius="15dp"
        app:cardBackgroundColor="@color/secondary_dark"
        >

        <com.cometchat.chatuikit.messagelist.CometChatMessageList
            android:id="@+id/message_list"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:layout_marginStart="16dp"
            android:layout_marginEnd="16dp"
             />

    </androidx.cardview.widget.CardView>

</RelativeLayout>

messages.setMessageListView((context, user1, group) -> {
    View view = getLayoutInflater().inflate(R.layout.custom_messages_list_layout, null);
    CometChatMessageList messageList = view.findViewById(R.id.message_list);
    if(user1 != null)
        messageList.setUser(user1);
    else
        messageList.setGroup(group);
    return view;
});

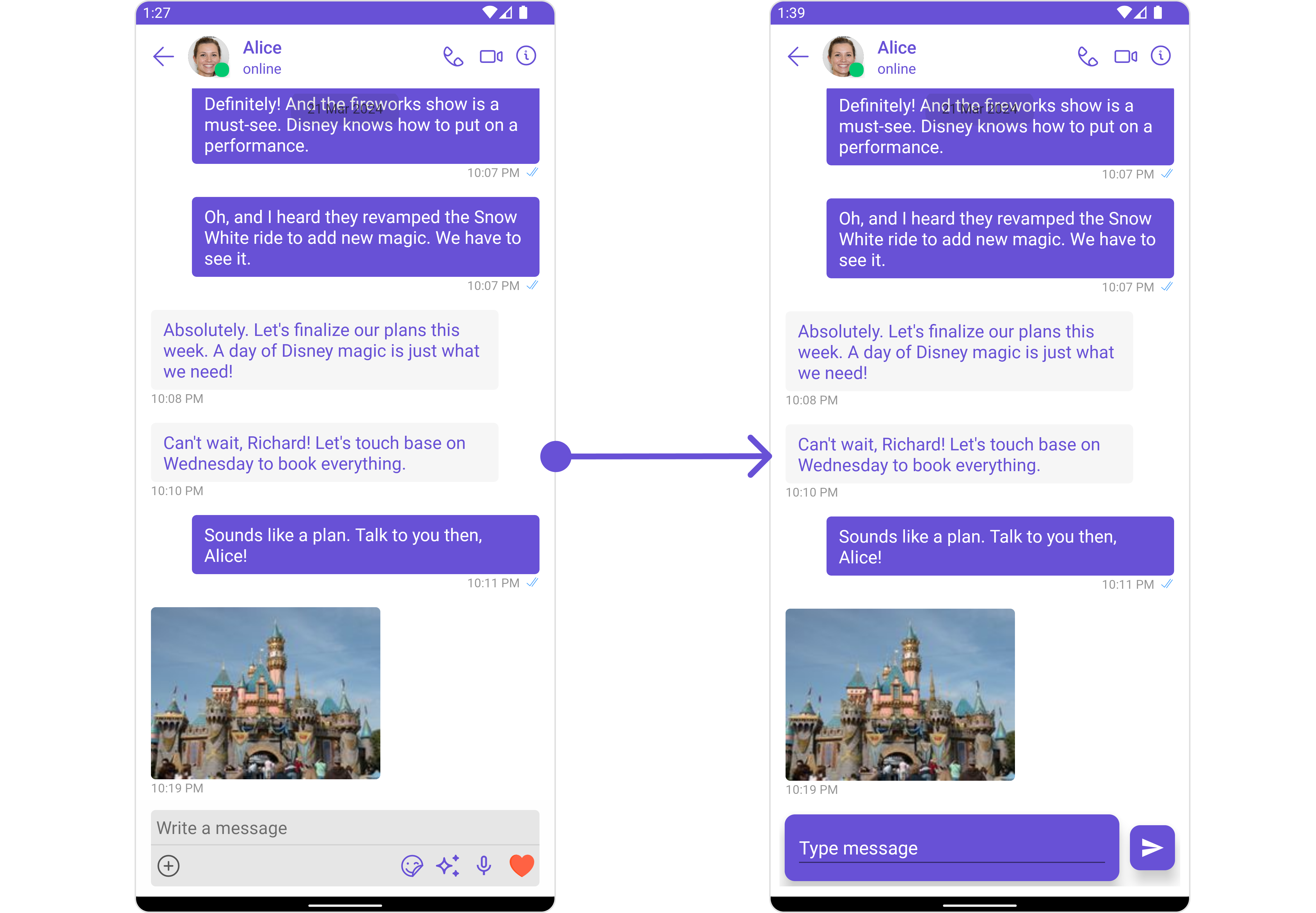

setMessageComposerView

You can set your custom Message Composer view using the setMessageComposerView() method. But keep in mind, by using this you will override the default message composer functionality.

messages.setMessageComposerView()

Example

In this example, we will create a custom_composer_view_layout.xml and inflate it inside the setMessageComposerView() method.

custom_composer_view_layout.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_gravity="center_vertical"
    android:orientation="horizontal"
    android:padding="10dp"
    xmlns:app="http://schemas.android.com/apk/res-auto">


    <androidx.cardview.widget.CardView
        android:id="@+id/card_editext"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:padding="10dp"
        android:layout_margin="5dp"
        app:cardBackgroundColor="@color/purple_700"
        app:contentPadding="10dp"
        app:cardCornerRadius="10dp"
        app:cardElevation="10dp"
        android:layout_toLeftOf="@+id/card_sendbtn"
        >

        <EditText
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:hint="Type message"
            android:textColorHint="@color/white"
            android:textColor="@color/white"
            />

    </androidx.cardview.widget.CardView>


    <androidx.cardview.widget.CardView
        android:id="@+id/card_sendbtn"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:padding="10dp"
        android:layout_margin="5dp"
        app:cardBackgroundColor="@color/purple_700"
        app:contentPadding="10dp"
        app:cardCornerRadius="10dp"
        android:layout_alignParentEnd="true"
        android:layout_centerVertical="true"
        app:cardElevation="10dp"
        >

        <ImageView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:src="@drawable/ic_send"
            />

    </androidx.cardview.widget.CardView>

</RelativeLayout>

messages.setMessageComposerView(new Function3<Context, User, Group, View>() {
    @Override
    public View apply(Context context, User user, Group group) {
        View view = getLayoutInflater().inflate(R.layout.custom_composer_view_layout, null);
        return view;
    }
});

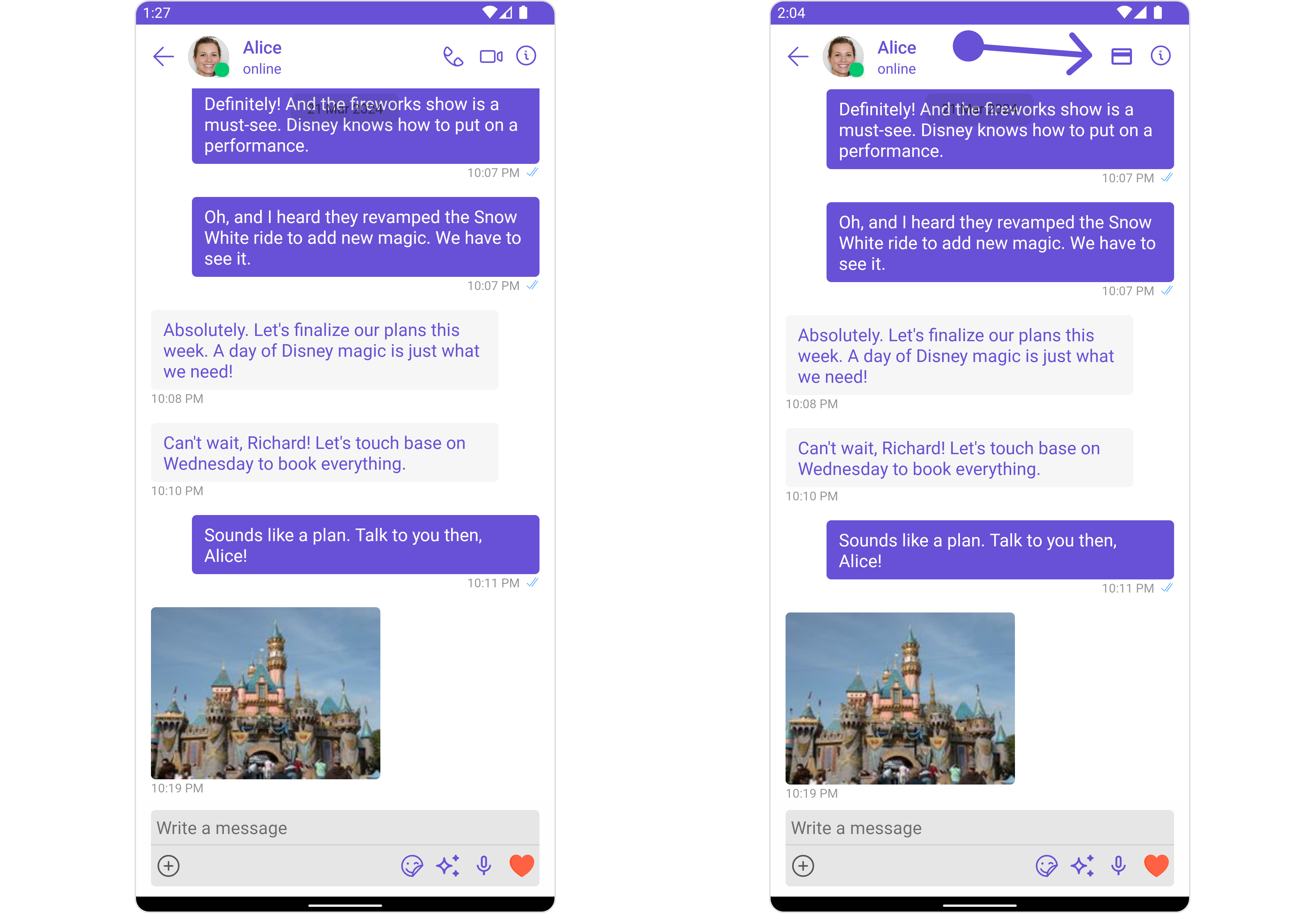

setAuxiliaryHeaderMenu

You can set a custom header menu option by using the setAuxiliaryHeaderMenu() method.

messages.setAuxiliaryHeaderMenu()

Example

In this example we are adding a custom payment option in header menu using .setAuxiliaryHeaderMenu()

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    xmlns:app="http://schemas.android.com/apk/res-auto">

    <ImageView
        android:id="@+id/img_payment"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/ic_payment"
        android:padding="10dp"
        />

</RelativeLayout>

messages.setAuxiliaryHeaderMenu(new Function3<Context, User, Group, View>() {
    @Override
    public View apply(Context context, User user, Group group) {
        View view = getLayoutInflater().inflate(R.layout.auxiliary_button_layout, null);
        ImageView imgPayment = findViewById(R.id.img_payment);
        imgPayment.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                Toast.makeText(context, "Clicked on payment option", Toast.LENGTH_SHORT).show();
            }
        });
        return view;
    }
});

The Messages Component uses the setAuxiliaryHeaderMenu() method to establish its default functionality. By setting an Auxiliary Menu, the Messages Component gains the capability to navigate to the Details section.

Configuration

Configurations offer the ability to customize the properties of each individual component within a Composite Component. The Messages Component is a Composite Component and it has a specific set of configuration for each of its components.

MessageHeader

If you want to customize the properties of the MessageHeader Component inside Messages Component, you need use the MessageHeaderConfiguration object.

MessageHeaderConfiguration configuration = new MessageHeaderConfiguration();
messages.setMessageHeaderConfiguration(configuration);

The MessageHeaderConfiguration provides access to all the Action, Filters, Styles, Functionality, and Advanced properties of the MessageHeader component.

Please note that the properties marked with the 🛑 symbol are not accessible within the Configuration Object.

Example

In this example, we will be adding a custom back button and styling a few properties of the Avatar component of the MessageHeader component using MessageHeaderConfiguration.

 MessageHeaderConfiguration configuration = new MessageHeaderConfiguration();

View backButtonView = getLayoutInflater().inflate(R.layout.custom_header_back_icon, null);
configuration.setBackIconView(backButtonView);

AvatarStyle avatarStyle = new AvatarStyle();
avatarStyle.setBorderColor(R.color.purple_700);
avatarStyle.setBorderWidth(10);

configuration.setAvatarStyle(avatarStyle);

messages.setMessageHeaderConfiguration(configuration);

MessageList

If you want to customize the properties of the MessageList Component inside Messages Component, you need use the MessageListConfiguration object.

MessageListConfiguration messageListConfiguration = new MessageListConfiguration();
messages.setMessageListConfiguration(messageListConfiguration);

The MessageListConfiguration provides access to all the Action, Filters, Styles, Functionality, and Advanced properties of the MessageList component.

Please note that the properties marked with the 🛑 symbol are not accessible within the Configuration Object.

Example

In this example, we will be changing the list alignment and modifying the message bubble styles in the MessageList component using MessageListConfiguration.

MessageListConfiguration messageListConfiguration = new MessageListConfiguration();

messageListConfiguration.setListAlignment(UIKitConstants.MessageListAlignment.LEFT_ALIGNED);

MessageBubbleStyle messageBubbleStyle= new MessageBubbleStyle();
messageBubbleStyle.setCornerRadius(20f);
messageBubbleStyle.setBorderColor(R.color.purple_700);
messageBubbleStyle.setBorderWidth(5);

messageListConfiguration.setWrapperMessageBubbleStyle(messageBubbleStyle);

messages.setMessageListConfiguration(messageListConfiguration);

MessageComposer

If you want to customize the properties of the MessageComposer Component inside Messages Component, you need use the MessageComposerConfiguration object.

MessageComposerConfiguration configuration = new MessageComposerConfiguration();
messages.setMessageComposerConfiguration(configuration);

The MessageComposerConfiguration provides access to all the Action, Filters, Styles, Functionality, and Advanced properties of the MessageComposer component.

Please note that the properties marked with the 🛑 symbol are not accessible within the Configuration Object.

Example

In this example, we’ll be adding a custom header view and customizing some properties of the MessageComposer component using MessageComposerConfiguration.

MessageComposerConfiguration configuration = new MessageComposerConfiguration();

View view = getLayoutInflater().inflate(R.layout.custom_header_view_layout, null);
configuration.setHeaderView(view);

MessageComposerStyle composerStyle = new MessageComposerStyle();
composerStyle.setBorderColor(Color.LTGRAY);
composerStyle.setBorderWidth(5);
composerStyle.setCornerRadius(20);
configuration.setStyle(composerStyle);

messages.setMessageComposerConfiguration(configuration);

ThreadedMessages

If you want to customize the properties of the ThreadedMessages Component inside Messages Component, you need use the ThreadedMessagesConfiguration object.

ThreadedMessagesConfiguration configuration = new ThreadedMessagesConfiguration();
messages.setThreadedMessagesConfiguration(configuration);

The ThreadedMessagesConfiguration provides access to all the Action, Filters, Styles, Functionality, and Advanced properties of the ThreadedMessages component.

Please note that the properties marked with the 🛑 symbol are not accessible within the Configuration Object.

Example

In this example, we are adding a custom title to the Threaded Message component and also adding custom properties to the MessageList using MessageListConfiguration. We then apply these changes to the ThreadedMessages component using ThreadedMessagesConfiguration.

ThreadedMessagesConfiguration configuration = new ThreadedMessagesConfiguration();

configuration.setTitle("Replies");

MessageListConfiguration messageListConfiguration = new MessageListConfiguration();

messageListConfiguration.setListAlignment(UIKitConstants.MessageListAlignment.LEFT_ALIGNED);

MessageBubbleStyle messageBubbleStyle= new MessageBubbleStyle();
messageBubbleStyle.setCornerRadius(20f);
messageBubbleStyle.setBorderColor(R.color.purple_700);
messageBubbleStyle.setBorderWidth(5);
messageListConfiguration.setWrapperMessageBubbleStyle(messageBubbleStyle);

configuration.setMessageListConfiguration(messageListConfiguration);

messages.setThreadedMessagesConfiguration(configuration);

​Overview

​Usage

​Integration

​Actions

​Filters

​Events

​Customization

​Style

1. Messages Style

2. Component’s Styles

​Functionality

​Advanced

​MessageHeaderView

​setMessageListView

​setMessageComposerView

​setAuxiliaryHeaderMenu

​Configuration

​MessageHeader

​MessageList

​MessageComposer

​ThreadedMessages

Overview

Usage

Integration

Actions

Filters

Events

Customization

Style

Functionality

Advanced

MessageHeaderView

setMessageListView

setMessageComposerView

setAuxiliaryHeaderMenu

Configuration

MessageHeader

MessageList

MessageComposer

ThreadedMessages
