Imagine an agent that answers policy, product, and FAQ questions by looking them up in your docs—concise, cited, and available right inside chat without derailing the conversation.

​
What You’ll Build

  • A Mastra agent that can participate in conversations as a documentation expert.
  • Triggered only when explicitly mentioned (e.g., @agent).
  • Can fetch knowledge from your docs and return short, sourced answers.
  • Integrated into CometChat chats.

​
Prerequisites

  • A Mastra project (npx create-mastra@latest my-mastra-app).
  • Node.js installed.
  • OpenAI API key in .env as OPENAI_API_KEY.
  • A CometChat app.

​
How it works

This example implements a retrieval-augmented Knowledge Agent that:
  • Ingests sources (URLs, files, or raw text) into a local knowledge folder per namespace using the ingestSources tool. Parsed content is stored under knowledge/<namespace> for repeatable retrieval.
  • Retrieves relevant snippets with the docsRetriever tool. It scans your knowledge/<namespace> content, chunks and ranks results, and returns the best matches with source metadata.
  • Generates answers using only retrieved context. The agent replies when invoked (e.g., @agent), composes a concise answer, and appends a short “Sources” list with citations.
  • Handles errors defensively. Server utilities sanitize errors before returning responses.
Key components (source-linked below): the agent, docs retriever tool, ingest endpoints, and server routes.

​
Setup

1

Prepare project

Create a Mastra app and add OPENAI_API_KEY in .env. See the repository README for exact steps.
2

Define the agent

Add a knowledge agent that answers from retrieved docs only, and responds when explicitly mentioned (e.g., @agent).
3

Register in server

Register the agent and expose endpoints for /api/tools/ingestSources, /api/tools/searchDocs, and /api/agents/knowledge/generate (see server entry).
4

Ingest knowledge

Choose a namespace (e.g., docs) and POST sources to /api/tools/ingestSources. Use URLs, file paths, or raw text. Request shape is documented in the README Quickstart.
5

Ask the agent

Send chat turns to /api/agents/knowledge/generate with a messages array. Optionally pass toolParams.namespace to scope retrieval.
6

Connect to CometChat

In Dashboard → AI Agents, set Provider=Mastra, Agent ID=knowledge, and point Deployment URL to your public generate endpoint.
7

Deploy & observe

Make the API public, verify via Swagger UI, and re-run ingestion when docs change.

​
Project Structure

Core files and folders for the Knowledge Agent (browse source on GitHub):

​
Step 1 - Create the Agent

src/mastra/agents/knowledge-agent.ts (view in repo): Checklist for the agent:
  • Set name to “knowledge” so the API path is /api/agents/knowledge/*.
  • Respond only when mentioned (e.g., @agent).
  • Answer from retrieved docs and include a short “Sources:” list.
  • Register docsRetriever.

​
Step 2 - Register the Agent in Mastra

src/mastra/index.ts (view in repo):
  • Server entry: src/mastra/index.ts
  • Ensure the agent is registered with key “knowledge” → API path /api/agents/knowledge/*.
  • Storage/logger configuration as per repo README.md.

​
Step 3 - Run the Agent

Dev script & local server details are tracked in your repo: Expected local API base: http://localhost:4111/api
1

Install dependencies

Use the commands in the Quickstart (kept in the repository).
2

Start the dev server

Follow the Quickstart to run the local Mastra server.
3

Ingest sources

POST to /api/tools/ingestSources with a namespace. Example commands are in the README Quickstart.
4

Ask the knowledge agent

POST to /api/agents/knowledge/generate. See the README Quickstart for request bodies and examples.
API endpoints exposed by this example (see Swagger UI):
  • POST /api/tools/ingestSources — ingest URLs/files/text into knowledge/<namespace>
  • POST /api/tools/searchDocs — retrieve relevant snippets from knowledge/<namespace>
  • POST /api/agents/knowledge/generate — chat with the agent

​
Step 4 - Deploy the API

Ensure the public route: /api/agents/knowledge/generate is reachable.

​
Step 5 - Configure in CometChat

1

Open Dashboard

Open the CometChat Dashboard.
2

Navigate

Go to your App → AI Agents.
3

Add agent

Set Provider=Mastra, Agent ID=knowledge, Deployment URL=your public generate endpoint.
4

(Optional) Enhancements

Add greeting, prompts, and configure actions/tools if you use frontend tools.
5

Enable

Save and ensure the agent toggle shows Enabled.
For more on CometChat AI Agents, see the docs: Overview · Instructions · Custom agents

​

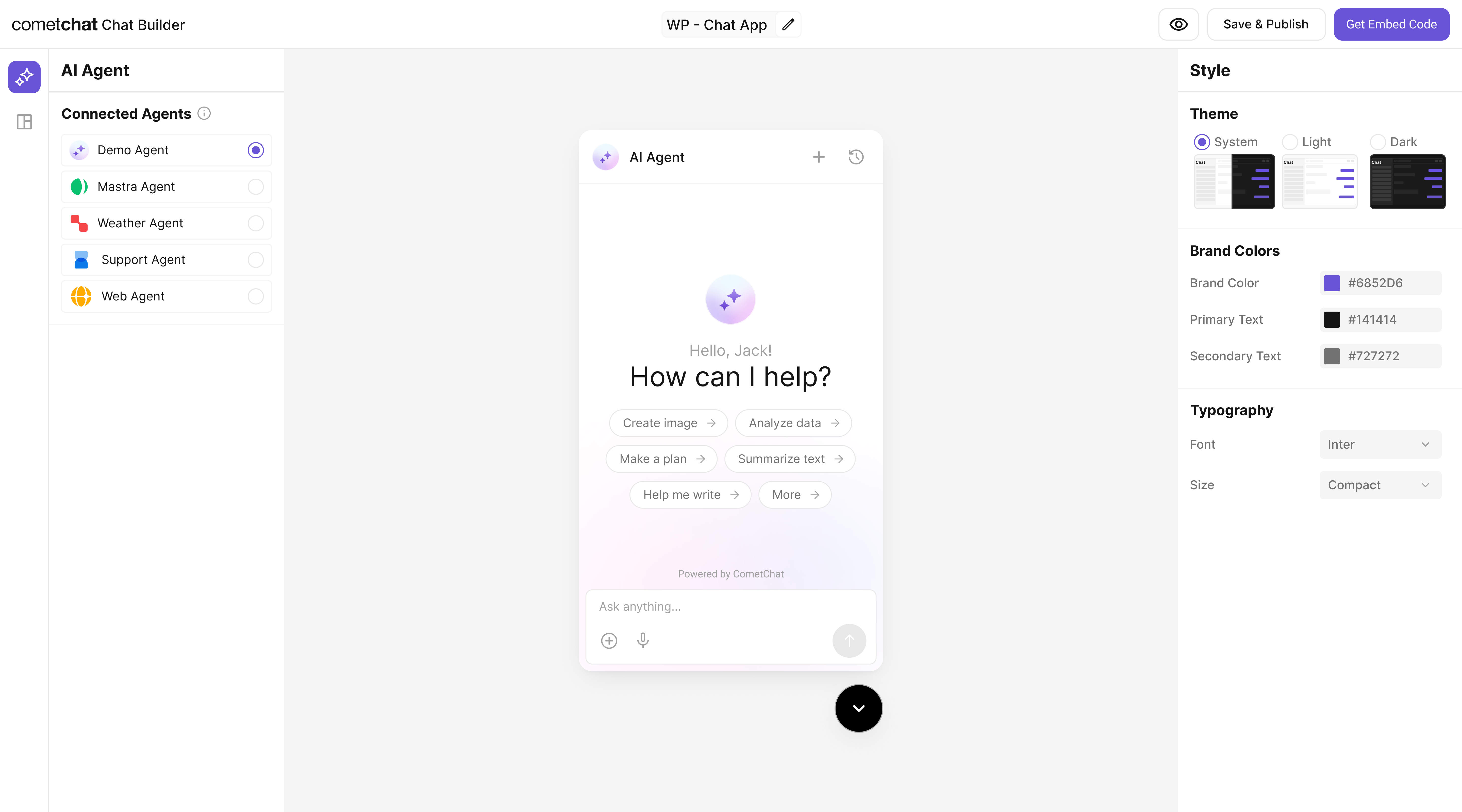

Step 6 - Customize in Chat Builder

1

Open variant

From AI Agents click the variant (or Get Started) to enter Chat Builder.
2

Customize & Deploy

Select Customize and Deploy.
3

Adjust settings

Theme, layout, features; ensure the Mastra Knowledge agent is attached.
4

Preview

Use live preview to validate responses & any tool triggers.

​
Step 7 - Integrate

Once your Knowledge Agent is configured, you can integrate it into your app using the CometChat No Code - Widget:
Widget

No Code - Widget

React

React UI Kit

Pre Built UI Components
Note: The Mastra Knowledge agent you connected in earlier steps is already part of the exported configuration, so your end-users will chat with that agent immediately.

​
Step 8 - Test Your Setup

1

API generates response

POST to /api/agents/knowledge/generate returns a doc-grounded answer.
2

Agent listed

/api/agents includes “knowledge”.
3

Tool action works

UI handles docsRetriever tool invocation.
4

Full sample test (run curl)

See curl command below.
curl -X POST http://localhost:4111/api/agents/knowledge/generate \
  -H "Content-Type: application/json" \
  -d '{
    "messages": [
      { "role": "user", "content": "@agent where is the refund policy documented?" }
    ]
  }'

​
Security & production checklist

  • Protect endpoints with auth (API key/JWT) and restrict CORS to trusted origins.
  • Add basic rate limiting and request size limits to ingestion and generate routes.
  • Validate inputs: enforce allowed namespaces, URL/file whitelists, and payload schemas.
  • Monitor logs and errors; sanitize responses using server utilities.
  • For public deploys, keep your OpenAI key in server-side env only; never expose it to the client.

​
Troubleshooting

  • Agent talks too much: tighten instructions to only respond when mentioned and to answer from docs.
  • No results: ensure /knowledge contains .md/.mdx files or your ingestion job populated the store.
  • Not visible in chat: verify the agent is added as a user in CometChat and enabled in the Dashboard.
  • 404 / Agent not found: check that the server registers the agent with key knowledge.

​
Next Steps

  • Add tools like summarize-doc, fetch-policy, or link-to-source.
  • Use embeddings + chunking for better retrieval.
  • Restrict answers to whitelisted folders or domains.
  • Inspect and try endpoints via Swagger UI (/swagger-ui).
  • Set up CI/CD in your own repo as needed.
