Overview

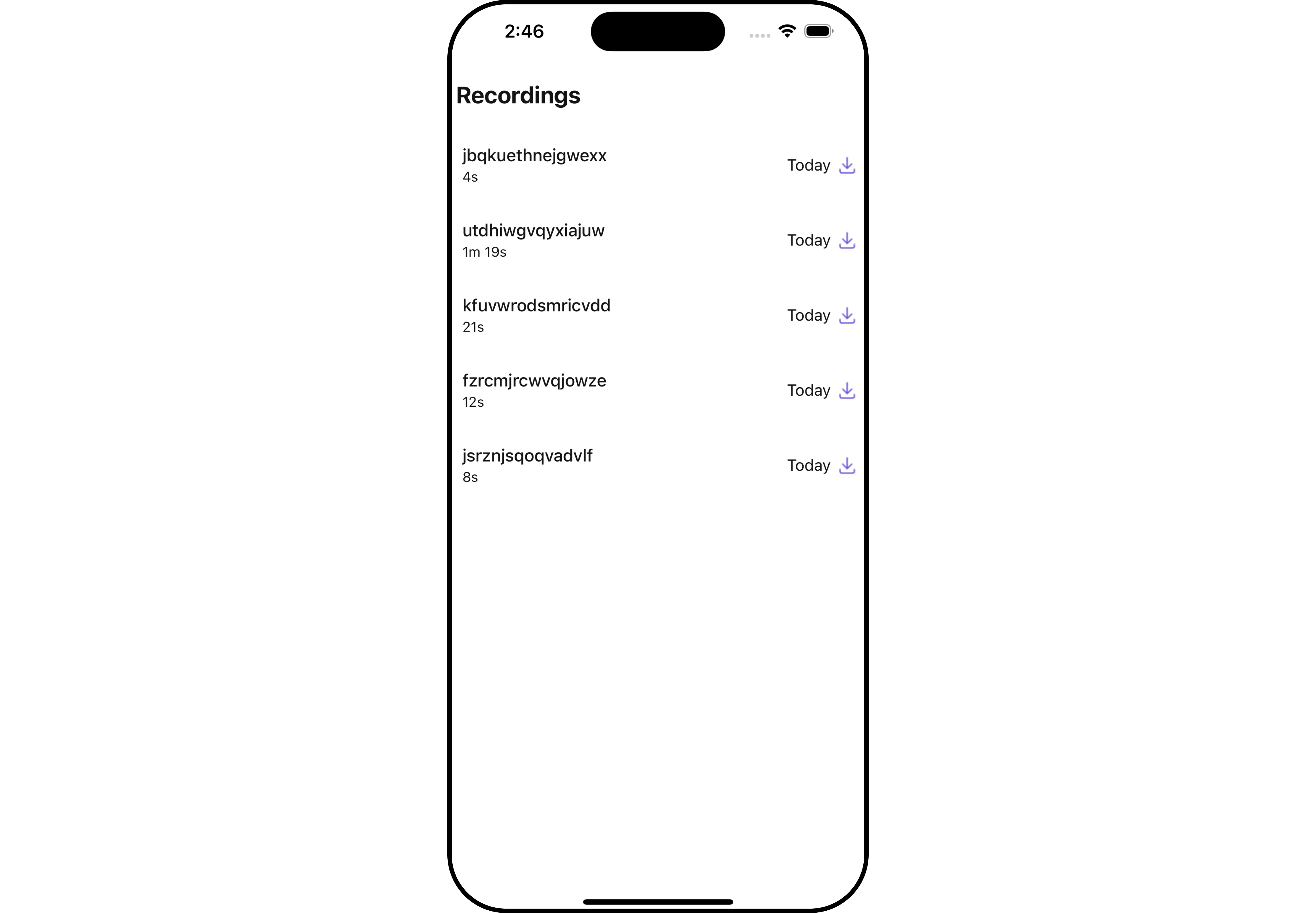

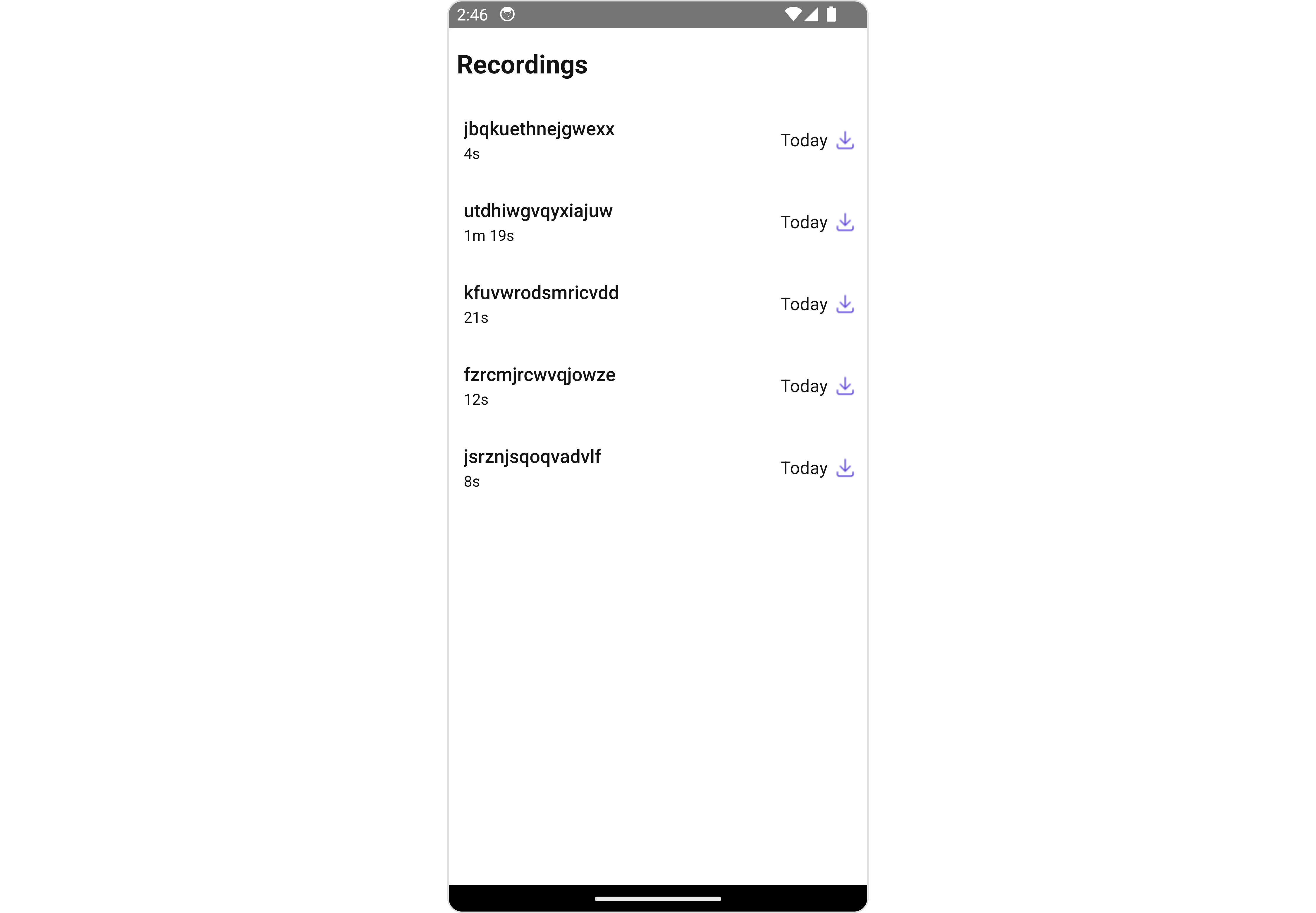

The CometChatRecordings is a Component that shows a paginated list of recordings of a particular call. This allows the user to see all the recordings along with the duration as well as a download link using which one can download the recording.

iOS
Android

The CallRecordings is comprised of the following components:

Components	Description
CometChatList	a reusable container component having title, search box, customisable background and a List View
CometChatListItem	a component that renders data obtained from a Group object on a Tile having a title, subtitle, leading and trailing view
cometchat-date	This Component used to show the date and time. You can also customize the appearance of this widget by modifying its logic.
cometchat-button	This component represents a button with optional icon and text.

Usage

Integration

App.tsx

import { CometChat, CometChatCalls } from "@cometchat/chat-sdk-react-native";
import { CometChatRecordings } from "@cometchat/chat-uikit-react-native";
import {
  CallLog,
  CallLogRequestBuilder,
} from "@cometchat/calls-sdk-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  const [callLog, setCallLog] = useState<CallLog>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
        const CallLogRequest = new CallLogRequestBuilder()
          .setLimit(1)
          .setAuthToken(user!.getAuthToken())
          .setHasRecording(true)
          .build();

        callLogRequest
          .fetchNext()
          .then((callLogs: CallLog[]) => {
            setCallLog(callLogs[0]);
          })
          .catch(() => {
            //handle error
          });
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  return (
    <>{callLog && <CometChatRecordings data={callLog.getRecordings()} />}</>
  );
}

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. onItemPress

onItemPress is triggered when you click on a ListItem of the of the CallRecordings component. It does not have a default behavior. However, you can override its behavior using the following code snippet.

App.tsx

import { CometChat, CometChatCalls } from "@cometchat/chat-sdk-react-native";
import { CometChatRecordings } from "@cometchat/chat-uikit-react-native";
import {
  CallLog,
  CallLogRequestBuilder,
} from "@cometchat/calls-sdk-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  const [callLog, setCallLog] = useState<CallLog>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
        const CallLogRequest = new CallLogRequestBuilder()
          .setLimit(1)
          .setAuthToken(user!.getAuthToken())
          .setHasRecording(true)
          .build();

        callLogRequest
          .fetchNext()
          .then((callLogs: CallLog[]) => {
            setCallLog(callLogs[0]);
          })
          .catch(() => {
            //handle error
          });
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const onItemPressHandler = (item: any) => {
    //code
  };

  return (
    <>
      {callLog && (
        <CometChatRecordings
          data={callLog.getRecordings()}
          onItemPress={onItemPressHandler}
        />
      )}
    </>
  );
}

2. onBack

The onBack function is built to respond when you press the back button in the AppBar. The back button is only displayed when the prop showBackButton is set to true.

App.tsx

import { CometChat, CometChatCalls } from "@cometchat/chat-sdk-react-native";
import { CometChatRecordings } from "@cometchat/chat-uikit-react-native";
import {
  CallLog,
  CallLogRequestBuilder,
} from "@cometchat/calls-sdk-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  const [callLog, setCallLog] = useState<CallLog>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
        const CallLogRequest = new CallLogRequestBuilder()
          .setLimit(1)
          .setAuthToken(user!.getAuthToken())
          .setHasRecording(true)
          .build();

        callLogRequest
          .fetchNext()
          .then((callLogs: CallLog[]) => {
            setCallLog(callLogs[0]);
          })
          .catch(() => {
            //handle error
          });
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const onBackHandler = () => {
    //code
  };

  return (
    <>
      {callLog && (
        <CometChatRecordings
          data={callLog.getRecordings()}
          onItemPress={onItemPressHandler}
          onBack={onBackHandler}
          showBackButton={true}
        />
      )}
    </>
  );
}

3. onDownloadIconPress

onDownloadIconPress is triggered when you click on the download of the of the CallRecordings component. you can override its behavior using the following code snippet.

App.tsx

import { CometChat, CometChatCalls } from "@cometchat/chat-sdk-react-native";
import { CometChatRecordings } from "@cometchat/chat-uikit-react-native";
import {
  CallLog,
  CallLogRequestBuilder,
} from "@cometchat/calls-sdk-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  const [callLog, setCallLog] = useState<CallLog>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
        const CallLogRequest = new CallLogRequestBuilder()
          .setLimit(1)
          .setAuthToken(user!.getAuthToken())
          .setHasRecording(true)
          .build();

        callLogRequest
          .fetchNext()
          .then((callLogs: CallLog[]) => {
            setCallLog(callLogs[0]);
          })
          .catch(() => {
            //handle error
          });
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const onDownloadIconPressHandler = (item: any) => {
    //code
  };

  return (
    <>
      {callLog && (
        <CometChatRecordings
          data={callLog.getRecordings()}
          onDownloadIconPress={onDownloadIconPressHandler}
        />
      )}
    </>
  );
}

4. onError

This action doesn’t change the behavior of the component but rather listens for any errors that occur in the CallRecordings component.

App.tsx

import { CometChat, CometChatCalls } from "@cometchat/chat-sdk-react-native";
import { CometChatRecordings } from "@cometchat/chat-uikit-react-native";
import {
  CallLog,
  CallLogRequestBuilder,
} from "@cometchat/calls-sdk-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  const [callLog, setCallLog] = useState<CallLog>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
        const CallLogRequest = new CallLogRequestBuilder()
          .setLimit(1)
          .setAuthToken(user!.getAuthToken())
          .setHasRecording(true)
          .build();

        callLogRequest
          .fetchNext()
          .then((callLogs: CallLog[]) => {
            setCallLog(callLogs[0]);
          })
          .catch(() => {
            //handle error
          });
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const onErrorHandler = (error: CometChat.CometChatException) => {
    //code
  };

  return (
    <>
      {callLog && (
        <CometChatRecordings
          data={callLog.getRecordings()}
          onError={onErrorHandler}
        />
      )}
    </>
  );
}

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK. The CallRecordings component does not have any exposed filters.

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The CallRecordings does not produce any events.

Customization

To fit your app’s design requirements, you have the ability to customize the appearance of the CallLogRecordings component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. ListItem Style

If you want to apply customized styles to the ListItemStyle component within the CallRecordings Component, you can use the following code snippet. For more information, you can refer ListItem Styles.

App.tsx

import { CometChat, CometChatCalls } from "@cometchat/chat-sdk-react-native";
import {
  CometChatRecordings,
  ListItemStyleInterface,
} from "@cometchat/chat-uikit-react-native";
import {
  CallLog,
  CallLogRequestBuilder,
} from "@cometchat/calls-sdk-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  const [callLog, setCallLog] = useState<CallLog>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
        const CallLogRequest = new CallLogRequestBuilder()
          .setLimit(1)
          .setAuthToken(user!.getAuthToken())
          .setHasRecording(true)
          .build();

        callLogRequest
          .fetchNext()
          .then((callLogs: CallLog[]) => {
            setCallLog(callLogs[0]);
          })
          .catch(() => {
            //handle error
          });
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const listItemStyle: ListItemStyleInterface = {
    titleColor: "red",
    backgroundColor: "#d2cafa",
  };

  return (
    <>
      {callLog && (
        <CometChatRecordings
          data={callLog.getRecordings()}
          listItemStyle={listItemStyle}
        />
      )}
    </>
  );
}

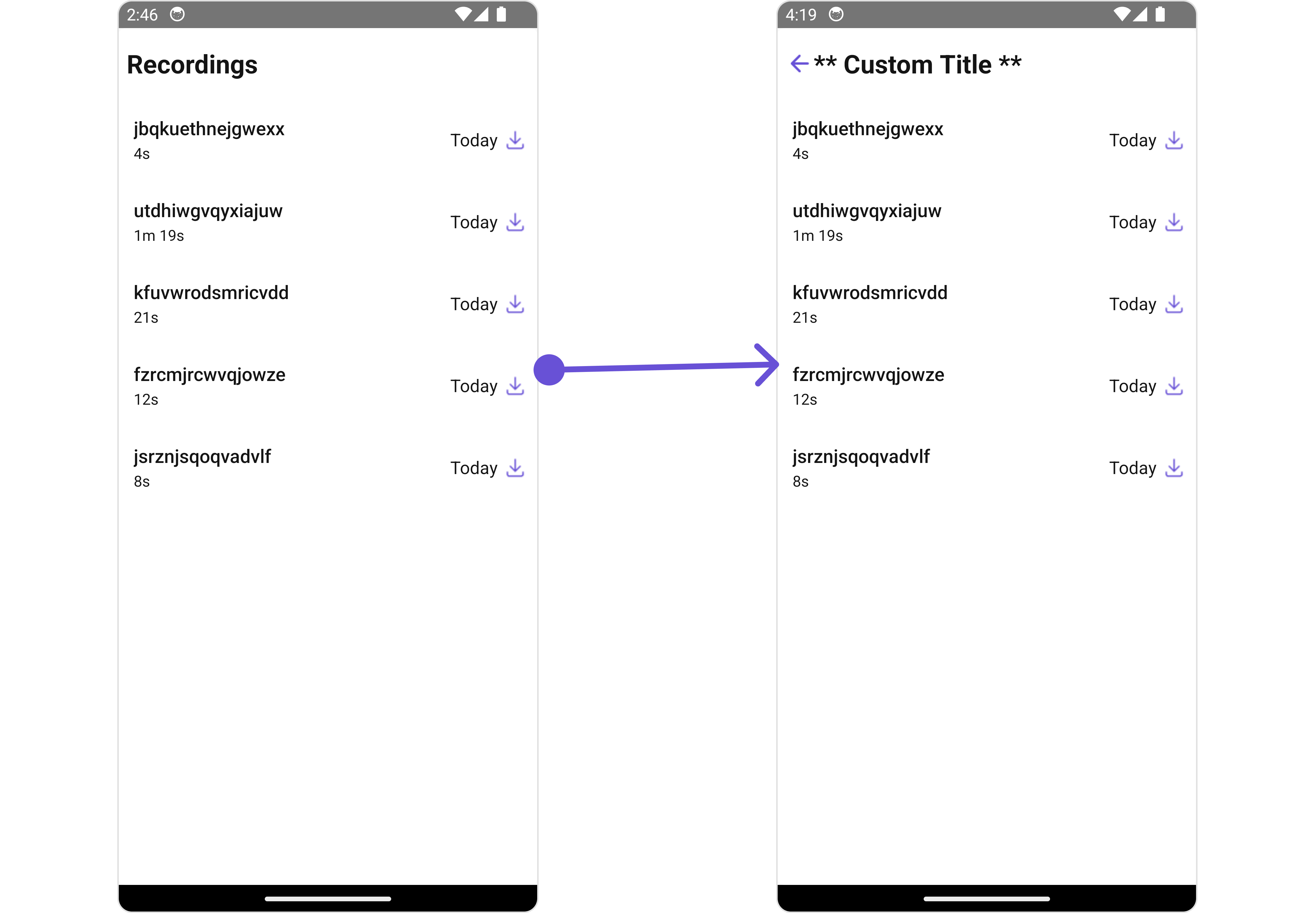

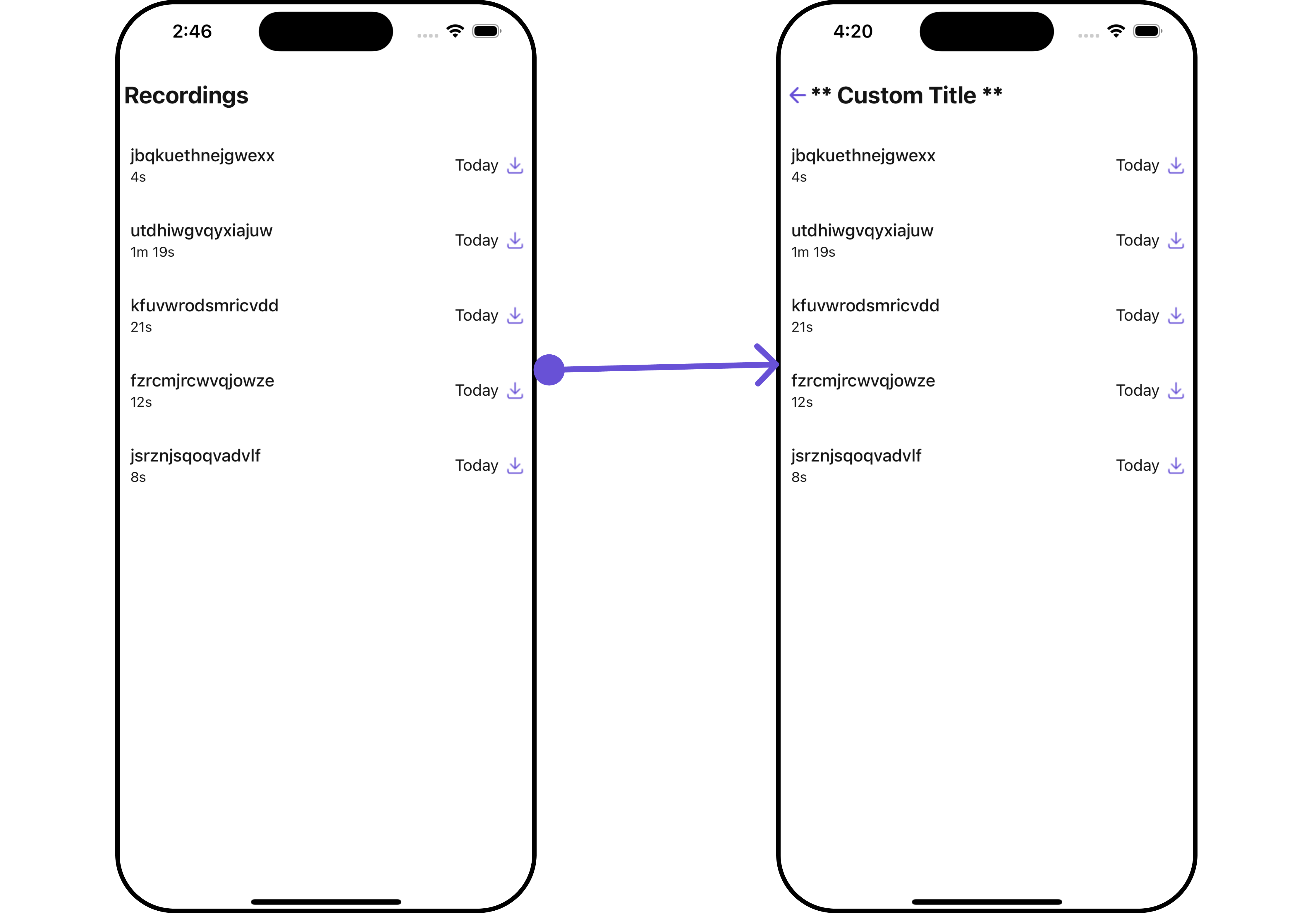

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements. Here is a code snippet demonstrating how you can customize the functionality of the CallRecordings component.

App.tsx

import { CometChat, CometChatCalls } from "@cometchat/chat-sdk-react-native";
import { CometChatRecordings } from "@cometchat/chat-uikit-react-native";
import {
  CallLog,
  CallLogRequestBuilder,
} from "@cometchat/calls-sdk-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  const [callLog, setCallLog] = useState<CallLog>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
        const CallLogRequest = new CallLogRequestBuilder()
          .setLimit(1)
          .setAuthToken(user!.getAuthToken())
          .setHasRecording(true)
          .build();

        callLogRequest
          .fetchNext()
          .then((callLogs: CallLog[]) => {
            setCallLog(callLogs[0]);
          })
          .catch(() => {
            //handle error
          });
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  return (
    <>
      {callLog && (
        <CometChatRecordings
          data={callLog.getRecordings()}
          title="** Custom Title **"
          showBackButton={true}
        />
      )}
    </>
  );
}

iOS
Android

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
title	Used to set custom title	`title='Your Custom Title'`
downloadIcon	Used to set custom download icon	`downloadIcon?: ImageType`
datePattern	Used to set custom date pattern	`datePattern={DatePatterns.DayDateTime}`
data	Used to set the list oif Recordings	`data: Recording[];`
showBackButton	Used to control the visibility of the back button	`showBackButton?: boolean`
BackButton	Used to set custom Back Button	`BackButton?: JSX.Element`
hideDownloadButton	Used to control the visibility of the download button in the user interface.	`hideDownloadButton={true}`

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

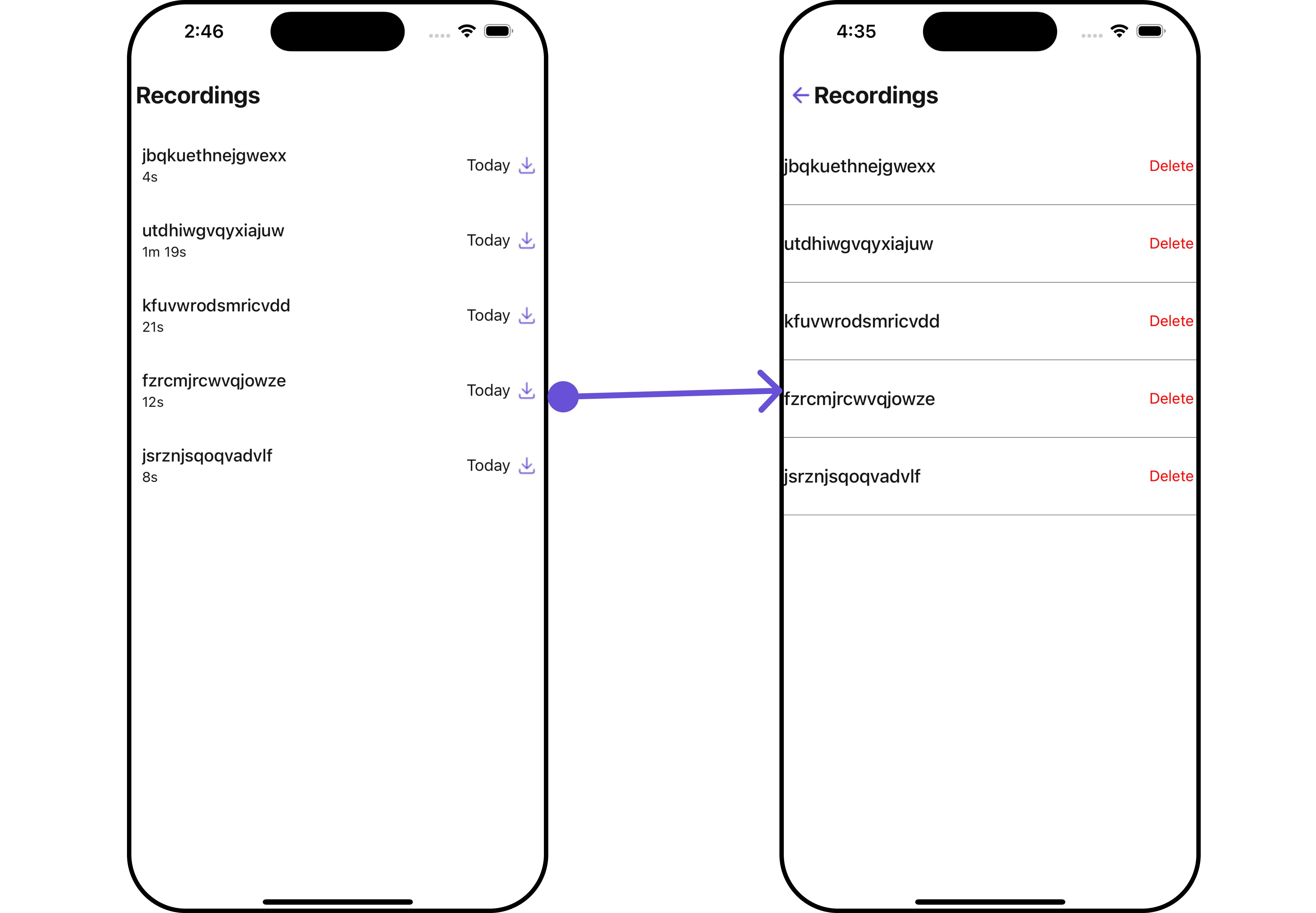

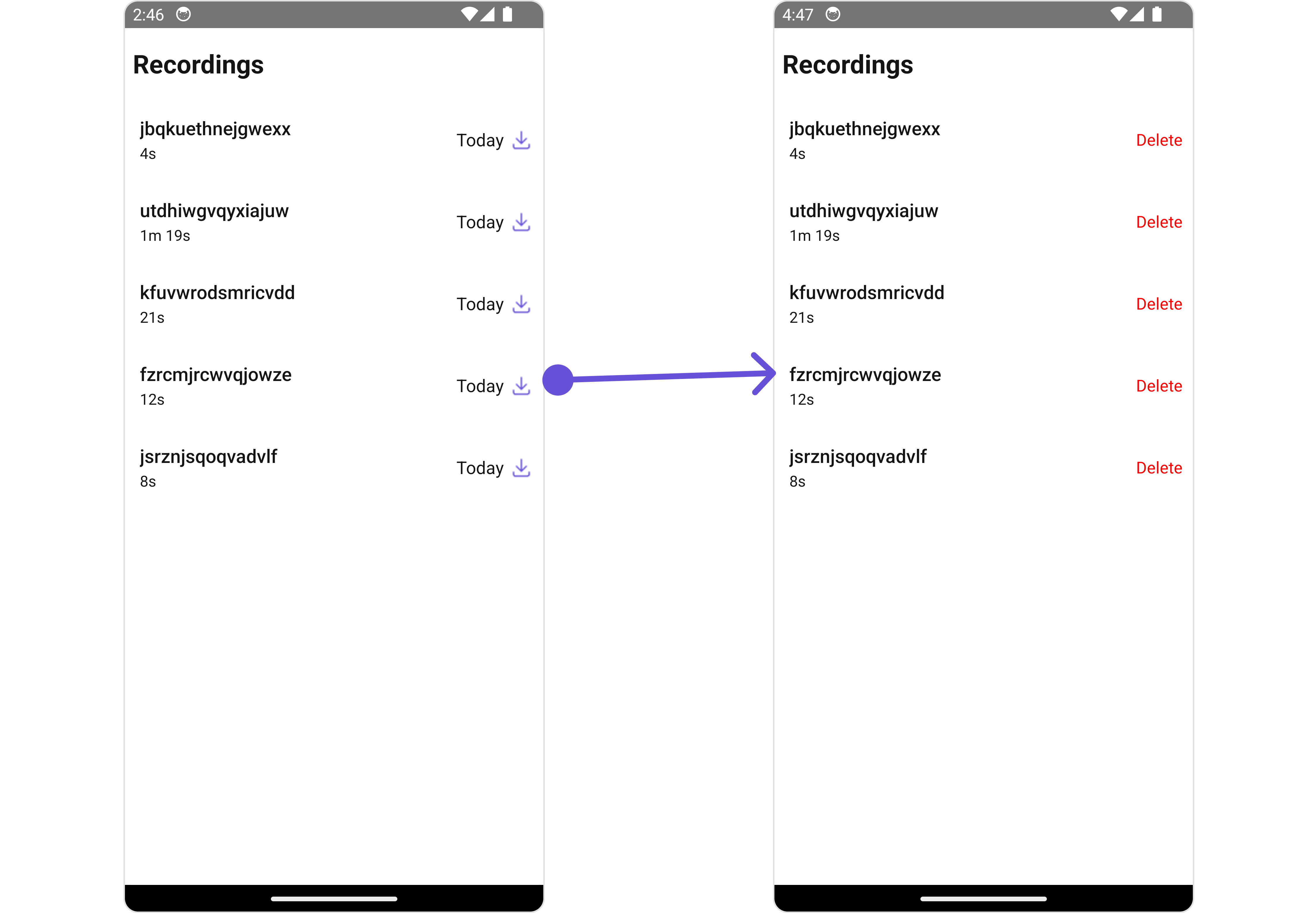

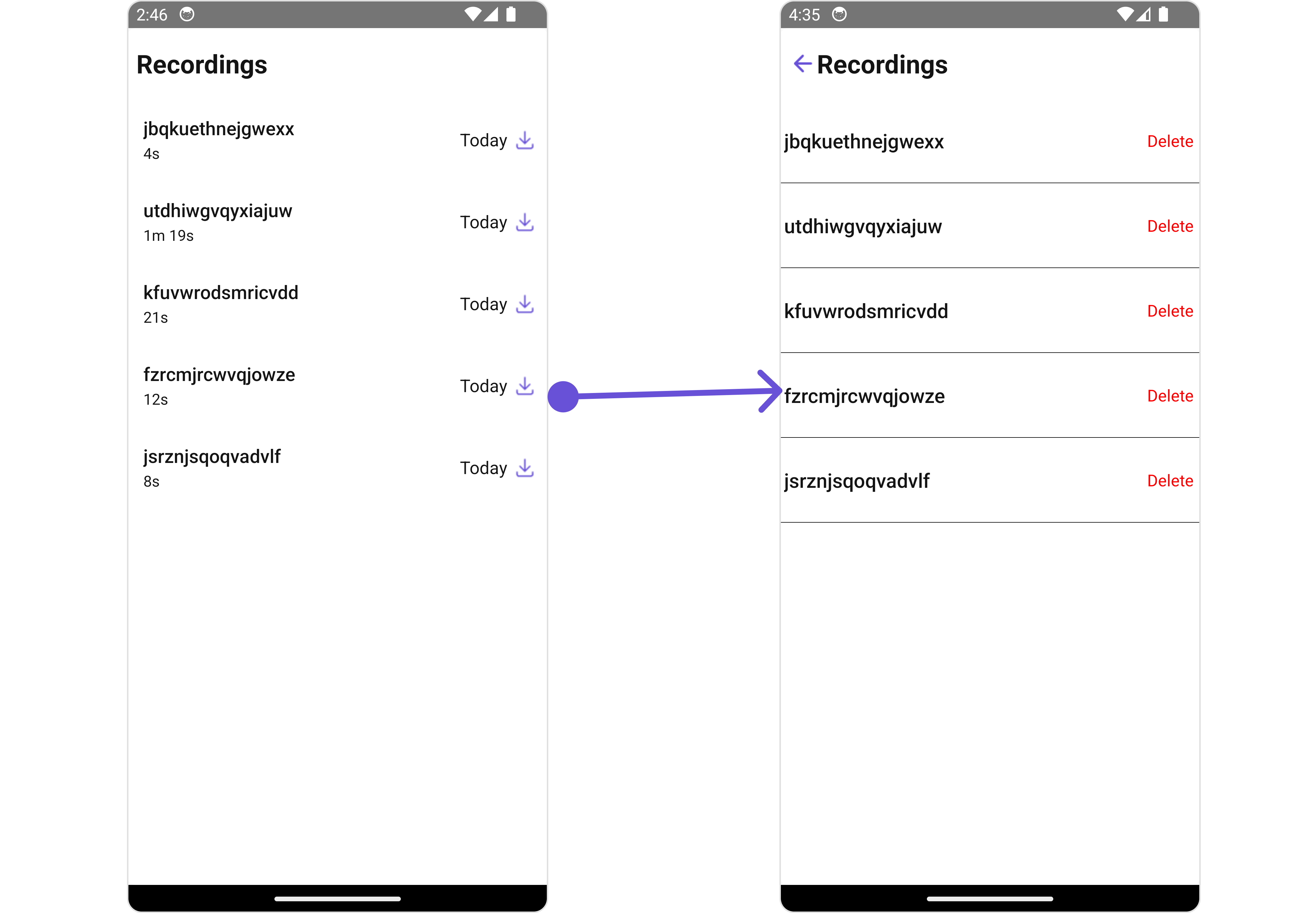

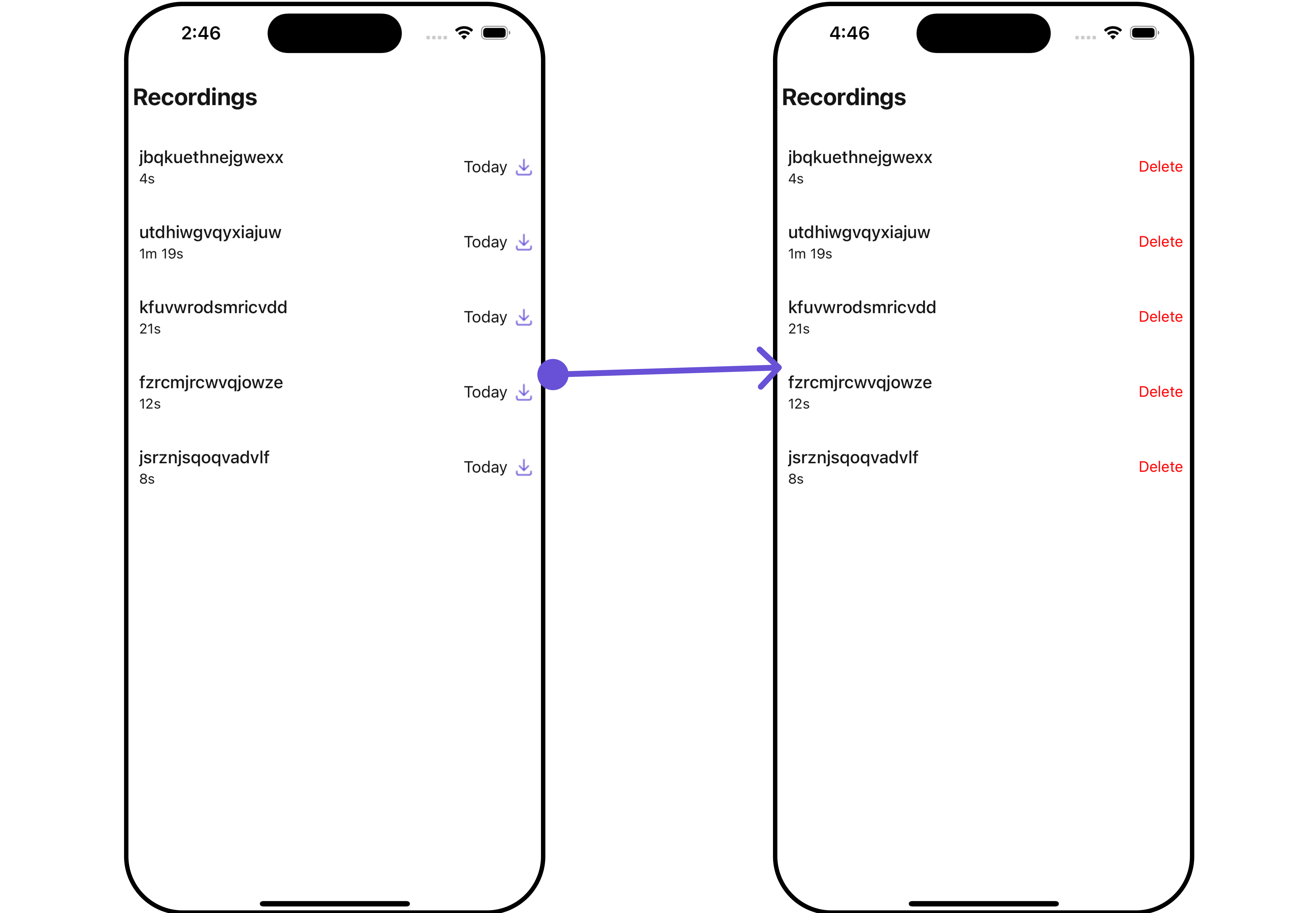

ListItemView

With this property, you can assign a custom ListItem to the CallRecordings Component.

iOS
Android

App.tsx

import { CometChat, CometChatCalls } from "@cometchat/chat-sdk-react-native";
import {
  CometChatRecordings,
  CometChatListItem,
} from "@cometchat/chat-uikit-react-native";
import {
  CallLog,
  CallLogRequestBuilder,
} from "@cometchat/calls-sdk-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  const [callLog, setCallLog] = useState<CallLog>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
        const CallLogRequest = new CallLogRequestBuilder()
          .setLimit(1)
          .setAuthToken(user!.getAuthToken())
          .setHasRecording(true)
          .build();

        callLogRequest
          .fetchNext()
          .then((callLogs: CallLog[]) => {
            setCallLog(callLogs[0]);
          })
          .catch(() => {
            //handle error
          });
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const getListItemView = (param: { recording?: Recording }) => {
    const recording = param.recording;
    return (
      <>
        <CometChatListItem
          id={recording.getRid()}
          title={recording.getRid()}
          TailView={() => {
            return <Text style={{ color: "red" }}>Delete</Text>;
          }}
        />
        <View
          style={{
            borderBottomColor: "black",
            borderBottomWidth: StyleSheet.hairlineWidth,
          }}
        />
      </>
    );
  };

  return (
    <>
      {callLog && (
        <CometChatRecordings
          data={callLog.getRecordings()}
          showBackButton={true}
          ListItemView={getListItemView}
        />
      )}
    </>
  );
}

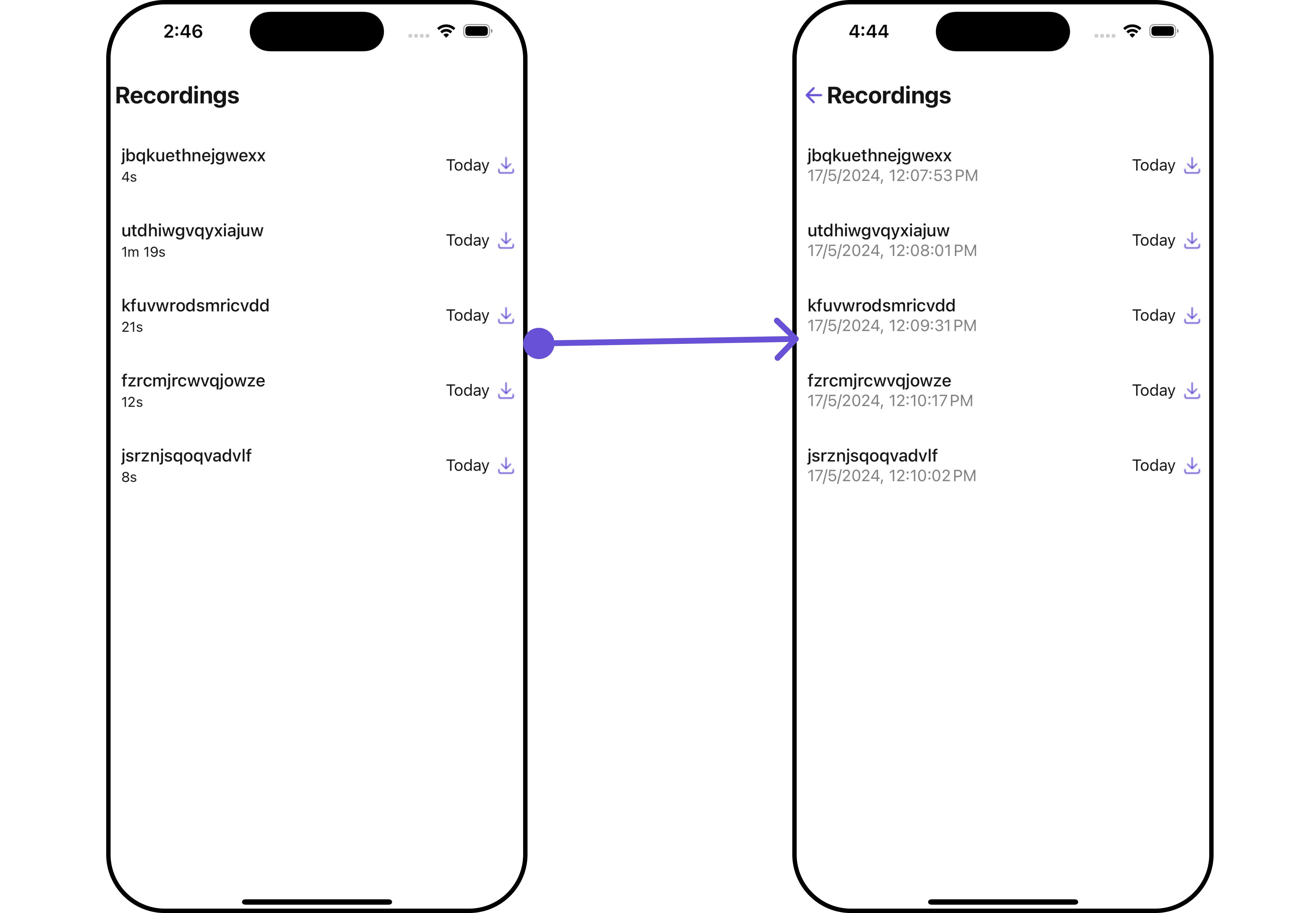

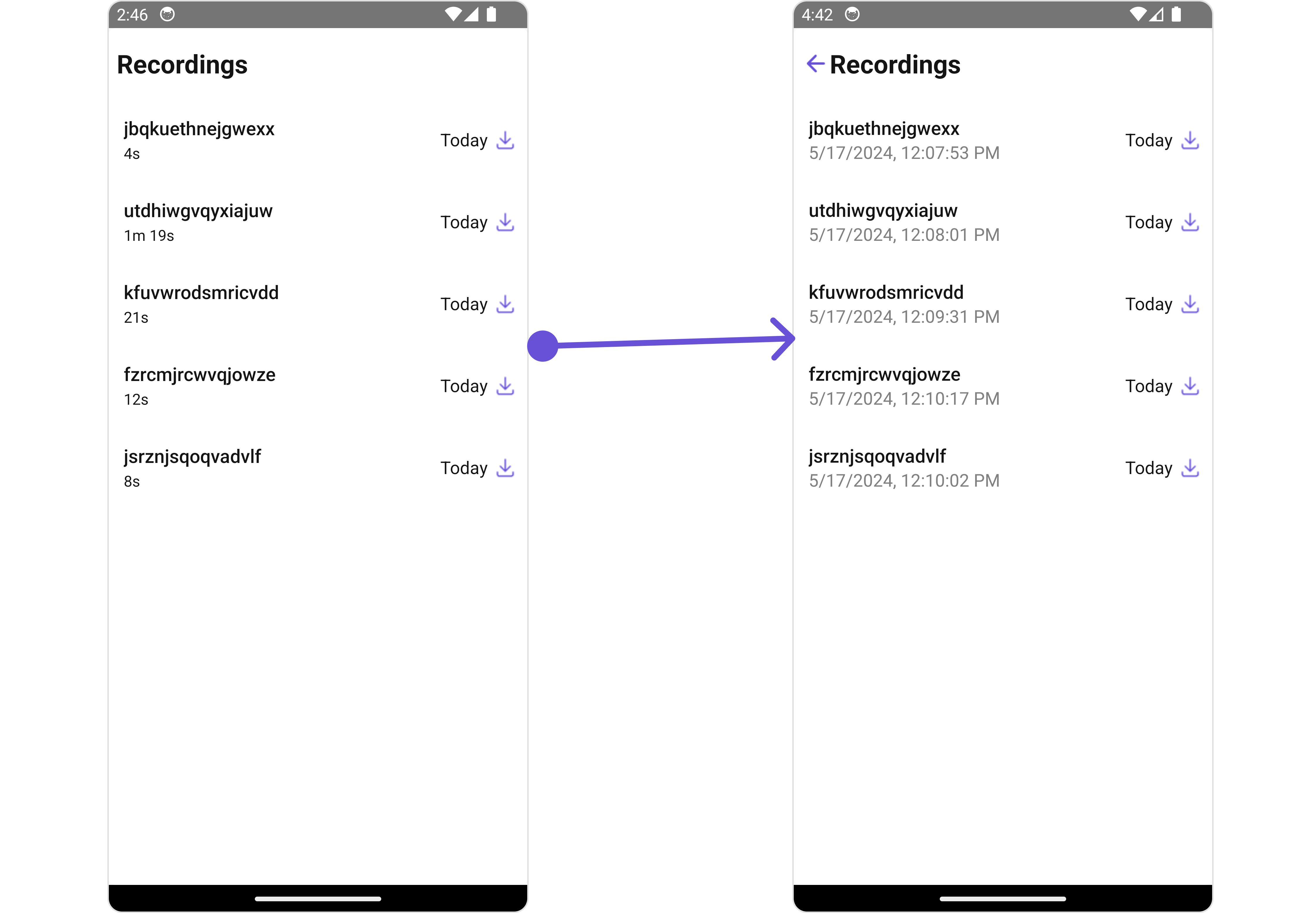

SubtitleView

You can customize the subtitle view for each Call Recordings item to meet your requirements

iOS
Android

App.tsx

import { CometChat, CometChatCalls } from "@cometchat/chat-sdk-react-native";
import {
  CometChatRecordings,
  CometChatListItem,
} from "@cometchat/chat-uikit-react-native";
import {
  CallLog,
  CallLogRequestBuilder,
} from "@cometchat/calls-sdk-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  const [callLog, setCallLog] = useState<CallLog>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
        const CallLogRequest = new CallLogRequestBuilder()
          .setLimit(1)
          .setAuthToken(user!.getAuthToken())
          .setHasRecording(true)
          .build();

        callLogRequest
          .fetchNext()
          .then((callLogs: CallLog[]) => {
            setCallLog(callLogs[0]);
          })
          .catch(() => {
            //handle error
          });
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  function formatTime(timestamp: number) {
    const date = new Date(timestamp * 1000);
    return date.toLocaleString();
  }

  const getSubtitleView = (param: { recording?: Recording }) => {
    if (!param.recording) {
      return <></>;
    }
    return (
      <Text
        style={{
          fontSize: 15,
          color: "grey",
          shadowColor: "red",
        }}
      >
        {formatTime(param.recording.getStartTime())}
      </Text>
    );
  };

  return (
    <>
      {callLog && (
        <CometChatRecordings
          data={callLog.getRecordings()}
          showBackButton={true}
          SubtitleView={getSubtitleView}
        />
      )}
    </>
  );
}

TailView

You can customize the tail view for each call Recordings item to meet your requirements

iOS
Android

App.tsx

import { CometChat, CometChatCalls } from "@cometchat/chat-sdk-react-native";
import {
  CometChatRecordings,
  CometChatListItem,
} from "@cometchat/chat-uikit-react-native";
import {
  CallLog,
  CallLogRequestBuilder,
} from "@cometchat/calls-sdk-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  const [callLog, setCallLog] = useState<CallLog>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
        const CallLogRequest = new CallLogRequestBuilder()
          .setLimit(1)
          .setAuthToken(user!.getAuthToken())
          .setHasRecording(true)
          .build();

        callLogRequest
          .fetchNext()
          .then((callLogs: CallLog[]) => {
            setCallLog(callLogs[0]);
          })
          .catch(() => {
            //handle error
          });
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const getTailView = (param: { recording?: Recording }) => {
    return <Text style={{ color: "red" }}>Delete</Text>;
  };

  return (
    <>
      {callLog && (
        <CometChatRecordings
          data={callLog.getRecordings()}
          TailView={getTailView}
        />
      )}
    </>
  );
}

​Overview

​Usage

​Integration

​Actions

1. onItemPress

2. onBack

3. onDownloadIconPress

4. onError

​Filters

​Events

​Customization

​Style
