Overview

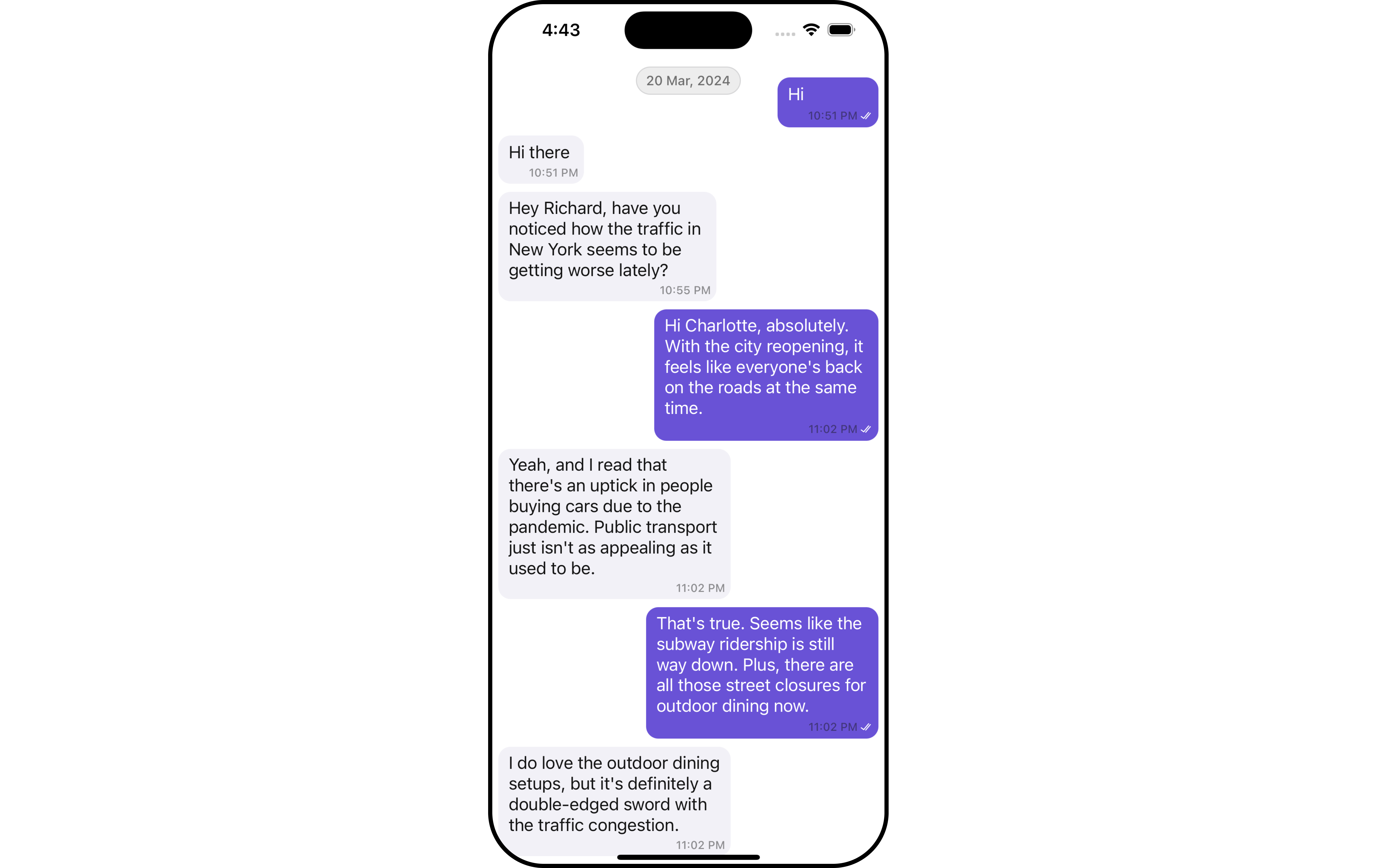

MessageList is a Composite Component that displays a list of messages and effectively manages real-time operations. It includes various types of messages such as Text Messages, Media Messages, Stickers, and more. MessageList is primarily a list of the base component MessageBubble. The MessageBubble Component is utilized to create different types of chat bubbles depending on the message type.

Usage

Integration

The following code snippet illustrates how you can directly incorporate the MessageList component.

// syntax for set(user: User)
messageList.set(user: user)

// syntax for set(user: User, parentMessage: BaseMessage? = nil)
messageList.set(user: user, parentMessage: textMessage)

To retrieve messages for a specific entity, you must associate it with either a User or Group object.

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. onThreadRepliesClick

onThreadRepliesClick is triggered when you click on the threaded message bubble. The onThreadRepliesClick action doesn’t have a predefined behavior. You can override this action using the following code snippet.

let messageListConfiguration = MessageListConfiguration()
 .setOnThreadRepliesClick { message, messageBubbleView in
     // Your action onclick
}

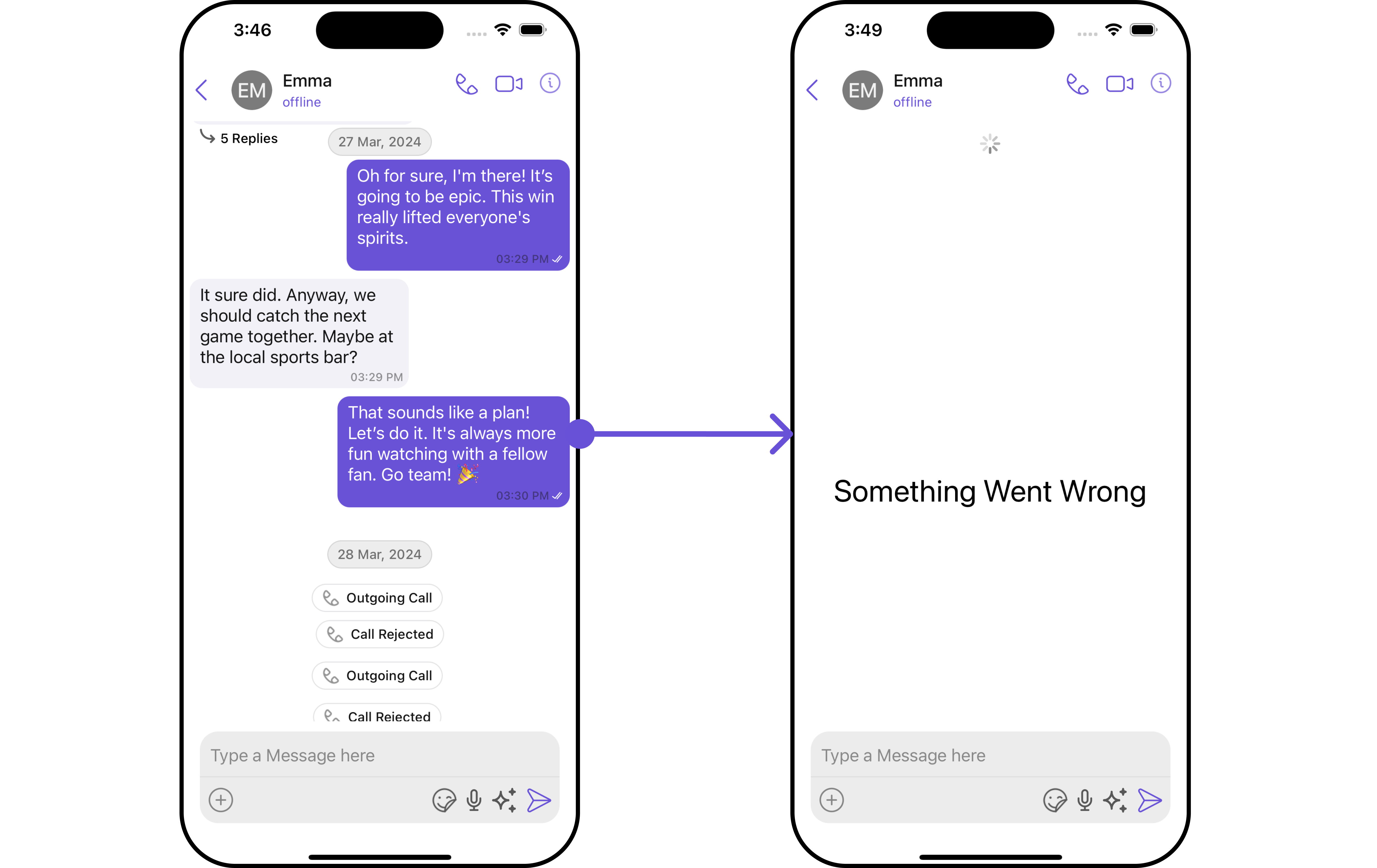

2. onError

You can customize this behavior by using the provided code snippet to override the error view and improve error handling. You have the option to integrate your own custom UIView file for this purpose.

Swift

let messageListConfiguration = MessageListConfiguration()
    .set(errorStateView: UIView)

Filters

You can adjust the MessagesRequestBuilder in the MessageList Component to customize your message list. Numerous options are available to alter the builder to meet your specific needs. For additional details on MessagesRequestBuilder, please visit MessagesRequestBuilder.

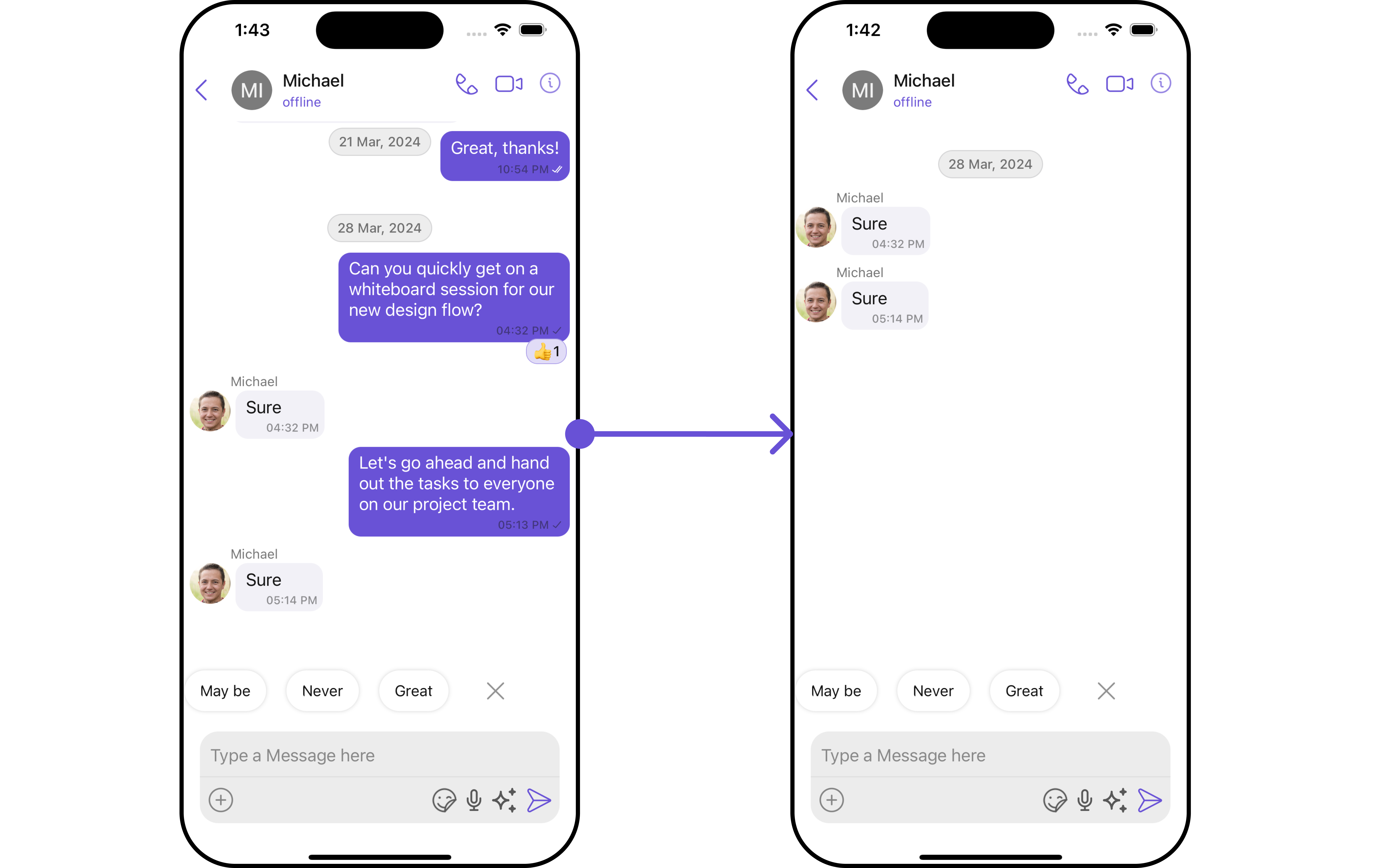

In the example below, we are applying a filter to the messages based on a search substring and for a specific user. This means that only messages that contain the search term and are associated with the specified user will be displayed

let messageRequestBuilder =  MessagesRequest.MessageRequestBuilder()
    .set(uid: "YOUR_UID")
    .set(types: ["Text"])
    .set(searchKeyword: "sure")

let messageListConfiguration = MessageListConfiguration()
    .set(messagesRequestBuilder:messageRequestBuilder)

let cometChatMessages = CometChatMessages()
    .set(user: user)
    .set(messageListConfiguration: messageListConfiguration)

The following parameters in messageRequestBuilder will always be altered inside the message list

UID
GUID
types
categories

Ensure to include the uid and name of the User in the implementation.

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The MessageList Component does not emit any events of its own.

Customization

To fit your app’s design requirements, you can customize the appearance of the conversation component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. MessageList Style

You can set the MessageListStyle to the MessageList Component to customize the styling.

let messageListStyle = MessageListStyle()
    .set(background: .systemMint)
    .set(borderColor: .green)
    .set(borderWidth: 30)
    .set(cornerRadius: cometChatCornerStyle)

List of properties exposed by MessageListStyle

Property	Description	Code
Border Width	used to set border width	`.set(borderWidth: CGFloat)`
Border Color	used to set border color	`.set(titleColor: UIColor)`
Corner Radius	used to set corner radius	`.set(cornerRadius: CometChatCornerStyle)`
LoadingIcon Tint	used to set loading icon tint	`.set(loadingIconTint: UIColor)`
EmptyText Appearance	used to set empty state text Appearance	`.set(emptyTextFont: UIFont)`
ErrorText Appearance	used to set error text Appearance	`.set(errorTextFont: UIFont)`
EmptyText Color	used to set empty state text color	`.set(emptyTextColor: UIColor)`
ErrorText Color	used to set error state text color	`.set(errorTextColor: UIColor)`
NameText Color	used to set sender/receiver name text color on a message bubble.	`.set(nameTextColor: UIColor)`
NameText Appearance	used to set sender/receiver name text appearance on a message bubble	`.set(nameTextFont: UIFont)`
TimeStampText Color	used to set time stamp text appearance	`.set(timestampTextColor: UIColor)`
ThreadReplySeparator Color	used to set thread reply separator color	`.set(threadReplySeperatorColor: UIColor)`
ThreadReplyText Color	used to set thread reply text color	`.set(threadReplyTextColor: UIColor)`
ThreadReplyText Appearance	used to set thread reply text appearance	`.set(threadReplyTextFont: UIFont)`
Background	This method will set the background color for message list	`.set(background: UIColor)`

2. Avatar Style 🛑

To apply customized styles to the Avatar component in the Conversations Component, you can use the following code snippet. For further insights on Avatar Styles refer

 let avatarStyle = AvatarStyle()
            .set(background: .blue)
            .set(borderColor: .gray)

let messageListStyle = MessageListStyle()
            .set(background: .systemMint)

let messageListConfiguration = MessageListConfiguration()
.set(messageListStyle: messageListStyle)
.show(avatar: true)

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

let messageList = CometChatMessageList()
     .set(user: user)
    .hide(error: false)
    .hide(receipt: false)

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
User	Used to pass user object of which header specific details will be shown	`.set(user: User)`
Group	Used to pass group object of which header specific details will be shown	`.set(group: Group)`
Messages Alignment	used to set the alignmet of messages in CometChatMessageList. It can be either leftAligned or standard	`.set(alignment: MessageListAlignment)`

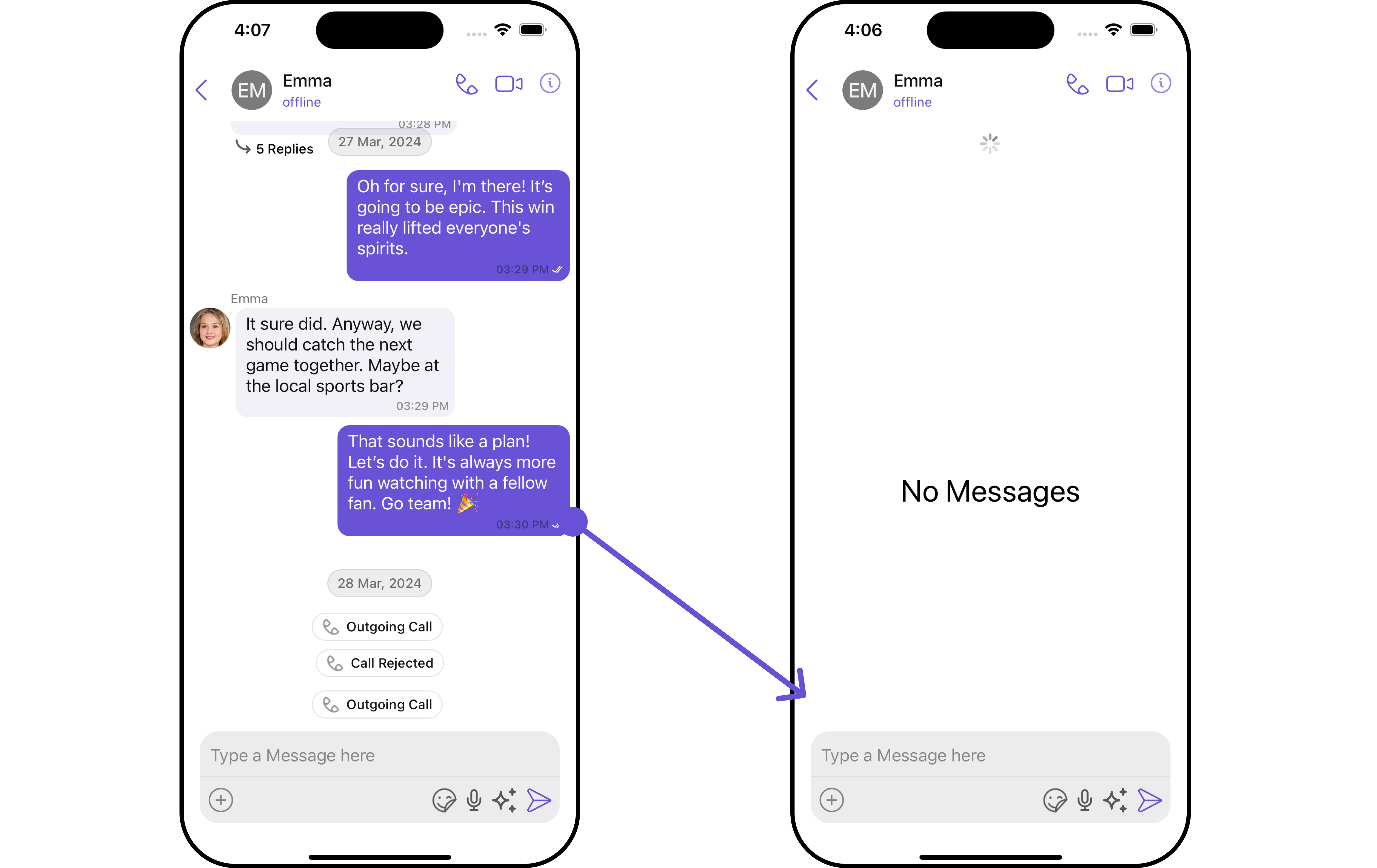

EmptyState Text	used to set text which will be visible when no messages are available	`.set(emptyStateMessage: String)`
ErrorState Text	used to set text which will be visible when error in messages retrieval	`.set(errorMessage: String)`
Hide Error	used to toggle visibility of error in MessageList	`.hide(error: Bool)`
Disable Sound For Messages	used to enable/disable sound for incoming/outgoing messages , default false	`.disable(soundForMessages: Bool)`
CustomSound For Messages	used to set custom sound for outgoing message	`.set(customSoundForMessages: URL)`
Set ReadIcon	used to set custom read icon visible at read receipt	`.set(readIcon: UIImage)`
Set DeliverIcon	used to set custom delivered icon visible at read receipt	`.set(deliveredIcon: UIImage)`
Set SentIcon	used to set custom sent icon visible at read receipt	`.set(sentIcon: UIImage)`
Set WaitIcon	used to set custom wait icon visible at read receipt	`.set(waitIcon: UIImage)`
Show Avatar	used to toggle visibility for avatar	`.show(avatar: Bool)`
Hide Timestamp	used to toggle visibility for of timestamp	`.hideTimestamp(false)`
Set TimeStampAlignment	used to set receipt’s time stamp alignment .It can be either top or bottom	`.setTimeStampAlignment(UIKitConstants.TimeStampAlignment)`
Set newMessageIndicatorText	used to set new message indicator text	`.set(newMessageIndicatorText: String)`
Toggle scrollToBottomOnNewMessage	should scroll to bottom on new message? , by default false	`.scrollToBottomOnNewMessages(bool: Bool)`
HideReceipt	This method is used to control visibility of message receipts.	`.hide(receipt: Bool)`
Add Message	This method specifies the option to add user object locally in MessageList.	`add(message: BaseMessage)`
Update Message	This method specifies the option to update message object locally in MessageList.	`update(message: BaseMessage)`
Remove Message	This method specifies the option to remove message object locally in MessageList.	`remove(message: BaseMessage)`
Delete Message	This method specifies the option to delete message object in MessageList. This method will internally trigger SDK’s `.deleteMessagefunction` to delete the message from server.	`delete(message: BaseMessage)`

Advance

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

Set Template

CometChatMessageTemplate is a pre-defined structure for creating message views that can be used as a starting point or blueprint for creating message views often known as message bubbles. For more information, you can refer to CometChatMessageTemplate. You can set message Templates to MessageList by using the following code snippet

let textTemp1: CometChatMessageTemplate = CometChatUIKit.getDataSource().getTextMessageTemplate()
let imageTemp: CometChatMessageTemplate = CometChatUIKit.getDataSource().getImageMessageTemplate()
let textTemp: [CometChatMessageTemplate] = [textTemp1, imageTemp]

let messageListStyle = MessageListStyle()
    .set(background: .systemTeal)

let messageListConfiguration = MessageListConfiguration()
    .set(messageListStyle: messageListStyle)
    .show(avatar: true)
    set(templates: textTemp)

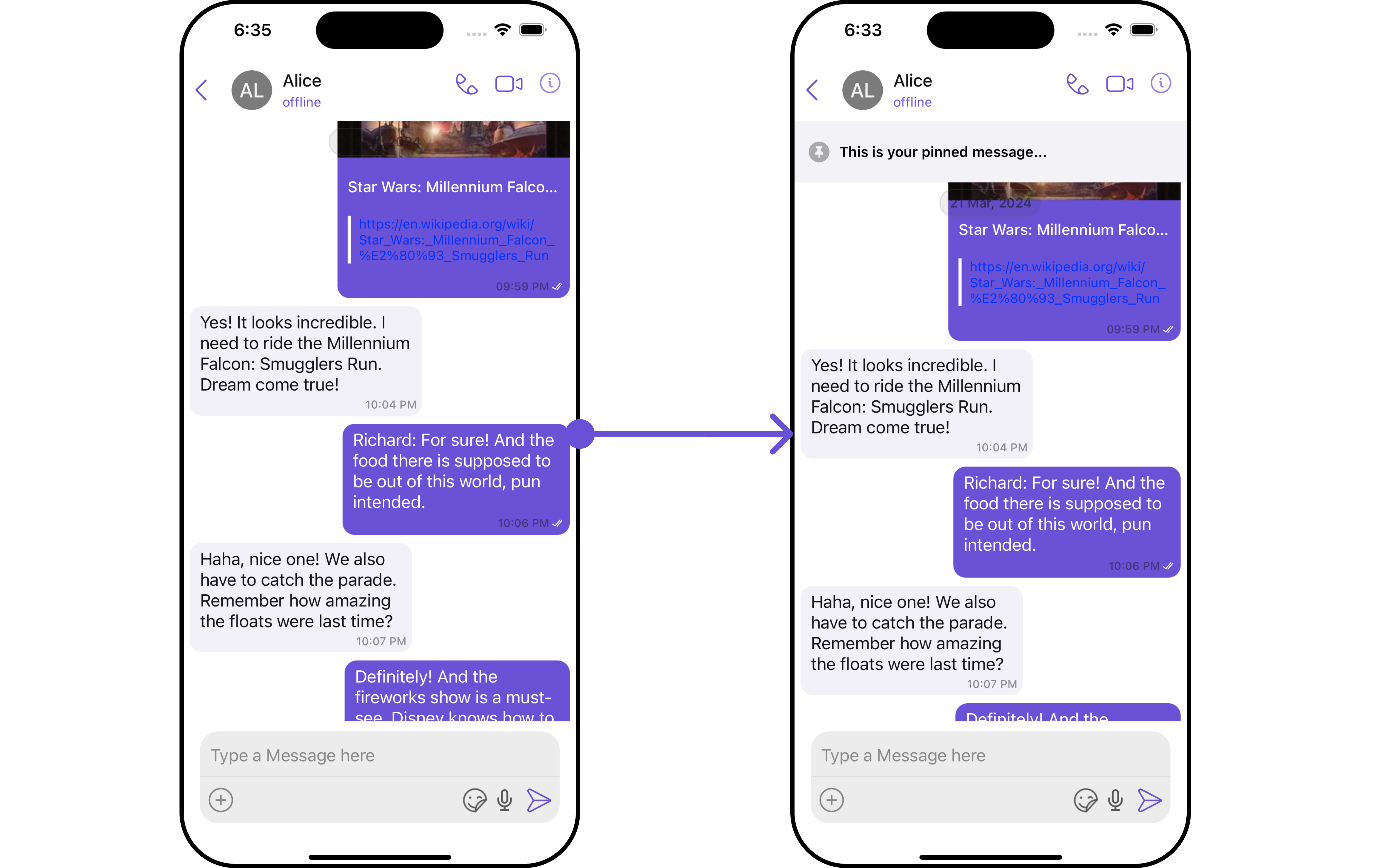

Set HeaderView

You can set custom headerView to the Message List component using the following method.

let headerView = CustomHeaderView(user: user)
messageList.set(headerView: headerView)

Example

let customHeaderView = CustomChatListHeaderView() // CustomChatListHeaderView() is of type UIView()
 let messageListConfiguration = MessageListConfiguration()
 messageListConfiguration.set(headerView: customHeaderView)

Following is the code of CustomChatListHeaderView UIView Class

class CustomChatListHeaderView: UIView {

    private let pinImageView: UIImageView = {
        let imageView = UIImageView()
        imageView.image = UIImage(systemName: "pin.circle.fill") // set your image here
        imageView.contentMode = .scaleAspectFit
        imageView.translatesAutoresizingMaskIntoConstraints = false
        imageView.tintColor = .lightGray
        return imageView
    }()

    private let titleLabel: UILabel = {
        let label = UILabel()
        label.textColor = .black
        label.font = UIFont.boldSystemFont(ofSize: 14)
        label.text = "This is your pinned message..."
        label.translatesAutoresizingMaskIntoConstraints = false
        return label
    }()

    override init(frame: CGRect) {
        super.init(frame: frame)
        setupView()
    }

    required init?(coder aDecoder: NSCoder) {
        super.init(coder: aDecoder)
        setupView()
    }

    private func setupView() {
        backgroundColor = .systemGray6
        heightAnchor.constraint(equalToConstant: 50).isActive = true
        addSubview(pinImageView)
        addSubview(titleLabel)

        NSLayoutConstraint.activate([
            pinImageView.centerYAnchor.constraint(equalTo: centerYAnchor),
            pinImageView.leadingAnchor.constraint(equalTo: leadingAnchor, constant: 16),
            pinImageView.widthAnchor.constraint(equalToConstant: 24), // Adjust width as needed
            pinImageView.heightAnchor.constraint(equalToConstant: 24), // Adjust height as needed

            titleLabel.centerYAnchor.constraint(equalTo: centerYAnchor),
            titleLabel.leadingAnchor.constraint(equalTo: pinImageView.trailingAnchor, constant: 8),
            titleLabel.trailingAnchor.constraint(equalTo: trailingAnchor, constant: -16)
        ])
    }

    func configure(title: String) {
        titleLabel.text = title  // set your custom text
    }
}

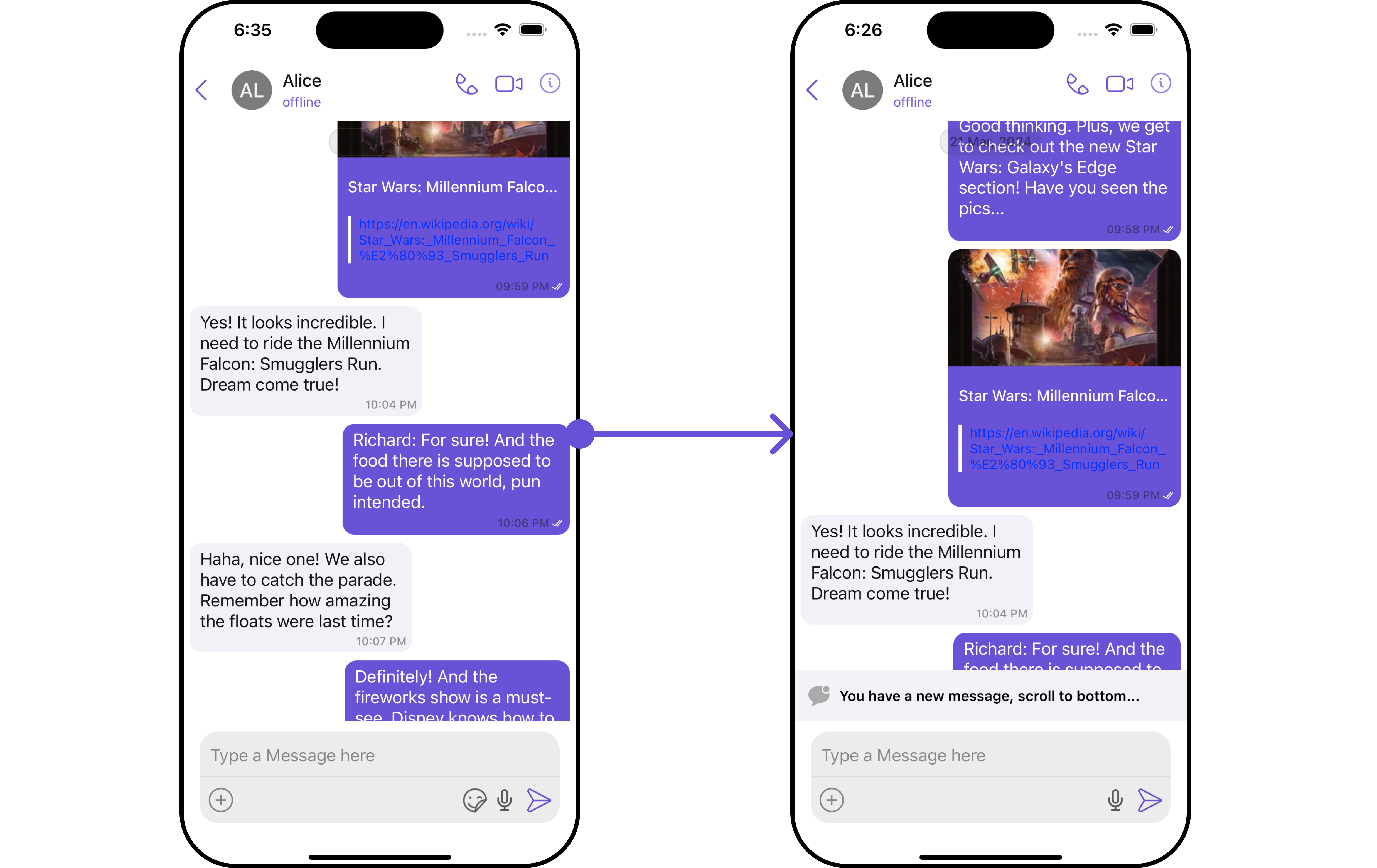

Set FooterView

You can set custom footerView to the Message List component using the following method.

let footerView = CustomFooterView(user: user)
messageList.set(footerView: headerView)

Example

let customFooterView = CustomChatListFooterView() // CustomChatListFooterView() is of type UIView()
let messageListConfiguration = MessageListConfiguration()
messageListConfiguration.set(footerView: customFooterView)

Following is the code of CustomChatListFooterView UIView Class

class CustomChatListFooterView: UIView {

    private let pinImageView: UIImageView = {
        let imageView = UIImageView()
        imageView.image = UIImage(named: "new_message_icon") // set your image here
        imageView.contentMode = .scaleAspectFit
        imageView.translatesAutoresizingMaskIntoConstraints = false
        imageView.tintColor = .lightGray
        return imageView
    }()

    private let titleLabel: UILabel = {
        let label = UILabel()
        label.textColor = .black
        label.font = UIFont.boldSystemFont(ofSize: 14)
        label.text = "You have a new message, scroll to bottom..."
        label.translatesAutoresizingMaskIntoConstraints = false
        return label
    }()

    override init(frame: CGRect) {
        super.init(frame: frame)
        setupView()
    }

    required init?(coder aDecoder: NSCoder) {
        super.init(coder: aDecoder)
        setupView()
    }

    private func setupView() {
        backgroundColor = .systemGray6
        heightAnchor.constraint(equalToConstant: 50).isActive = true
        addSubview(pinImageView)
        addSubview(titleLabel)

        NSLayoutConstraint.activate([
            pinImageView.centerYAnchor.constraint(equalTo: centerYAnchor),
            pinImageView.leadingAnchor.constraint(equalTo: leadingAnchor, constant: 16),
            pinImageView.widthAnchor.constraint(equalToConstant: 24), // Adjust width as needed
            pinImageView.heightAnchor.constraint(equalToConstant: 24), // Adjust height as needed

            titleLabel.centerYAnchor.constraint(equalTo: centerYAnchor),
            titleLabel.leadingAnchor.constraint(equalTo: pinImageView.trailingAnchor, constant: 8),
            titleLabel.trailingAnchor.constraint(equalTo: trailingAnchor, constant: -16)
        ])
    }

    func configure(title: String) {
        titleLabel.text = title  // set your custom text
    }
}

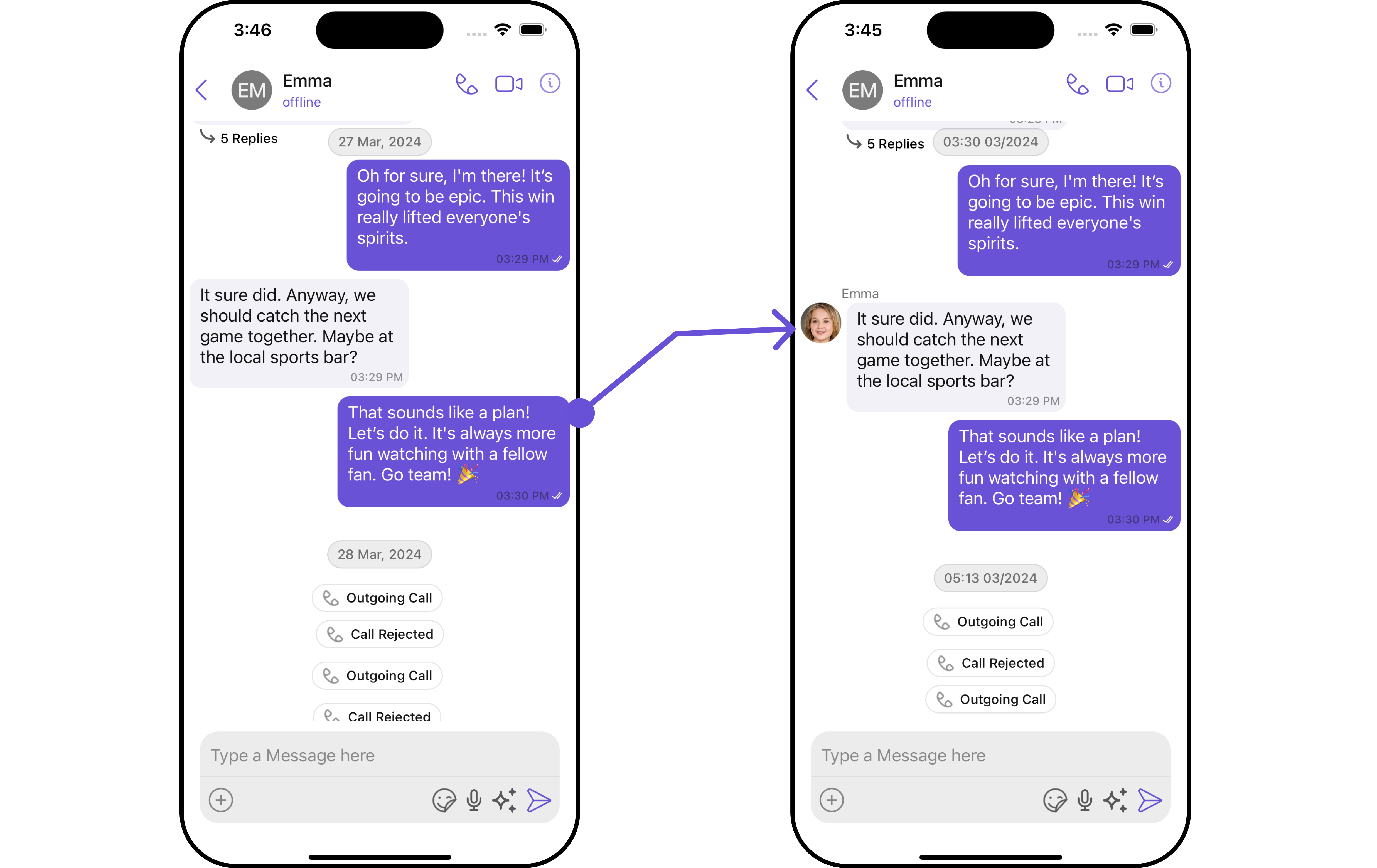

Set DateSeparatorPattern

You can modify the date pattern of the message list date separator to your requirement using setDateSeparatorPattern(). This method accepts a function with a return type String. Inside the function, you can create your own pattern and return it as a String.

let messageListConfiguration = MessageListConfiguration()
    .setDateSeparatorPattern { timestamp in

        }
cometChatMessages.set(messageListConfiguration: messageListConfiguration)

Example

let messageListConfiguration = MessageListConfiguration()
    .setDateSeparatorPattern { timestamp in
     guard let timestamp = timestamp else {
      return ""
}
let date = Date(timeIntervalSince1970: TimeInterval(timestamp))
let formatter = DateFormatter()
formatter.dateFormat = "hh:mm MM/yyyy"
return formatter.string(from: date)
}

let cometChatMessages = CometChatMessages()
.set(user: user)
.set(messageListConfiguration: messageListConfiguration)

Ensure to pass and present cometChatMessages. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

SetDatePattern

You can modify the date pattern to your requirement using .setDatePattern. This method accepts a function with a return type String. Inside the function, you can create your own pattern and return it as a String.

let messageListConfiguration = MessageListConfiguration()
        .setDatePattern { timestamp in

}

Example

let messageListConfiguration = MessageListConfiguration()
    .setDatePattern { timestamp in
        guard let timestamp = timestamp else {
         return ""
}
let date = Date(timeIntervalSince1970: TimeInterval(timestamp/1000))
let formatter = DateFormatter()
formatter.dateFormat = "dd-MM-yyyy"
return formatter.string(from: date)
}

let cometChatMessages = CometChatMessages()
.set(user: user)
.set(messageListConfiguration: messageListConfiguration)

Ensure to pass and present cometChatMessages. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

SetErrorStateView

You can set a custom ErrorStateView using setEmptyStateView to match the error view of your app.

let messageListConfiguration = MessageListConfiguration()
.set(errorStateView: errorView)

Example

We have added an error view to error_view a UIView file. You can choose any view you prefer. This view should be passed to the .set(errorStateView: errorView) method.

errorView

import UIKit
import CometChatSDK
import CometChatUIKitSwift

class ErrorView: UIView {

    override init(frame: CGRect) {
        super.init(frame: frame)
        setupView()
    }

    required init?(coder: NSCoder) {
        super.init(coder: coder)
        setupView()
    }

    private func setupView() {
        backgroundColor = .systemBackground // Or any color matching your application's styles

        let imageView = UIImageView()
        imageView.image = UIImage(systemName: "exclamationmark.circle") // Replace with your error image
        imageView.translatesAutoresizingMaskIntoConstraints = false
        addSubview(imageView)

        let label = UILabel()
        label.text = "Something Went Wrong"
        label.font = UIFont.systemFont(ofSize: 30)
        label.translatesAutoresizingMaskIntoConstraints = false
        addSubview(label)

        NSLayoutConstraint.activate([
            imageView.centerXAnchor.constraint(equalTo: centerXAnchor),
            imageView.centerYAnchor.constraint(equalTo: centerYAnchor, constant: -50), // Adjust as needed
            imageView.widthAnchor.constraint(equalToConstant: 100),
            imageView.heightAnchor.constraint(equalToConstant: 100),

            label.topAnchor.constraint(equalTo: imageView.bottomAnchor, constant: 50), // Adjust as needed
            label.centerXAnchor.constraint(equalTo: imageView.centerXAnchor)
        ])
    }
}

let errorView = ErrorView()

let messageListConfiguration = MessageListConfiguration()
.set(errorStateView: errorView)

let cometChatMessages = CometChatMessages()
.set(user: user)
.set(messageListConfiguration: messageListConfiguration)

Ensure to pass and present cometChatMessages. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

SetEmptyStateView

The setEmptyStateView() function provides the ability to set a custom empty state view in your app. An empty state view is displayed when there are no messages for a particular user.

let messageListConfiguration = MessageListConfiguration()
.set(emptyStateView: emptyview)

Example

You have to create a custom layout named Empty_View, you can set it as the empty state view by passing it as a parameter to the setEmptyStateView() function.

Empty_View

import UIKit

class EmptyView: UIView {

    override init(frame: CGRect) {
        super.init(frame: frame)
        setupView()
    }

    required init?(coder: NSCoder) {
        super.init(coder: coder)
        setupView()
    }

    private func setupView() {
        backgroundColor = .systemBackground // Or any color matching your application's styles

        let imageView = UIImageView()
        imageView.image = UIImage(systemName: "message") // Replace with your image
        imageView.translatesAutoresizingMaskIntoConstraints = false
        addSubview(imageView)

        let label = UILabel()
        label.text = "No Messages"
        label.font = UIFont.systemFont(ofSize: 30)
        label.translatesAutoresizingMaskIntoConstraints = false
        addSubview(label)

        NSLayoutConstraint.activate([
            imageView.centerXAnchor.constraint(equalTo: centerXAnchor),
            imageView.centerYAnchor.constraint(equalTo: centerYAnchor, constant: -50),
            imageView.widthAnchor.constraint(equalToConstant: 100),
            imageView.heightAnchor.constraint(equalToConstant: 100),

            label.topAnchor.constraint(equalTo: imageView.bottomAnchor, constant: 50),
            label.centerXAnchor.constraint(equalTo: imageView.centerXAnchor)
        ])
    }
}

let emptyview = EmptyView()

let messageListConfiguration = MessageListConfiguration()
            .set(emptyStateView: emptyview)

let cometChatMessages  = CometChatMessages()
            .set(user: user)
            .set(messageListConfiguration: messageListConfiguration)

Ensure to pass and present cometChatMessages. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

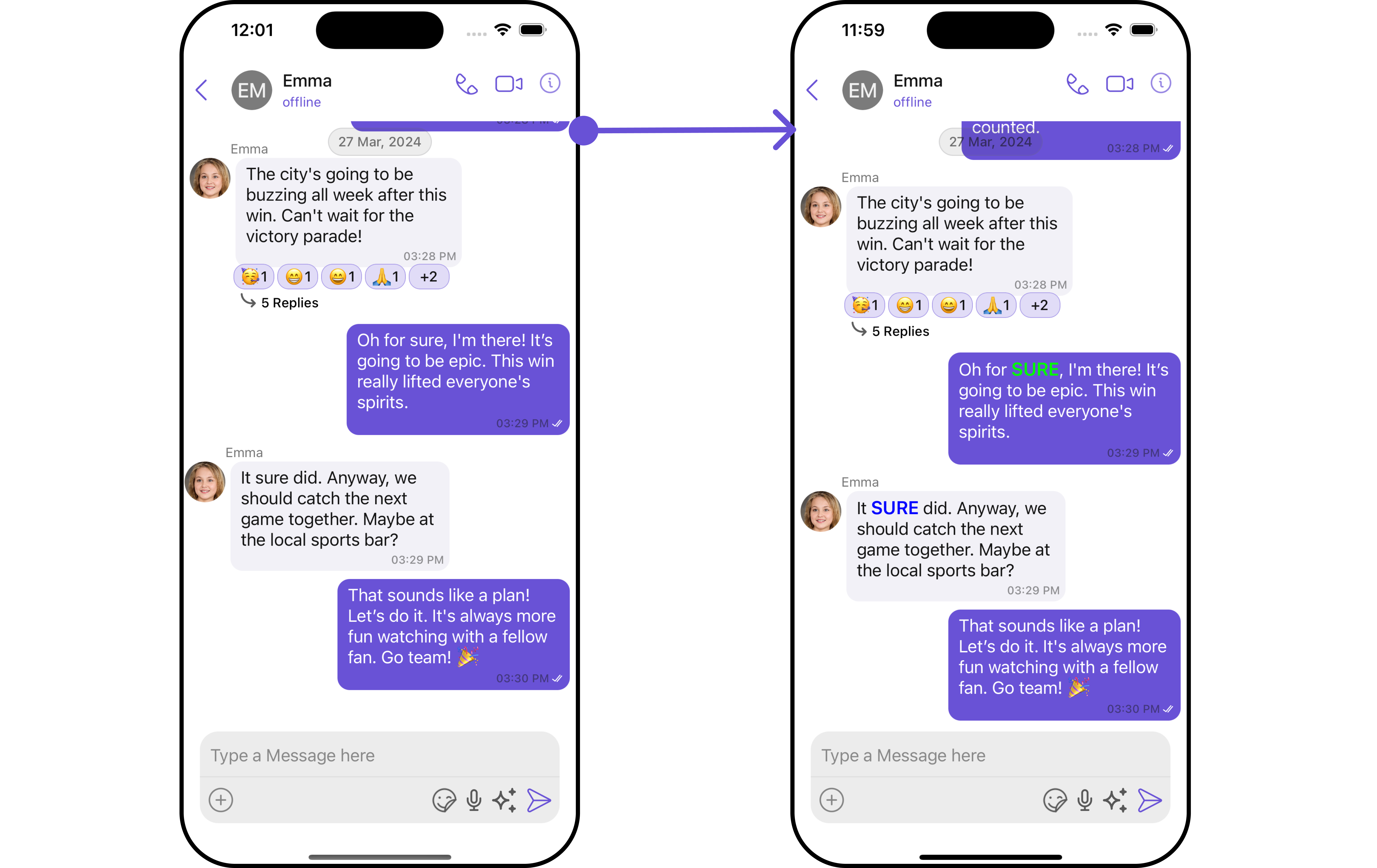

SetTextFormatters

This functionality dynamically assigns a list of text formatters. If a custom list is provided, it uses that list. Otherwise, it gracefully falls back to the default text formatters retrieved from the data source for seamless integration. Example This code customizes a CometChat text formatter to identify and style the word “sure”, with handling options for interactions like string search, scrolling, and item clicks. The custom formatter is then applied to CometChat messages.


import Foundation
import CometChatSDK
import CometChatUIKitSwift

class MyCustomTextFormatter: CometChatTextFormatter {
override func getRegex() -> String {
return "(\\bsure\\b)"

}

override func getTrackingCharacter() -> Character {
    return "#"
}

override func search(string: String, suggestedItems: ((_: [SuggestionItem]) -> ())? = nil) {
    // This function would call an API or perform a local search
    // For now, it does nothing
}

override func onScrollToBottom(suggestionItemList: [SuggestionItem], listItem: ((_: [SuggestionItem]) -> ())?) {
    // This function would call the next page of an API
    // For now, it does nothing
}

override func onItemClick(suggestedItem: SuggestionItem, user: User?, group: Group?) {
    // Do something with the clicked item
}

override func handlePreMessageSend(baseMessage: BaseMessage, suggestionItemList: [SuggestionItem]) {
    // This function would modify the message before it's sent
    // For now, it does nothing
}

override func prepareMessageString(
  baseMessage: BaseMessage,
  regexString: String,
  alignment: MessageBubbleAlignment = .left,
  formattingType: FormattingType
) -> NSAttributedString {
    let attrString = NSMutableAttributedString(string: "SURE")
    if alignment == .left { // Received message
        attrString.addAttribute(.foregroundColor, value: UIColor.blue, range: NSRange(location: 0, length: attrString.length))
    } else { // Sent message
        attrString.addAttribute(.foregroundColor, value: UIColor.green, range: NSRange(location: 0, length: attrString.length))
    }
    attrString.addAttribute(.font, value: UIFont.boldSystemFont(ofSize: 18), range: NSRange(location: 0, length: attrString.length))
    return attrString
}

override func onTextTapped(baseMessage: BaseMessage, tappedText: String, controller: UIViewController?) {
    // Your Action
}

}

Swift

 let myCustomTextFormatter = MyCustomTextFormatter(trackingCharacter: "#")

let messageListConfiguration = MessageListConfiguration()
    .set(textFormatter: [myCustomTextFormatter])

let cometChatMessages  = CometChatMessages()
    .set(user: user)
    .set(messageListConfiguration: messageListConfiguration)

Ensure to pass and present cometChatMessages. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

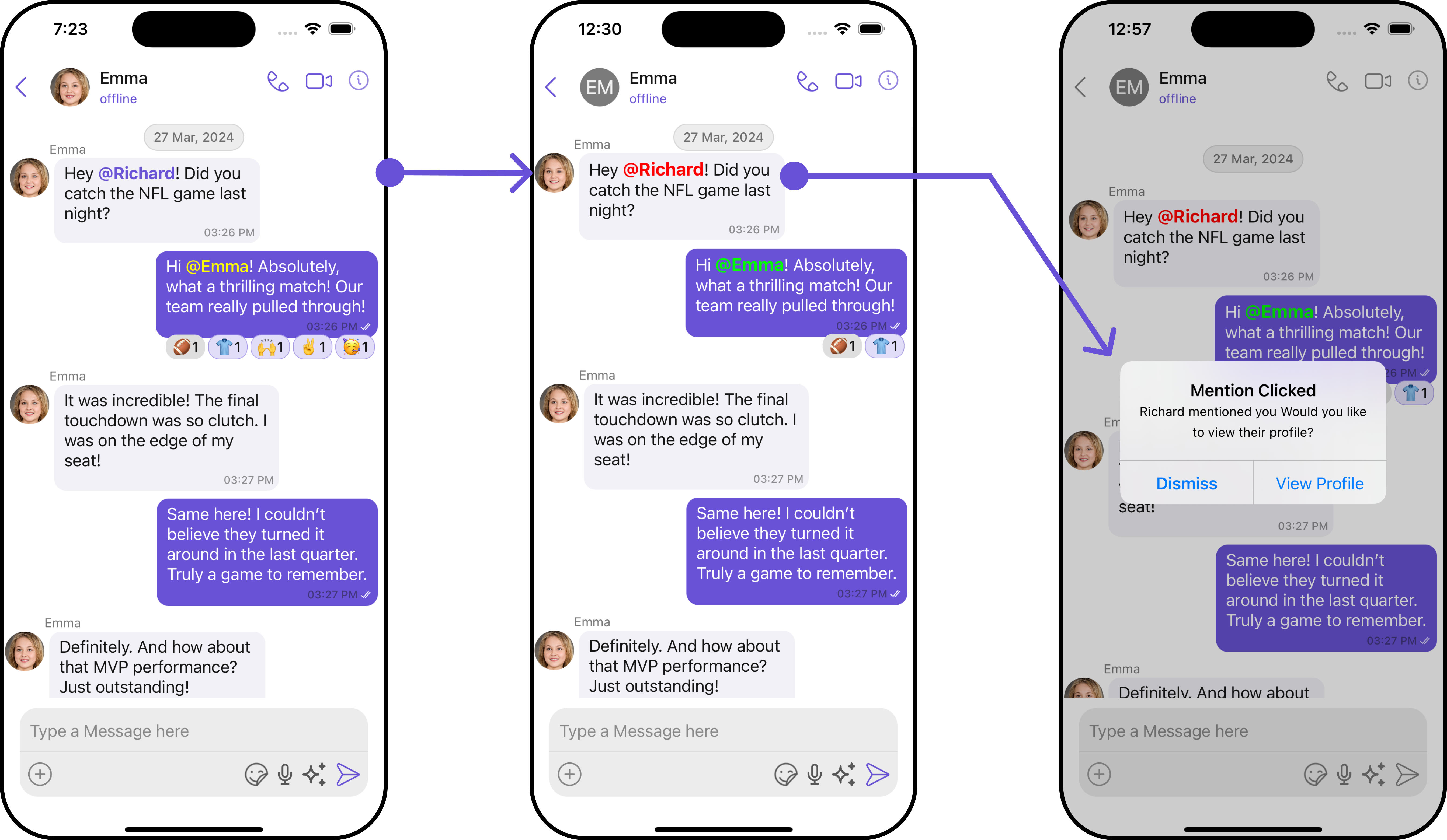

SetMentionsFormatters

Assigns the list of text formatters. If the provided list is not null, it sets the list. Otherwise, it assigns the default text formatters retrieved from the data source. To configure the existing Mentions look and feel check out CometChatMentionsFormatter Example In this example, we are customizing the CometChat’s ‘mentions’ feature. We define different styles for mentions appearing in the message bubbles and the message composer. We also set a custom action when a mention is clicked, which shows an alert with options to view the mentioned user’s profile or dismiss the alert. These customizations are then applied to the CometChat messages through the MessageListConfiguration.

    // Initialize the MentionTextStyle for the left bubble

let leftBubbleTextStyle = MentionTextStyle()
.set(textColor: UIColor.blue)
.set(textFont: UIFont.systemFont(ofSize: 18, weight: .bold))
.set(loggedInUserTextColor: UIColor.red)
.set(loggedInUserTextFont: UIFont.systemFont(ofSize: 18, weight: .bold))

    // Initialize the MentionTextStyle for the right bubble

let rightBubbleTextStyle = MentionTextStyle()
.set(textColor: UIColor.green)
.set(textFont: UIFont.systemFont(ofSize: 18, weight: .bold))
.set(loggedInUserTextColor: UIColor.red)
.set(loggedInUserTextFont: UIFont.systemFont(ofSize: 18, weight: .bold))

  // Initialize the MentionTextStyle for the composer

let composerTextStyle = MentionTextStyle()
.set(textColor: UIColor.orange)
.set(textFont: UIFont.systemFont(ofSize: 18, weight: .bold))
.set(loggedInUserTextColor: UIColor.red)
.set(loggedInUserTextFont: UIFont.systemFont(ofSize: 18, weight: .bold))

    // Initialize and set the CometChatMentionsFormatter properties

let customMentionFormatter = CometChatMentionsFormatter()
.set(composerTextStyle: composerTextStyle)
.set(leftBubbleTextStyle: leftBubbleTextStyle)
.set(rightBubbleTextStyle: rightBubbleTextStyle)
.set(onMentionClicked: { baseMessage, tappedText, controller in

            let senderName = baseMessage.sender?.name ?? "Unknown User"
            let alertTitle = "Mention Clicked"
            let alertMessage = "\(senderName) mentioned you Would you like to view their profile?"
            let alert = UIAlertController(title: alertTitle, message: alertMessage, preferredStyle: .alert)

            alert.addAction(UIAlertAction(title: "View Profile", style: .default, handler: { _ in
                // Code here to view user's profile
            }))
            alert.addAction(UIAlertAction(title: "Dismiss", style: .cancel, handler: nil))

            controller?.present(alert, animated: true, completion: nil)
})

    // Pass this customMentionFormatter to your message list's configuration

let messageListConfiguration = MessageListConfiguration()
.set(textFormatter: [customMentionFormatter])

let cometChatMessages = CometChatMessages()
.set(user: user)
.set(messageListConfiguration: messageListConfiguration)

Ensure to pass and present cometChatMessages. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

Configuration

Configurations offer the ability to customize the properties of each component within a Composite Component.

MessageInformation

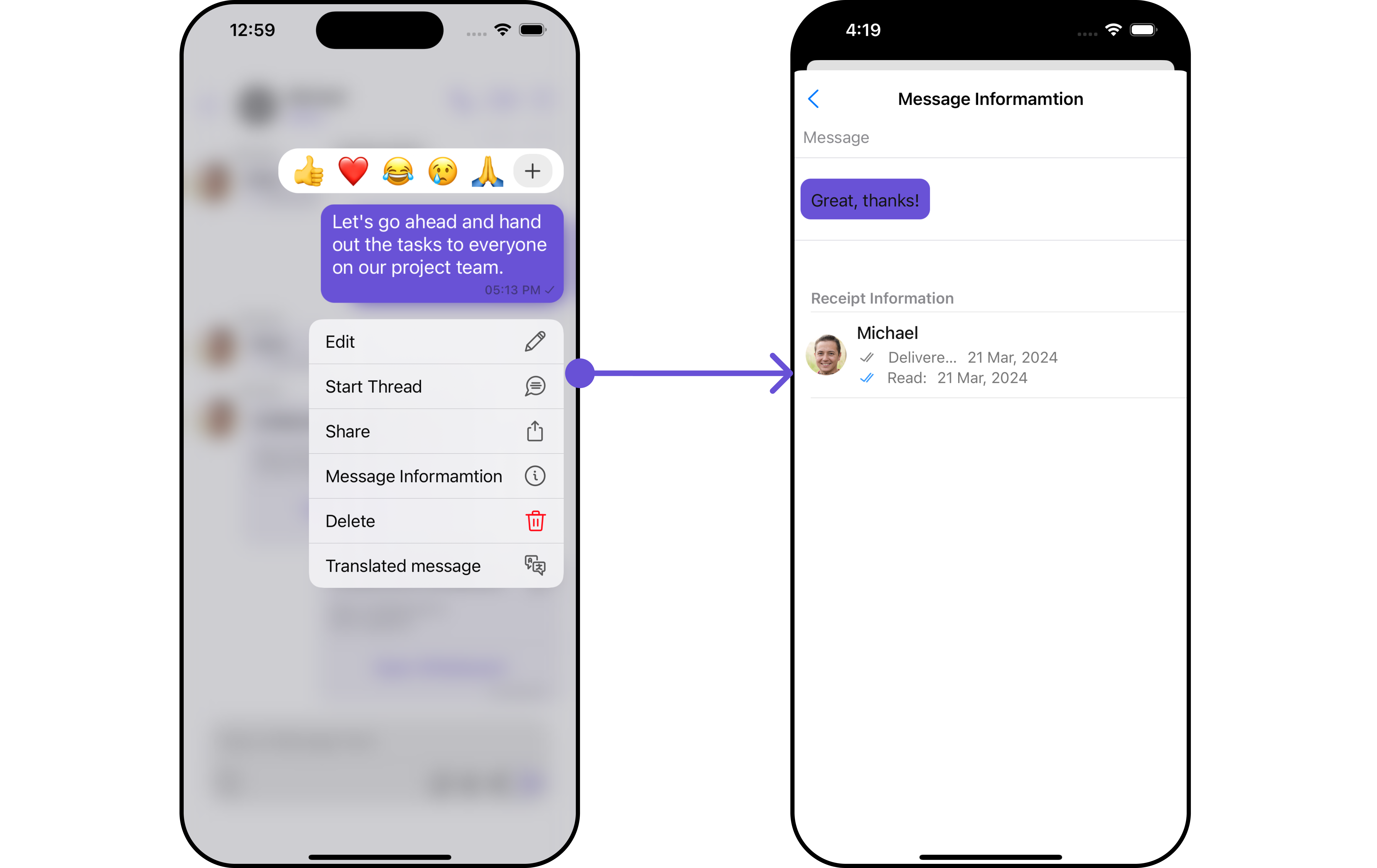

From the MessageList, you can navigate to the MesssageInformation component as shown in the image.

If you wish to modify the properties of the MesssageInformation Component, you can use the MessageInformationConfiguration object.

let messageInformationConfiguration = MessageInformationConfiguration()
let messageListConfiguration = MessageListConfiguration()
    .set(messageInformationConfiguration: messageInformationConfiguration)

The MessageInformationConfiguration indeed provides access to all the Action, Filters, Styles, Functionality, and Advanced properties of the MesssageInformation component. Please note that the Properties marked with the symbol are not accessible within the Configuration Object. Example

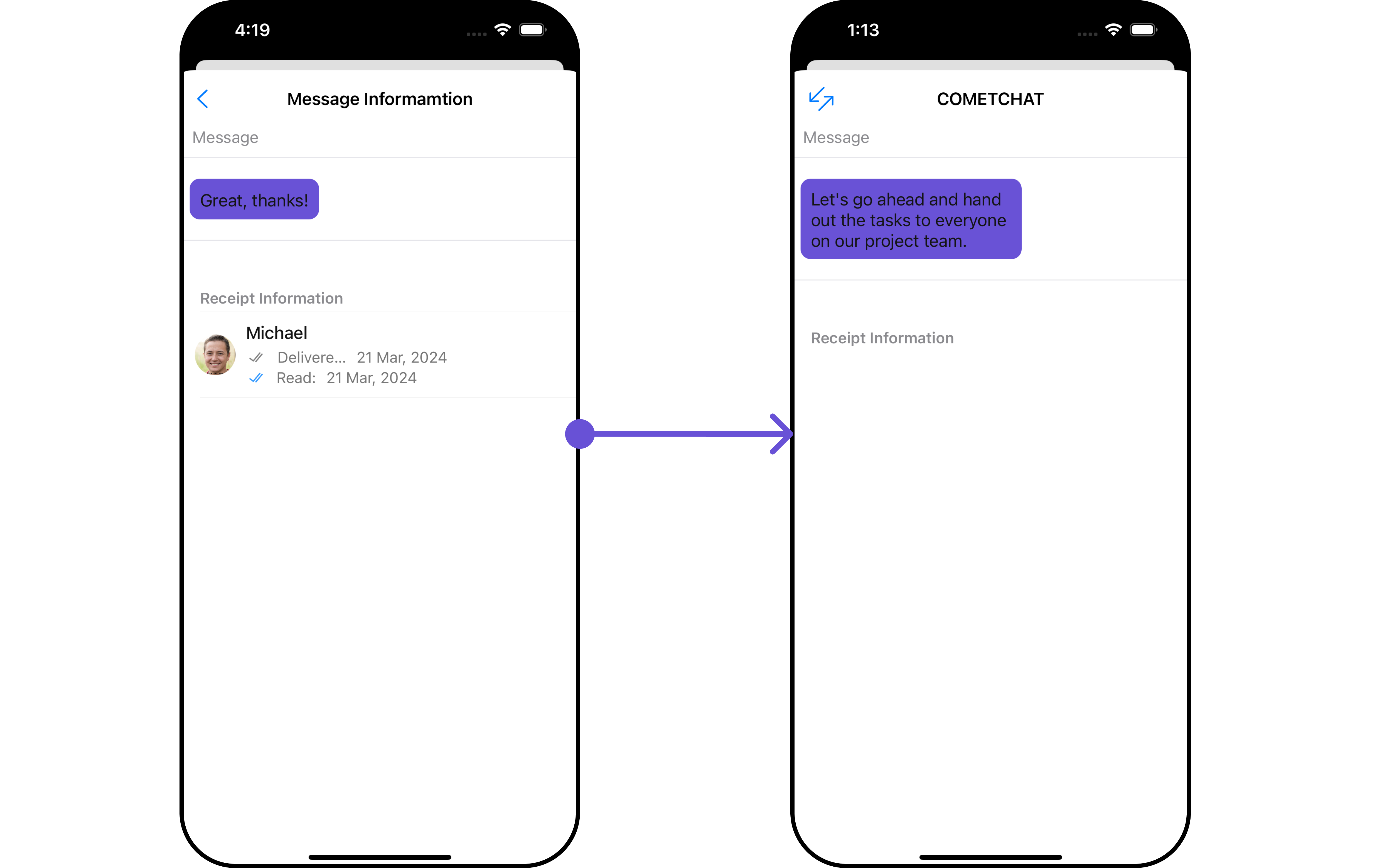

In this example, we are replacing the back button and styling a few properties of the MesssageInformation component using MessageInformationConfiguration.

let messageInformationStyle = MessageInformationStyle()
    .set(background: .gray)
    .set(deliveredIconTint: .green)
    .set(sendIconTint: .yellow)
    .set(titleTextColor: .systemBrown)
    .set(borderColor: .cyan)
    .set(borderWidth: 17)
    .set(titleTextFont: .italicSystemFont(ofSize: 11))
    .set(width: 15)

let messageInformationConfiguration = MessageInformationConfiguration()
    .setStyle(messageInformationStyle: messageInformationStyle)
    .set(backIcon: UIImage(systemName: "arrow.down.left.arrow.up.right")!)
    .set(titleText: "COMETCHAT")

let messageListConfiguration = MessageListConfiguration()
    .set(emptyStateView: emptyview)
    .set(messageInformationConfiguration: messageInformationConfiguration)

let cometChatMessages  = CometChatMessages()
    .set(user: user)
    .set(messageListConfiguration: messageListConfiguration)

In the above code, the back button is replaced, the title is set to “COMETCHAT”, and the background color is set to gray. Finally, this configuration is applied to the message list.

Ensure to pass and present cometChatMessages. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

Reactions

If you wish to modify the properties of the Reaction Component, you can use the ReactionsConfiguration object.

let reactionsConfiguration = ReactionsConfiguration()
let messageListConfiguration = MessageListConfiguration()
.set(reactionsConfiguration: reactionsConfiguration)

Example In this example, we are styling a few properties of the Reaction component using ReactionsConfiguration.

let reactionsStyle  = ReactionsStyle()
.set(background: .init(red: 0.81, green: 0.64, blue: 0.96, alpha: 1.00))
.set(countColor: .red)

let reactionsConfiguration = ReactionsConfiguration()
.set(style: reactionsStyle)
.set(reactionAlignment: .center)

let messageListConfiguration = MessageListConfiguration()
.set(reactionsConfiguration: reactionsConfiguration)

let cometChatMessages = CometChatMessages()
.set(user: User(uid: "emma-uid", name: "emma"))
.set(messageListConfiguration: messageListConfiguration)

Ensure to pass and present cometChatMessages. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

​Overview

​Usage

​Integration

​Actions

1. onThreadRepliesClick

2. onError

​Filters

​Events

​Customization

​Style

1. MessageList Style

2. Avatar Style 🛑

​Functionality

​Advance

​Set Template

​Set HeaderView

​Set FooterView

​Set DateSeparatorPattern

​SetDatePattern

​SetErrorStateView

​SetEmptyStateView

​SetTextFormatters

​SetMentionsFormatters

​Configuration

​MessageInformation

​Reactions

Overview

Usage

Integration

Actions

Filters

Events

Customization

Style

Functionality

Advance

Set Template

Set HeaderView

Set FooterView

Set DateSeparatorPattern

SetDatePattern

SetErrorStateView

SetEmptyStateView

SetTextFormatters

SetMentionsFormatters

Configuration

MessageInformation

Reactions
