Overview

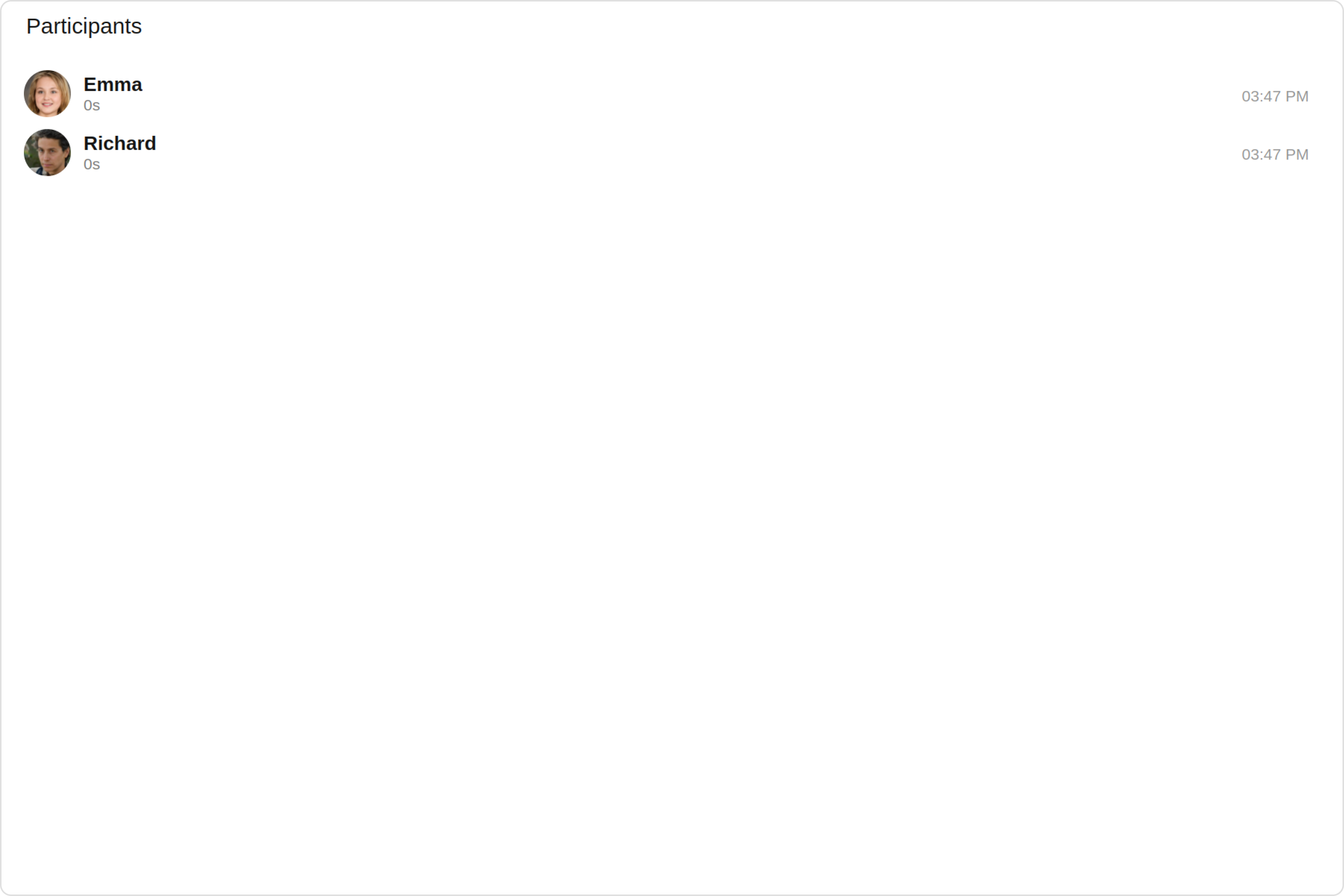

CometChatCallLogParticipants is a Component that shows a separate view that displays comprehensive information about Call. This will enable users to easily access details such as the call participants, call details for a more informed communication experience.

The Call Log Participants is comprised of the following components:

Components	Description
CometChatList	a reusable container component having title, search box, customisable background and a List View
CometChatListItem	a component that renders data obtained from a Group object on a Tile having a title, subtitle, leading and trailing view
cometchat-date	This Component used to show the date and time. You can also customize the appearance of this widget by modifying its logic.
cometchat-button	This component represents a button with optional icon and text.

Usage

Integration

import { CUSTOM_ELEMENTS_SCHEMA, NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { CometChatCallLogParticipants } from "@cometchat/chat-uikit-angular";
import { AppComponent } from "./app.component";

@NgModule({
  imports: [BrowserModule, CometChatCallLogParticipants],
  declarations: [AppComponent],
  providers: [],
  bootstrap: [AppComponent],
  schemas: [CUSTOM_ELEMENTS_SCHEMA],
})
export class AppModule {}

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. onBackClick

onBackClick is triggered when you click the Back button Icon of the Call Log Participants component. It does not have a default behavior. However, you can override its behavior using the following code snippet.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";
import { CallLog, CallLogRequestBuilder } from '@cometchat/calls-sdk-javascript';

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public callLogObject!: CallLog;
  ngOnInit(): void {
    this.callLogRequestBuilder.fetchNext().then((callLogs: CallLog[])=>{
      this.callLogObject = callLogs[0];
    });
  }
  callLogRequestBuilder = new CallLogRequestBuilder().setAuthToken("auth-token").setLimit(5).setCallStatus("cancelled").build();
  public handleOnBack = () => {
    console.log("Your custom on back action");
  }
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK. The Call Log Participants component does not have any exposed filters.

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The Call Log Participants does not produce any events.

Customization

To fit your app’s design requirements, you have the ability to customize the appearance of the CallLogParticipants component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

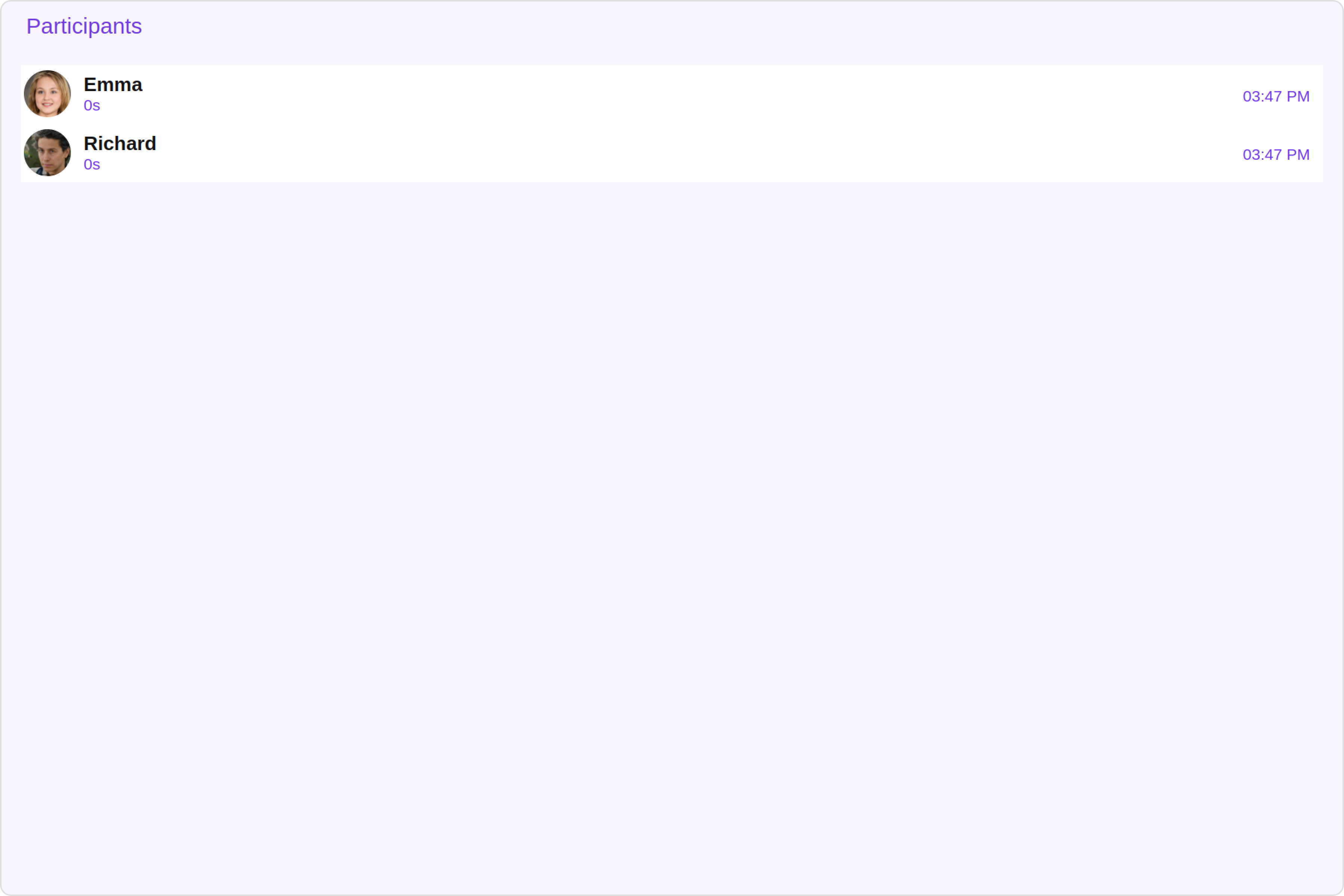

1. CallLogParticipants Style

To customize the appearance, you can assign a CallLogParticipantsStyle object to the Call Log Participants component. Example In this example, we are employing the CallLogParticipantsStyle.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { CallLogParticipantsStyle } from '@cometchat/uikit-shared';
import "@cometchat/uikit-elements";
import { CallLog, CallLogRequestBuilder } from '@cometchat/calls-sdk-javascript';

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public callLogObject!: CallLog;
  ngOnInit(): void {
    this.callLogRequestBuilder.fetchNext().then((callLogs: CallLog[])=>{
      this.callLogObject = callLogs[0];
    });
  }
  callLogRequestBuilder = new CallLogRequestBuilder().setAuthToken("auth-token").setLimit(5).setCallStatus("cancelled").build();
  callLogParticipantsStyle = new CallLogParticipantsStyle({
    background: "#f4f0fc",
    callStatusColor: "#5f20e6",
    titleColor: "#5f20e6",
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

The following properties are exposed by CallLogParticipantsStyle:

Property	Description	Code
border	Used to set border	`border?: string,`
borderRadius	Used to set border radius	`borderRadius?: string;`
background	Used to set background colour	`background?: string;`
height	Used to set height	`height?: string;`
width	Used to set width	`width?: string;`
titleFont	Used to set title font	`titleFont?: string,`
titleColor	Used to set title color	`titleColor?: string;`
backIconTint	Used to set back icon tint	`backIconTint?: string;`
callStatusFont	Used to set call status font	`callStatusFont?: string;`
callStatusColor	Used to set call status color	`callStatusColor?: string;`
dateTextFont	Used to set date text font	`dateTextFont?: string;`
dateTextColor	Used to set date text color	`dateTextColor?: string;`

2. ListItem Style

If you want to apply customized styles to the List Item component within the Call Log Participants Component, you can use the following code snippet. For more information, you can refer ListItem Styles.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, ListItemStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";
import { CallLog, CallLogRequestBuilder } from '@cometchat/calls-sdk-javascript';

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public callLogObject!: CallLog;
  ngOnInit(): void {
    this.callLogRequestBuilder.fetchNext().then((callLogs: CallLog[])=>{
      this.callLogObject = callLogs[0];
    });
  }
  callLogRequestBuilder = new CallLogRequestBuilder().setAuthToken("auth-token").setLimit(5).setCallStatus("cancelled").build();
  listItemStyle: ListItemStyle = new ListItemStyle({
    background: "transparent",
    padding: "5px",
    border: "1px solid #e9b8f5",
    titleColor: "#8830f2",
    borderRadius: "20px",
    width: "100% !important"
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

3. Avatar Style

If you want to apply customized styles to the Avatar component within the Call Log Participants Component, you can use the following code snippet. For more information you can refer Avatar Styles.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, AvatarStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";
import { CallLog, CallLogRequestBuilder } from '@cometchat/calls-sdk-javascript';

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public callLogObject!: CallLog;
  ngOnInit(): void {
    this.callLogRequestBuilder.fetchNext().then((callLogs: CallLog[])=>{
      this.callLogObject = callLogs[0];
    });
  }
  callLogRequestBuilder = new CallLogRequestBuilder().setAuthToken("auth-token").setLimit(5).setCallStatus("cancelled").build();
  avatarStyle = new AvatarStyle({
    backgroundColor: "#cdc2ff",
    border: "2px solid #6745ff",
    borderRadius: "10px",
    outerViewBorderColor: "#ca45ff",
    outerViewBorderRadius: "5px",
    nameTextColor: "#4554ff"
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements. Here is a code snippet demonstrating how you can customize the functionality of the Call Log Participants component.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, AvatarStyle } from '@cometchat/chat-uikit-angular';
import { DatePatterns } from '@cometchat/uikit-resources';
import "@cometchat/uikit-elements";
import { CallLog, CallLogRequestBuilder } from '@cometchat/calls-sdk-javascript';

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public callLogObject!: CallLog;
  ngOnInit(): void {
    this.callLogRequestBuilder.fetchNext().then((callLogs: CallLog[])=>{
      this.callLogObject = callLogs[0];
    });
  }
  callLogRequestBuilder = new CallLogRequestBuilder().setAuthToken("auth-token").setLimit(5).setCallStatus("cancelled").build();
  public datePattern: DatePatterns = DatePatterns.DateTime;
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

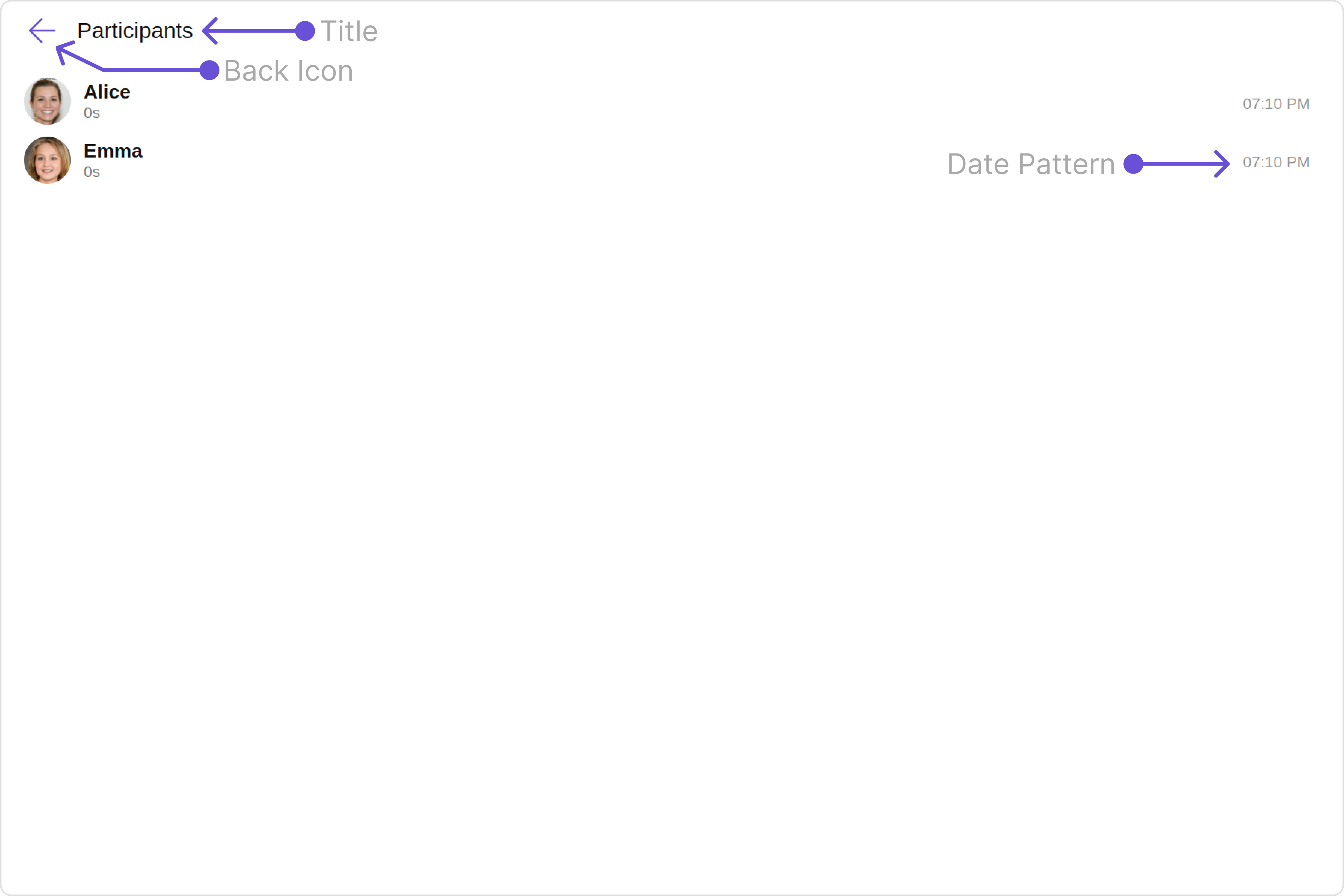

Default:

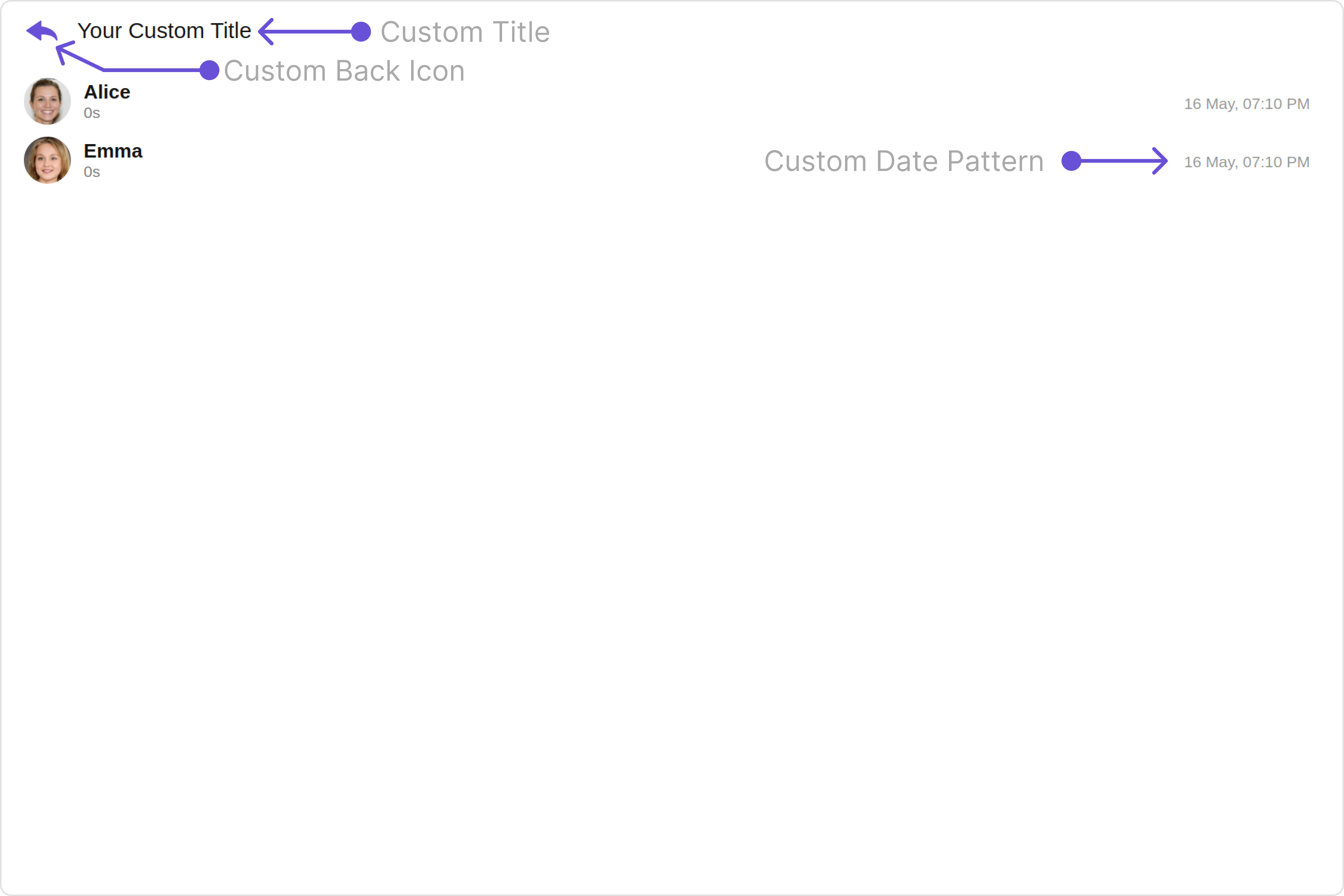

Custom:

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
title	Used to set custom title	`[title]="'Your Custom Title'"`
backIconUrl	Used to set custom back icon URL	`backIconUrl?: string;`
datePattern	Used to set custom date pattern	`[datePattern]="datePattern"`
call	Call data object	`call: CallLog;`

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

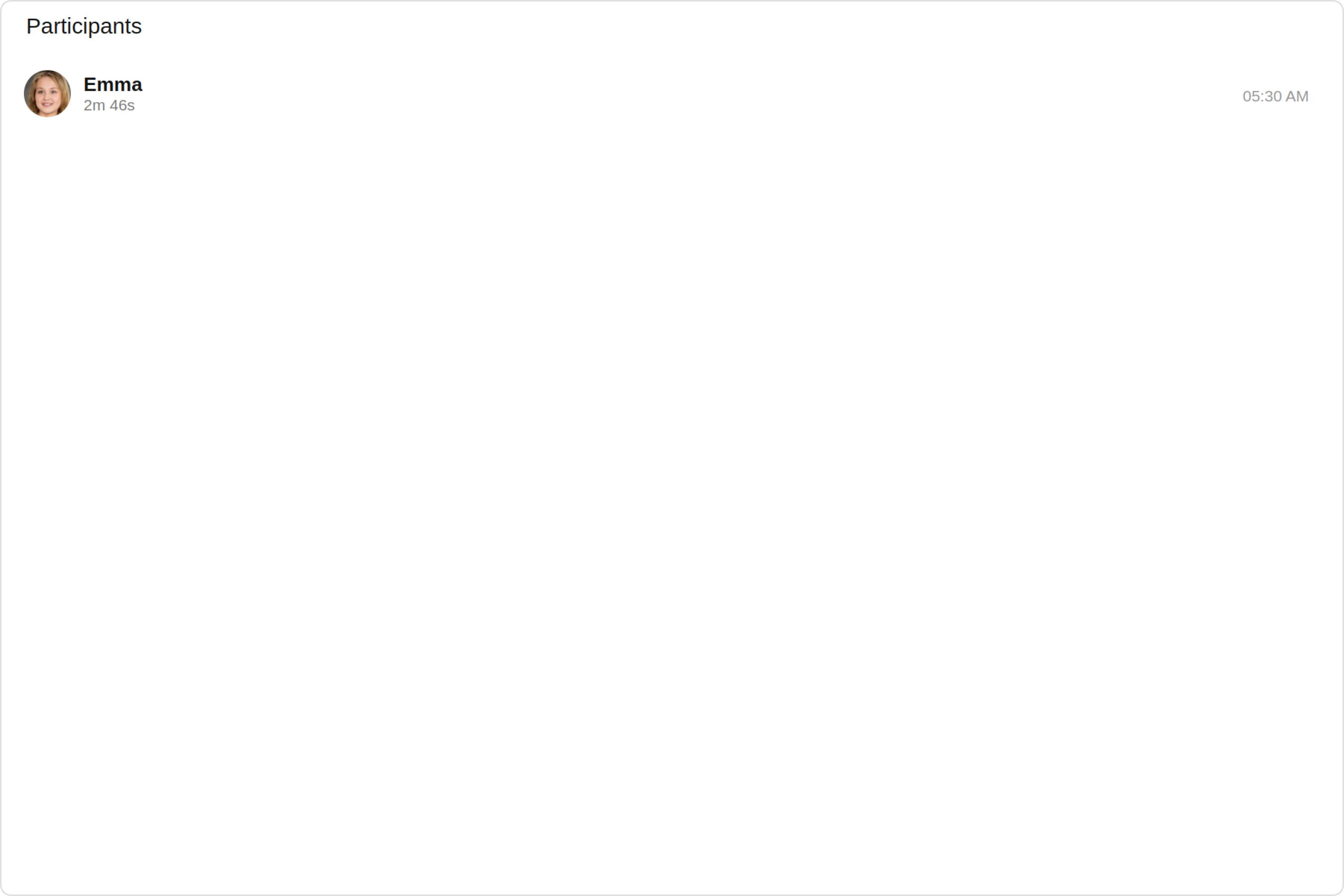

ListItemView

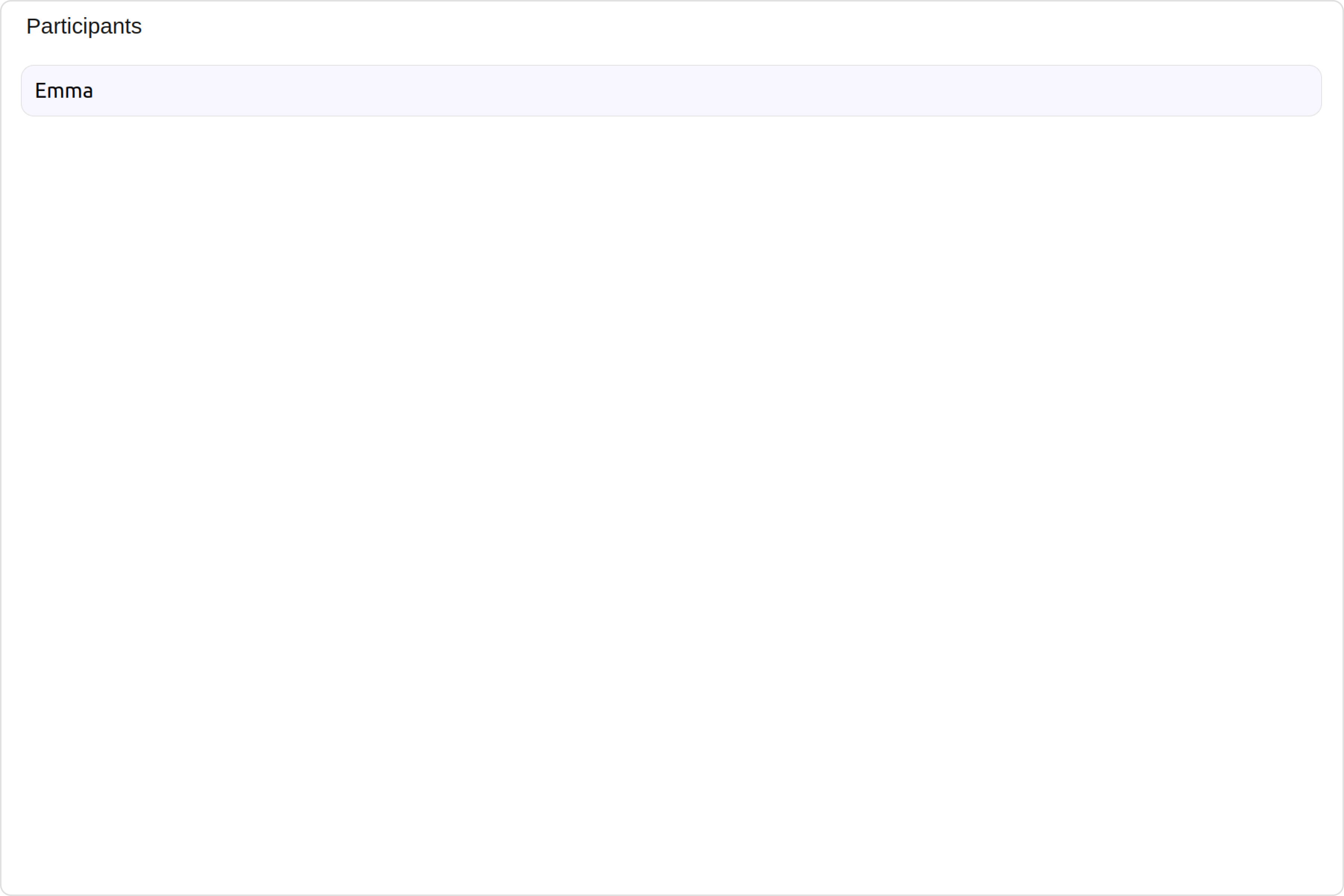

With this property, you can assign a custom ListItem to the Call Log Participants Component. Example Default:

Custom:

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, AvatarStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";
import { CallLog, CallLogRequestBuilder } from '@cometchat/calls-sdk-javascript';

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public callLogObject!: CallLog;
  ngOnInit(): void {
    this.callLogRequestBuilder.fetchNext().then((callLogs: CallLog[])=>{
      this.callLogObject = callLogs[0];
    });
  }
  callLogRequestBuilder = new CallLogRequestBuilder().setAuthToken("auth-token").setLimit(5).setCallStatus("cancelled").build();
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

SubtitleView

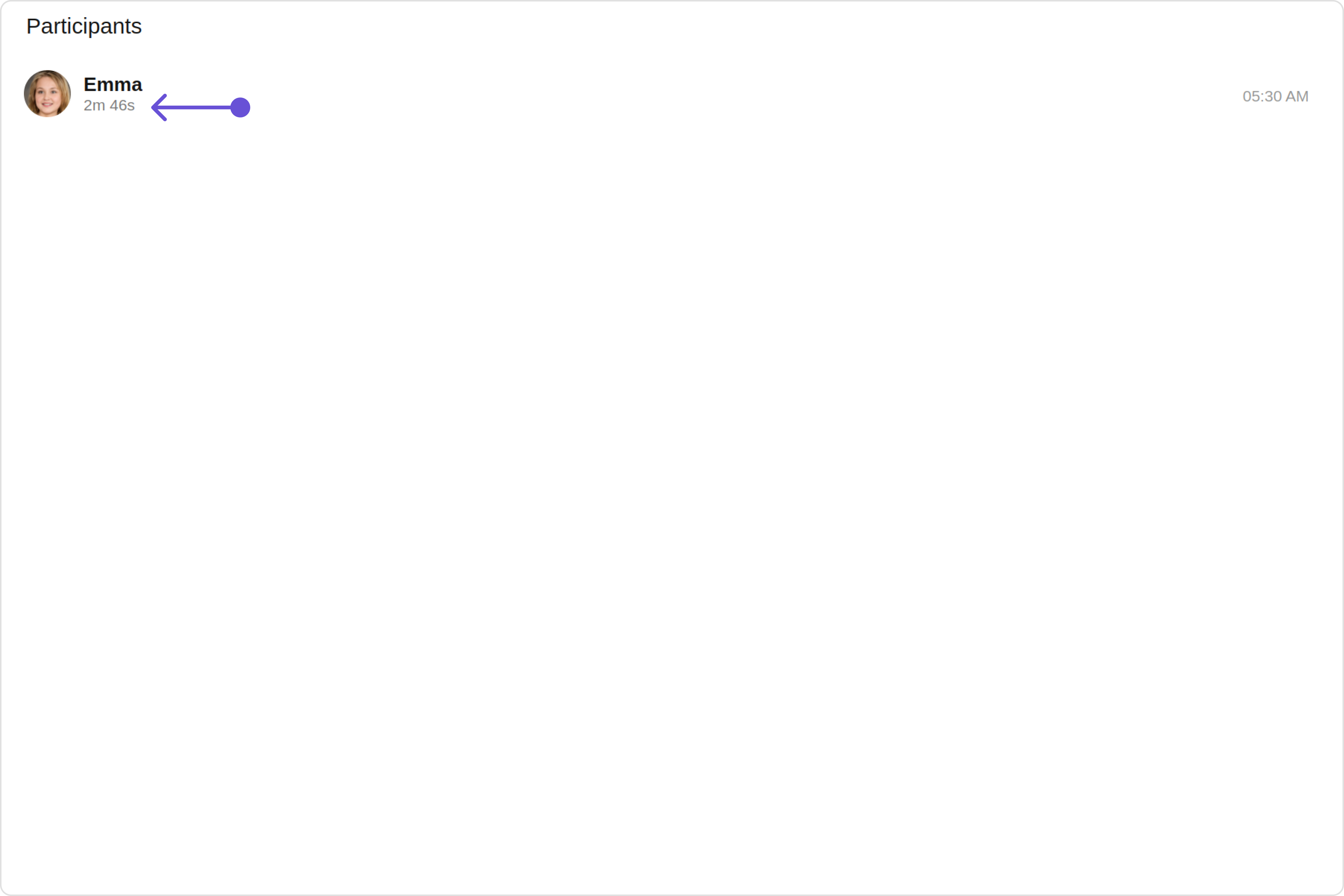

You can customize the subtitle view for each call log Participants item to meet your requirements Default:

Custom:

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, AvatarStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";
import { CallLog, CallLogRequestBuilder } from '@cometchat/calls-sdk-javascript';

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public callLogObject!: CallLog;
  ngOnInit(): void {
    this.callLogRequestBuilder.fetchNext().then((callLogs: CallLog[])=>{
      this.callLogObject = callLogs[0];
    });
  }
  callLogRequestBuilder = new CallLogRequestBuilder().setAuthToken("auth-token").setLimit(5).setCallStatus("cancelled").build();
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

​Overview

​Usage

​Integration

​Actions

1. onBackClick

​Filters

​Events

​Customization

​Style

1. CallLogParticipants Style

2. ListItem Style

3. Avatar Style

​Functionality

​Advanced

​ListItemView

​SubtitleView

Overview

Usage

Integration

Actions

Filters

Events

Customization

Style

Functionality

Advanced

ListItemView

SubtitleView
