Overview

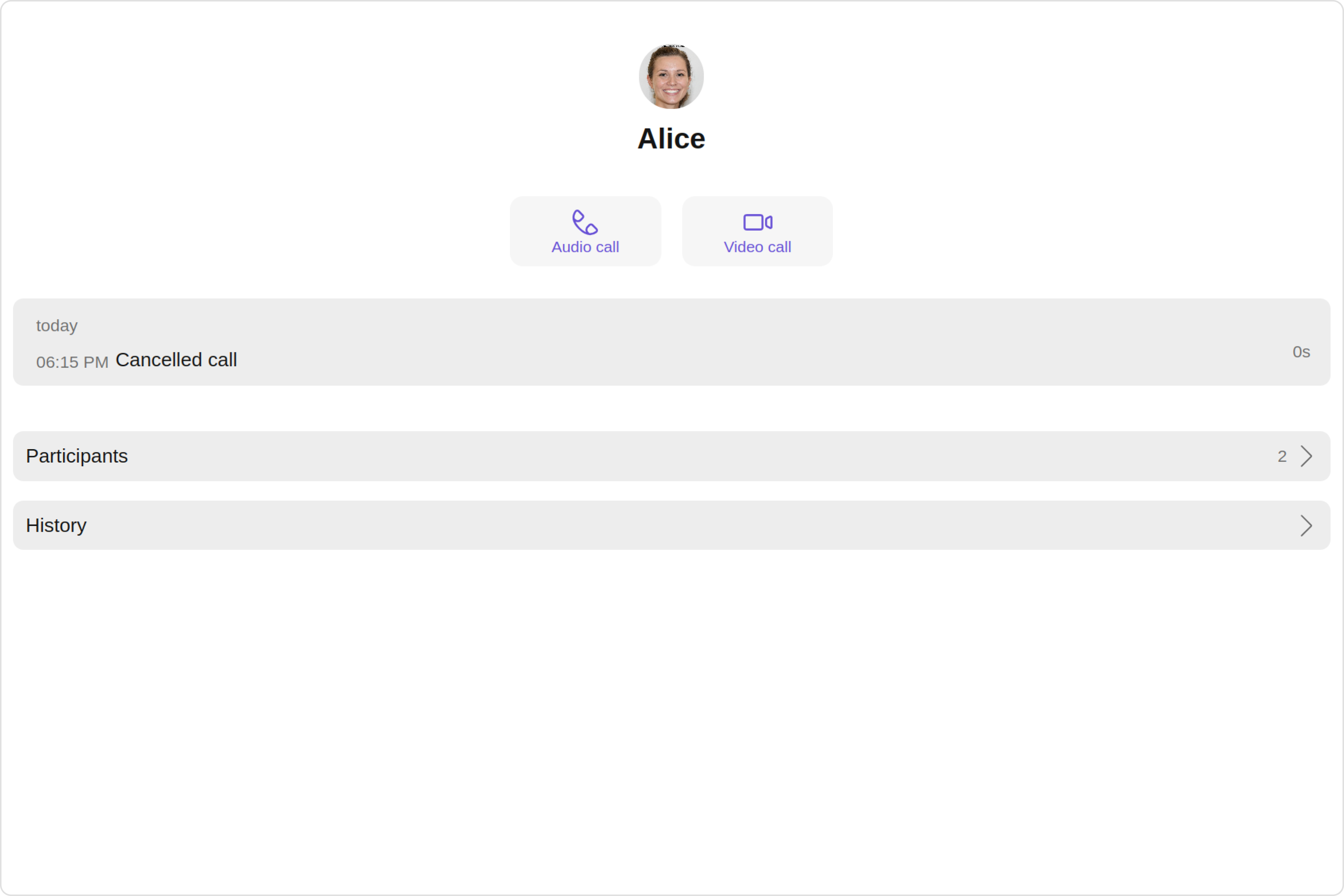

The Call Log Details is a Composite Component that displays all the information related to a call. This component displays information like user/group information, participants of the call, recordings of the call (if available) & history of all the previous calls. Also, it has buttons to start a new call.

Components	Description
Call Log History	The `Call Log History` component shows a paginated list of all the calls between the logged-in user & another user or group. This allows the user to see all the calls with a specific user/group they have initiated/received/missed.
Call Log Recordings	The `Call Log Recordings` component shows a paginated list of recordings of a particular call.
Call Log participants	The `Call Log Participants` component shows a separate view that displays comprehensive information about Call.

Usage

Integration

import { CUSTOM_ELEMENTS_SCHEMA, NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { CometChatCallLogDetails } from "@cometchat/chat-uikit-angular";
import { AppComponent } from "./app.component";

@NgModule({
  imports: [BrowserModule, CometChatCallLogDetails],
  declarations: [AppComponent],
  providers: [],
  bootstrap: [AppComponent],
  schemas: [CUSTOM_ELEMENTS_SCHEMA],
})
export class AppModule {}

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. onBackClick

onBackClick is triggered when you click on the back button of the Call Log Details component. You can override this action using the following code snippet.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { CallLog, CallLogRequestBuilder } from '@cometchat/calls-sdk-javascript';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public userObject!: CometChat.User;
  public callLogObject!: CallLog;
  callLogRequestBuilder = new CallLogRequestBuilder().setAuthToken("auth-token").setLimit(5).setCallStatus("cancelled").build();
  ngOnInit(): void {
    CometChat.getUser("uid").then((user: CometChat.User) => {
      this.userObject = user;
    });

    this.callLogRequestBuilder.fetchNext().then((callLogs: CallLog[])=>{
    this.callLogObject = callLogs[0];
    });
  }
  public handleOnBack = () => {
    console.log("Your custom on back action");
  }
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK. The Call Log Details component does not have any exposed filters.

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The CallLogDetails does not produce any events.

Customization

To fit your app’s design requirements, you have the ability to customize the appearance of the CallLogDetails component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

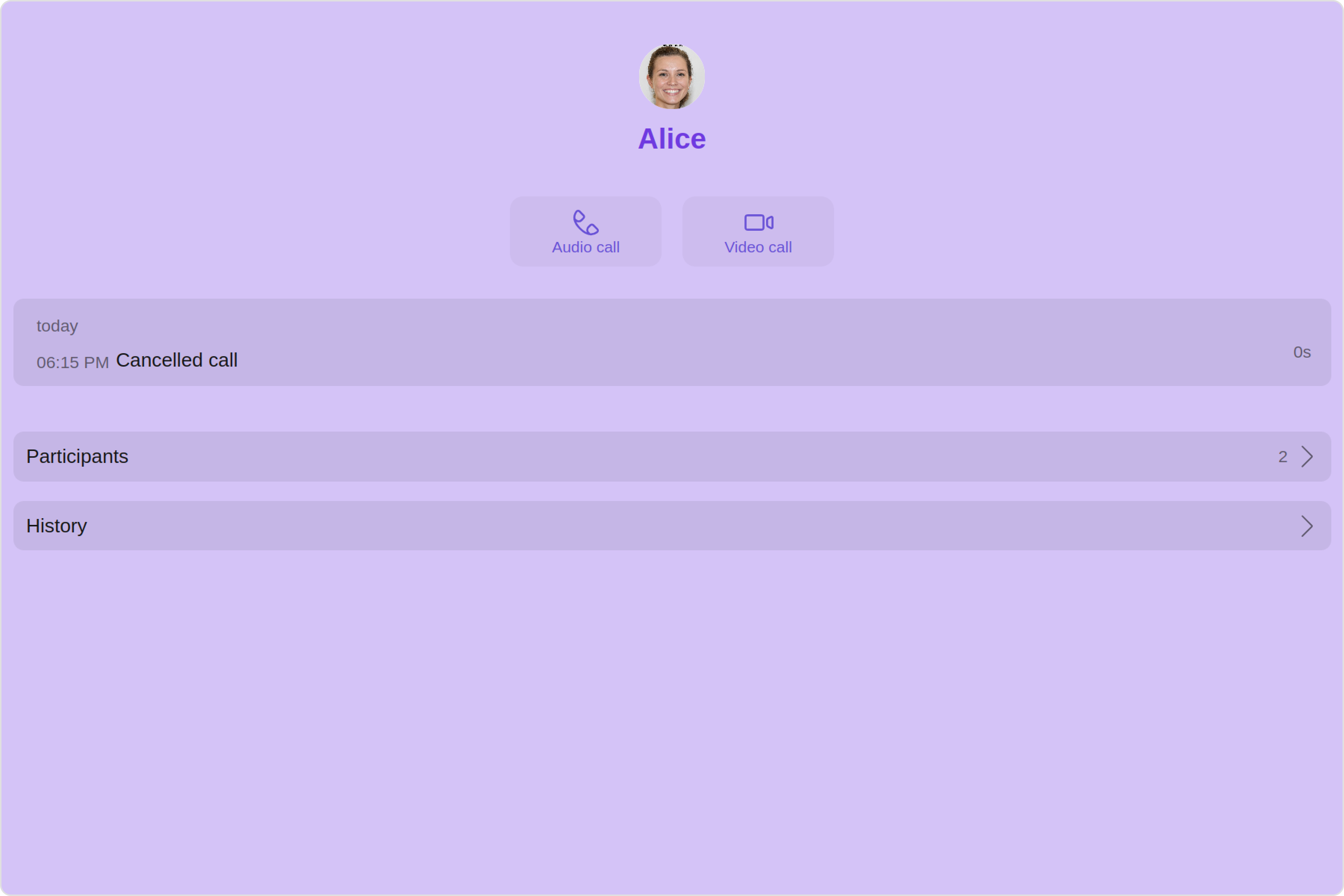

1. CallLogDetails Style

You can set the callLogDetailsStyle to the Call Log Details Component to customize the styling.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import { CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { CallLogDetailsStyle  } from '@cometchat/uikit-shared';
import { CallLog, CallLogRequestBuilder } from '@cometchat/calls-sdk-javascript';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public userObject!: CometChat.User;
  public callLogObject!: CallLog;
  callLogRequestBuilder = new CallLogRequestBuilder().setAuthToken("auth-token").setLimit(5).setCallStatus("cancelled").build();
  ngOnInit(): void {
    CometChat.getUser("uid").then((user: CometChat.User) => {
      this.userObject = user;
    });

    this.callLogRequestBuilder.fetchNext().then((callLogs: CallLog[])=>{
    this.callLogObject = callLogs[0];
    });
  }
  callDetailsStyle = new CallLogDetailsStyle({
    background: "#d4c3f7",
    nameTextColor: "#6f3ae0",
    titleColor: "#6f3ae0",
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

The following properties are exposed by CallLogDetailsStyle:

Property	Description	Code
border	Used to set border	`border?: string,`
borderRadius	Used to set border radius	`borderRadius?: string;`
background	Used to set background colour	`background?: string;`
height	Used to set height	`height?: string;`
width	Used to set width	`width?: string;`
titleFont	Used to set title font	`titleFont?: string,`
titleColor	Used to set title color	`titleColor?: string;`
nameTextFont	Used to set name text font	`nameTextFont?: string,`
nameTextColor	Used to set name text color	`nameTextColor?: string;`
backIconTint	Used to set color of the back icon	`backIconTint?: string;`

2. Avatar Style

If you want to apply customized styles to the Avatar component within the Call Log Details Component, you can use the following code snippet. For more information you can refer Avatar Styles.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import { CometChatThemeService, CometChatUIKit, AvatarStyle } from '@cometchat/chat-uikit-angular';
import { CallLog, CallLogRequestBuilder } from '@cometchat/calls-sdk-javascript';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public userObject!: CometChat.User;
  public callLogObject!: CallLog;
  callLogRequestBuilder = new CallLogRequestBuilder().setAuthToken("auth-token").setLimit(5).setCallStatus("cancelled").build();
  ngOnInit(): void {
    CometChat.getUser("uid").then((user: CometChat.User) => {
      this.userObject = user;
    });

    this.callLogRequestBuilder.fetchNext().then((callLogs: CallLog[])=>{
    this.callLogObject = callLogs[0];
    });
  }
  avatarStyle = new AvatarStyle({
    backgroundColor: "#cdc2ff",
    border: "2px solid #6745ff",
    borderRadius: "10px",
    outerViewBorderColor: "#ca45ff",
    outerViewBorderRadius: "5px",
    nameTextColor: "#4554ff"
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements. Here is a code snippet demonstrating how you can customize the functionality of the Call Log Details component.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import { CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { CallLog, CallLogRequestBuilder } from '@cometchat/calls-sdk-javascript';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public userObject!: CometChat.User;
  public callLogObject!: CallLog;
  callLogRequestBuilder = new CallLogRequestBuilder().setAuthToken("auth-token").setLimit(5).setCallStatus("cancelled").build();
  ngOnInit(): void {
    CometChat.getUser("uid").then((user: CometChat.User) => {
      this.userObject = user;
    });

    this.callLogRequestBuilder.fetchNext().then((callLogs: CallLog[])=>{
    this.callLogObject = callLogs[0];
    });
  }
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Below is a list of customizations along with corresponding code snippets

Property	Description	type
title	Used to set custom title	`title?: string,`
backIconUrl	Used to set custom back icon URL	`backIconUrl?: string;`
call	Call data object	`call: CallLog;`
data	Override the list of templates which is used for displaying relevant options.	`data?: (callLog: any, loggedInUser: CometChat.User, theme: CometChatTheme) => CometChatDetailsTemplate[];`

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

DetailsTemplate

The CometChatDetailsTemplate offers a structure for organizing information in the Call Log Details component. It serves as a blueprint, defining how call log related details are presented. This structure allows for customization and organization within the CometChat interface. This defines the structure of template data for the call log details component.

Name	Type	Description
id	String	Identifier for the template
title	String	Heading text for the template
titleFont	String	Sets all the different properties of font for the title text
titleColor	String	Sets the foreground color of title text
itemSeparatorColor	String	Sets the color of the template’s option separator
hideItemSeparator	Boolean	When set to true, hides the separator under each option in a template
sectionSeparatorColor	String	Sets the color of the template separator
hideSectionSeparator	Boolean	When set to true, hides the separator for the template
options	CometChatDetailsTemplate.options?: ((loggedInUser: User \| null, group: Group \| null, section: string) => CometChatDetailsOption[]) \| null \| undefined	defines the structure for individual options

DetailsOption

The DetailsOption defines the structure for individual options within the CometChat Call Log Details component, facilitating customization and functionality for user interactions. This defines the structure of each option for a template in the details component.

Name	Type	Description
id	String	Identifier for the template option
title	String	Heading text for the template option
tail	any	User-defined UI component to customise the trailing view for each option in a template.
customView	any	User-defined UI component to override the default view for the option.
onClick	((item: CometChat.User \| CometChat.Group) => void) \| null;	Function invoked when user clicks on the option.
titleFont	String	Sets all the different properties of font for the title text
titleColor	String	Sets the foreground colour of title text
iconURL	String	Image url for the icon to symbolise an option
iconTint	String	Color applied to the icon of the option
backgroundColor	String	Color applied to the background of the option

Configurations

Configurations offer the ability to customize the properties of each component within a Composite Component. CallLogDetails has Call Log History, Call Log Recordings and Call Log Participants component. Hence, each of these components will have its individual Configuration.

Configurations expose properties that are available in its individual components.

Call Log History

You can customize the properties of the Call Log History component by making use of the callLogHistoryConfiguration. You can accomplish this by employing the callLogHistoryConfiguration props as demonstrated below: All exposed properties of CallLogHistoryConfiguration can be found under Call Log History. Properties marked with the 🛑 symbol are not accessible within the Configuration Object. Example Let’s say you want to change the style of the Call Log History subcomponent and, in addition, you only want to change the date pattern to show day date and time. You can modify the style using the callLogHistoryStyle property, change the date pattern using datePattern property.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import { CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { CallLogHistoryConfiguration, CallLogHistoryStyle  } from '@cometchat/uikit-shared';
import { DatePatterns } from '@cometchat/uikit-resources';
import { CallLog, CallLogRequestBuilder } from '@cometchat/calls-sdk-javascript';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public userObject!: CometChat.User;
  public callLogObject!: CallLog;
  callLogRequestBuilder = new CallLogRequestBuilder().setAuthToken("auth-token").setLimit(5).setCallStatus("cancelled").build();
  ngOnInit(): void {
    CometChat.getUser("uid").then((user: CometChat.User) => {
      this.userObject = user;
    });

    this.callLogRequestBuilder.fetchNext().then((callLogs: CallLog[])=>{
    this.callLogObject = callLogs[0];
    });
  }
  callLogHistoryStyle = new CallLogHistoryStyle({
    background: "#f4f0fc",
    backIconTint: "#5f20e6",
    titleColor: "#5f20e6",
    dateTextColor: "#5f20e6",
    dateSeparatorTextColor: "#5f20e6",
    border: "2px solid #5f20e6",
  });
  callLogHistoryConfiguration = new CallLogHistoryConfiguration({
    //override properties of call log history
    callLogHistoryStyle: this.callLogHistoryStyle,
    datePattern: DatePatterns.DayDateTime,
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Call Log Recordings

You can customize the properties of the Call Log Recordings component by making use of the callLogRecordingsConfiguration. You can accomplish this by employing the callLogRecordingsConfiguration props as demonstrated below: All exposed properties of CallLogRecordingsConfiguration can be found under Call Log Recordings. Properties marked with the 🛑 symbol are not accessible within the Configuration Object. Example Let’s say you want to change the style of the Call Log Recordings subcomponent and, in addition, you only want to hide the download button. You can modify the style using the callLogRecordingsStyle property, and hide the download button using hideDownloadButton property.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import { CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { CallLogRecordingsConfiguration, CallLogRecordingsStyle } from '@cometchat/uikit-shared';
import { CallLog, CallLogRequestBuilder } from '@cometchat/calls-sdk-javascript';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public userObject!: CometChat.User;
  public callLogObject!: CallLog;
  callLogRequestBuilder = new CallLogRequestBuilder().setAuthToken("auth-token").setLimit(5).setCallStatus("cancelled").build();
  ngOnInit(): void {
    CometChat.getUser("uid").then((user: CometChat.User) => {
      this.userObject = user;
    });

    this.callLogRequestBuilder.fetchNext().then((callLogs: CallLog[])=>{
    this.callLogObject = callLogs[0];
    });
  }
  callLogRecordingsConfiguration = new CallLogRecordingsConfiguration({
    callLogRecordingsStyle: new CallLogRecordingsStyle({
      background: "#f4f0fc",
      backIconTint: "#5f20e6",
      titleColor: "#5f20e6",
      dateTextColor: "#5f20e6",
      border: "2px solid #5f20e6",
    }),
    hideDownloadButton:true
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Call Log Participants

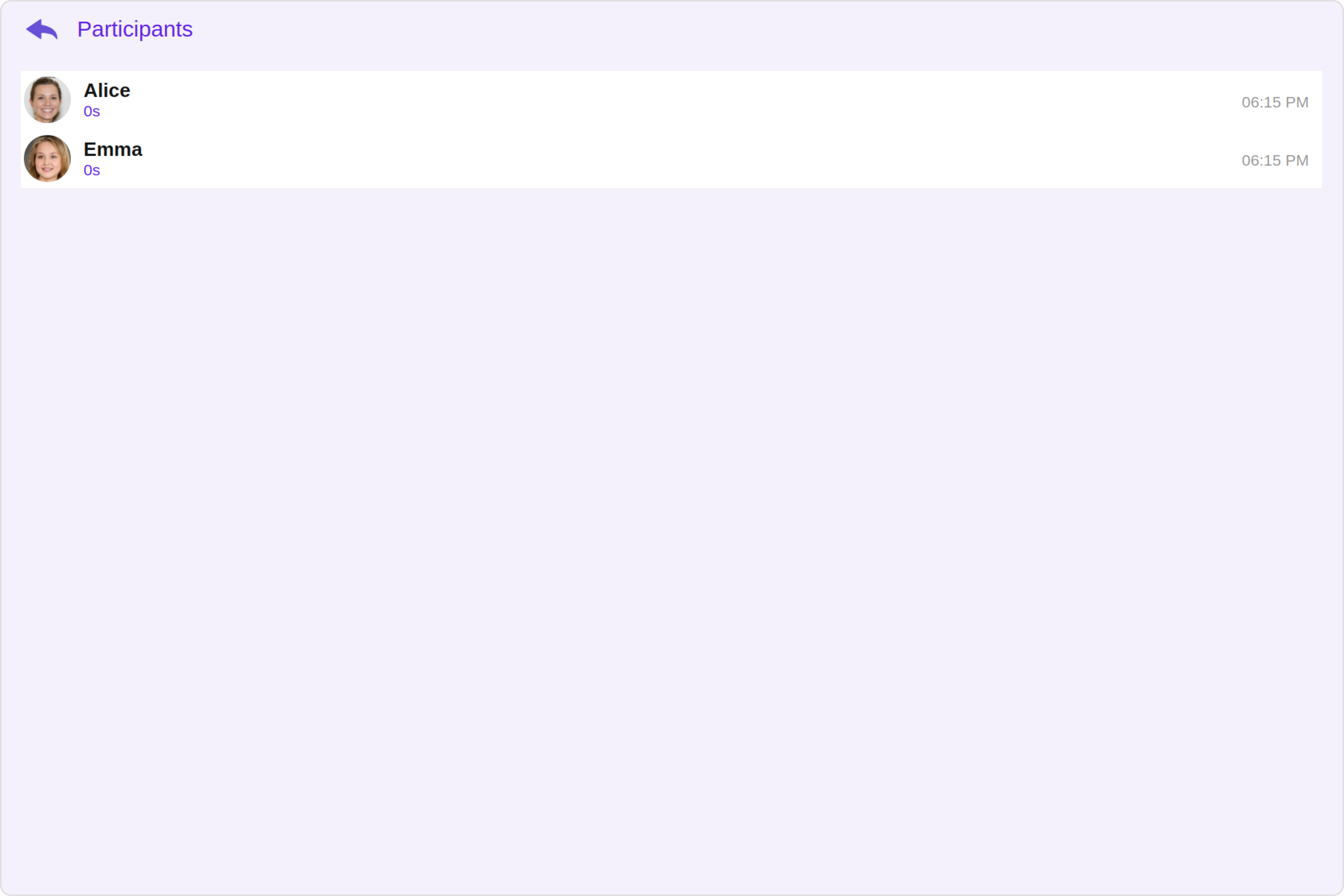

You can customize the properties of the Call Log Participants component by making use of the callLogParticipantsConfiguration. You can accomplish this by employing the callLogParticipantsConfiguration props as demonstrated below: All exposed properties of CallLogParticipantsConfiguration can be found under Call Log Participants. Properties marked with the 🛑 symbol are not accessible within the Configuration Object. Example Let’s say you want to change the style of the Call Log Participants subcomponent and, in addition, you only want to change the back icon. You can modify the style using the callLogParticipantsStyle property, and change the back icon using backIconUrl property.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import { CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { CallLogParticipantsConfiguration, CallLogParticipantsStyle } from '@cometchat/uikit-shared';
import { CallLog, CallLogRequestBuilder } from '@cometchat/calls-sdk-javascript';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public userObject!: CometChat.User;
  public callLogObject!: CallLog;
  callLogRequestBuilder = new CallLogRequestBuilder().setAuthToken("auth-token").setLimit(5).setCallStatus("cancelled").build();
  ngOnInit(): void {
    CometChat.getUser("uid").then((user: CometChat.User) => {
      this.userObject = user;
    });

    this.callLogRequestBuilder.fetchNext().then((callLogs: CallLog[])=>{
    this.callLogObject = callLogs[0];
    });
  }
  callLogParticipantsConfiguration = new CallLogParticipantsConfiguration({
    callLogParticipantsStyle: new CallLogParticipantsStyle({
      background: "#f4f0fc",
      callStatusColor: "#5f20e6",
      titleColor: "#5f20e6",
    }),
    backIconUrl: iconURL,
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

​Overview

​Usage

​Integration

​Actions

1. onBackClick

​Filters

​Events

​Customization

​Style

1. CallLogDetails Style

2. Avatar Style

​Functionality

​Advanced

​DetailsTemplate

​DetailsOption

​Configurations

​Call Log History

​Call Log Recordings

​Call Log Participants
