This guide will help you add a custom option to the messages of type image. By default, CometChat UI Kit for Angular supports the following message options: text message - edit, delete, copy, reply in thread, react media message, custom message - delete, reply in thread, react

We recommend that you read the Key Concepts , follow the guidelines, and also take the time to familiarise yourself with the library’s components.

In the example below, we are going to simulate a “download image” feature when user clicks on the custom message option.

Custom Option

The first step is to create the custom option using CometChatMessageOption class which has the following structure:

TypeScript

new CometChatMessageOption({
  id: string;
  title: string;
  iconURL: string;
  onClick: any;
  titleFont: string;
  titleColor: string;
  backgroundColor: string;
  iconTint: string;
})

Click handler

We’ll download the image when user clicks on the custom option.

TypeScript

const downloadOption = new CometChatMessageOption({
  id: "download",
  title: "Download",
  iconURL: downloadIcon,
  onClick: () => downloadImage(mediaMessage),
  iconTint: theme.palette.getAccent600(),
  backgroundColor: "transparent",
  titleFont: fontHelper(theme.typography.subtitle1),
  titleColor: theme.palette.getAccent600(),
});

const downloadImage = async (message: CometChat.MediaMessage) => {
  const attachments = message.getAttachments();
  if (Array.isArray(attachments) && attachments.length) {
    const attachment = attachments[0];
    const imageName = attachment.getName();

    const image = await fetch(attachment.getUrl());
    const imageBlob = await image.blob();
    const imageURL = URL.createObjectURL(imageBlob);

    const link = document.createElement("a");
    link.href = imageURL;
    link.download = imageName;
    document.body.appendChild(link);
    link.click();
    document.body.removeChild(link);
  }
};

The download option is then pushed to the default set of options for message type image. The default options for message type image and its template are fetched using the CometChatUIKit class. The download option is then pushed to the default set of message options for image message supported by the Angular UI Kit. The default options are fetched using the CometChatUIKit class.

TypeScript

let templates = CometChatUIKit.getDataSource().getAllMessageTemplates(this.themeService.theme)

//updating the options for image bubble
for (let i = 0; i < templates.length; i++) {
  if (templates[i].category == CometChatUIKitConstants.MessageCategory.message && templates[i].type == CometChatUIKitConstants.MessageTypes.image) {

    templates[i].options = (loggedInUser: CometChat.User, message: CometChat.BaseMessage, theme: CometChatTheme, group?: CometChat.Group | undefined) => {
      let options = CometChatUIKit.getDataSource().getTextMessageOptions(loggedInUser, message, theme, group)
      options.unshift(this.createOption(message, theme))
      return options
    }
    break;
  }
}

createOption(message: CometChat.BaseMessage, theme: CometChatTheme) {

  let mediaMessage = message as CometChat.MediaMessage;

  return new CometChatMessageOption({
    id: 'download',
    title: "Download",
    iconURL: "assets/star.svg",
    onClick: () => this.downloadImage(mediaMessage),
    iconTint: theme.palette.getAccent600(),
    backgroundColor: "transparent",
    titleFont: fontHelper(theme.typography.subtitle1),
    titleColor: theme.palette.getAccent600()
  })
}

downloadImage = async(message:CometChat.MediaMessage) => {

  const attachments = message.getAttachments();
  if(Array.isArray(attachments) && attachments.length) {

    const attachment = attachments[0];
    const imageName = attachment.getName();

    const image = await fetch(attachment.getUrl())
    const imageBlob = await image.blob()
    const imageURL = URL.createObjectURL(imageBlob)

    const link = document.createElement('a')
    link.href = imageURL
    link.download = imageName
    document.body.appendChild(link)
    link.click()
    document.body.removeChild(link);
  }
}

The message options are then passed to the ConversationsWithMessages component as a prop using MessagesConfiguration.

TypeScript

//creating new configuration
this.messagesConfiguration.messageListConfiguration.templates = templates;
this.messagesConfiguration = { ...this.messagesConfiguration };

Implementation

With the completion of each individual piece, we can now integrate all the code snippets to form the final code example.

Code

message-option.component.html
message-option.component.ts
app.component.html
app.module.ts

<cometchat-conversations-with-messages
  [messagesConfiguration]="messagesConfiguration"
></cometchat-conversations-with-messages>

import {
  Component,
  ElementRef,
  HostListener,
  OnInit,
  TemplateRef,
  ViewChild,
} from "@angular/core";
import { CometChat } from "@cometchat/chat-sdk-javascript";
import {
  CometChatMessageComposerAction,
  CometChatMessageEvents,
  CometChatMessageOption,
  CometChatMessageTemplate,
  CometChatTheme,
  CometChatUIKitConstants,
  fontHelper,
} from "@cometchat/uikit-resources";
import {
  MessagesConfiguration,
  ComposerId,
  CometChatUIKitHelper,
  CometChatUIKitUtility,
  MessageStatus,
} from "@cometchat/uikit-shared";
import {
  CometChatUIKit,
  CometChatThemeService,
} from "@cometchat/chat-uikit-angular";

import "@cometchat/uikit-elements"; //accesing web component image bubble

@Component({
  selector: "app-message-option",
  templateUrl: "./message-option.component.html",
  styleUrls: ["./message-option.component.scss"],
})
export class MessageOptionComponent implements OnInit {
  //template ref for text bubble
  @ViewChild("textBubbleRef") textBubbleRef!: TemplateRef<any>;
  messagesConfiguration: MessagesConfiguration = new MessagesConfiguration({});
  loggedInUser: CometChat.User | null = null;
  //accessing global theme object.
  constructor(private themeService: CometChatThemeService) {}

  //get the existing message template and  override text bubble options on init.
  ngOnInit() {
    CometChat.getLoggedinUser().then((user) => {
      this.loggedInUser = user;
    });
    //default templates
    let templates = CometChatUIKit.getDataSource().getAllMessageTemplates(
      this.themeService.theme
    );

    //updating the contentview for text bubble
    for (let i = 0; i < templates.length; i++) {
      if (
        templates[i].category ==
          CometChatUIKitConstants.MessageCategory.message &&
        templates[i].type == CometChatUIKitConstants.MessageTypes.image
      ) {
        //templates[i].contentView = () => { return this.textBubbleRef };
        templates[i].options = (
          loggedInUser: CometChat.User,
          message: CometChat.BaseMessage,
          theme: CometChatTheme,
          group?: CometChat.Group | undefined
        ) => {
          let options = CometChatUIKit.getDataSource().getTextMessageOptions(
            loggedInUser,
            message,
            theme,
            group
          );
          //if (!message.getSender() || (this.loggedInUser?.getUid() == message.getSender().getUid())) {
          options.unshift(this.createOption(message, theme));
          //}
          return options;
        };
        break;
      }
    }
    //creating new configuration
    this.messagesConfiguration.messageListConfiguration.templates = templates;
    this.messagesConfiguration = { ...this.messagesConfiguration };
  }

  createOption(message: CometChat.BaseMessage, theme: CometChatTheme) {
    let mediaMessage = message as CometChat.MediaMessage;

    return new CometChatMessageOption({
      id: "download",
      title: "Download",
      iconURL: "assets/star.svg",
      onClick: () => this.downloadImage(mediaMessage),
      iconTint: theme.palette.getAccent600(),
      backgroundColor: "transparent",
      titleFont: fontHelper(theme.typography.subtitle1),
      titleColor: theme.palette.getAccent600(),
    });
  }

  downloadImage = async (message: CometChat.MediaMessage) => {
    const attachments = message.getAttachments();
    if (Array.isArray(attachments) && attachments.length) {
      const attachment = attachments[0];
      const imageName = attachment.getName();

      const image = await fetch(attachment.getUrl());
      const imageBlob = await image.blob();
      const imageURL = URL.createObjectURL(imageBlob);

      const link = document.createElement("a");
      link.href = imageURL;
      link.download = imageName;
      document.body.appendChild(link);
      link.click();
      document.body.removeChild(link);
    }
  };
}

<app-message-option></app-message-option>

import { CUSTOM_ELEMENTS_SCHEMA, NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { AppComponent } from "./app.component";
import { CometChatConversationsWithMessages } from "@cometchat/chat-uikit-angular";
import { MessageOptionComponent } from "./message-option/message-option.component";

@NgModule({
  declarations: [AppComponent, MessageOptionComponent],
  imports: [BrowserModule, CometChatConversationsWithMessages],
  providers: [],
  bootstrap: [AppComponent],
  schemas: [CUSTOM_ELEMENTS_SCHEMA],
})
export class AppModule {}

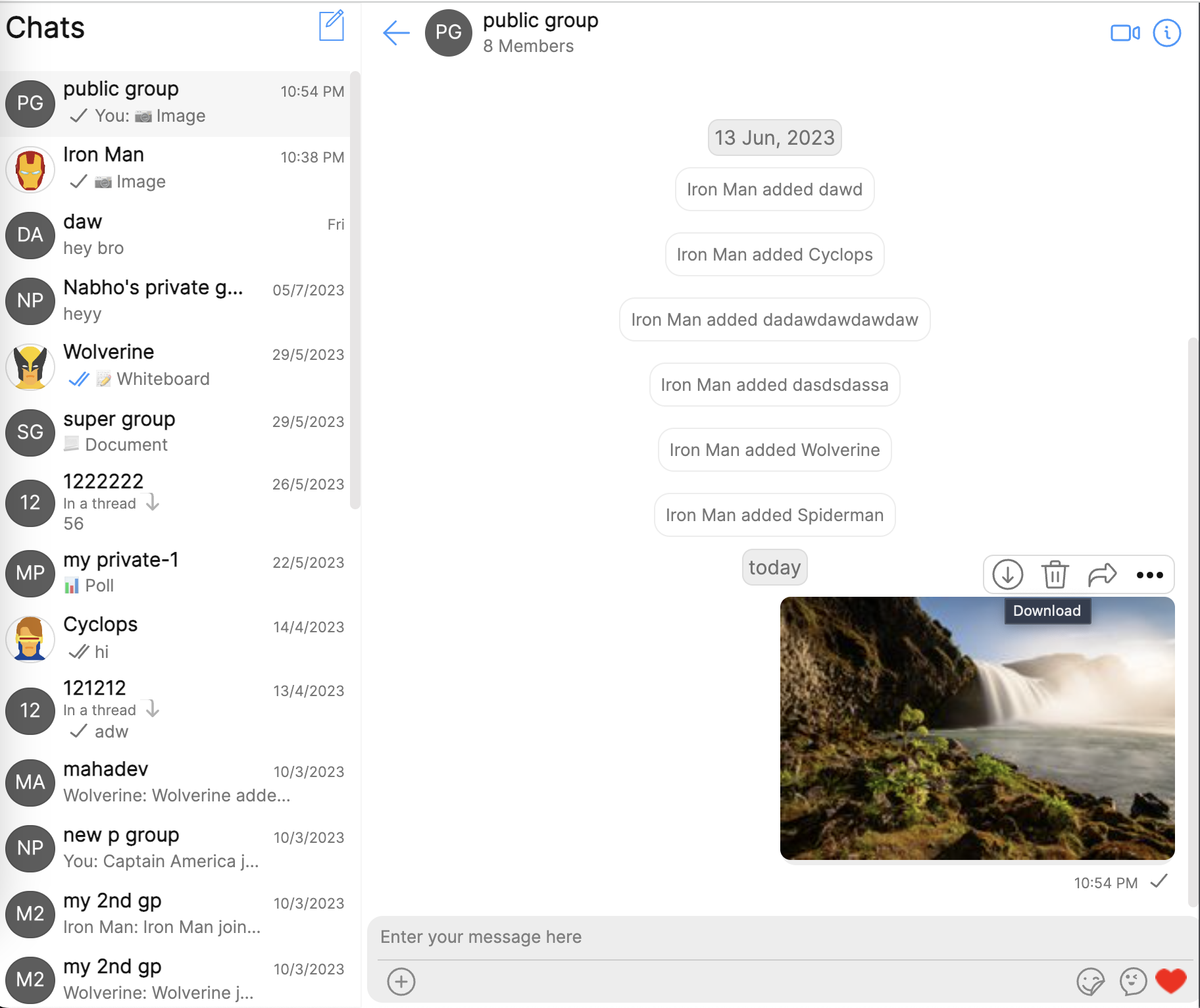

Result
